IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

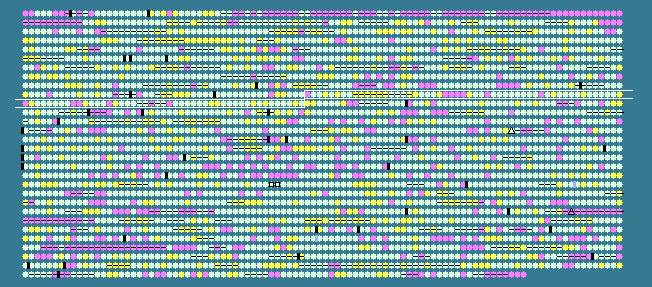

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
948	 68.86	0	1088643..1089554	+	303	148272126	-	CMM_0946	-	putative sugar ABC transporter, permease component
949	 73.91	0	1089587..1091449	+	620	148272127	-	CMM_0947	-	putative beta-glycosidase
950	 74.91	0	1091558..1092697	+	379	148272128	-	CMM_0948	-	LacI family transcriptional regulator
951	 76.67	0	1092708..1092917	-	69	148272129	-	CMM_0949	-	hypothetical protein
952	 74.05	0	1092917..1093471	-	184	148272130	-	CMM_0950	-	hypothetical protein
953	 76.88	+1	1093591..1094295	+	234	148272131	-	CMM_0951	-	hypothetical protein
954	 73.21	0	1094342..1095748	-	468	148272132	-	CMM_0952	-	putative MFS permease
955	 69.99	0	1095854..1097269	-	471	148272133	-	CMM_0953	-	putative MFS permease
956	 76.43	0	1097486..1097782	+	98	148272134	-	CMM_0954	-	hypothetical protein
957	 79.26	+1	1097779..1099572	-	597	148272135	-	CMM_0955	-	putative peptide ABC transporter, permease compound
958	 76.72	+1	1099572..1101113	-	513	148272136	-	CMM_0956	-	putative peptide ABC transporter, substrate-binding protein
959	 77.75	+1	1101103..1102527	-	474	148272137	-	CMM_0957	-	putative MFS permease
960	 78.74	+1	1102524..1103351	-	275	148272138	-	CMM_0958	-	putative peptide ABC transporter, ATP-binding protein
961	 78.75	+1	1103348..1104208	-	286	148272139	-	CMM_0959	-	putative peptide ABC transporter, ATP-binding protein
962	 75.57	0	1104310..1104792	-	160	148272140	ribH	CMM_0960	-	riboflavin synthase subunit beta
963	 73.18	0	1104789..1106123	-	444	148272141	ribAB	CMM_0961	-	3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II
964	 73.97	0	1106120..1106776	-	218	148272142	ribC	CMM_0962	-	riboflavin synthase subunit alpha
965	 78.71	+1	1106776..1107846	-	356	148272143	ribD	CMM_0963	-	diaminohydroxyphosphoribosylaminopyrimidine deaminase / 5-amino-6-(5-phosphoribosylamino)uracil reductase
966	 76.47	0	1108127..1108891	-	254	148272144	-	CMM_0964	-	putative hydrolase
967	 70.32	0	1108888..1109901	-	337	148272145	trpS	CMM_0965	-	tryptophanyl-tRNA synthetase
968	 71.75	0	1109984..1110829	-	281	148272146	xthA	CMM_0966	-	putative exonuclease III
969	 73.06	0	1110840..1111949	-	369	148272147	-	CMM_0967	-	membrane protein, putative ribonuclease
970	 77.17	+1	1112074..1113729	+	551	148272148	ptsA	CMM_0968	-	phosphoenolpyruvate--protein phosphatase
971	 66.93	-1	1113818..1114579	-	253	148272149	sdhB	CMM_0969	-	succinate dehydrogenase iron-sulfur subunit
972	 67.87	-1	1114637..1116460	-	607	148272150	sdhA	CMM_0970	-	succinate dehydrogenase flavoprotein subunit
973	 68.17	-1	1116493..1116957	-	154	148272151	sdhD	CMM_0971	-	putative succinate dehydrogenase, hydrophobic membrane subunit
974	 65.29	-1	1116960..1117394	-	144	148272152	sdhC	CMM_0972	-	succinate dehydrogenase, cytochrome b subunit
975	 76.72	+1	1117535..1118728	-	397	148272153	-	CMM_0973	-	putative mannosyl transferase
976	 71.93	0	1118828..1119949	+	373	148272154	manC	CMM_0974	-	hypothetical protein
977	 71.88	0	1120024..1121097	+	357	148272155	-	CMM_0975	-	putative ABC transporter, substrate-binding protein
978	 68.13	-1	1121248..1122342	+	364	148272156	-	CMM_0976	-	putative ABC transporter, substrate-binding protein
979	 71.27	0	1122424..1123965	+	513	148272157	-	CMM_0977	-	putative sugar ABC transporter, ATPase component
980	 72.98	0	1123962..1125338	+	458	148272158	-	CMM_0978	-	putative sugar ABC transporter, permease component
981	 71.19	0	1125335..1126639	+	434	148272159	-	CMM_0979	-	putative sugar ABC transporter, permease component
982	 72.81	0	1126645..1127067	+	140	148272160	cddA	CMM_0980	-	cytidine deaminase
983	 74.21	0	1127064..1128362	+	432	148272161	deoA	CMM_0981	-	thymidine phosphorylase
984	 73.61	0	1128418..1129353	-	311	148272162	iunH	CMM_0982	-	inosine-uridine preferring nucleoside hydrolase
985	 72.56	0	1129456..1130574	+	372	148272163	addA	CMM_0983	-	adenosine deaminase
986	 74.00	0	1130643..1131092	+	149	148272164	-	CMM_0984	-	phosphotransferase system mannitol/fructose-specific IIA component
987	 69.23	0	1131089..1131361	+	90	148272165	-	CMM_0985	-	hypothetical protein
988	 76.06	0	1131310..1132320	-	336	148272166	-	CMM_0986	-	hypothetical protein
989	 77.19	+1	1132317..1132943	-	208	148272167	-	CMM_0987	-	MerR family transcriptional regulator
990	 73.53	0	1133031..1134734	-	567	148272168	manB	CMM_0988	-	putative phosphomannomutase
991	 72.58	0	1134731..1135558	-	275	148272169	punA	CMM_0989	-	purine nucleoside phosphorylase
992	 71.59	0	1135649..1137091	+	480	148272170	lpdA	CMM_0990	-	flavoprotein disulfide reductase
993	 73.33	0	1137170..1138939	-	589	148272171	accA	CMM_0991	-	acetyl/propionyl CoA carboxylase subunit
994	 76.89	+1	1139062..1139589	+	175	148272172	-	CMM_0992	-	hypothetical protein
995	 76.04	0	1139611..1140282	-	223	148272173	-	CMM_0993	-	hypothetical protein
996	 73.85	0	1140337..1141602	+	421	148272174	-	CMM_0994	-	putative RNA methyltransferase
997	 73.05	0	1141702..1142406	+	234	148272175	-	CMM_0995	-	putative two component system, response regulator
998	 74.16	0	1142396..1143742	+	448	148272176	-	CMM_0996	-	putative two-component system, sensor kinase
999	 74.00	0	1143739..1144761	+	340	148272177	-	CMM_0997	-	hypothetical protein
1000	 80.34	+1	1145049..1145282	-	77	148272178	-	CMM_0998	-	hypothetical protein
1001	 69.27	0	1145279..1146892	-	537	148272179	accD	CMM_0999	-	putative acetyl/propionyl-CoA carboxylase beta chain
1002	 77.01	+1	1147000..1147782	+	260	148272180	-	CMM_1000	-	putative lipoate protein ligase
1003	 75.35	0	1147786..1148580	+	264	148272181	-	CMM_1001	-	hypothetical protein
1004	 72.45	0	1148600..1149118	-	172	148272182	-	CMM_1002	-	hypothetical protein
1005	 74.91	0	1149255..1150382	+	375	148272183	purK	CMM_1003	-	phosphoribosylaminoimidazole carboxylase ATPase subunit
1006	 72.57	0	1150437..1150961	+	174	148272184	purE	CMM_1004	-	phosphoribosylaminoimidazole carboxylase catalytic subunit
1007	 70.89	0	1150958..1152307	+	449	148272185	-	CMM_1005	-	putative transcriptional regulator
1008	 75.19	0	1152323..1153507	-	394	148272186	wcqB	CMM_1006	-	putative glycosyltransferase,mannosyltransferase
1009	 66.53	-1	1153554..1154300	-	248	148272187	wzt	CMM_1007	-	putative polysaccharide ABC transporter, ATP-binding protein
1010	 65.63	-1	1154284..1155153	-	289	148272188	wzm	CMM_1008	-	putative polysaccharide ABC-transporter,permease component
1011	 76.49	0	1155248..1156102	-	284	148272189	rmlD	CMM_1009	-	putative dTDP-4-dehydrorhamnose reductase
1012	 69.39	0	1156099..1157088	-	329	148272190	rmlB	CMM_1010	-	putative dTDP-glucose 4,6-dehydratase
1013	 73.73	0	1157269..1157721	+	150	148272191	wcqC	CMM_1011	-	putative sugar translocase
1014	 70.96	0	1157747..1158352	+	201	148272192	rmlC	CMM_1012	-	dTDP-4-dehydrorhamnose 3,5-epimerase
1015	 67.13	-1	1158356..1159219	+	287	148272193	rmlA	CMM_1013	-	putative glucose-1-phosphate thymidylyltransferase
1016	 76.58	0	1159283..1160260	-	325	148272194	wcqD	CMM_1014	-	putative NDP-sugar-epimerase
1017	 71.61	0	1160257..1161288	-	343	148272195	wcqE	CMM_1015	-	putative glycosyl transferase
1018	 73.10	0	1161285..1162139	-	284	148272196	wcqF	CMM_1016	-	putative glycosyl transferase
1019	 72.36	0	1162412..1164625	+	737	148272197	wcqG	CMM_1017	-	hypothetical protein
1020	 75.49	0	1164622..1165584	+	320	148272198	wcqH	CMM_1018	-	putative glycosyltransferase
1021	 74.09	0	1165776..1166624	+	282	148272199	wcqI	CMM_1019	-	putative glycosyltransferase
1022	 67.18	-1	1166692..1167855	+	387	148272200	glfA	CMM_1020	-	hypothetical protein
1023	 70.98	0	1167855..1169873	+	672	148272201	wcqJ	CMM_1021	-	putative glycosyltransferase
1024	 72.19	0	1170018..1171847	+	609	148272202	wcqK	CMM_1022	-	putative secreted protein
1025	 68.15	-1	1172007..1172477	+	156	148272203	wcqL	CMM_1023	-	hypothetical protein
1026	 73.55	0	1172505..1173797	-	430	148272204	wcqM	CMM_1024	-	hypothetical protein
1027	 74.61	0	1173846..1175393	-	515	148272205	wzy4	CMM_1025	-	membrane protein, putative polysaccharide polymerase
1028	 71.76	0	1175393..1176571	-	392	148272206	gcdH	CMM_1026	-	putative glutaryl-CoA dehydrogenase
1029	 74.94	0	1176737..1178029	+	430	148272207	manA	CMM_1027	-	putative mannose-6-phosphate isomerase
1030	 71.83	0	1178064..1179032	+	322	148272208	galE1	CMM_1028	-	hypothetical protein
1031	 70.13	0	1179182..1179499	+	105	148272209	whiB1	CMM_1029	-	transcriptional regulator whiB-like protein
1032	 77.62	+1	1179593..1182670	+	1025	148272210	wcqR	CMM_1030	-	putative glycosyl transferase
1033	 78.60	+1	1182675..1184174	+	499	148272211	-	CMM_1031	-	putative secreted protein
1034	 74.32	0	1184261..1184704	-	147	148272212	-	CMM_1032	-	hypothetical protein
1035	 70.83	0	1184750..1184965	+	71	148272213	-	CMM_1033	-	hypothetical protein
1036	 71.85	0	1184968..1186395	+	475	148272214	manB	CMM_1034	-	phosphomannomutase/phosphoglucomutase
1037	 71.47	0	1186485..1186817	+	110	148272215	-	CMM_1035	-	hypothetical protein
1038	 72.69	0	1186861..1187076	+	71	148272216	copP	CMM_1036	-	putative copper binding protein
1039	 76.65	0	1187078..1189552	+	824	148272217	copA	CMM_1037	-	putative metal-transporting ATPase
1040	 70.10	0	1189615..1191099	+	494	148272218	ahcY	CMM_1038	-	S-adenosyl-L-homocysteine hydrolase
1041	 78.06	+1	1191194..1192009	-	271	148272219	-	CMM_1039	-	hypothetical protein
1042	 72.99	0	1192080..1193075	+	331	148272220	-	CMM_1040	-	hypothetical protein
1043	 74.71	0	1193129..1195615	-	828	148272221	bglK	CMM_1041	-	beta-glucosidase
1044	 73.22	0	1195669..1196949	-	426	148272222	-	CMM_1042	-	putative MFS permease
1045	 74.61	0	1197061..1197702	+	213	148272223	-	CMM_1043	-	TetR family transcriptional regulator
1046	 78.13	+1	1197725..1199032	-	435	148272224	-	CMM_1044	-	hypothetical protein
1047	 73.90	0	1199047..1200000	-	317	148272225	-	CMM_1045	-	putative regulatory protein
72.78	MEAN

3.94	STD DEV
