IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

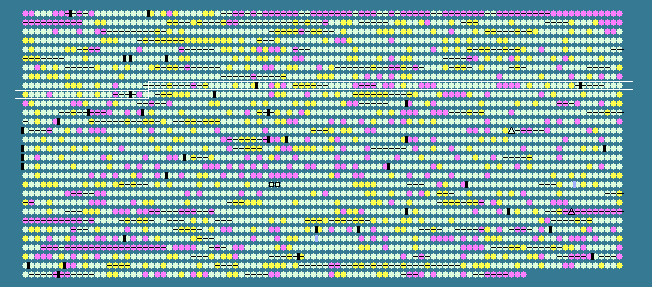

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
822	 72.72	0	929197..930732	+	511	148272000	wcoC	CMM_0821	-	putative undecaprenyl-phosphate sugar phosphotransferase
823	 72.26	0	930734..931966	+	410	148272001	wcoD	CMM_0822	-	putative glycosyltransferase
824	 73.43	0	931963..932790	+	275	148272002	wcoE	CMM_0823	-	putative phosphatidylglycerophosphate synthase
825	 77.21	+1	932787..934028	+	413	148272003	wcoF	CMM_0824	-	putative glycosyltransferase
826	 71.93	0	934078..939963	+	1961	148272004	wcoG	CMM_0825	-	putative cell surface protein
827	 73.96	0	940128..941498	+	456	148272005	wcoH	CMM_0826	-	hypothetical protein
828	 73.87	0	941495..942883	+	462	148272006	wcoI	CMM_0827	-	capsular polysaccharide synthesis enzyme
829	 53.58	-2	943579..944319	+	246	148272007	-	CMM_0828	-	hypothetical protein
830	 76.23	0	946682..947329	-	215	148272008	wcoK	CMM_0829	-	hypothetical protein
831	 76.69	0	947529..949463	-	644	148272009	-	CMM_0830	-	putative glycosyltransferase
832	 75.33	0	949624..950673	+	349	148272010	wcoM	CMM_0831	-	putative glycosyl transferase
833	 74.32	0	950845..952464	+	539	148272011	wzx3	CMM_0832	-	putative membrane protein involved in the export of polysaccharides
834	 74.23	0	952628..953671	+	347	148272012	wcoN	CMM_0833	-	putative nucleotide sugar epimerase
835	 74.57	0	953701..954522	-	273	148272013	wcoO	CMM_0834	-	hypothetical protein
836	 78.90	+1	954603..955109	+	168	148272014	wcoP	CMM_0835	-	MarR family transcriptional regulator
837	 75.69	0	955106..955870	+	254	148272015	wcoQ	CMM_0836	-	hypothetical protein
838	 72.60	0	955907..957742	-	611	148272016	wcoR	CMM_0837	-	glycoside hydrolase family protein
839	 76.40	0	957982..958515	+	177	148272017	-	CMM_0838	-	hypothetical protein
840	 71.37	0	959321..960616	+	431	148272018	-	CMM_0839	-	putative membrane bound metalloprotease
841	 73.14	0	960630..962003	+	457	148272019	-	CMM_0840	-	NPL/P60 family secreted protein
842	 67.80	-1	962140..962667	-	175	148272020	ipyA	CMM_0841	-	hypothetical protein
843	 78.56	+1	962722..963747	+	341	148272021	-	CMM_0842	-	putative cell cycle protein
844	 67.93	-1	963749..964300	+	183	148272022	hptA	CMM_0843	-	hypothetical protein
845	 69.62	0	964458..966458	+	666	148272023	ftsH	CMM_0844	-	cell division protein, membrane-bound ATP-dependent protease
846	 76.58	0	966463..967047	+	194	148272024	folE	CMM_0845	-	hypothetical protein
847	 77.89	+1	967044..967916	+	290	148272025	folP	CMM_0846	-	dihydropteroate synthase
848	 76.93	+1	967921..968631	+	236	148272026	-	CMM_0847	-	hypothetical protein
849	 76.66	0	968625..969515	+	296	148272027	folBK	CMM_0848	-	2-amino-4-hydroxy-6-hydroxymethyldihydropteridine pyrophosphokinase/dihydroneopterin aldolase
850	 76.19	0	969512..969994	+	160	148272028	-	CMM_0849	-	hypothetical protein
851	 75.05	0	970044..970532	+	162	148272029	-	CMM_0850	-	hypothetical protein
852	 75.98	0	970529..972331	+	600	148272030	-	CMM_0851	-	hypothetical protein
853	 76.25	0	972328..973089	+	253	148272031	-	CMM_0852	-	hypothetical protein
854	 75.09	0	973132..974010	+	292	148272032	panC	CMM_0853	-	pantoate--beta-alanine ligase
855	 71.34	0	974122..975663	+	513	148272033	lysS	CMM_0854	-	lysyl-tRNA synthetase
856	 65.87	-1	975670..975795	+	41	148272034	-	CMM_0855	-	hypothetical protein
857	 67.76	-1	975817..975999	+	60	148272035	-	CMM_0856	-	hypothetical protein
858	 68.02	-1	976162..978672	+	836	148272036	clpC	CMM_0857	-	ATP-dependent protease, ATPase subunit
859	 69.26	0	978839..979726	+	295	148272037	galE2	CMM_0858	-	putative UDP-glucose 4-epimerase
860	 71.06	0	979723..980700	+	325	148272038	-	CMM_0859	-	putative oxidoreductase
861	 66.28	-1	981002..981517	+	171	148272039	rplJ	CMM_0860	-	50S ribosomal protein L10
862	 68.49	-1	981593..981976	+	127	148272040	rplL	CMM_0861	-	50S ribosomal protein L7/L12
863	 76.05	0	982055..983674	-	539	148272041	-	CMM_0862	-	putative transcriptional regulator
864	 76.46	0	983800..984279	+	159	148272042	-	CMM_0863	-	MarR family transcriptional regulator
865	 73.07	0	984361..985593	+	410	148272043	-	CMM_0864	-	putative multidrug efflux MFS permease
866	 73.14	0	985636..986655	-	339	148272044	-	CMM_0865	-	LacI family transcription regulator
867	 68.42	-1	986970..988334	+	454	148272045	-	CMM_0866	-	putative alpha-glucoside ABC transporter,substrate-binding protein
868	 64.61	-2	988471..989442	+	323	148272046	-	CMM_0867	-	putative alpha-glucoside ABC transporter,permease component
869	 68.79	-1	989439..990428	+	329	148272047	-	CMM_0868	-	putative alpha-glucoside ABC transport system,permease component
870	 71.29	0	990551..992431	+	626	148272048	-	CMM_0869	-	ABC transporter permease/ATPase
871	 71.35	0	992488..993255	-	255	148272049	-	CMM_0870	-	hypothetical protein
872	 70.70	0	993258..994001	-	247	148272050	-	CMM_0871	-	hypothetical protein
873	 70.55	0	994171..995535	+	454	148272051	cysB	CMM_0872	-	putative cystathionine beta-synthase
874	 71.53	0	995583..996755	+	390	148272052	metB	CMM_0873	-	cystathionine gamma-synthase
875	 74.18	0	996801..997559	-	252	148272053	rnhA	CMM_0874	-	ribonuclease H
876	 73.41	0	997737..998759	+	340	148272054	-	CMM_0875	-	LacI family transcriptional regulator
877	 72.01	0	998939..1000642	+	567	148272055	araB	CMM_0876	-	ribulokinase
878	 71.03	0	1000639..1001349	+	236	148272056	araD	CMM_0877	-	L-ribulose-5-phosphate 4-epimerase
879	 70.03	0	1001346..1002863	+	505	148272057	araA	CMM_0878	-	L-arabinose isomerase
880	 66.76	-1	1002940..1004070	+	376	148272058	-	CMM_0879	-	putative sugar ABC transporter, substrate-binding protein
881	 65.62	-1	1004248..1005777	+	509	148272059	-	CMM_0880	-	putative sugar ABC transporter, ATPase component
882	 66.67	-1	1005783..1006970	+	395	148272060	-	CMM_0881	-	putative sugar ABC transporter, permease component
883	 69.01	0	1007319..1008512	-	397	148272061	xylA	CMM_0882	-	xylose isomerase
884	 73.12	0	1008717..1010219	+	500	148272062	bglJ	CMM_0883	-	beta-glucosidase
885	 77.25	+1	1010216..1010782	+	188	148272063	-	CMM_0884	-	putative acetyltransferase
886	 70.78	0	1010813..1011250	-	145	148272064	-	CMM_0885	-	MarR family transcriptional regulator
887	 71.43	0	1011375..1011710	-	111	148272065	-	CMM_0886	-	hypothetical protein
888	 78.89	+1	1011839..1012795	-	318	148272066	-	CMM_0887	-	hypothetical protein
889	 75.76	0	1012877..1013932	+	351	148272067	-	CMM_0888	-	hypothetical protein
890	 70.47	0	1014064..1015299	+	411	148272068	-	CMM_0889	-	putative MFS-type efflux transporter
891	 75.98	0	1015340..1016434	+	364	148272069	-	CMM_0890	-	hypothetical protein
892	 80.07	+1	1016431..1017318	-	295	148272070	strB	CMM_0891	-	putative streptomycin phosphotransferase
893	 73.58	0	1017315..1017965	-	216	148272071	-	CMM_0892	-	hypothetical protein
894	 75.73	0	1018383..1021241	-	952	148272072	-	CMM_0893	-	LuxR family transcriptional regulator
895	 73.55	0	1021575..1022228	-	217	148272073	-	CMM_0894	-	putative nucleoside-diphosphate-sugar epimerase
896	 71.72	0	1022461..1024578	+	705	148272074	ptaA	CMM_0895	-	phosphate acetyltransferase
897	 72.71	0	1024644..1025834	+	396	148272075	ackA	CMM_0896	-	hypothetical protein
898	 73.10	0	1026122..1031185	+	1687	148272076	-	CMM_0897	-	hypothetical protein
899	 70.42	0	1031353..1032204	+	283	148272077	-	CMM_0898	-	hypothetical protein
900	 72.52	0	1032201..1033412	+	403	148272078	-	CMM_0899	-	hypothetical protein
901	 76.46	0	1033458..1035938	+	826	148272079	-	CMM_0900	-	DNA polymerase III subunits gamma and tau
902	 70.00	0	1035945..1036544	+	199	148272080	recR	CMM_0901	-	recombination protein RecR
903	 70.22	0	1036654..1037919	+	421	148272081	lysC	CMM_0902	-	aspartate kinase
904	 74.41	0	1037969..1039066	+	365	148272082	asdA	CMM_0903	-	aspartate-semialdehyde dehydrogenase
905	 67.68	-1	1039154..1040632	+	492	148272083	mqoA	CMM_0904	-	malate:quinone oxidoreductase
906	 73.67	0	1040702..1041886	+	394	148272084	-	CMM_0905	-	hypothetical protein
907	 75.68	0	1041957..1042655	+	232	148272085	-	CMM_0906	-	putative two-component system, response regulator
908	 69.63	0	1042656..1043330	+	224	148272086	tdkA	CMM_0907	-	thymidine kinase
909	 71.61	0	1043686..1045080	+	464	148272087	-	CMM_0908	-	putative tyrosine-protein kinase
910	 76.87	+1	1045419..1046369	+	316	148272088	-	CMM_0909	-	hypothetical protein
911	 72.32	0	1046366..1048186	+	606	148272089	-	CMM_0910	-	hypothetical protein
912	 73.68	0	1048274..1048858	+	194	148272090	-	CMM_0911	-	hypothetical protein
913	 77.16	+1	1049131..1049721	+	196	148272091	-	CMM_0912	-	hypothetical protein
914	 75.19	0	1049761..1050288	-	175	148272092	-	CMM_0913	-	hypothetical protein
915	 75.25	0	1050375..1051388	+	337	148272093	-	CMM_0914	-	putative flavin-dependent oxidoreductase/monooxygenase
916	 67.87	-1	1051481..1053715	+	744	148272094	pbpC	CMM_0915	-	putative penicillin-binding protein
917	 73.30	0	1053861..1055141	+	426	148272095	-	CMM_0916	-	putative acyltransferase
918	 70.64	0	1055138..1055590	+	150	148272096	-	CMM_0917	-	hypothetical protein
919	 71.01	0	1055835..1056779	-	314	148272097	-	CMM_0918	-	putative phosphohydrolase
920	 68.36	-1	1056779..1059316	-	845	148272098	pbpD	CMM_0919	-	putative penicillin-binding protein
921	 70.49	0	1059422..1059604	+	60	148272099	-	CMM_0920	-	hypothetical protein
72.78	MEAN

3.94	STD DEV
