IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

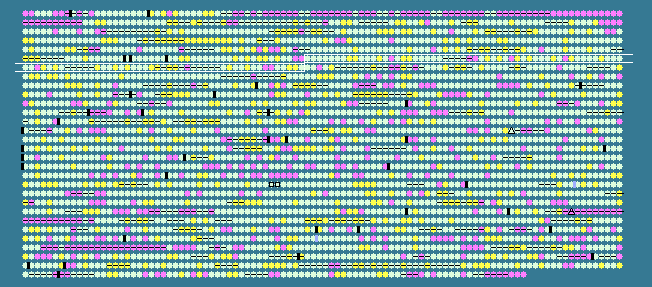

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 72.78   STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
548	 75.23	0	631147..631695	+	182	148271726	-	CMM_0547	-	ArsR family transcriptional regulator
549	 69.58	0	631818..632057	+	79	148271727	-	CMM_0548	-	putative DNA-binding protein, putative excisionase
550	 75.95	0	632357..633196	-	279	148271729	serB1	CMM_0549	-	putative phosphoserine phosphatase
551	 73.86	0	633187..633450	+	87	148271728	-	CMM_0550	-	putative thioredoxin
552	 72.94	0	633485..633787	+	100	148271730	-	CMM_0551	-	hypothetical protein
553	 76.16	0	633849..634880	+	343	148271731	-	CMM_0552	-	LacI family transcription regulator
554	 72.45	0	634993..636306	+	437	148271732	-	CMM_0553	-	putative sugar MFS-permease
555	 76.31	0	636303..637142	+	279	148271733	-	CMM_0554	-	putative hydrolase
556	 76.97	+1	637139..638380	+	413	148271734	-	CMM_0555	-	hypothetical protein
557	 74.84	0	638377..639012	-	211	148271735	-	CMM_0556	-	hypothetical protein
558	 73.15	0	639092..639307	-	71	148271736	-	CMM_0557	-	hypothetical protein
559	 71.17	0	639386..639718	-	110	148271737	-	CMM_0558	-	hypothetical protein
560	 77.62	+1	639896..640306	-	136	148271738	-	CMM_0559	-	hypothetical protein
561	 72.41	0	640299..641534	-	411	148271739	-	CMM_0560	-	putative transcriptional regulator
562	 68.27	-1	641710..643020	-	436	148271740	aspS	CMM_0561	-	aspartyl-tRNA synthetase
563	 74.82	0	643133..643966	+	277	148271741	-	CMM_0562	-	hypothetical protein
564	 77.29	+1	643963..644583	+	206	148271742	-	CMM_0563	-	putative allophanate hydrolase subunit
565	 78.65	+1	644580..645497	+	305	148271743	-	CMM_0564	-	putative allophanate hydrolase subunit
566	 73.31	0	645549..646376	-	275	148271744	-	CMM_0565	-	hypothetical protein
567	 74.34	0	646496..648985	-	829	148271745	-	CMM_0566	-	putative excinuclease ABC subunit A
568	 70.31	0	649537..650580	-	347	148271746	sigB	CMM_0567	-	putative RNA polymerase sigma 70 factor
569	 73.02	0	650896..651540	+	214	148271747	-	CMM_0568	-	putative phosphoglycerate mutase
570	 71.92	0	651540..652148	+	202	148271748	ccbD	CMM_0569	-	putative thioredoxin
571	 71.39	0	652149..652889	+	246	148271749	ccdA	CMM_0570	-	cytochrome C biogenesis membrane protein
572	 70.55	0	652873..654519	+	548	148271750	resB	CMM_0571	-	putative cytochrome C biogenesis membrane protein
573	 70.86	0	654516..655541	+	341	148271751	resC	CMM_0572	-	putative cytochrome C-type biogenesis protein
574	 75.30	0	655571..656554	-	327	148271752	menC	CMM_0573	-	O-succinylbenzoate synthase
575	 60.97	-2	656631..657806	+	391	148271753	-	CMM_0574	-	putative cytosine-specific DNA methylase
576	 61.16	-2	657850..658593	+	247	148271754	-	CMM_0575	-	hypothetical protein
577	 71.49	0	658675..659586	+	303	148271755	menB	CMM_0576	-	naphthoate synthase
578	 78.45	+1	659612..660799	+	395	148271756	menE	CMM_0577	-	O-succinylbenzoate--CoA ligase
579	 74.19	0	660845..661828	-	327	148271757	-	CMM_0578	-	putative quinone reductase
580	 77.31	+1	661825..662256	-	143	148271758	-	CMM_0579	-	MarR family transcriptional regulator
581	 71.16	0	662376..662798	+	140	148271759	-	CMM_0580	-	hypothetical protein
582	 66.09	-1	662903..663076	-	57	148271760	-	CMM_0581	-	hypothetical protein
583	 76.42	0	663209..663526	+	105	148271761	-	CMM_0582	-	hypothetical protein
584	 75.25	0	663516..663911	-	131	148271762	-	CMM_0583	-	putative NTP pyrophosphohydrolase
585	 76.90	+1	664071..664676	-	201	148271763	-	CMM_0584	-	putative acetyltransferase
586	 73.06	0	664690..665268	-	192	148271764	-	CMM_0585	-	putative acetyltransferase
587	 74.85	0	665325..666644	-	439	148271765	hemA	CMM_0586	-	glutamyl-tRNA reductase
588	 74.73	0	666749..667876	+	375	148271766	hemE	CMM_0587	-	uroporphyrinogen decarboxylase
589	 77.99	+1	667869..669308	+	479	148271767	hemY	CMM_0588	-	hypothetical protein
590	 70.76	0	669436..669777	+	113	148271768	-	CMM_0589	-	hypothetical protein
591	 64.99	-1	669810..670226	+	138	148271769	-	CMM_0590	-	hypothetical protein
592	 76.45	0	670216..670491	+	91	148271770	-	CMM_0591	-	hypothetical protein
593	 75.95	0	670513..672150	+	545	148271771	-	CMM_0592	-	hypothetical protein
594	 74.82	0	672238..672801	+	187	148271772	-	CMM_0593	-	hypothetical protein
595	 72.05	0	672863..673642	+	259	148271773	-	CMM_0594	-	hypothetical protein
596	 71.70	0	673642..674892	+	416	148271774	hemH	CMM_0595	-	ferrochelatase
597	 77.10	+1	674889..675875	+	328	148271775	hemC	CMM_0596	-	porphobilinogen deaminase
598	 74.40	0	675872..676711	+	279	148271776	hemD	CMM_0597	-	hypothetical protein
599	 72.68	0	676708..677688	+	326	148271777	hemB	CMM_0598	-	delta-aminolevulinic acid dehydratase
600	 74.85	0	677771..679138	+	455	148271778	hemL	CMM_0599	-	glutamate-1-semialdehyde 2,1-aminomutase
601	 74.21	0	679197..680018	-	273	148271779	-	CMM_0600	-	DNA/RNA endonuclease
602	 72.10	0	680102..680764	-	220	148271780	hemO	CMM_0601	-	Heme oxygenase (decyclizing)
603	 66.67	-1	680840..681232	-	130	148271781	-	CMM_0602	-	hypothetical protein
604	 77.39	+1	681317..682342	-	341	148271782	-	CMM_0603	-	putative Zinc-dependant oxidoreductase
605	 71.93	0	682375..683400	-	341	148271783	pfkA	CMM_0604	-	hypothetical protein
606	 77.26	+1	683439..684146	+	235	148271784	-	CMM_0605	-	putative kinase
607	 69.66	0	684157..684657	-	166	148271785	-	CMM_0606	-	putative general stress protein
608	 76.09	0	684723..685688	+	321	148271786	-	CMM_0607	-	putative DNA repair protein
609	 72.00	0	685740..686546	-	268	148271787	-	CMM_0608	-	hypothetical protein
610	 73.58	0	686616..687569	+	317	148271788	-	CMM_0609	-	putative aldose-1-epimerase
611	 72.22	0	687668..688135	+	155	148271789	-	CMM_0610	-	putative glyoxylase family protein
612	 75.60	0	688242..688700	+	152	148271790	-	CMM_0611	-	MarR family transcriptional regulator
613	 76.57	0	688722..689468	-	248	148271791	-	CMM_0612	-	hypothetical protein
614	 75.87	0	689561..691201	-	546	148271792	sacC	CMM_0613	-	putative levanase/invertase
615	 70.11	0	691469..693034	+	521	148271793	sacB	CMM_0614	-	putative levansucrase
616	 80.43	+1	693118..693771	+	217	148271794	-	CMM_0615	-	hypothetical protein
617	 74.38	0	693943..694707	+	254	148271795	-	CMM_0616	-	hypothetical protein
618	 78.86	+1	694704..695531	+	275	148271796	-	CMM_0617	-	hypothetical protein
619	 75.97	0	695606..696508	-	300	148271797	-	CMM_0618	-	LysR family transcriptional regulator
620	 73.05	0	696681..700331	+	1216	148271798	putA	CMM_0619	-	delta-1-pyrroline-5-carboxylate dehydrogenase /proline oxidase
621	 75.76	0	700353..700484	+	43	148271799	-	CMM_0620	-	hypothetical protein
622	 78.30	+1	700481..701185	+	234	148271800	-	CMM_0621	-	hypothetical protein
623	 78.76	+1	701209..701787	+	192	148271801	-	CMM_0622	-	putative 4'-phosphopantetheinyl transferase
624	 75.19	0	701792..703105	-	437	148271802	-	CMM_0623	-	metalloendopeptidase family M1
625	 76.37	0	703102..707304	-	1400	148271803	npsC	CMM_0624	-	non-ribosomal peptide synthase
626	 79.13	+1	707376..707744	-	122	148271804	-	CMM_0625	-	hypothetical protein
627	 70.70	0	707868..708239	+	123	148271805	-	CMM_0626	-	hypothetical protein
628	 60.07	-2	709446..716102	+	2218	148271806	-	CMM_0627	-	hypothetical protein
629	 72.37	0	716740..717177	-	145	148271807	-	CMM_0628	-	AsnC family transcriptional regulator
630	 69.99	0	717361..718203	+	280	148271808	-	CMM_0629	-	hypothetical protein
631	 74.54	0	718242..719486	+	414	148271809	rocD	CMM_0630	-	putative ornithine aminotransferase
632	 72.29	0	719607..720104	+	165	148271810	-	CMM_0631	-	hypothetical protein
633	 72.38	0	720135..720782	+	215	148271811	-	CMM_0632	-	hypothetical protein
634	 75.93	0	720800..721792	-	330	148271812	-	CMM_0633	-	permease DMT family
635	 76.87	+1	721857..722258	-	133	148271813	-	CMM_0634	-	hypothetical protein
636	 71.53	0	722346..723230	-	294	148271814	-	CMM_0635	-	putative NDP-sugar epimerase
637	 73.62	0	723227..723643	-	138	148271815	-	CMM_0636	-	hypothetical protein
638	 77.91	+1	723640..724875	-	411	148271816	-	CMM_0637	-	benzoate transport protein BenE family
639	 75.87	0	725136..726395	+	419	148271817	-	CMM_0638	-	M23 family membrane bound metalloendopeptidase
640	 76.21	0	726453..727175	+	240	148271818	-	CMM_0639	-	hypothetical protein
641	 65.79	-1	727339..727794	+	151	148271819	-	CMM_0640	-	hypothetical protein
642	 67.93	-1	727797..728033	+	78	148271820	-	CMM_0641	-	hypothetical protein
643	 75.69	0	728165..728962	+	265	148271821	-	CMM_0642	-	hypothetical protein
644	 71.97	0	729154..730227	+	357	148271822	-	CMM_0643	-	putative oxidoreductase
645	 76.42	0	730274..731011	-	245	148271823	-	CMM_0644	-	putative two-component system, response regulator
646	 76.58	0	731008..732228	-	406	148271824	-	CMM_0645	-	putative two-component system sensor kinase
647	 72.83	0	732294..732650	-	118	148271825	-	CMM_0646	-	hypothetical protein
72.78	MEAN

3.94	STD DEV
