IslandPathversion 1.0

IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

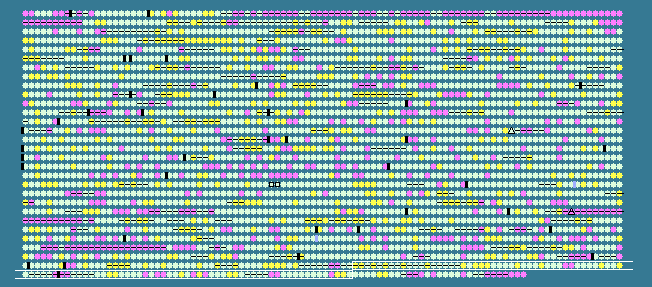

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2856	 79.38	+1	3177707..3178060	+	117	148274034	-	CMM_2850	-	hypothetical protein
2857	 76.90	+1	3178108..3178713	+	201	148274035	-	CMM_2851	-	hypothetical protein
2858	 72.22	0	3178770..3179507	+	245	148274036	-	CMM_2852	-	ZIP family zinc transporter,
2859	 77.48	+1	3179562..3180116	-	184	148274037	-	CMM_2853	-	MarR family transcriptional regulator
2860	 75.83	0	3180258..3182069	+	603	148274038	-	CMM_2854	-	hypothetical protein
2861	 76.93	+1	3182066..3183478	+	470	148274039	-	CMM_2855	-	multidrug exporter MOPMATE family membrane protein
2862	 74.56	0	3183494..3184354	-	286	148274040	-	CMM_2856	-	putative aldo/keto reductase
2863	 74.38	0	3184406..3184846	-	146	148274041	-	CMM_2857	-	hypothetical protein
2864	 76.67	0	3184856..3185875	-	339	148274042	-	CMM_2858	-	S-isoprenylcysteine methyltransferase-like protein
2865	 75.19	0	3185872..3186387	-	171	148274043	-	CMM_2859	-	hypothetical protein
2866	 74.12	0	3186445..3186981	+	178	148274044	-	CMM_2860	-	hypothetical protein
2867	 75.76	0	3187048..3187608	+	186	148274045	-	CMM_2861	-	putative acetyltransferase
2868	 77.65	+1	3187605..3188123	-	172	148274046	-	CMM_2862	-	putative acetyltransferase
2869	 75.21	0	3188177..3188785	+	202	148274047	-	CMM_2863	-	hypothetical protein
2870	 74.39	0	3188818..3189879	+	353	148274048	-	CMM_2864	-	membrane protein, putative DMT transporter
2871	 70.98	0	3189889..3190584	+	231	148274049	-	CMM_2865	-	hypothetical protein
2872	 74.44	0	3190640..3191359	+	239	148274050	-	CMM_2866	-	putative hydrolase
2873	 70.78	0	3191473..3191934	+	153	148274051	-	CMM_2867	-	MarR family transcriptional regulator
2874	 76.78	+1	3191994..3192863	+	289	148274052	-	CMM_2868	-	putative membrane-bound Zn-dependent protease
2875	 75.41	0	3193115..3194224	+	369	148274053	-	CMM_2869	-	hypothetical protein
2876	 76.54	0	3194287..3194934	+	215	148274054	-	CMM_2870	-	hypothetical protein
2877	 76.39	0	3194955..3196445	-	496	148274055	pgaA	CMM_2871	-	hypothetical protein
2878	 76.47	0	3196563..3197429	-	288	148274056	-	CMM_2872	-	putative hydrolase/acyltransferase
2879	 70.49	0	3197579..3198913	+	444	148274057	-	CMM_2873	-	diaminobutyrate--2-oxoglutarate aminotransferase
2880	 71.84	0	3198968..3199315	-	115	148274058	-	CMM_2874	-	hypothetical protein
2881	 73.29	0	3199354..3199821	-	155	148274059	-	CMM_2875	-	hypothetical protein
2882	 76.02	0	3199850..3200512	-	220	148274060	-	CMM_2876	-	putative two-component system, response regulator
2883	 77.41	+1	3200509..3202332	-	607	148274061	-	CMM_2877	-	putative two-component system, sensor kinase
2884	 70.87	0	3202468..3203919	+	483	148274062	-	CMM_2878	-	citrate transporter
2885	 73.47	0	3204043..3205512	-	489	148274063	-	CMM_2879	-	hypothetical protein
2886	 74.77	0	3205613..3206044	-	143	148274064	-	CMM_2880	-	hypothetical protein
2887	 78.07	+1	3206148..3207173	+	341	148274065	-	CMM_2881	-	LysR family transcriptional regulator
2888	 73.50	0	3207204..3207935	-	243	148274066	-	CMM_2882	-	hypothetical protein
2889	 73.28	0	3208085..3208432	+	115	148274067	-	CMM_2883	-	hypothetical protein
2890	 70.01	0	3208462..3209358	-	298	148274068	ubiA	CMM_2884	-	prenyltransferase
2891	 64.77	-2	3209351..3209719	-	122	148274069	crtY2	CMM_2885	-	putative C50 carotenoid epsilon cyclase
2892	 68.41	-1	3209716..3210060	-	114	148274070	crtY1	CMM_2886	-	putative C50 carotenoid epsilon cyclase
2893	 73.28	0	3210060..3212705	-	881	148274071	crtBI	CMM_2887	-	putative bifunctional phytoene synthase/phytoene dehydrogenase
2894	 72.73	0	3212702..3213724	-	340	148274072	crtE	CMM_2888	-	putative geranylgeranyl pyrophosphate synthase
2895	 73.16	0	3213817..3214401	+	194	148274073	idiA	CMM_2889	-	isopentenyl-diphosphate delta-isomerase
2896	 74.18	0	3214474..3215352	-	292	148274074	-	CMM_2890	-	putative phospholipase
2897	 79.83	+1	3215480..3216064	-	194	148274075	-	CMM_2891	-	MarR family transcriptional regulator
2898	 75.13	0	3216142..3218220	+	692	148274076	-	CMM_2892	-	RND family transporter
2899	 73.17	0	3218297..3219049	+	250	148274077	-	CMM_2893	-	putative short chain dehydrogenase/oxidoreductase
2900	 79.15	+1	3219046..3219654	-	202	148274078	-	CMM_2894	-	TetR family transcriptional regulator
2901	 75.87	0	3219715..3220203	+	162	148274079	-	CMM_2895	-	hypothetical protein
2902	 72.58	0	3220506..3221165	-	219	148274080	-	CMM_2896	-	hypothetical protein
2903	 71.12	0	3221309..3222004	-	231	148274081	-	CMM_2897	-	hypothetical protein
2904	 71.68	0	3222082..3223197	-	371	148274082	aldA	CMM_2898	-	putative L-alanine dehydrogenase
2905	 72.53	0	3223363..3223857	+	164	148274083	-	CMM_2899	-	leucine-responsive regulatory protein
2906	 67.66	-1	3223871..3224476	-	201	148274084	dcd	CMM_2900	-	deoxycytidine triphosphate deaminase
2907	 52.13	-2	3224825..3227245	+	806	148274085	-	CMM_2901	-	hypothetical protein
2908	 60.46	-2	3228028..3228462	-	144	148274086	-	CMM_2902	-	hypothetical protein
2909	 70.24	0	3228643..3229398	+	251	148274087	-	CMM_2903	-	putative ABC transporter, ATP-binding protein
2910	 71.59	0	3229398..3230696	+	432	148274088	-	CMM_2904	-	hypothetical protein
2911	 72.76	0	3230693..3231316	+	207	148274089	-	CMM_2905	-	hypothetical protein
2912	 73.20	0	3231313..3232077	-	254	148274090	-	CMM_2906	-	GntR family transcriptional regulator
2913	 71.68	0	3232226..3232744	+	172	148274091	gntK	CMM_2907	-	putative gluconokinase
2914	 69.45	0	3232827..3234227	+	466	148274092	gntP	CMM_2908	-	gluconate permease
2915	 78.30	+1	3234224..3234799	-	191	148274093	-	CMM_2909	-	putative pyridoxamine 5-phosphate oxidase
2916	 77.04	+1	3234844..3235653	-	269	148274094	-	CMM_2910	-	putative DNA glycosylase/endonuclease VIII
2917	 70.35	0	3235699..3236730	-	343	148274095	-	CMM_2911	-	hypothetical protein
2918	 72.02	0	3237001..3237747	+	248	148274096	-	CMM_2912	-	putative short-chain dehydrogenase/oxidoreductase
2919	 75.22	0	3237806..3238822	+	338	148274097	-	CMM_2913	-	putative oxidoreductase
2920	 72.01	0	3238887..3239504	+	205	148274098	-	CMM_2914	-	putative reductase
2921	 69.05	0	3239594..3240769	-	391	148274099	-	CMM_2915	-	putative Zn-dependant dehydrogenase
2922	 70.94	0	3241144..3241494	-	116	148274100	-	CMM_2916	-	hypothetical protein
2923	 67.90	-1	3241651..3241974	-	107	148274101	-	CMM_2917	-	hypothetical protein
2924	 67.16	-1	3242226..3242429	+	67	148274102	-	CMM_2918	-	hypothetical protein
2925	 73.44	0	3242535..3243257	+	240	148274103	deoC	CMM_2919	-	deoxyribose-phosphate aldolase
2926	 76.00	0	3243257..3244552	+	431	148274104	-	CMM_2920	-	putative aminopeptidase 2
2927	 76.47	0	3244634..3245347	-	237	148274105	-	CMM_2921	-	hypothetical protein
2928	 74.65	0	3245403..3246053	+	216	148274106	-	CMM_2922	-	putative dienelactone hydrolase
2929	 68.10	-1	3246154..3246573	+	139	148274107	-	CMM_2923	-	hypothetical protein
2930	 77.73	+1	3246688..3247383	+	231	148274108	-	CMM_2924	-	hypotheical membrane protein
2931	 69.20	0	3247415..3248716	-	433	148274109	-	CMM_2925	-	putative helicase
2932	 74.71	0	3248847..3249866	+	339	148274110	-	CMM_2926	-	hypothetical protein
2933	 71.79	0	3249982..3250410	+	142	148274111	-	CMM_2927	-	hypothetical protein
2934	 74.14	0	3250434..3251276	-	280	148274112	fecE	CMM_2928	-	putative iron-siderophore ABC transporter, ATP-binding protein
2935	 77.24	+1	3251311..3252417	-	368	148274113	fecD2	CMM_2929	-	putative iron-siderophore ABC transporter,permease component
2936	 77.15	+1	3252414..3253472	-	352	148274114	fecC2	CMM_2930	-	putative iron-siderophore ABC transporter,permease component
2937	 72.04	0	3253575..3254579	+	334	148274115	fecB2	CMM_2931	-	putative iron-siderophore ABC transporter,substrate-binding protein
2938	 74.96	0	3254708..3255382	+	224	148274116	-	CMM_2932	-	hypothetical protein
2939	 71.41	0	3255416..3257395	-	659	148274117	-	CMM_2933	-	membrane protein, putative copper export protein
2940	 70.14	0	3257527..3257814	-	95	148274118	hupB	CMM_2934	-	putative DNA-binding protein HU
2941	 69.93	0	3257946..3258251	-	101	148274119	rpsN	CMM_2935	-	30S ribosomal protein S14
2942	 64.29	-2	3258254..3258421	-	55	148274120	rpmG	CMM_2936	-	50S ribosomal protein L33
2943	 63.71	-2	3258421..3258657	-	78	148274121	rpmB	CMM_2937	-	50S ribosomal protein L28
2944	 74.89	0	3258872..3259321	-	149	148274122	furB	CMM_2938	-	ferric uptake regulator family protein
2945	 70.77	0	3259318..3260244	-	308	148274123	-	CMM_2939	-	putative metal ABC transporter, permease component
2946	 74.09	0	3260241..3261116	-	291	148274124	-	CMM_2940	-	putative metal ABC transporter, ATP-binding protein
2947	 70.75	0	3261113..3262066	-	317	148274125	-	CMM_2941	-	putative metal ABC transporter, substrate-binding protein
2948	 72.16	0	3262136..3263536	-	466	148274126	-	CMM_2942	-	branched-chain alpha-keto acid dehydrogenase subunit E2
2949	 71.50	0	3263577..3264632	-	351	148274127	-	CMM_2943	-	putative 2-keto acid dehydrogenase,dehydrogenase E1 beta component
2950	 71.34	0	3264629..3265741	-	370	148274128	-	CMM_2944	-	putative 2-keto acid dehydrogenase,dehydrogenase E1 beta component
2951	 74.10	0	3265751..3266866	-	371	148274129	hisC2	CMM_2945	-	putative aminotransferase
2952	 67.68	-1	3266937..3267332	+	131	148274130	-	CMM_2946	-	hypothetical protein
2953	 77.49	+1	3267341..3268615	-	424	148274131	-	CMM_2947	-	hypothetical protein
2954	 78.59	+1	3268612..3268938	-	108	148274132	-	CMM_2948	-	hypothetical protein
2955	 72.73	0	3269071..3269598	+	175	148274133	-	CMM_2949	-	putative protein-tyrosine-phosphatase
72.78	MEAN

3.94	STD DEV
