IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

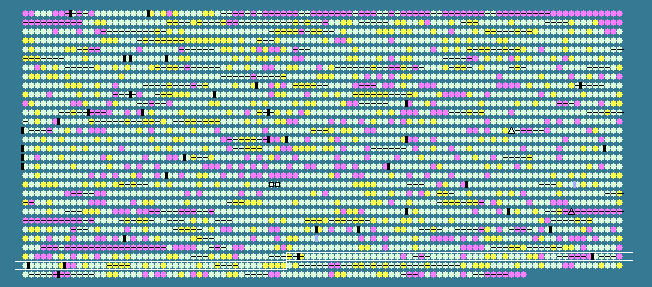

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2745	 76.62	0	3070638..3071813	+	391	148273923	-	CMM_2739	-	putative two component system, sensor kinase
2746	 75.36	0	3071814..3072434	+	206	148273924	-	CMM_2740	-	putative two-component system, response regulator
2747	 79.90	+1	3072689..3073270	-	193	148273925	-	CMM_2741	-	hypothetical protein
2748	 75.23	0	3073439..3074080	+	213	148273926	-	CMM_2742	-	putative hydrolase
2749	 72.29	0	3074136..3074864	-	242	148273927	-	CMM_2743	-	hypothetical protein
2750	 75.07	0	3074915..3075628	-	237	148273928	-	CMM_2744	-	hypothetical protein
2751	 74.10	0	3076020..3076745	+	241	148273929	-	CMM_2745	-	putative F420-dependent NADP reductase
2752	 71.66	0	3076755..3077555	+	266	148273930	-	CMM_2746	-	membrane protein, putative permease
2753	 73.33	0	3077633..3077902	+	89	148273931	-	CMM_2747	-	Cro/CI family transcriptional regulator
2754	 72.65	0	3077895..3079214	+	439	148273932	-	CMM_2748	-	hypothetical protein
2755	 74.92	0	3079341..3079994	+	217	148273933	-	CMM_2749	-	hypothetical protein
2756	 75.24	0	3080032..3080556	+	174	148273934	-	CMM_2750	-	hypothetical protein
2757	 69.65	0	3080942..3082618	+	558	148273935	kdpA	CMM_2751	-	potassium-transporting ATPase subunit A
2758	 71.87	0	3082615..3084765	+	716	148273936	kdpB	CMM_2752	-	putative potassium-transporting ATPase B chain,P-type ATPase
2759	 73.23	0	3084808..3085416	+	202	148273937	kdpC	CMM_2753	-	putative potassium-transporting ATPase C chain,P-type ATPase
2760	 74.91	0	3085448..3087994	+	848	148273938	kdpD	CMM_2754	-	putative two-component system, sensor kinase
2761	 73.19	0	3087991..3088695	+	234	148273939	kdpE	CMM_2755	-	putative two-component system, response regulator
2762	 75.00	0	3088749..3089528	+	259	148273940	-	CMM_2756	-	putative esterase/lipase
2763	 72.22	0	3089570..3089929	+	119	148273941	-	CMM_2757	-	hypothetical protein
2764	 62.38	-2	3089943..3090152	-	69	148273942	-	CMM_2758	-	hypothetical protein
2765	 73.06	0	3090292..3091683	+	463	148273943	-	CMM_2759	-	DNA repair protein RadA
2766	 72.38	0	3091723..3092037	-	104	148273944	-	CMM_2760	-	ArsR family transcriptional regulator
2767	 67.30	-1	3092149..3092307	-	52	148273945	-	CMM_2761	-	hypothetical protein
2768	 72.97	0	3092425..3093090	-	221	148273946	-	CMM_2762	-	hypothetical protein
2769	 69.98	0	3093169..3093711	-	180	148273947	-	CMM_2763	-	N-acetylglutamate synthase
2770	 75.82	0	3093763..3094035	-	90	148273948	-	CMM_2764	-	hypothetical protein
2771	 75.97	0	3094037..3095713	-	558	148273949	-	CMM_2765	-	putative two-component system, sensor kinase
2772	 70.54	0	3095710..3096483	-	257	148273950	-	CMM_2766	-	putative two-component system, response regulator
2773	 74.97	0	3096554..3097384	-	276	148273951	-	CMM_2767	-	hypothetical protein
2774	 65.01	-1	3097455..3098483	-	342	148273952	-	CMM_2768	-	membrane protein, putative exporter
2775	 72.42	0	3098668..3099606	-	312	148273953	-	CMM_2769	-	hypothetical protein
2776	 72.35	0	3099603..3100676	-	357	148273954	-	CMM_2770	-	hypothetical protein
2777	 74.07	0	3100799..3101581	-	260	148273955	-	CMM_2771	-	putative multidrug ABC transporter, permease component
2778	 77.64	+1	3101578..3102534	-	318	148273956	-	CMM_2772	-	putative ABC transporter, ATP-binding protein
2779	 76.78	+1	3102527..3103495	-	322	148273957	-	CMM_2773	-	putative nitroreductase
2780	 76.09	0	3103554..3104816	-	420	148273958	-	CMM_2774	-	hypothetical protein
2781	 76.32	0	3104813..3105724	-	303	148273959	-	CMM_2775	-	hypothetical protein
2782	 72.30	0	3105735..3105947	-	70	148273960	-	CMM_2776	-	hypothetical protein
2783	 72.85	0	3106119..3106781	+	220	148273961	-	CMM_2777	-	hypothetical protein
2784	 73.98	0	3106979..3108031	+	350	148273962	-	CMM_2778	-	putative zinc-dependant oxidoreductase
2785	 77.89	+1	3108196..3109407	-	403	148273963	-	CMM_2779	-	putative carboxylesterase
2786	 76.33	0	3109404..3110396	-	330	148273964	-	CMM_2780	-	hypothetical protein
2787	 67.27	-1	3110396..3111220	-	274	148273965	-	CMM_2781	-	putative sugar ABC transporter, permease component
2788	 70.18	0	3111217..3112212	-	331	148273966	-	CMM_2782	-	putative sugar ABC transporter, permease component
2789	 69.56	0	3112209..3113558	-	449	148273967	-	CMM_2783	-	putative sugar ABC transporter, substrate binding protein
2790	 74.86	0	3113760..3114845	+	361	148273968	-	CMM_2784	-	LacI family transcriptional regulator
2791	 75.88	0	3114871..3115467	-	198	148273969	-	CMM_2785	-	putative acetyltransferase
2792	 69.14	0	3115572..3116258	-	228	148273970	rplA	CMM_2786	-	50S ribosomal protein L1
2793	 66.44	-1	3116358..3116789	-	143	148273971	rplK	CMM_2787	-	50S ribosomal protein L11
2794	 68.62	-1	3116843..3117865	-	340	148273972	nusG	CMM_2788	-	putative transcription antitermination protein
2795	 64.84	-2	3118053..3118325	-	90	148273973	secE	CMM_2789	-	preprotein translocase subunit SecE
2796	 71.79	0	3118661..3119890	+	409	148273974	aspC	CMM_2790	-	aspartate aminotransferase
2797	 75.32	0	3119924..3121078	-	384	148273975	murB	CMM_2791	-	UDP-N-acetylenolpyruvoylglucosamine reductase
2798	 73.56	0	3121086..3121520	-	144	148273976	-	CMM_2792	-	putative dehydratase
2799	 73.78	0	3121517..3121966	-	149	148273977	-	CMM_2793	-	hypothetical protein
2800	 64.37	-2	3122136..3122222	-	28	148273978	-	CMM_2794	-	hypothetical protein
2801	 72.73	0	3122592..3122789	-	65	148273979	-	CMM_2795	-	hypothetical protein
2802	 72.52	0	3123286..3124224	-	312	148273980	-	CMM_2796	-	putative oxidoreductase
2803	 72.99	0	3124385..3126124	+	579	148273981	aglC	CMM_2797	-	alpha-glucosidase
2804	 75.86	0	3126205..3127389	-	394	148273982	-	CMM_2798	-	M23 family membrane bound metalloendopeptidase
2805	 75.19	0	3127615..3128424	-	269	148273983	suhB	CMM_2799	-	putative inositol-1-monophosphatase
2806	 73.28	0	3128470..3129210	-	246	148273984	-	CMM_2800	-	hypothetical protein
2807	 76.39	0	3129273..3130259	-	328	148273985	-	CMM_2801	-	putative oxidoreductase
2808	 64.21	-2	3130585..3131073	+	162	148273986	-	CMM_2802	-	hypothetical protein
2809	 67.89	-1	3131155..3132624	+	489	148273987	-	CMM_2803	-	putative phospholipase, cardiolipin synthetase
2810	 71.72	0	3132652..3133146	-	164	148273988	-	CMM_2804	-	MarR family transcriptional regulator
2811	 81.43	+2	3133271..3133954	-	227	148273989	-	CMM_2805	-	hypothetical protein
2812	 70.75	0	3134092..3135462	-	456	148273990	-	CMM_2806	-	putative ferredoxin/ferredoxin-NADP reductase
2813	 73.84	0	3135553..3136626	-	357	148273991	menX	CMM_2807	-	putative polyprenyl diphosphate synthase
2814	 71.43	0	3136662..3137396	-	244	148273992	menH	CMM_2808	-	putative menaquinone biosynthesis methyltransferase
2815	 78.53	+1	3137404..3140142	-	912	148273994	-	CMM_2809	-	putative sugar MFS permease
2816	 77.02	+1	3137557..3138831	+	424	148273993	menF	CMM_2810	-	putative isochorismate synthase
2817	 76.92	+1	3140139..3140684	-	181	148273995	-	CMM_2811	-	hypothetical protein
2818	 76.51	0	3140800..3142566	-	588	148273996	menD	CMM_2812	-	menaquinone biosynthesis bifunctional protein menD
2819	 73.52	0	3142573..3142995	-	140	148273997	-	CMM_2813	-	hypothetical protein
2820	 75.07	0	3143135..3143515	+	126	148273998	-	CMM_2814	-	hypothetical protein
2821	 78.84	+1	3143526..3143903	-	125	148273999	-	CMM_2815	-	hypothetical protein
2822	 71.98	0	3143909..3144793	-	294	148274000	menA	CMM_2816	-	1,4-dihydroxy-2-naphthoate octaprenyltransferase
2823	 75.17	0	3144952..3145704	-	250	148274001	-	CMM_2817	-	putative mutase
2824	 77.89	+1	3145803..3146711	-	302	148274002	-	CMM_2818	-	hypothetical protein
2825	 71.41	0	3146734..3148716	-	660	148274003	-	CMM_2819	-	metallopeptidase family M13
2826	 69.57	0	3148824..3149030	+	68	148274004	-	CMM_2820	-	Cro/CI family transcriptional regulator
2827	 71.14	0	3149014..3149415	+	133	148274005	-	CMM_2821	-	hypothetical protein
2828	 71.57	0	3149521..3150804	+	427	148274006	-	CMM_2822	-	xanthine/uracil family permease
2829	 75.29	0	3150990..3152369	+	459	148274007	-	CMM_2823	-	hypothetical protein
2830	 77.37	+1	3152348..3154141	-	597	148274008	-	CMM_2824	-	amidase
2831	 74.86	0	3154138..3154869	-	243	148274009	-	CMM_2825	-	hypothetical protein
2832	 74.95	0	3154866..3156242	-	458	148274010	-	CMM_2826	-	cytosine permease
2833	 76.67	0	3156391..3157080	+	229	148274011	-	CMM_2827	-	GntR family transcriptional regulator
2834	 75.25	0	3157101..3157799	-	232	148274012	-	CMM_2828	-	putative phosphatase
2835	 73.49	0	3157838..3158350	-	170	148274013	-	CMM_2829	-	hypothetical protein
2836	 78.48	+1	3158485..3159390	+	301	148274014	mmuM	CMM_2830	-	homocysteine methyltransferase
2837	 76.04	0	3159476..3160339	-	287	148274015	-	CMM_2831	-	putative nucleoside-diphosphate-sugar epimerase
2838	 73.23	0	3160454..3160834	+	126	148274016	-	CMM_2832	-	putative transcriptional regulator
2839	 75.23	0	3160911..3162206	+	431	148274017	-	CMM_2833	-	putative MFS permease
2840	 72.55	0	3162309..3163175	+	288	148274018	-	CMM_2834	-	putative oxidoreductase
2841	 77.78	+1	3163203..3164138	-	311	148274019	-	CMM_2835	-	LysR family transcriptional regulator
2842	 77.71	+1	3164228..3165205	+	325	148274020	-	CMM_2836	-	permease DMT family
2843	 76.41	0	3165202..3165591	+	129	148274021	-	CMM_2837	-	hypothetical protein
2844	 80.67	+2	3165588..3165944	+	118	148274022	-	CMM_2838	-	hypothetical protein
72.78	MEAN

3.94	STD DEV
