IslandPathversion 1.0

IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

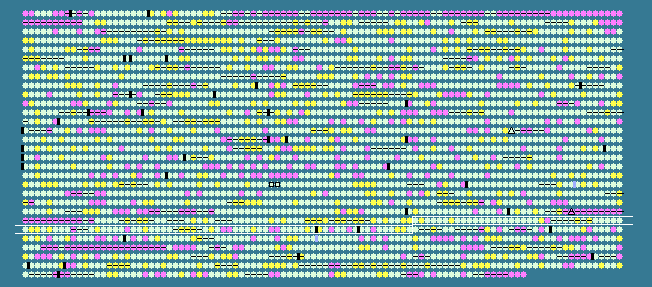

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2366	 74.30	0	2658055..2658552	+	165	148273544	-	CMM_2360	-	hypothetical protein
2367	 77.45	+1	2658605..2659216	-	203	148273545	-	CMM_2361	-	acetyltransferase
2368	 71.88	0	2659384..2660649	+	421	148273546	-	CMM_2362	-	hypothetical protein
2369	 73.82	0	2660677..2661864	-	395	148273548	moeB	CMM_2363	-	putative molybdenum cofactor biosynthesis protein
2370	 73.17	0	2661863..2663569	+	568	148273547	-	CMM_2364	-	hypothetical protein
2371	 73.05	0	2663582..2664442	-	286	148273549	-	CMM_2365	-	putative hydrolase
2372	 78.37	+1	2664529..2665032	+	167	148273550	-	CMM_2366	-	hypothetical protein
2373	 73.48	0	2666044..2666982	-	312	148273551	ispE	CMM_2367	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
2374	 73.44	0	2666993..2667907	-	304	148273552	ksgA	CMM_2368	-	dimethyladenosine transferase
2375	 72.77	0	2667904..2668854	-	316	148273553	-	CMM_2369	-	hypothetical protein
2376	 69.71	0	2668926..2670503	-	525	148273554	metS	CMM_2370	-	methionyl-tRNA synthetase
2377	 73.09	0	2670566..2671717	-	383	148273555	gltA1	CMM_2371	-	methylcitrate synthase
2378	 75.13	0	2671965..2673452	+	495	148273556	-	CMM_2372	-	putative dihydrolipoamide dehydrogenase (E3) component
2379	 75.04	0	2673487..2674095	+	202	148273557	-	CMM_2373	-	putative NAD(P)H oxidoreductase
2380	 73.95	0	2674118..2675161	-	347	148273558	-	CMM_2374	-	putative Zn-dependant alcohol dehydrogenase
2381	 73.94	0	2675207..2675797	+	196	148273559	-	CMM_2375	-	TetR family transcriptional regulator
2382	 74.29	0	2675821..2676240	-	139	148273560	-	CMM_2376	-	hypothetical protein
2383	 74.96	0	2676441..2677838	+	465	148273561	-	CMM_2377	-	putative SAM-dependent methyltransferase
2384	 75.25	0	2677835..2680420	+	861	148273562	-	CMM_2378	-	putative phosphatase
2385	 71.80	0	2680639..2681553	-	304	148273563	prpB	CMM_2379	-	putative methylisocitrate lyase/phosphonomutase
2386	 74.02	0	2681553..2683103	-	516	148273564	prpD	CMM_2380	-	putative 2-methylcitrate dehydratase
2387	 76.37	0	2683142..2684110	+	322	148273565	-	CMM_2381	-	putative duplicated acetyltransferase
2388	 61.15	-2	2685035..2686447	+	470	148273566	-	CMM_2382	-	putative perforin
2389	 72.96	0	2686864..2687451	-	195	148273567	-	CMM_2383	-	hypothetical protein
2390	 71.21	0	2687476..2688069	+	197	148273568	-	CMM_2384	-	putative sugar acetyltransferase
2391	 73.06	0	2688066..2688659	+	197	148273569	-	CMM_2385	-	TetR family transcriptional regulator
2392	 75.69	0	2688928..2690457	+	509	148273570	-	CMM_2386	-	putative membrane-bound tyrosin-protein phosphatase
2393	 78.40	+1	2690466..2691113	+	215	148273571	-	CMM_2387	-	hypothetical protein
2394	 74.32	0	2691192..2692289	+	365	148273572	-	CMM_2388	-	hypothetical protein
2395	 76.29	0	2692308..2693273	-	321	148273573	-	CMM_2389	-	permease DMT family
2396	 73.98	0	2693347..2693907	+	186	148273574	-	CMM_2390	-	hypothetical protein
2397	 74.75	0	2693927..2694742	-	271	148273575	-	CMM_2391	-	putative methyltransferase
2398	 73.83	0	2694739..2695059	-	106	148273576	-	CMM_2392	-	hypothetical protein
2399	 72.52	0	2695639..2696082	+	147	148273577	-	CMM_2393	-	hypothetical protein
2400	 74.32	0	2696095..2696316	-	73	148273578	-	CMM_2394	-	hypothetical protein
2401	 71.61	0	2696499..2698745	+	748	148273579	aglB	CMM_2395	-	putative alpha glycosidase
2402	 78.03	+1	2698798..2699334	-	178	148273580	-	CMM_2396	-	hypothetical protein
2403	 79.89	+1	2699336..2699902	-	188	148273581	-	CMM_2397	-	hypothetical protein
2404	 71.35	0	2700125..2701852	+	575	148273582	-	CMM_2398	-	putative dolichyl-phosphate-mannose-protein mannosyltransferase
2405	 77.31	+1	2701852..2702856	+	334	148273583	-	CMM_2399	-	hypothetical protein
2406	 71.30	0	2702957..2704252	+	431	148273584	-	CMM_2400	-	putative O-acetylhomoserine (thiol)-lyase
2407	 73.51	0	2704249..2705022	+	257	148273585	-	CMM_2401	-	hypothetical protein
2408	 73.14	0	2705041..2705550	-	169	148273586	-	CMM_2402	-	hypothetical protein
2409	 65.52	-1	2705737..2705997	+	86	148273587	-	CMM_2403	-	hypothetical protein
2410	 75.64	0	2706088..2706834	+	248	148273588	-	CMM_2404	-	hypothetical protein
2411	 74.20	0	2706844..2708211	+	455	148273589	sdaA	CMM_2405	-	putative L-serine dehydratase
2412	 76.26	0	2708249..2708644	+	131	148273590	-	CMM_2406	-	hypothetical protein
2413	 78.05	+1	2708641..2709747	-	368	148273591	-	CMM_2407	-	hypothetical protein
2414	 76.26	0	2709744..2710535	-	263	148273592	-	CMM_2408	-	IclR family transcriptional regulator
2415	 74.59	0	2710532..2711326	-	264	148273593	-	CMM_2409	-	putative NDP-sugar epimerase
2416	 70.01	0	2711440..2712786	+	448	148273594	-	CMM_2410	-	putative sugar ABC transporter, substrate-binding protein
2417	 70.51	0	2712783..2713745	+	320	148273595	-	CMM_2411	-	putative sugar ABC transporter, permease component
2418	 68.98	0	2713742..2714647	+	301	148273596	-	CMM_2412	-	putative sugar ABC transporter, permease component
2419	 73.24	0	2714652..2715884	+	410	148273597	-	CMM_2413	-	putative glucarate dehydratase
2420	 75.34	0	2715884..2716852	+	322	148273598	-	CMM_2414	-	5-dehydro-4-deoxyglucarate dehydratase
2421	 76.81	+1	2716857..2718758	-	633	148273599	-	CMM_2415	-	hypothetical protein
2422	 70.69	0	2718810..2719976	-	388	148273600	corA2	CMM_2416	-	Mg2+/Co2+ transporter
2423	 74.38	0	2720024..2720866	-	280	148273601	-	CMM_2417	-	putative aldo/keto reductase
2424	 72.34	0	2720863..2722449	-	528	148273602	fadD	CMM_2418	-	putative long-chain-fatty-acid-CoA ligase
2425	 71.75	0	2722590..2726408	+	1272	148273603	-	CMM_2419	-	putative ATP-dependent helicase
2426	 73.55	0	2726599..2728137	+	512	148273604	-	CMM_2420	-	putative peptide ABC transporter, substrate-binding protein
2427	 77.54	+1	2728134..2729108	+	324	148273605	-	CMM_2421	-	putative peptide ABC transporter, permease component
2428	 79.88	+1	2729105..2729929	+	274	148273606	-	CMM_2422	-	putative peptide ABC transporter, permease component
2429	 78.08	+1	2729926..2731371	+	481	148273607	-	CMM_2423	-	putative peptide ABC transporter, ATP-binding protein
2430	 72.96	0	2731414..2732382	-	322	148273608	-	CMM_2424	-	hypothetical protein
2431	 72.00	0	2732379..2732978	-	199	148273609	-	CMM_2425	-	hypothetical protein
2432	 78.33	+1	2733969..2734817	-	282	148273610	sseB	CMM_2426	-	putative thiosulfate sulfurtransferase
2433	 73.41	0	2734846..2735379	-	177	148273611	-	CMM_2427	-	putative acetyltransferase
2434	 61.65	-2	2735514..2736509	-	331	148273612	nrdF	CMM_2428	-	ribonucleotide-diphosphate reductase subunit beta
2435	 66.75	-1	2736681..2739185	-	834	148273613	nrdA	CMM_2429	-	ribonucleotide-diphosphate reductase subunit alpha
2436	 73.10	0	2739562..2740773	+	403	148273614	-	CMM_2430	-	putative MFS permease
2437	 75.32	0	2740869..2741342	+	157	148273615	-	CMM_2431	-	hypothetical protein
2438	 73.51	0	2741410..2742402	-	330	148273616	-	CMM_2432	-	putative aldo/keto reductase
2439	 78.18	+1	2742412..2742984	-	190	148273617	-	CMM_2433	-	hypothetical protein
2440	 74.18	0	2743501..2744685	+	394	148273618	-	CMM_2434	-	secreted serine protease
2441	 70.89	0	2744756..2746294	-	512	148273619	abfA2	CMM_2435	-	putative alpha-L-arabinofuranosidase
2442	 67.86	-1	2746389..2747309	-	306	148273620	-	CMM_2436	-	putative L-arabinose ABC transporter, permease component
2443	 67.51	-1	2747306..2748250	-	314	148273621	-	CMM_2437	-	putative L-arabinose ABC transporter, permease component
2444	 70.22	0	2748345..2749694	-	449	148273622	-	CMM_2438	-	putative L-arabinose ABC transporter, substrate binding protein
2445	 74.25	0	2749799..2750800	-	333	148273623	-	CMM_2439	-	LacI family transcriptional regulator
2446	 72.60	0	2750921..2751358	+	145	148273624	-	CMM_2440	-	hypothetical protein
2447	 75.00	0	2751378..2751773	-	131	148273625	-	CMM_2441	-	hypothetical protein
2448	 77.10	+1	2751783..2753402	-	539	148273626	-	CMM_2442	-	putative methyltransferase
2449	 71.33	0	2753479..2755086	-	535	148273627	celB	CMM_2443	-	cellulase
2450	 76.57	0	2755424..2756392	-	322	148273628	-	CMM_2444	-	hypothetical protein
2451	 71.15	0	2756479..2757147	-	222	148273629	-	CMM_2445	-	putative acetyltransferase
2452	 68.78	-1	2757205..2758101	-	298	148273630	galU	CMM_2446	-	putative UTP-glucose-1-phosphate uridylyltransferase
2453	 70.31	0	2758142..2758717	+	191	148273631	-	CMM_2447	-	putative 5-formyltetrahydrofolate cyclo-ligase
2454	 69.85	0	2758724..2759131	+	135	148273632	-	CMM_2448	-	hypothetical protein
2455	 69.15	0	2759160..2759642	+	160	148273633	-	CMM_2449	-	putative large-conductance mechanosensitive channel
2456	 72.62	0	2759950..2763675	-	1241	148273634	-	CMM_2451	-	hypothetical protein
2457	 73.38	0	2764021..2764482	+	153	148273635	-	CMM_2452	-	Cro/CI family transcriptional regulator /nucleotidyltransferase
2458	 71.17	0	2764482..2764814	+	110	148273636	-	CMM_2453	-	hypothetical protein
2459	 65.23	-1	2764825..2765937	-	370	148273637	-	CMM_2454	-	putative restriction enzyme
2460	 69.96	0	2766824..2768191	+	455	148273638	-	CMM_2455	-	cytosine/purine permease NCS1 family
2461	 73.27	0	2768188..2769747	+	519	148273639	-	CMM_2456	-	putative hydantoinase
2462	 72.85	0	2769740..2770855	+	371	148273640	-	CMM_2457	-	hypothetical protein
2463	 78.32	+1	2770882..2771997	+	371	148273641	-	CMM_2458	-	hypothetical protein
2464	 78.42	+1	2771994..2773559	+	521	148273642	-	CMM_2459	-	hypothetical protein
2465	 74.38	0	2773568..2775175	-	535	148273643	-	CMM_2460	-	putative ATPase
72.78	MEAN

3.94	STD DEV
