IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

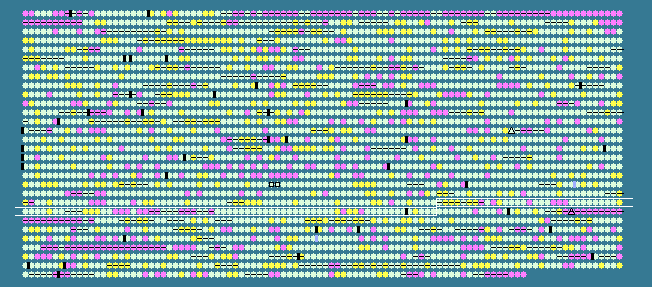

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2170	 74.38	0	2444200..2445210	+	336	148273348	-	CMM_2164	-	putative asparaginase II
2171	 79.78	+1	2445200..2448691	-	1163	148273349	-	CMM_2165	-	hypothetical protein
2172	 79.32	+1	2448782..2451325	-	847	148273350	-	CMM_2166	-	hypothetical protein
2173	 78.30	+1	2451322..2452782	-	486	148273351	-	CMM_2167	-	hypothetical protein
2174	 74.23	0	2452779..2453822	-	347	148273352	-	CMM_2168	-	MoxR-like ATPase, putative regulator
2175	 76.82	+1	2453881..2459895	-	2004	148273353	-	CMM_2169	-	putative RTX toxin
2176	 76.97	+1	2459892..2461463	-	523	148273354	pknG	CMM_2170	-	hypothetical protein
2177	 68.85	0	2461621..2462946	-	441	148273355	gltA	CMM_2171	-	type II citrate synthase
2178	 76.10	0	2463108..2464241	-	377	148273356	-	CMM_2172	-	N-succinyldiaminopimelate aminotransferase
2179	 67.91	-1	2464238..2464558	-	106	148273357	fdxB	CMM_2173	-	hypothetical protein
2180	 76.64	0	2464599..2465891	-	430	148273358	-	CMM_2174	-	hypothetical protein
2181	 74.78	0	2466135..2467046	+	303	148273359	-	CMM_2175	-	OFeT family Fe2+ permease
2182	 72.58	0	2467123..2468340	+	405	148273360	-	CMM_2176	-	secreted lipoprotein
2183	 75.23	0	2468340..2469671	+	443	148273361	-	CMM_2177	-	putative Fe-dependant peroxidase
2184	 74.90	0	2469708..2470217	-	169	148273362	-	CMM_2178	-	putative secreted protein
2185	 68.40	-1	2470224..2472131	-	635	148273363	bipA	CMM_2179	-	GTP-binding protein typA/bipA-like protein
2186	 74.87	0	2472245..2474098	-	617	148273364	-	CMM_2180	-	putative peptide ABC transporter, substrate-binding protein
2187	 69.86	0	2474197..2475888	-	563	148273365	-	CMM_2181	-	putative peptide ABC transporter, ATP-binding protein
2188	 72.44	0	2475960..2476565	+	201	148273366	-	CMM_2182	-	hypothetical protein
2189	 69.10	0	2476619..2477812	-	397	148273367	-	CMM_2183	-	putative oligopeptide ABC transporter, permease component
2190	 65.68	-1	2477816..2479342	-	508	148273368	-	CMM_2184	-	putative peptide ABC transporter, permease component
2191	 66.01	-1	2479521..2481356	-	611	148273369	-	CMM_2185	-	putative peptide ABC transporter, substrate-binding protein
2192	 72.79	0	2481646..2482461	+	271	148273370	-	CMM_2186	-	membran protein
2193	 70.83	0	2482570..2482977	+	135	148273371	-	CMM_2187	-	hypothetical protein
2194	 69.99	0	2482974..2484596	+	540	148273372	-	CMM_2188	-	SSS family transporter membrane protein
2195	 75.72	0	2484641..2485513	-	290	148273373	-	CMM_2189	-	RpiR family transcriptional regulator
2196	 72.37	0	2485500..2486306	-	268	148273374	-	CMM_2190	-	putative phosphate/phosphonate ABC transporter,permease component
2197	 71.57	0	2486303..2487097	-	264	148273375	-	CMM_2191	-	putative phosphate/phosphonate ABC transporter,permease component
2198	 73.84	0	2487094..2487915	-	273	148273376	-	CMM_2192	-	putative phosphate/phosphonate ABC transporter,ATP-binding protein
2199	 70.35	0	2487919..2488896	-	325	148273377	-	CMM_2193	-	putative phosphate/phosphonate ABC transporter,substrate-binding protein
2200	 76.84	+1	2488893..2489639	-	248	148273378	-	CMM_2194	-	putative hydrolase/phosphatase
2201	 73.15	0	2489862..2492837	-	991	148273379	gcvP	CMM_2195	-	glycine dehydrogenase
2202	 69.62	0	2492834..2493205	-	123	148273380	gcvH	CMM_2196	-	glycine cleavage system protein H
2203	 75.76	0	2493202..2494422	-	406	148273381	gcvT	CMM_2197	-	putative aminomethyltransferase (glycine cleavage system T protein)
2204	 71.71	0	2494792..2495247	-	151	148273382	-	CMM_2198	-	hypothetical protein
2205	 76.88	+1	2495374..2495745	+	123	148273383	-	CMM_2199	-	putative transcriptional regulator
2206	 76.13	0	2495764..2496534	-	256	148273384	-	CMM_2200	-	putative copper resistance protein
2207	 74.35	0	2496636..2497937	+	433	148273385	-	CMM_2201	-	putative cysteine desulfurase
2208	 74.32	0	2497934..2498377	+	147	148273386	-	CMM_2202	-	hypothetical protein
2209	 76.01	0	2498457..2498852	+	131	148273387	-	CMM_2203	-	hypothetical protein
2210	 74.77	0	2498892..2501741	-	949	148273388	-	CMM_2204	-	hypothetical protein
2211	 77.48	+1	2501901..2502455	-	184	148273389	-	CMM_2205	-	putative acetyltransferase
2212	 78.18	+1	2502502..2503578	+	358	148273390	-	CMM_2206	-	hypothetical protein
2213	 76.77	+1	2503597..2504160	-	187	148273391	-	CMM_2207	-	hypothetical protein
2214	 72.59	0	2504219..2504623	-	134	148273392	-	CMM_2208	-	hypothetical protein
2215	 73.05	0	2504846..2505268	+	140	148273393	-	CMM_2209	-	MarR family transcriptional regulator
2216	 62.53	-2	2505311..2506036	-	241	148273394	-	CMM_2210	-	hypothetical protein
2217	 65.69	-1	2506159..2506773	-	204	148273395	-	CMM_2211	-	hypothetical protein
2218	 68.71	-1	2506863..2508329	+	488	148273396	-	CMM_2212	-	amino acid permease APC family
2219	 74.00	0	2508333..2508782	+	149	148273397	-	CMM_2213	-	hypothetical protein
2220	 66.90	-1	2508793..2509215	-	140	148273398	-	CMM_2214	-	putative thiol-disulfide oxidoreductase
2221	 67.11	-1	2509535..2509981	+	148	148273399	-	CMM_2215	-	hypothetical protein
2222	 65.67	-1	2510037..2510237	-	66	148273400	-	CMM_2216	-	hypothetical protein
2223	 69.07	0	2510689..2512101	+	470	148273401	gabP	CMM_2217	-	gamma-aminobutyrate permease
2224	 75.04	0	2512152..2512844	+	230	148273402	-	CMM_2218	-	hypothetical protein
2225	 70.21	0	2512868..2513431	+	187	148273403	-	CMM_2219	-	hypothetical protein
2226	 72.40	0	2513431..2514198	+	255	148273404	-	CMM_2220	-	hypothetical protein
2227	 53.49	-2	2514367..2515011	+	214	148273405	-	CMM_2221	-	hypothetical protein
2228	 51.44	-2	2515482..2515967	-	161	148273406	-	CMM_2222	-	hypothetical protein
2229	 68.06	-1	2516137..2517210	-	357	148273407	-	CMM_2223	-	translation-associated GTPase
2230	 74.29	0	2517310..2517939	+	209	148273408	-	CMM_2224	-	hypothetical protein
2231	 73.70	0	2518006..2519385	+	459	148273409	-	CMM_2225	-	hypothetical protein
2232	 67.84	-1	2519491..2520516	+	341	148273410	fbaA	CMM_2226	-	fructose-bisphosphate aldolase
2233	 75.63	0	2520612..2521448	-	278	148273411	-	CMM_2227	-	hypothetical protein
2234	 70.71	0	2521445..2522434	-	329	148273412	ispH	CMM_2228	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
2235	 74.03	0	2522582..2523898	+	438	148273413	xseA	CMM_2229	-	exodeoxyribonuclease VII large subunit
2236	 75.72	0	2523909..2524151	+	80	148273414	xseB	CMM_2230	-	exodeoxyribonuclease VII small subunit
2237	 72.32	0	2524154..2524861	+	235	148273415	-	CMM_2231	-	hypothetical protein
2238	 73.15	0	2524858..2525520	+	220	148273416	cynT	CMM_2232	-	putative carbonic anhydrase
2239	 71.44	0	2525602..2527026	+	474	148273417	fumC	CMM_2233	-	fumarate hydratase
2240	 74.81	0	2527058..2527327	+	89	148273418	-	CMM_2234	-	hypothetical protein
2241	 71.39	0	2527411..2528766	-	451	148273419	-	CMM_2235	-	putative ATPase
2242	 70.74	0	2528994..2529779	-	261	148273420	uppS2	CMM_2236	-	putative undecaprenyl diphosphate synthase
2243	 70.77	0	2529861..2530616	+	251	148273421	-	CMM_2237	-	HlyIII family membrane protein
2244	 70.87	0	2530641..2532020	-	459	148273422	-	CMM_2238	-	putative sugar ABC transporter, substrate-binding protein
2245	 69.95	0	2532082..2532996	-	304	148273423	-	CMM_2239	-	putative glycerol ABC transporter, permease component
2246	 70.30	0	2532993..2533982	-	329	148273424	-	CMM_2240	-	putative glycerol ABC transporter, permease component
2247	 75.94	0	2534162..2534506	-	114	148273425	-	CMM_2241	-	hypothetical protein
2248	 72.68	0	2534506..2535387	-	293	148273426	-	CMM_2242	-	hypothetical protein
2249	 74.33	0	2535454..2535936	+	160	148273427	-	CMM_2243	-	hypothetical protein
2250	 69.94	0	2535997..2536485	+	162	148273428	greA	CMM_2244	-	transcription elongation factor GreA
2251	 73.84	0	2536552..2537820	-	422	148273429	ilvA	CMM_2245	-	threonine dehydratase
2252	 71.93	0	2537925..2539160	-	411	148273430	-	CMM_2246	-	AI-E2 family membrane protein
2253	 76.34	0	2539261..2540511	+	416	148273431	-	CMM_2247	-	hypothetical protein
2254	 66.67	-1	2540522..2541088	-	188	148273432	-	CMM_2248	-	hypothetical protein
2255	 77.18	+1	2541091..2542593	-	500	148273433	bglL	CMM_2249	-	putative beta-glucosidase
2256	 78.69	+1	2542734..2545028	+	764	148273434	-	CMM_2250	-	hypothetical protein
2257	 69.16	0	2545161..2546603	+	480	148273435	-	CMM_2251	-	amino acid permease APC family
2258	 69.75	0	2546679..2547620	-	313	148273436	-	CMM_2252	-	hypothetical protein
2259	 71.04	0	2547805..2550366	-	853	148273437	-	CMM_2253	-	hypothetical protein
2260	 71.72	0	2550438..2550872	-	144	148273438	-	CMM_2254	-	putative anti-sigma regulatory factor (Ser/Thr protein kinase)
2261	 69.62	0	2550877..2551215	-	112	148273439	-	CMM_2255	-	putative anti-sigma factor antagonist
2262	 69.88	0	2551212..2553203	-	663	148273440	-	CMM_2256	-	putative glycosyl transferase
2263	 73.52	0	2553200..2554396	-	398	148273441	-	CMM_2257	-	putative protein kinase/phosphatase regulator hybrid protein
2264	 75.15	0	2554575..2555729	+	384	148273442	-	CMM_2258	-	putative membrane-bound acyltransferase
2265	 71.03	0	2555945..2557432	-	495	148273443	-	CMM_2259	-	putative NADH dehydrogenase
2266	 77.57	+1	2557470..2558753	-	427	148273444	-	CMM_2260	-	serine peptidase
2267	 76.16	0	2558750..2559265	-	171	148273445	-	CMM_2261	-	hypothetical protein
2268	 73.30	0	2559262..2559834	-	190	148273446	-	CMM_2262	-	hypothetical protein
2269	 70.49	0	2559922..2561202	-	426	148273447	eno	CMM_2263	-	phosphopyruvate hydratase
72.78	MEAN

3.94	STD DEV
