IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

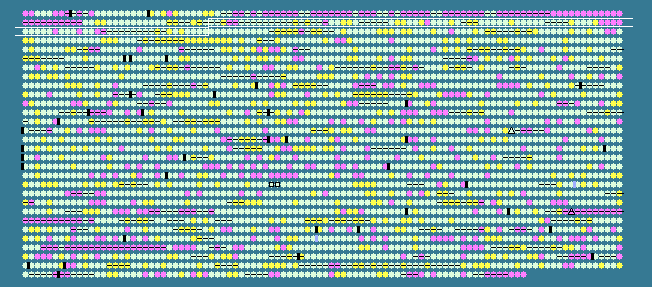

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
132	 72.68	0	190129..191409	-	426	148271310	-	CMM_0132	-	hypothetical protein
133	 71.18	0	191551..192192	+	213	148271311	-	CMM_0133	-	putative pyroglutamylpeptidase
134	 77.61	+1	192438..193625	+	395	148271312	-	CMM_0134	-	hypothetical protein
135	 53.64	-2	193999..194973	-	324	148271313	-	CMM_0135	-	hypothetical protein
136	 51.16	-2	194970..196007	-	345	148271314	-	CMM_0136	-	hypothetical protein
137	 71.92	0	196333..197721	-	462	148271315	-	CMM_0137	-	putative MFS transporter
138	 72.96	0	197794..198540	+	248	148271316	-	CMM_0138	-	hypothetical protein
139	 74.22	0	198545..198928	-	127	148271317	-	CMM_0139	-	hypothetical protein
140	 73.94	0	198943..199437	-	164	148271318	-	CMM_0140	-	hypothetical protein
141	 70.87	0	199666..200331	+	221	148271319	-	CMM_0141	-	putative secreted protein
142	 73.50	0	200413..201393	+	326	148271320	-	CMM_0142	-	hypothetical protein
143	 70.58	0	201390..202232	+	280	148271321	-	CMM_0143	-	hypothetical protein
144	 73.37	0	202285..203268	-	327	148271322	-	CMM_0144	-	hypothetical protein
145	 69.55	0	203637..204329	-	230	148271323	-	CMM_0145	-	hypothetical protein
146	 78.91	+1	204455..205099	-	214	148271324	-	CMM_0146	-	putative peptidase
147	 75.99	0	205099..205731	-	210	148271325	-	CMM_0147	-	hypothetical protein
148	 78.15	+1	205728..206537	-	269	148271326	-	CMM_0148	-	hypothetical protein
149	 71.67	0	206653..207351	-	232	148271327	-	CMM_0149	-	hypothetical protein
150	 74.95	0	207498..210902	-	1134	148271328	-	CMM_0150	-	putative cell wall surface anchor family protein
151	 67.90	-1	211308..213179	+	623	148271329	dnaK	CMM_0151	-	molecular chaperone DnaK
152	 71.87	0	213176..213829	+	217	148271330	grpE	CMM_0152	-	heat shock chaperone
153	 73.27	0	213950..214963	+	337	148271331	dnaJ1	CMM_0153	-	chaperone, curved DNA-binding protein
154	 76.58	0	214965..215438	+	157	148271332	hspR	CMM_0154	-	heat shock transcriptional regulator
155	 76.63	0	215435..216658	+	407	148271333	-	CMM_0155	-	putative methyltransferase
156	 76.19	0	216711..217151	+	146	148271334	-	CMM_0156	-	hypothetical protein
157	 71.73	0	217183..217419	-	78	148271335	-	CMM_0157	-	Cro/CI family transcriptional regulator
158	 75.12	0	217419..218057	-	212	148271336	-	CMM_0158	-	hypothetical protein
159	 71.14	0	218138..218584	-	148	148271337	-	CMM_0159	-	hypothetical protein
160	 73.80	0	218974..219702	-	242	148271338	-	CMM_0160	-	hypothetical protein
161	 76.00	0	219867..220895	-	342	148271339	-	CMM_0161	-	LacI family transcriptional regulator
162	 73.56	0	221482..222105	-	207	148271340	-	CMM_0162	-	hypothetical protein
163	 77.75	+1	222222..223250	+	342	148271341	-	CMM_0163	-	hypothetical protein
164	 77.82	+1	223454..224224	+	256	148271342	-	CMM_0164	-	hypothetical protein
165	 75.64	0	224275..225177	+	300	148271343	fhuC	CMM_0165	-	putative Fe3+-siderophore ABC transporter,ATPase component
166	 71.62	0	225174..226163	+	329	148271344	fhuD	CMM_0166	-	putative Fe3+-siderophore ABC transporter,binding protein
167	 77.93	+1	226198..228354	+	718	148271345	fhuB	CMM_0167	-	iron-hydroxamate transporter permease subunit
168	 63.17	-2	228475..228960	+	161	148271346	-	CMM_0167a	-	hypothetical protein
169	 75.00	0	229937..231484	+	515	148271347	-	CMM_0168	-	putative two-component system sensor kinase
170	 73.76	0	231511..232173	+	220	148271348	-	CMM_0169	-	putative two-component system response regulator
171	 69.63	0	232240..232644	+	134	148271349	-	CMM_0170	-	putative tautomerase
172	 77.58	+1	232668..233180	-	170	148271350	-	CMM_0171	-	putative acetyltransferase
173	 69.62	0	233252..234946	-	564	148271351	-	CMM_0172	-	hypothetical protein
174	 70.25	0	235445..236977	+	510	148271352	sulP	CMM_0173	-	putative sulfate MFS permease
175	 77.17	+1	237042..237698	-	218	148271353	mntA	CMM_0174	-	putative Mn2+/Zn2+ ABC-type transporter, ATPase component
176	 76.32	0	237755..238624	+	289	148271354	mntB	CMM_0175	-	putative Mn2+/Zn2+ ABC-type transporter,permease component
177	 74.45	0	238675..239907	+	410	148271355	-	CMM_0176	-	hypothetical protein
178	 73.57	0	239904..240830	+	308	148271356	mntC	CMM_0177	-	putative Mn2+/Zn2+ ABC-type transporter,substrate binding protein
179	 72.28	0	240866..242077	+	403	148271357	-	CMM_0178	-	hypothetical protein
180	 72.68	0	242217..243596	+	459	148271358	-	CMM_0179	-	NAD-dependent aldehyde dehydrogenase
181	 74.71	0	243680..244027	+	115	148271359	-	CMM_0180	-	hypothetical protein
182	 76.44	0	244054..245394	-	446	148271360	-	CMM_0181	-	putative glycosyltransferase
183	 74.53	0	245483..245749	-	88	148271361	-	CMM_0182	-	hypothetical protein
184	 74.79	0	245857..247074	+	405	148271362	-	CMM_0183	-	hypothetical protein
185	 73.06	0	247071..248258	+	395	148271363	metE1	CMM_0184	-	hypothetical protein
186	 74.08	0	248261..249622	+	453	148271364	metC	CMM_0185	-	O-acetylhomoserine (thiol)-lyase
187	 74.69	0	249625..250932	+	435	148271365	-	CMM_0186	-	putative oxidoreductase/monooxygenase
188	 75.65	0	250962..251618	-	218	148271366	-	CMM_0187	-	TetR family transcriptional regulator
189	 71.35	0	251762..253300	+	512	148271367	-	CMM_0188	-	putative multi-drug efflux MFS permease
190	 76.26	0	253394..254248	+	284	148271368	-	CMM_0189	-	putative hydrolase
191	 75.90	0	254241..254825	+	194	148271369	-	CMM_0190	-	TetR family transcriptional regulator
192	 76.94	+1	254831..255229	+	132	148271370	-	CMM_0191	-	hypothetical protein
193	 73.23	0	255226..255621	-	131	148271371	-	CMM_0192	-	hypothetical protein
194	 73.20	0	255632..256381	-	249	148271372	-	CMM_0193	-	TetR family transcriptional regulator
195	 75.21	0	256493..257581	+	362	148271373	-	CMM_0194	-	putative oxidoreductase
196	 79.83	+1	257578..258390	+	270	148271374	-	CMM_0195	-	hypothetical protein
197	 67.57	-1	258445..259767	+	440	148271375	-	CMM_0196	-	putative sugar ABC transporter, binding protein
198	 67.68	-1	259819..260805	+	328	148271376	-	CMM_0197	-	putative sugar ABC transporter, permease component
199	 65.42	-1	260802..261683	+	293	148271377	-	CMM_0198	-	putative sugar ABC transporter, permease component
200	 68.41	-1	261760..262104	-	114	148271378	-	CMM_0199	-	hypothetical protein
201	 71.46	0	262107..262565	-	152	148271379	-	CMM_0200	-	hypothetical protein
202	 71.78	0	262610..264466	-	618	148271380	-	CMM_0201	-	glycoside hydrolase family protein
203	 75.34	0	264565..265752	-	395	148271381	-	CMM_0202	-	putative dehydrogenase/oxidoreductase
204	 73.30	0	265809..268430	-	873	148271382	-	CMM_0203	-	RND superfamily drug exporter
205	 75.13	0	268492..269082	+	196	148271383	-	CMM_0204	-	TetR family transcriptional regulator
206	 68.66	-1	269099..270904	-	601	148271384	-	CMM_0205	-	hypothetical protein
207	 71.68	0	271019..271876	-	285	148271385	-	CMM_0206	-	3-hydroxybutyryl-CoA dehydrogenase
208	 70.75	0	272021..272632	-	203	148271386	-	CMM_0207	-	hypothetical protein
209	 72.73	0	272795..273652	+	285	148271387	-	CMM_0208	-	putative membrane-associated phospholipid phosphatase
210	 65.42	-1	273681..273920	+	79	148271388	-	CMM_0209	-	hypothetical protein
211	 73.76	0	273960..274382	+	140	148271389	-	CMM_0210	-	hypothetical protein
212	 71.62	0	274410..275459	-	349	148271390	-	CMM_0211	-	putative monooxygenase
213	 67.31	-1	275539..275694	-	51	148271391	-	CMM_0212	-	hypothetical protein
214	 67.83	-1	275764..276108	+	114	148271392	-	CMM_0213	-	hypothetical protein
215	 74.46	0	276105..276335	-	76	148271393	-	CMM_0214	-	hypothetical protein
216	 73.96	0	276332..276907	-	191	148271394	-	CMM_0215	-	TetR family transcriptional regulator
217	 75.18	0	277004..278119	+	371	148271395	-	CMM_0216	-	putative Zn-dependant oxidoreductase
218	 71.14	0	278116..278919	-	267	148271396	-	CMM_0217	-	hypothetical protein
219	 72.32	0	278916..279569	-	217	148271397	-	CMM_0218	-	hypothetical protein
220	 75.67	0	279717..280016	+	99	148271398	-	CMM_0219	-	hypothetical protein
221	 74.02	0	280058..280642	+	194	148271399	-	CMM_0220	-	hypothetical protein
222	 71.11	0	280668..280982	-	104	148271400	-	CMM_0221	-	putative multidrug resistance membrane protein
223	 76.52	0	280982..281377	-	131	148271401	-	CMM_0222	-	putative multidrug resistance membrane protein
224	 75.76	0	281510..282169	-	219	148271402	-	CMM_0223	-	putative phosphatase
225	 77.61	+1	282255..283451	+	398	148271403	-	CMM_0224	-	putative glycosyl transferase
226	 75.19	0	283730..284890	+	386	148271404	-	CMM_0225	-	putative sarcosine oxidase
227	 77.43	+1	284921..285598	-	225	148271405	-	CMM_0226	-	hypothetical protein
228	 73.02	0	285732..286691	-	319	148271406	-	CMM_0227	-	putative acetyl xylan esterase
229	 73.70	0	286773..287369	-	198	148271407	-	CMM_0228	-	TetR family transcriptional regulator
230	 74.65	0	287456..289510	-	684	148271408	-	CMM_0229	-	putative acyl esterase
231	 75.49	0	289507..291240	-	577	148271409	-	CMM_0230	-	putative peptide ABC transporter, ATP-binding protein
72.78	MEAN

3.94	STD DEV
