IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

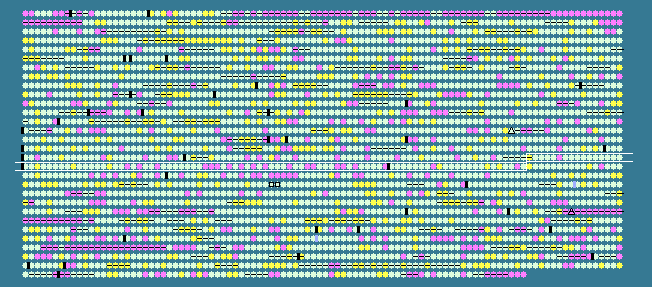

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1685	 76.42	0	1905363..1905680	+	105	148272863	-	CMM_1681	-	hypothetical protein
1686	 75.54	0	1905677..1906465	+	262	148272864	glpQ2	CMM_1682	-	putative glycerophosphoryl diester phosphodiesterase
1687	 72.68	0	1906526..1906891	+	121	148272865	-	CMM_1683	-	hypothetical protein
1688	 73.54	0	1906979..1908520	-	513	148272866	-	CMM_1684	-	putative apolipoprotein N-acyltransferase
1689	 72.01	0	1908562..1911033	-	823	148272867	-	CMM_1685	-	putative helicase
1690	 66.53	-1	1911128..1911880	-	250	148272868	tatC	CMM_1686	-	Sec-independent twin-arginine protein translocase
1691	 70.72	0	1911935..1912279	-	114	148272869	tatA	CMM_1687	-	sec-independent twin-arginine protein translocase protein
1692	 74.44	0	1912477..1913466	-	329	148272870	-	CMM_1688	-	DeoR family transcriptional regulator
1693	 73.31	0	1913463..1914470	-	335	148272871	-	CMM_1689	-	putative transcriptional regulator
1694	 74.14	0	1914519..1915562	-	347	148272872	-	CMM_1690	-	putative peptidyl-prolyl cis-trans isomerase
1695	 72.96	0	1915624..1916688	-	354	148272873	-	CMM_1691	-	putative methyltransferase
1696	 73.99	0	1916685..1917380	-	231	148272874	-	CMM_1692	-	putative phosphatase
1697	 72.29	0	1917473..1918432	+	319	148272875	-	CMM_1693	-	hypothetical protein
1698	 75.72	0	1918448..1919728	-	426	148272876	cysS2	CMM_1694	-	cysteinyl-tRNA synthetase
1699	 69.96	0	1919733..1920551	-	272	148272877	bacA	CMM_1695	-	undecaprenol kinase
1700	 71.01	0	1920594..1921904	-	436	148272878	-	CMM_1696	-	hypothetical protein
1701	 70.30	0	1922243..1923259	+	338	148272879	corA1	CMM_1697	-	Mg2+/Co2+ transporter
1702	 73.60	0	1923304..1924269	+	321	148272880	-	CMM_1698	-	putative nucleoside-diphosphate-sugar epimerase
1703	 79.49	+1	1924278..1925618	-	446	148272881	dnaJ3	CMM_1699	-	curved DNA binding protein
1704	 72.27	0	1925869..1926510	+	213	148272882	-	CMM_1700	-	glycine betaine/carnitine/choline ABC transporter, permease component
1705	 73.33	0	1926503..1927792	+	429	148272883	-	CMM_1701	-	glycine betaine/carnitin ABC transporter ATP-binding protein
1706	 72.92	0	1927789..1928556	+	255	148272884	-	CMM_1702	-	putative glycine/betaine/choline ABC transporter, permease
1707	 71.23	0	1928559..1929566	+	335	148272885	-	CMM_1703	-	putative glycine/betaine ABC transporter,substrate-binding protein
1708	 72.25	0	1929809..1931617	-	602	148272886	-	CMM_1704	-	putative DNA or RNA helicase
1709	 77.25	+1	1931818..1933017	-	399	148272887	-	CMM_1705	-	putative acyl-CoA dehydrogenase
1710	 73.24	0	1933069..1933920	-	283	148272888	-	CMM_1706	-	hypothetical protein
1711	 74.75	0	1934046..1934837	+	263	148272889	-	CMM_1707	-	putative esterase
1712	 74.49	0	1934853..1936067	-	404	148272890	pbpX	CMM_1708	-	D-alanyl-D-alanine carboxypeptidase
1713	 74.81	0	1936064..1936873	-	269	148272891	-	CMM_1709	-	hypothetical protein
1714	 73.33	0	1937030..1937884	+	284	148272892	-	CMM_1710	-	Sir2 family NAD-dependent protein deacetylase
1715	 77.04	+1	1937881..1938516	+	211	148272893	-	CMM_1711	-	phosphoglycerate mutase
1716	 74.52	0	1938570..1939664	-	364	148272894	-	CMM_1712	-	glycosyl transferase family protein
1717	 74.92	0	1939661..1940557	-	298	148272895	-	CMM_1713	-	putative hydrolase
1718	 66.96	-1	1940695..1942416	+	573	148272896	-	CMM_1714	-	putative trehalose synthase
1719	 73.50	0	1942427..1943128	+	233	148272897	dnaQ	CMM_1715	-	DNA polymerase III subunit epsilon
1720	 63.57	-2	1943205..1943462	-	85	148272898	rpmE	CMM_1716	-	50S ribosomal protein L31
1721	 72.83	0	1943594..1944388	-	264	148272899	modF	CMM_1717	-	putative molybdate ABC transporter ATP-binding subunit
1722	 72.91	0	1944470..1945654	-	394	148272900	-	CMM_1718	-	putative glycosyl transferase
1723	 67.71	-1	1945701..1946942	+	413	148272901	glgC	CMM_1719	-	glucose-1-phosphate adenylyltransferase
1724	 75.25	0	1946939..1947637	+	232	148272902	serB2	CMM_1720	-	hypothetical protein
1725	 75.24	0	1947658..1948614	-	318	148272903	-	CMM_1721	-	putative proteinkinase or phosphotransferase
1726	 71.73	0	1948638..1949348	-	236	148272904	-	CMM_1722	-	putative 3-oxoacyl-[acyl-carrier protein] reductase
1727	 72.81	0	1949468..1949923	+	151	148272905	-	CMM_1723	-	hypothetical protein
1728	 74.81	0	1949920..1950177	+	85	148272906	-	CMM_1724	-	hypothetical protein
1729	 72.10	0	1950174..1951019	+	281	148272907	-	CMM_1725	-	hypothetical protein
1730	 69.67	0	1951025..1952623	-	532	148272908	-	CMM_1726	-	putative ABC transporter ATP-binding protein
1731	 66.96	-1	1952848..1953183	-	111	148272909	-	CMM_1727	-	hypothetical protein
1732	 67.32	-1	1953180..1953950	-	256	148272910	-	CMM_1728	-	putative ABC transporter, ATP-binding protein
1733	 69.16	0	1953964..1954284	-	106	148272911	-	CMM_1729	-	putative 2Fe-2S ferredoxin
1734	 72.55	0	1954281..1955504	-	407	148272912	-	CMM_1730	-	hypothetical protein
1735	 66.31	-1	1955505..1956923	-	472	148272913	-	CMM_1731	-	hypothetical protein
1736	 71.91	0	1957190..1958200	+	336	148272914	ctaA	CMM_1732	-	membrane protein, putative cytochrome oxidase assembly protein
1737	 68.62	-1	1958420..1959340	-	306	148272915	ctaB	CMM_1733	-	putative protoheme IX farnesyltransferase
1738	 70.35	0	1959514..1961604	+	696	148272916	tktA	CMM_1734	-	transketolase
1739	 68.55	-1	1961759..1962874	+	371	148272917	talA	CMM_1735	-	transaldolase
1740	 73.87	0	1962871..1964466	+	531	148272918	pgiA	CMM_1736	-	hypothetical protein
1741	 69.00	0	1964505..1966046	+	513	148272919	zwfA2	CMM_1737	-	glucose-6-phosphate 1-dehydrogenase
1742	 73.07	0	1966043..1967041	+	332	148272920	opcA	CMM_1738	-	putative glucose-6-P dehydrogenase effector
1743	 71.60	0	1967038..1967808	+	256	148272921	pglA	CMM_1739	-	putative 6-phosphogluconolactonase
1744	 70.73	0	1968002..1968370	-	122	148272922	-	CMM_1740	-	putative electron transport protein
1745	 64.29	-2	1968382..1968633	-	83	148272923	secG	CMM_1741	-	preprotein translocase subunit SecG
1746	 72.68	0	1968777..1969574	-	265	148272924	tpiA	CMM_1742	-	hypothetical protein
1747	 72.35	0	1969571..1970785	-	404	148272925	pgk	CMM_1743	-	phosphoglycerate kinase
1748	 67.96	-1	1970792..1971799	-	335	148272926	gapA	CMM_1744	-	glyceraldehyde 3-phosphate dehydrogenase
1749	 65.07	-1	1971927..1972553	-	208	148272927	sodA	CMM_1745	-	hypothetical protein
1750	 73.29	0	1972722..1973702	-	326	148272928	whiA	CMM_1746	-	hypothetical protein
1751	 70.78	0	1973732..1974607	-	291	148272929	-	CMM_1747	-	hypothetical protein
1752	 70.66	0	1974683..1976611	-	642	148272930	uvrC	CMM_1748	-	excinuclease ABC subunit C
1753	 68.89	0	1976611..1979532	-	973	148272931	uvrA	CMM_1749	-	excinuclease ABC subunit A
1754	 67.88	-1	1979615..1981681	-	688	148272932	uvrB	CMM_1750	-	excinuclease ABC subunit B
1755	 75.28	0	1981691..1982305	-	204	148272933	coaE	CMM_1751	-	hypothetical protein
1756	 66.80	-1	1982392..1983846	-	484	148272934	rpsA	CMM_1752	-	30S ribosomal protein S1
1757	 73.51	0	1984033..1985712	-	559	148272935	-	CMM_1753	-	hypothetical protein
1758	 74.95	0	1985709..1986167	-	152	148272936	-	CMM_1754	-	PTS system, fructose-specific IIA/fpr component
1759	 70.06	0	1986210..1988894	-	894	148272937	polA1	CMM_1755	-	DNA polymerase I
1760	 71.03	0	1988948..1989382	+	144	148272938	-	CMM_1756	-	putative thioesterase
1761	 68.64	-1	1989422..1990030	-	202	148272939	-	CMM_1757	-	putative response regulator involved in antitermination
1762	 69.78	0	1990294..1991739	-	481	148272940	pykA	CMM_1758	-	hypothetical protein
1763	 72.29	0	1991826..1993283	-	485	148272941	gltD	CMM_1759	-	glutamate synthase subunit beta
1764	 70.73	0	1993276..1997847	-	1523	148272942	gltB	CMM_1760	-	glutamate synthase (NADPH), alpha subunit
1765	 70.19	0	1997955..1998977	-	340	148272943	-	CMM_1761	-	prolipoprotein diacylglyceryl transferase
1766	 75.15	0	1999049..1999861	-	270	148272944	trpA	CMM_1762	-	tryptophan synthase subunit alpha
1767	 71.03	0	1999858..2001072	-	404	148272945	trpB	CMM_1763	-	tryptophan synthase subunit beta
1768	 73.87	0	2001069..2001845	-	258	148272946	trpC	CMM_1764	-	indole-3-glycerol-phosphate synthase
1769	 67.49	-1	2001845..2002087	-	80	148272947	-	CMM_1765	-	hypothetical protein
1770	 77.93	+1	2002192..2002830	-	212	148272948	-	CMM_1766	-	hypothetical protein
1771	 73.53	0	2002830..2004389	-	519	148272949	trpE1	CMM_1767	-	anthranilate synthase component I
1772	 73.68	0	2004386..2004784	-	132	148272950	hisI	CMM_1768	-	phosphoribosyl-AMP cyclohydrolase
1773	 74.12	0	2004781..2005572	-	263	148272951	hisF	CMM_1769	-	imidazole glycerol phosphate synthase subunit HisF
1774	 72.02	0	2005575..2006414	-	279	148272952	hisG	CMM_1770	-	ATP phosphoribosyltransferase
1775	 69.70	0	2006463..2006726	-	87	148272953	hisE	CMM_1771	-	phosphoribosyl-ATP pyrophosphatase
1776	 72.63	0	2006826..2007194	-	122	148272954	-	CMM_1772	-	FKBP-type peptidyl-prolyl cis-trans isomerase (PPIase)
1777	 72.05	0	2007229..2007897	-	222	148272955	rpeA	CMM_1773	-	ribulose-phosphate 3-epimerase
1778	 77.60	+1	2007908..2009407	-	499	148272956	-	CMM_1774	-	putative rRNA cytosine-C5-methylases
1779	 75.60	0	2009404..2010321	-	305	148272957	fmtA	CMM_1775	-	hypothetical protein
1780	 78.06	+1	2010413..2012509	-	698	148272958	priA	CMM_1776	-	primosome assembly protein PriA
1781	 71.78	0	2012552..2013763	-	403	148272959	metK	CMM_1777	-	S-adenosylmethionine synthetase
1782	 75.21	0	2013803..2015020	-	405	148272960	dfpA	CMM_1778	-	bifunctional phosphopantothenoylcysteine decarboxylase/phosphopantothenate synthase
1783	 63.70	-2	2015099..2015368	-	89	148272961	rpoZ	CMM_1779	-	DNA-directed RNA polymerase subunit omega
1784	 72.61	0	2015417..2016325	-	302	148272962	gmkA	CMM_1780	-	putative guanylate kinase putative guanylate kinase (GMP kinase)/integration host factor (IHF) fusion protein
72.78	MEAN

3.94	STD DEV
