IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

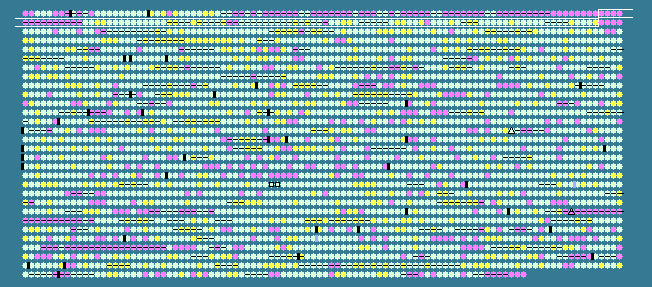

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 72.78   STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
97	 68.15	-1	141009..143633	-	874	148271275	bglD	CMM_0097	-	glycosyl hydrolase family beta-glucosidase
98	 67.26	-1	143748..144755	-	335	148271276	-	CMM_0098	-	LacI family transcriptional regulator
99	 67.63	-1	144980..147469	+	829	148271277	bglE	CMM_0099	-	hypothetical protein
100	 67.11	-1	147484..149739	+	751	148271278	bglF	CMM_0100	-	beta-galactosidase
101	 64.19	-2	149904..151076	+	390	148271279	bglG	CMM_0101	-	beta-galactosidase
102	 66.92	-1	151096..152694	+	532	148271280	bglH	CMM_0102	-	putative beta-galactosidase
103	 67.06	-1	152728..154494	-	588	148271281	bglI	CMM_0103	-	beta-xylosidase glycosyl hydrolase family 43
104	 66.52	-1	154629..156008	+	459	148271282	-	CMM_0104	-	sugar permease
105	 64.91	-1	156005..158506	+	833	148271283	ramA	CMM_0105	-	putative alpha-rhamnosidase
106	 67.56	-1	159396..161624	-	742	148271284	aglA	CMM_0106	-	alpha-xylosidase YicI
107	 67.11	-1	161748..162659	-	303	148271285	-	CMM_0107	-	putative sugar ABC transporter, permease compound
108	 67.60	-1	162659..163621	-	320	148271286	-	CMM_0108	-	putative sugar ABC transporter, permease component
109	 67.92	-1	163695..165053	-	452	148271287	-	CMM_0109	-	putative sugar ABC transporter, binding protein
110	 66.17	-1	165201..166802	+	533	148271288	-	CMM_0110	-	xylosidase glycosyl hydrolase family protein
111	 71.38	0	166885..167691	+	268	148271289	-	CMM_0111	-	putative sugar phosphate isomerase/epimerase
112	 74.05	0	167688..168797	+	369	148271290	-	CMM_0112	-	putative dehydrogenase/oxidoreductase
113	 77.32	+1	168891..169622	+	243	148271291	-	CMM_0113	-	putative hydrolase
114	 77.87	+1	169619..170332	+	237	148271292	-	CMM_0114	-	hypothetical protein
115	 76.07	0	170415..171371	+	318	148271293	-	CMM_0115	-	hypothetical protein
116	 74.62	0	171496..172086	+	196	148271294	-	CMM_0116	-	putative dienelactone hydrolase
117	 73.20	0	172096..173580	-	494	148271295	-	CMM_0117	-	putative MFS-type efflux protein
118	 72.69	0	173663..174409	+	248	148271296	-	CMM_0118	-	TetR family transcriptional regulator
119	 75.72	0	174435..175130	-	231	148271297	-	CMM_0119	-	TetR family transcriptional regulator
120	 74.76	0	175154..178837	-	1227	148271298	uahA	CMM_0120	-	putative urea amidolyase
121	 69.99	0	178834..179526	-	230	148271299	-	CMM_0121	-	hypothetical protein
122	 75.33	0	179523..180365	-	280	148271300	-	CMM_0122	-	hypothetical protein
123	 71.78	0	180362..181945	-	527	148271301	-	CMM_0123	-	amino acid permease APC family
124	 75.09	0	182195..185590	-	1131	148271302	-	CMM_0124	-	putative acyl-CoA synthetase
125	 76.72	+1	185595..186320	-	241	148271303	-	CMM_0125	-	putative 4-phosphopantetheinyl transferase
126	 77.74	+1	186504..187316	-	270	148271304	-	CMM_0126	-	hypothetical protein
127	 74.46	0	187313..187864	-	183	148271305	sigX	CMM_0127	-	RNA polymerase ECF-subfamily sigma factor
128	 74.40	0	188085..188795	+	236	148271306	-	CMM_0128	-	hypothetical protein
129	 77.58	+1	188801..189469	+	222	148271307	-	CMM_0129	-	putative sortase
130	 77.39	+1	189495..189755	-	86	148271308	-	CMM_0130	-	hypothetical protein
131	 72.43	0	189769..190011	-	80	148271309	-	CMM_0131	-	hypothetical protein
132	 72.68	0	190129..191409	-	426	148271310	-	CMM_0132	-	hypothetical protein
133	 71.18	0	191551..192192	+	213	148271311	-	CMM_0133	-	putative pyroglutamylpeptidase
134	 77.61	+1	192438..193625	+	395	148271312	-	CMM_0134	-	hypothetical protein
135	 53.64	-2	193999..194973	-	324	148271313	-	CMM_0135	-	hypothetical protein
136	 51.16	-2	194970..196007	-	345	148271314	-	CMM_0136	-	hypothetical protein
137	 71.92	0	196333..197721	-	462	148271315	-	CMM_0137	-	putative MFS transporter
138	 72.96	0	197794..198540	+	248	148271316	-	CMM_0138	-	hypothetical protein
139	 74.22	0	198545..198928	-	127	148271317	-	CMM_0139	-	hypothetical protein
140	 73.94	0	198943..199437	-	164	148271318	-	CMM_0140	-	hypothetical protein
141	 70.87	0	199666..200331	+	221	148271319	-	CMM_0141	-	putative secreted protein
142	 73.50	0	200413..201393	+	326	148271320	-	CMM_0142	-	hypothetical protein
143	 70.58	0	201390..202232	+	280	148271321	-	CMM_0143	-	hypothetical protein
144	 73.37	0	202285..203268	-	327	148271322	-	CMM_0144	-	hypothetical protein
145	 69.55	0	203637..204329	-	230	148271323	-	CMM_0145	-	hypothetical protein
146	 78.91	+1	204455..205099	-	214	148271324	-	CMM_0146	-	putative peptidase
147	 75.99	0	205099..205731	-	210	148271325	-	CMM_0147	-	hypothetical protein
148	 78.15	+1	205728..206537	-	269	148271326	-	CMM_0148	-	hypothetical protein
149	 71.67	0	206653..207351	-	232	148271327	-	CMM_0149	-	hypothetical protein
150	 74.95	0	207498..210902	-	1134	148271328	-	CMM_0150	-	putative cell wall surface anchor family protein
151	 67.90	-1	211308..213179	+	623	148271329	dnaK	CMM_0151	-	molecular chaperone DnaK
152	 71.87	0	213176..213829	+	217	148271330	grpE	CMM_0152	-	heat shock chaperone
153	 73.27	0	213950..214963	+	337	148271331	dnaJ1	CMM_0153	-	chaperone, curved DNA-binding protein
154	 76.58	0	214965..215438	+	157	148271332	hspR	CMM_0154	-	heat shock transcriptional regulator
155	 76.63	0	215435..216658	+	407	148271333	-	CMM_0155	-	putative methyltransferase
156	 76.19	0	216711..217151	+	146	148271334	-	CMM_0156	-	hypothetical protein
157	 71.73	0	217183..217419	-	78	148271335	-	CMM_0157	-	Cro/CI family transcriptional regulator
158	 75.12	0	217419..218057	-	212	148271336	-	CMM_0158	-	hypothetical protein
159	 71.14	0	218138..218584	-	148	148271337	-	CMM_0159	-	hypothetical protein
160	 73.80	0	218974..219702	-	242	148271338	-	CMM_0160	-	hypothetical protein
161	 76.00	0	219867..220895	-	342	148271339	-	CMM_0161	-	LacI family transcriptional regulator
162	 73.56	0	221482..222105	-	207	148271340	-	CMM_0162	-	hypothetical protein
163	 77.75	+1	222222..223250	+	342	148271341	-	CMM_0163	-	hypothetical protein
164	 77.82	+1	223454..224224	+	256	148271342	-	CMM_0164	-	hypothetical protein
165	 75.64	0	224275..225177	+	300	148271343	fhuC	CMM_0165	-	putative Fe3+-siderophore ABC transporter,ATPase component
166	 71.62	0	225174..226163	+	329	148271344	fhuD	CMM_0166	-	putative Fe3+-siderophore ABC transporter,binding protein
167	 77.93	+1	226198..228354	+	718	148271345	fhuB	CMM_0167	-	iron-hydroxamate transporter permease subunit
168	 63.17	-2	228475..228960	+	161	148271346	-	CMM_0167a	-	hypothetical protein
169	 75.00	0	229937..231484	+	515	148271347	-	CMM_0168	-	putative two-component system sensor kinase
170	 73.76	0	231511..232173	+	220	148271348	-	CMM_0169	-	putative two-component system response regulator
171	 69.63	0	232240..232644	+	134	148271349	-	CMM_0170	-	putative tautomerase
172	 77.58	+1	232668..233180	-	170	148271350	-	CMM_0171	-	putative acetyltransferase
173	 69.62	0	233252..234946	-	564	148271351	-	CMM_0172	-	hypothetical protein
174	 70.25	0	235445..236977	+	510	148271352	sulP	CMM_0173	-	putative sulfate MFS permease
175	 77.17	+1	237042..237698	-	218	148271353	mntA	CMM_0174	-	putative Mn2+/Zn2+ ABC-type transporter, ATPase component
176	 76.32	0	237755..238624	+	289	148271354	mntB	CMM_0175	-	putative Mn2+/Zn2+ ABC-type transporter,permease component
177	 74.45	0	238675..239907	+	410	148271355	-	CMM_0176	-	hypothetical protein
178	 73.57	0	239904..240830	+	308	148271356	mntC	CMM_0177	-	putative Mn2+/Zn2+ ABC-type transporter,substrate binding protein
179	 72.28	0	240866..242077	+	403	148271357	-	CMM_0178	-	hypothetical protein
180	 72.68	0	242217..243596	+	459	148271358	-	CMM_0179	-	NAD-dependent aldehyde dehydrogenase
181	 74.71	0	243680..244027	+	115	148271359	-	CMM_0180	-	hypothetical protein
182	 76.44	0	244054..245394	-	446	148271360	-	CMM_0181	-	putative glycosyltransferase
183	 74.53	0	245483..245749	-	88	148271361	-	CMM_0182	-	hypothetical protein
184	 74.79	0	245857..247074	+	405	148271362	-	CMM_0183	-	hypothetical protein
185	 73.06	0	247071..248258	+	395	148271363	metE1	CMM_0184	-	hypothetical protein
186	 74.08	0	248261..249622	+	453	148271364	metC	CMM_0185	-	O-acetylhomoserine (thiol)-lyase
187	 74.69	0	249625..250932	+	435	148271365	-	CMM_0186	-	putative oxidoreductase/monooxygenase
188	 75.65	0	250962..251618	-	218	148271366	-	CMM_0187	-	TetR family transcriptional regulator
189	 71.35	0	251762..253300	+	512	148271367	-	CMM_0188	-	putative multi-drug efflux MFS permease
190	 76.26	0	253394..254248	+	284	148271368	-	CMM_0189	-	putative hydrolase
191	 75.90	0	254241..254825	+	194	148271369	-	CMM_0190	-	TetR family transcriptional regulator
192	 76.94	+1	254831..255229	+	132	148271370	-	CMM_0191	-	hypothetical protein
193	 73.23	0	255226..255621	-	131	148271371	-	CMM_0192	-	hypothetical protein
194	 73.20	0	255632..256381	-	249	148271372	-	CMM_0193	-	TetR family transcriptional regulator
195	 75.21	0	256493..257581	+	362	148271373	-	CMM_0194	-	putative oxidoreductase
196	 79.83	+1	257578..258390	+	270	148271374	-	CMM_0195	-	hypothetical protein
72.78	MEAN

3.94	STD DEV
