IslandPath Analysis: Clavibacter michiganensis subsp. michiganensis NCPPB 382

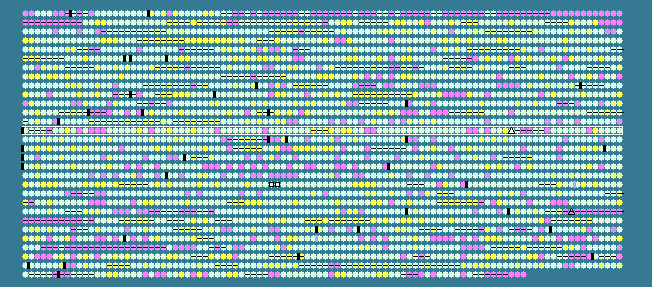

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 72.78 STD DEV: 3.94
Clavibacter michiganensis subsp. michiganensis NCPPB 382, complete genome - 1..3297891
2984 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1301	 75.37	0	1472374..1473798	+	474	148272479	-	CMM_1299	-	putative xylulose kinase
1302	 72.82	0	1473870..1475105	+	411	148272480	-	CMM_1300	-	putative ATPase, type II/type IV pathway secretion protein
1303	 75.12	0	1475102..1475965	+	287	148272481	-	CMM_1301	-	membrane protein, putative pilus assembly protein
1304	 75.08	0	1475962..1476912	+	316	148272482	-	CMM_1302	-	membrane protein, putative pilus assembly protein
1305	 68.72	-1	1476963..1477157	+	64	148272483	-	CMM_1303	-	hypothetical protein
1306	 75.40	0	1477157..1477534	+	125	148272484	-	CMM_1304	-	hypothetical protein
1307	 76.10	0	1477509..1477964	+	151	148272485	-	CMM_1305	-	hypothetical protein
1308	 77.22	+1	1477961..1478500	+	179	148272486	-	CMM_1306	-	putative secreted protein
1309	 73.55	0	1478508..1479815	-	435	148272487	-	CMM_1307	-	putative MFS permease
1310	 68.21	-1	1479891..1480994	+	367	148272488	prfB	CMM_1308	-	peptide chain release factor RF-2
1311	 75.24	0	1481070..1482737	+	555	148272489	ftsE	CMM_1309	-	putative ABC transporter, ATP-binding protein involved in cell division
1312	 65.25	-1	1482734..1483651	+	305	148272490	ftsX	CMM_1310	-	putative ABC transporter, permease component,involved in cell division
1313	 67.92	-1	1483718..1484194	+	158	148272491	smpB	CMM_1311	-	SsrA-binding protein
1314	 68.43	-1	1484812..1486623	-	603	148272492	-	CMM_1312	-	putative iron ABC transporter, permease component
1315	 72.40	0	1486626..1487654	-	342	148272493	-	CMM_1313	-	putative iron ABC transporter, ATPase component
1316	 69.90	0	1487654..1488736	-	360	148272494	-	CMM_1314	-	putative iron ABC transporter, substrate-binding protein
1317	 72.72	0	1488976..1490478	+	500	148272495	-	CMM_1315	-	putative MFS-type efflux protein
1318	 73.55	0	1490510..1491322	-	270	148272496	-	CMM_1316	-	putative monophosphatase
1319	 73.35	0	1491333..1492409	-	358	148272497	-	CMM_1317	-	putative GTPase
1320	 76.50	0	1492406..1493869	-	487	148272498	aroA	CMM_1318	-	3-phosphoshikimate 1-carboxyvinyltransferase
1321	 69.33	0	1493934..1494758	+	274	148272499	sigH	CMM_1319	-	ECF subfamily RNA polymerase sigma factor
1322	 68.72	-1	1494755..1494997	+	80	148272500	rsrA	CMM_1320	-	putative anti-sigma factor
1323	 72.11	0	1495033..1495473	+	146	148272501	-	CMM_1321	-	putative acetyl transferase
1324	 69.60	0	1495574..1499392	-	1272	148272502	kgd	CMM_1322	-	alpha-ketoglutarate decarboxylase
1325	 76.46	0	1499573..1501012	+	479	148272503	guaB3	CMM_1323	-	inositol-5-monophosphate dehydrogenase
1326	 72.05	0	1501126..1502556	+	476	148272504	-	CMM_1324	-	hypothetical protein
1327	 70.40	0	1502549..1503592	+	347	148272505	-	CMM_1325	-	hypothetical protein
1328	 73.70	0	1503662..1504741	-	359	148272506	-	CMM_1326	-	putative oxidoreductase
1329	 78.99	+1	1504825..1505757	+	310	148272507	-	CMM_1327	-	hypothetical protein
1330	 70.34	0	1505754..1506434	-	226	148272508	-	CMM_1328	-	hypothetical protein
1331	 74.21	0	1506642..1506959	+	105	148272509	-	CMM_1329	-	hypothetical protein
1332	 74.08	0	1507035..1508315	+	426	148272510	-	CMM_1330	-	putative MFS permease
1333	 67.73	-1	1508355..1509011	-	218	148272511	-	CMM_1331	-	putative two-component system response regulator
1334	 74.13	0	1509039..1510271	-	410	148272512	-	CMM_1332	-	hypothetical protein
1335	 73.33	0	1510268..1511422	-	384	148272513	-	CMM_1333	-	putative two-component system sensor kinase
1336	 73.27	0	1511593..1512273	-	226	148272514	-	CMM_1334	-	putative two-component system response regulator
1337	 74.53	0	1512393..1513562	-	389	148272515	metX	CMM_1335	-	homoserine O-acetyltransferase
1338	 71.85	0	1513646..1515016	-	456	148272516	metY	CMM_1336	-	O-acetylhomoserine aminocarboxypropyltransferase
1339	 74.31	0	1515152..1515949	+	265	148272517	-	CMM_1337	-	putative oxidoreductase
1340	 74.37	0	1515988..1516662	-	224	148272518	-	CMM_1338	-	TetR family transcriptional regulator
1341	 66.11	-1	1516782..1517852	+	356	148272519	-	CMM_1339	-	TerC family integral membrane export protein
1342	 74.94	0	1517849..1518670	+	273	148272520	-	CMM_1340	-	putative serine/threonine protein phosphatase
1343	 72.11	0	1518748..1520217	+	489	148272521	leuC	CMM_1341	-	isopropylmalate isomerase large subunit
1344	 69.59	0	1520220..1520834	+	204	148272522	leuD	CMM_1342	-	isopropylmalate isomerase small subunit
1345	 70.28	0	1520877..1522205	+	442	148272523	murA	CMM_1343	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
1346	 72.49	0	1522329..1523066	+	245	148272524	-	CMM_1344	-	putative sugar phosphate acyltransferase
1347	 71.98	0	1523074..1524126	+	350	148272525	gpsA	CMM_1345	-	hypothetical protein
1348	 74.14	0	1524129..1525238	+	369	148272526	ddlC	CMM_1346	-	D-alanine-D-alanine ligase
1349	 77.23	+1	1525341..1526258	+	305	148272527	-	CMM_1347	-	putative glycosyltransferase
1350	 75.24	0	1526215..1526727	-	170	148272528	-	CMM_1348	-	hypothetical protein
1351	 78.18	+1	1526752..1527837	+	361	148272529	thiL	CMM_1349	-	thiamin-monophosphate kinase
1352	 76.96	+1	1527834..1528445	-	203	148272530	-	CMM_1350	-	putative DNA methylase
1353	 71.98	0	1528715..1529674	+	319	148272531	-	CMM_1351	-	putative regulatory protein, ATPase
1354	 77.22	+1	1529700..1531007	+	435	148272532	-	CMM_1352	-	hypothetical protein
1355	 77.75	+1	1531004..1533547	+	847	148272533	-	CMM_1353	-	putative membrane-bound protease
1356	 74.95	0	1533544..1535727	+	727	148272534	recG	CMM_1354	-	ATP-dependent DNA helicase
1357	 73.58	0	1535754..1536245	+	163	148272535	coaD	CMM_1355	-	hypothetical protein
1358	 66.67	-1	1536265..1536837	+	190	148272536	-	CMM_1356	-	hypothetical protein
1359	 65.20	-1	1536840..1537043	+	67	148272537	rpmF	CMM_1357	-	50S ribosomal protein L32
1360	 72.80	0	1537069..1537785	+	238	148272538	rnc	CMM_1358	-	ribonuclease III
1361	 74.47	0	1537792..1538727	+	311	148272539	fpgA	CMM_1359	-	formamidopyrimidine-DNA glycosylase
1362	 74.89	0	1538740..1539858	-	372	148272540	-	CMM_1360	-	putative acetyltransferase
1363	 75.99	0	1540015..1543770	+	1251	148272541	smcA	CMM_1361	-	putative chromosome segregation ATPase
1364	 70.32	0	1543791..1544666	+	291	148272542	ftsY	CMM_1362	-	Signal recognition particle component
1365	 70.42	0	1544729..1546300	+	523	148272543	ffhA	CMM_1363	-	signal recognition particle protein
1366	 72.49	0	1546445..1546822	+	125	148272544	-	CMM_1364	-	putative lyase
1367	 75.00	0	1546832..1548031	-	399	148272545	-	CMM_1365	-	membrane-associated serine protease
1368	 72.22	0	1548045..1549196	-	383	148272546	-	CMM_1366	-	hypothetical protein
1369	 69.57	0	1549452..1549865	+	137	148272547	rpsP	CMM_1367	-	30S ribosomal protein S16
1370	 71.73	0	1549869..1550105	+	78	148272548	-	CMM_1368	-	hypothetical protein
1371	 72.16	0	1550137..1550718	+	193	148272549	rimM	CMM_1369	-	putative 16S rRNA processing protein
1372	 71.62	0	1550720..1551406	+	228	148272550	trmD	CMM_1370	-	putative tRNA (guanine-N1)-methyltransferase
1373	 71.35	0	1551426..1552193	-	255	148272551	mapA1	CMM_1371	-	putative methionine aminopeptidase
1374	 74.80	0	1552264..1552755	+	163	148272552	-	CMM_1372	-	hypothetical protein
1375	 66.38	-1	1552926..1553270	+	114	148272553	rplS	CMM_1373	-	50S ribosomal protein L19
1376	 67.60	-1	1553337..1554089	+	250	148272554	lepB	CMM_1374	-	putative signal peptidase I
1377	 74.55	0	1554089..1554748	+	219	148272555	rnhB	CMM_1375	-	ribonuclease HII
1378	 62.65	-2	1554822..1555145	+	107	148272556	-	CMM_1376	-	hypothetical protein
1379	 73.11	0	1555257..1555613	+	118	148272557	-	CMM_1377	-	putative endonuclease
1380	 76.11	0	1555613..1557169	+	518	148272558	-	CMM_1378	-	putative ATP-dependant serine protease
1381	 76.85	+1	1557364..1558659	+	431	148272559	-	CMM_1379	-	hypothetical protein
1382	 76.03	0	1558833..1559729	+	298	148272560	xerC	CMM_1380	-	integrase/recombinase
1383	 76.09	0	1559800..1560351	-	183	148272561	-	CMM_1381	-	M23B family metallopeptidase
1384	 68.29	-1	1560452..1561927	+	491	148272562	-	CMM_1382	-	putative sugar MFS permease
1385	 67.83	-1	1562166..1563113	+	315	148272563	rpsB	CMM_1383	-	30S ribosomal protein S2
1386	 69.69	0	1563223..1564050	+	275	148272564	tsf	CMM_1384	-	elongation factor Ts
1387	 70.15	0	1564207..1564923	+	238	148272565	pyrH	CMM_1385	-	hypothetical protein
1388	 67.38	-1	1565037..1565594	+	185	148272566	frrA	CMM_1386	-	hypothetical protein
1389	 72.62	0	1565595..1566635	+	346	148272567	cdsA	CMM_1387	-	putative phosphatidate cytidylyltransferase
1390	 73.44	0	1566646..1567191	+	181	148272568	-	CMM_1388	-	hypothetical protein
1391	 72.20	0	1567295..1567999	+	234	148272569	-	CMM_1389	-	hypothetical protein
1392	 74.81	0	1568070..1569800	+	576	148272570	-	CMM_1390	-	CPA1 family Na+/H+ antiporter
1393	 72.73	0	1569836..1570132	+	98	148272571	-	CMM_1391	-	putative ATP-/GTP-binding protein
1394	 75.10	0	1570129..1570863	+	244	148272572	-	CMM_1392	-	hypothetical protein
1395	 67.61	-1	1570892..1571950	-	352	148272573	-	CMM_1393	-	AI-E2 family membrane protein
1396	 77.59	+1	1571980..1573755	-	591	148272574	-	CMM_1394	-	hypothetical protein
1397	 74.25	0	1574038..1575897	+	619	148272575	-	CMM_1395	-	hypothetical protein
1398	 75.52	0	1575894..1576898	+	334	148272576	-	CMM_1396	-	putative thioredoxin
1399	 72.29	0	1576974..1579553	-	859	148272577	glgB	CMM_1397	-	glycogen branching enzyme
1400	 71.01	0	1579559..1581697	-	712	148272578	-	CMM_1398	-	putative glycosidase
72.78	MEAN

3.94	STD DEV
