IslandPath Analysis: Clostridium beijerinckii NCIMB 8052

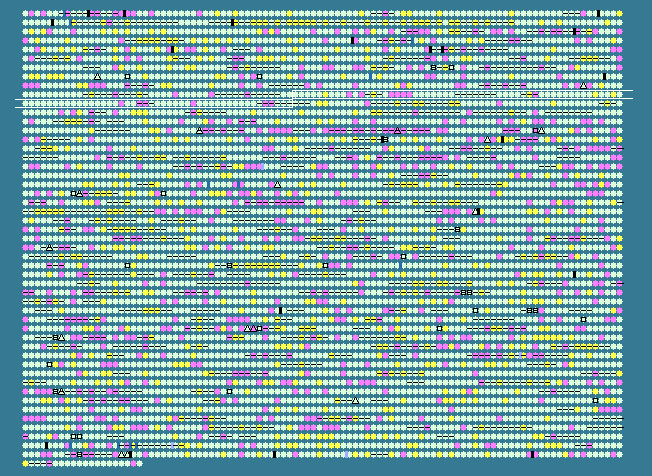

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.63 STD DEV: 3.23
Clostridium beijerinckii NCIMB 8052, complete genome - 1..6000632
5020 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
946	 30.38	0	1135239..1135577	+	112	150015838	-	Cbei_0952	-	phosphotransferase system PTS, lactose/cellobiose-specific IIA subunit
947	 29.81	0	1135777..1138476	+	899	150015839	-	Cbei_0953	-	sigma-54 factor interaction domain-containing protein
948	 27.50	0	1138631..1141405	+	924	150015840	-	Cbei_0954	-	sigma-54 factor interaction domain-containing protein
949	 28.61	0	1141528..1141950	+	140	150015841	-	Cbei_0955	-	PTS system fructose subfamily IIA component
950	 29.51	0	1141965..1142435	+	156	150015842	-	Cbei_0956	-	PTS system sorbose subfamily IIB component
951	 35.42	+1	1142450..1143214	+	254	150015843	-	Cbei_0957	-	phosphotransferase system PTS, sorbose-specific IIC subunit
952	 31.43	0	1143201..1144040	+	279	150015844	-	Cbei_0958	-	PTS system mannose/fructose/sorbose family IID component
953	 30.73	0	1144108..1145106	+	332	150015845	-	Cbei_0959	-	sugar isomerase (SIS)
954	 30.90	0	1145178..1146041	+	287	150015846	-	Cbei_0960	-	ribokinase-like domain-containing protein
955	 26.67	-1	1146248..1147117	-	289	150015847	-	Cbei_0961	-	phosphotransferase domain-containing protein
956	 28.33	0	1147542..1150301	+	919	150015848	-	Cbei_0962	-	sigma-54 factor interaction domain-containing protein
957	 26.08	-1	1150413..1150853	+	146	150015849	-	Cbei_0963	-	PTS system fructose subfamily IIA component
958	 31.04	0	1150831..1151310	+	159	150015850	-	Cbei_0964	-	PTS system sorbose subfamily IIB component
959	 34.97	+1	1151329..1152120	+	263	150015851	-	Cbei_0965	-	phosphotransferase system PTS, sorbose-specific IIC subunit
960	 31.96	0	1152113..1152913	+	266	150015852	-	Cbei_0966	-	PTS system mannose/fructose/sorbose family IID component
961	 29.36	0	1152942..1153997	+	351	150015853	-	Cbei_0967	-	sugar isomerase (SIS)
962	 25.90	-1	1154253..1155731	-	492	150015854	-	Cbei_0968	-	polysaccharide biosynthesis protein
963	 25.03	-1	1155912..1156778	+	288	150015855	-	Cbei_0969	-	helix-turn-helix domain-containing protein
964	 26.88	-1	1156951..1159167	-	738	150015856	-	Cbei_0970	-	peptidase M56, BlaR1
965	 25.51	-1	1159314..1159709	-	131	150015857	-	Cbei_0971	-	CopY family transcriptional regulator
966	 28.61	0	1160005..1162944	+	979	150015858	-	Cbei_0972	-	non-specific serine/threonine protein kinase
967	 29.30	0	1163230..1164096	-	288	150015859	-	Cbei_0973	-	RpiR family transcriptional regulator
968	 28.74	0	1164671..1165498	+	275	150015860	-	Cbei_0974	-	Cof-like hydrolase
969	 27.48	0	1165539..1166324	+	261	150015861	-	Cbei_0975	-	HisJ family histidinol phosphate phosphatase
970	 31.58	0	1166565..1167077	+	170	150015862	-	Cbei_0976	-	GCN5-related N-acetyltransferase
971	 33.17	0	1167177..1168412	-	411	150015863	-	Cbei_0977	-	major facilitator transporter
972	 30.79	0	1168583..1170037	+	484	150015864	-	Cbei_0978	-	major facilitator transporter
973	 32.24	0	1170378..1170926	-	182	150015865	-	Cbei_0979	-	hypothetical protein
974	 33.58	0	1171205..1172434	+	409	150015866	-	Cbei_0980	-	nuclease SbcCD, D subunit
975	 27.89	0	1172409..1175900	+	1163	150015867	-	Cbei_0981	-	SMC domain-containing protein
976	 30.88	0	1176228..1176797	+	189	150015868	-	Cbei_0982	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
977	 30.32	0	1177109..1178836	+	575	150015869	-	Cbei_0983	-	phosphoglucomutase/phosphomannomutase alpha/beta/subunit
978	 27.88	0	1179374..1180474	+	366	150015870	-	Cbei_0984	-	TPR repeat-containing protein
979	 28.10	0	1180597..1181322	+	241	150015871	-	Cbei_0985	-	WecB/TagA/CpsF family glycosyl transferase
980	 28.42	0	1181367..1182893	+	508	150015872	-	Cbei_0986	-	integral membrane protein MviN
981	 27.60	0	1182905..1184194	+	429	150015873	-	Cbei_0987	-	hypothetical protein
982	 29.55	0	1184195..1185358	+	387	150015874	-	Cbei_0988	-	glycosyl transferase, group 1
983	 27.94	0	1185342..1186565	+	407	150015875	-	Cbei_0989	-	O-antigen polymerase
984	 29.95	0	1186622..1187272	+	216	150015876	-	Cbei_0990	-	formiminotransferase-cyclodeaminase
985	 39.87	+2	1187348..1187500	-	50	150015877	-	Cbei_0991	-	hypothetical protein
986	 26.10	-1	1187743..1188240	+	165	150015878	-	Cbei_0992	-	hypothetical protein
987	 32.77	0	1188496..1189383	-	295	150015879	-	Cbei_0993	-	Delta-lactam-biosynthetic de-N-acetylase
988	 32.06	0	1189944..1191041	+	365	150015880	-	Cbei_0994	-	translation-associated GTPase
989	 28.34	0	1191495..1193315	+	606	150015881	-	Cbei_0995	-	TPR repeat-containing protein
990	 30.37	0	1193384..1194361	+	325	150015882	-	Cbei_0996	-	mannose-6-phosphate isomerase, class I
991	 30.89	0	1194692..1195552	+	286	150015883	-	Cbei_0997	-	undecaprenyl pyrophosphate phosphatase
992	 32.51	0	1196228..1197325	+	365	150015884	-	Cbei_0998	-	6-phosphofructokinase
993	 29.34	0	1197420..1198196	+	258	150015885	-	Cbei_0999	-	beta-lactamase, putative
994	 31.72	0	1198499..1199425	+	308	150015886	pyrB	Cbei_1000	-	aspartate carbamoyltransferase catalytic subunit
995	 30.79	0	1199427..1199858	+	143	150015887	-	Cbei_1001	-	aspartate carbamoyltransferase regulatory subunit
996	 34.30	+1	1199878..1201113	+	411	150015888	-	Cbei_1002	-	dihydroorotase, multifunctional complex type
997	 33.79	0	1201509..1202381	+	290	150015889	pyrF	Cbei_1003	-	orotidine 5'-phosphate decarboxylase
998	 31.45	0	1202417..1203160	+	247	150015890	-	Cbei_1004	-	dihydroorotate dehydrogenase electron transfer subunit
999	 35.12	+1	1203182..1204078	+	298	150015891	-	Cbei_1005	-	dihydroorotate dehydrogenase 1B
1000	 31.85	0	1204170..1204844	+	224	150015892	pyrE	Cbei_1006	-	orotate phosphoribosyltransferase
1001	 31.63	0	1205539..1206300	+	253	150015893	-	Cbei_1007	-	stationary-phase survival protein SurE
1002	 28.78	0	1206333..1207715	-	460	150015894	-	Cbei_1008	-	hypothetical protein
1003	 32.75	0	1208359..1210590	+	743	150015895	-	Cbei_1009	-	formate acetyltransferase
1004	 31.40	0	1210933..1211658	+	241	150015896	-	Cbei_1010	-	pyruvate formate-lyase activating enzyme
1005	 33.15	0	1212099..1214330	+	743	150015897	-	Cbei_1011	-	formate acetyltransferase
1006	 32.72	0	1214565..1214726	-	53	150015898	-	Cbei_1012	-	rubredoxin-type Fe(Cys)4 protein
1007	 31.27	0	1214887..1215516	-	209	150015899	-	Cbei_1013	-	exonuclease, RNase T and DNA polymerase III
1008	 31.86	0	1215791..1216741	+	316	150015900	-	Cbei_1014	-	L-lactate dehydrogenase
1009	 29.53	0	1217500..1218471	-	323	150015901	-	Cbei_1015	-	biotin--acetyl-CoA-carboxylase ligase
1010	 32.40	0	1218621..1219691	+	356	150015902	-	Cbei_1016	-	hypothetical protein
1011	 29.61	0	1219712..1220758	+	348	150015903	-	Cbei_1017	-	hypothetical protein
1012	 31.15	0	1221242..1221883	+	213	150015904	-	Cbei_1018	-	peptidase M50
1013	 31.62	0	1222399..1224090	+	563	150015905	argS	Cbei_1019	-	arginyl-tRNA synthetase
1014	 28.88	0	1224308..1225453	+	381	150015906	-	Cbei_1020	-	hypothetical protein
1015	 30.17	0	1225483..1226019	+	178	150015907	-	Cbei_1021	-	nitroreductase
1016	 29.77	0	1226281..1227009	+	242	150015908	-	Cbei_1022	-	HAD family hydrolase
1017	 25.60	-1	1227024..1227773	+	249	150015909	-	Cbei_1023	-	hypothetical protein
1018	 28.00	0	1227930..1228811	-	293	150015910	-	Cbei_1024	-	beta-lactamase domain-containing protein
1019	 31.23	0	1229158..1230960	+	600	150015911	-	Cbei_1025	-	hypothetical protein
1020	 25.96	-1	1231155..1231913	-	252	150015912	-	Cbei_1026	-	hypothetical protein
1021	 25.87	-1	1232133..1232333	-	66	150015913	-	Cbei_1027	-	hypothetical protein
1022	 27.18	-1	1232408..1232878	-	156	150015914	-	Cbei_1028	-	AsnC family transcriptional regulator
1023	 28.66	0	1233126..1233446	+	106	150015915	-	Cbei_1029	-	hypothetical protein
1024	 29.08	0	1233655..1234665	-	336	150015916	-	Cbei_1030	-	hypothetical protein
1025	 30.47	0	1234792..1235349	+	185	150015917	-	Cbei_1031	-	carbonic anhydrase
1026	 30.23	0	1235558..1236394	+	278	150015918	-	Cbei_1032	-	RNA-binding S1 domain-containing protein
1027	 30.72	0	1236450..1237865	-	471	150015919	-	Cbei_1033	-	GerA spore germination protein
1028	 33.01	0	1238543..1240387	+	614	150015920	-	Cbei_1034	-	asparagine synthase (glutamine-hydrolyzing)
1029	 23.10	-2	1240528..1240830	-	100	150015921	-	Cbei_1035	-	hypothetical protein
1030	 32.76	0	1240986..1243598	-	870	150015922	-	Cbei_1036	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
1031	 29.52	0	1243915..1244334	+	139	150015923	-	Cbei_1037	-	hypothetical protein
1032	 29.83	0	1245010..1246008	+	332	150015924	-	Cbei_1038	-	putative sulfonate/nitrate transport system substrate-binding protein
1033	 29.10	0	1245983..1246738	+	251	150015925	-	Cbei_1039	-	binding-protein-dependent transport systems inner membrane component
1034	 27.20	-1	1246735..1247403	+	222	150015926	-	Cbei_1040	-	ABC transporter related
1035	 30.64	0	1247790..1249496	+	568	150015927	-	Cbei_1041	-	ABC transporter related
1036	 30.56	0	1249548..1249979	-	143	150015928	-	Cbei_1042	-	hypothetical protein
1037	 34.01	+1	1250410..1251438	-	342	150015929	-	Cbei_1043	-	branched-chain amino acid aminotransferase
1038	 31.70	0	1251799..1253697	-	632	150015930	-	Cbei_1044	-	NAD+ synthetase
1039	 32.41	0	1254015..1254446	+	143	150015931	-	Cbei_1045	-	hypothetical protein
1040	 30.59	0	1254450..1255397	+	315	150015932	-	Cbei_1046	-	band 7 protein
1041	 26.25	-1	1255762..1256580	+	272	150015933	-	Cbei_1047	-	hypothetical protein
1042	 26.55	-1	1256690..1257205	+	171	150015934	-	Cbei_1048	-	hypothetical protein
1043	 30.46	0	1257354..1258187	+	277	150015935	-	Cbei_1049	-	extracellular solute-binding protein
1044	 31.46	0	1258251..1258892	+	213	150015936	-	Cbei_1050	-	polar amino acid ABC transporter, inner membrane subunit
1045	 31.44	0	1258908..1259594	+	228	150015937	-	Cbei_1051	-	ABC transporter related
30.63	MEAN

3.23	STD DEV
