IslandPath Analysis: Clostridium beijerinckii NCIMB 8052

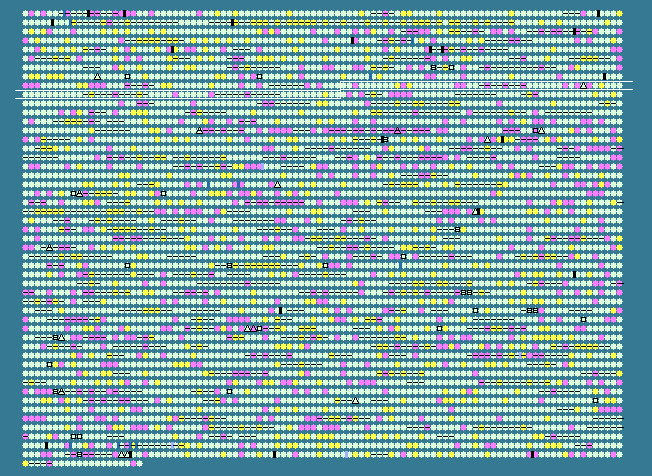

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.63   STD DEV: 3.23
Clostridium beijerinckii NCIMB 8052, complete genome - 1..6000632
5020 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
854	 27.86	0	1045162..1045929	+	255	150015746	-	Cbei_0860	-	transglutaminase domain-containing protein
855	 30.72	0	1046200..1047309	+	369	150015747	-	Cbei_0861	-	ABC transporter related
856	 24.97	-1	1047340..1048284	+	314	150015748	-	Cbei_0862	-	PucR family transcriptional regulator
857	 28.71	0	1048695..1049711	+	338	150015749	-	Cbei_0863	-	alanine racemase
858	 31.99	0	1049799..1051292	+	497	150015750	-	Cbei_0864	-	4-alpha-glucanotransferase
859	 30.45	0	1051295..1053655	+	786	150015751	-	Cbei_0865	-	glycogen/starch/alpha-glucan phosphorylase
860	 30.83	0	1053974..1054933	+	319	150015752	-	Cbei_0866	-	2-hydroxyacid dehydrogenase
861	 30.28	0	1055000..1055884	+	294	150015753	-	Cbei_0867	-	hypothetical protein
862	 31.54	0	1056195..1058363	+	722	150015754	-	Cbei_0868	-	DNA topoisomerase
863	 36.25	+1	1058427..1059317	-	296	150015755	-	Cbei_0869	-	short-chain dehydrogenase/reductase SDR
864	 26.76	-1	1059610..1060476	+	288	150015756	-	Cbei_0870	-	hypothetical protein
865	 38.52	+2	1060903..1062135	+	410	150015757	-	Cbei_0871	-	ammonium transporter
866	 29.69	0	1062609..1064609	+	666	150015758	-	Cbei_0872	-	methyl-accepting chemotaxis sensory transducer
867	 30.68	0	1064868..1065773	+	301	150015759	-	Cbei_0873	-	metallophosphoesterase
868	 29.39	0	1066488..1067222	+	244	150015760	-	Cbei_0874	-	hexapaptide repeat-containing transferase
869	 33.24	0	1067258..1069366	+	702	150015761	-	Cbei_0875	-	methyl-accepting chemotaxis sensory transducer
870	 33.67	0	1069474..1070949	-	491	150015762	-	Cbei_0876	-	sodium/proline symporter
871	 33.84	0	1071279..1071869	+	196	150015763	-	Cbei_0877	-	ABC transporter, periplasmic-binding, putative
872	 29.43	0	1071844..1073457	-	537	150015764	-	Cbei_0878	-	resolvase domain-containing protein
873	 25.90	-1	1073559..1074056	-	165	150015765	-	Cbei_0879	-	hypothetical protein
874	 25.36	-1	1074331..1075446	+	371	150015766	-	Cbei_0880	-	hypothetical protein
875	 27.69	0	1075437..1076216	+	259	150015767	-	Cbei_0881	-	hypothetical protein
876	 28.05	0	1076251..1076931	+	226	150015768	-	Cbei_0882	-	hypothetical protein
877	 28.50	0	1076938..1077351	+	137	150015769	-	Cbei_0883	-	hypothetical protein
878	 23.86	-2	1077807..1078640	-	277	150015770	-	Cbei_0884	-	hypothetical protein
879	 29.33	0	1078725..1080272	-	515	150015771	-	Cbei_0885	-	hypothetical protein
880	 28.65	0	1080355..1080696	-	113	150015772	-	Cbei_0886	-	XRE family transcriptional regulator
881	 22.89	-2	1080855..1081055	+	66	150015773	-	Cbei_0887	-	helix-turn-helix domain-containing protein
882	 30.32	0	1081108..1081539	+	143	150015774	-	Cbei_0888	-	putative prophage LambdaCh01, transcriptional regulator
883	 32.81	0	1081569..1081760	+	63	150015775	-	Cbei_0889	-	hypothetical protein
884	 26.00	-1	1081796..1082095	+	99	150015776	-	Cbei_0890	-	hypothetical protein
885	 27.32	-1	1082185..1082367	+	60	150015777	-	Cbei_0891	-	hypothetical protein
886	 30.70	0	1082415..1083248	+	277	150015778	-	Cbei_0892	-	hypothetical protein
887	 28.33	0	1083241..1084020	+	259	150015779	-	Cbei_0893	-	hypothetical protein
888	 28.40	0	1084294..1084617	-	107	150015780	-	Cbei_0894	-	hypothetical protein
889	 32.65	0	1084823..1084969	+	48	150015781	-	Cbei_0895	-	hypothetical protein
890	 28.30	0	1085034..1085351	-	105	150015782	-	Cbei_0896	-	hypothetical protein
891	 26.60	-1	1085395..1085706	-	103	150015783	-	Cbei_0897	-	hypothetical protein
892	 32.00	0	1086084..1086383	+	99	150015784	-	Cbei_0898	-	hypothetical protein
893	 26.72	-1	1086742..1087134	+	130	150015785	-	Cbei_0899	-	hypothetical protein
894	 30.36	0	1087570..1088175	+	201	150015786	-	Cbei_0900	-	phage integrase family protein
895	 20.00	-2	1088382..1088561	+	59	150015787	-	Cbei_0901	-	hypothetical protein
896	 28.19	0	1088636..1089316	+	226	150015788	-	Cbei_0902	-	hypothetical protein
897	 34.31	+1	1089442..1089747	+	101	150015789	-	Cbei_0903	-	prophage LambdaBa04, GP54
898	 29.51	0	1089740..1089922	+	60	150015790	-	Cbei_0904	-	hypothetical protein
899	 30.59	0	1089953..1090390	+	145	150015791	-	Cbei_0905	-	hypothetical protein
900	 31.83	0	1090390..1092054	+	554	150015792	-	Cbei_0906	-	phage terminase
901	 33.25	0	1092072..1093295	+	407	150015793	-	Cbei_0907	-	phage portal protein
902	 33.16	0	1093246..1093839	+	197	150015794	-	Cbei_0908	-	HK97 family phage prohead protease
903	 32.67	0	1093859..1095061	+	400	150015795	-	Cbei_0909	-	HK97 family phage major capsid protein
904	 30.88	0	1095161..1095445	+	94	150015796	-	Cbei_0910	-	uncharacterized phage protein
905	 31.86	0	1095442..1095780	+	112	150015797	-	Cbei_0911	-	phage head-tail adaptor, putative
906	 31.14	0	1095785..1096240	+	151	150015798	-	Cbei_0912	-	hypothetical protein
907	 28.46	0	1096242..1096733	+	163	150015799	-	Cbei_0913	-	hypothetical protein
908	 31.68	0	1096744..1097835	+	363	150015800	-	Cbei_0914	-	hypothetical protein
909	 33.33	0	1097855..1098286	+	143	150015801	-	Cbei_0915	-	phage-like element pbsx protein XkdM
910	 29.68	0	1098348..1098758	+	136	150015802	-	Cbei_0916	-	hypothetical protein
911	 33.02	0	1099046..1099999	+	317	150015803	-	Cbei_0917	-	hypothetical protein
912	 35.90	+1	1100203..1101060	+	285	150015804	-	Cbei_0918	-	hypothetical protein
913	 33.85	0	1101076..1101843	+	255	150015805	-	Cbei_0919	-	cell wall binding repeat-containing protein
914	 28.29	0	1101852..1102763	+	303	150015806	-	Cbei_0920	-	hypothetical protein
915	 32.71	0	1102772..1103092	+	106	150015807	-	Cbei_0921	-	hypothetical protein
916	 27.07	-1	1103109..1103555	+	148	150015808	-	Cbei_0922	-	hypothetical protein
917	 33.05	0	1103558..1104625	+	355	150015809	-	Cbei_0923	-	baseplate J family protein
918	 32.07	0	1104627..1106450	+	607	150015810	-	Cbei_0924	-	hypothetical protein
919	 29.70	0	1106452..1107057	+	201	150015811	-	Cbei_0925	-	phage-like element pbsx protein XkdT
920	 36.04	+1	1107072..1108550	+	492	150015812	-	Cbei_0926	-	hypothetical protein
921	 29.30	0	1108578..1108850	+	90	150015813	-	Cbei_0927	-	hypothetical protein
922	 28.70	0	1108843..1109058	+	71	150015814	-	Cbei_0928	-	hypothetical protein
923	 30.38	0	1109236..1109472	+	78	150015815	-	Cbei_0929	-	hypothetical protein
924	 31.31	0	1109488..1109883	+	131	150015816	-	Cbei_0930	-	hypothetical protein
925	 29.78	0	1109954..1110742	+	262	150015817	-	Cbei_0931	-	glycoside hydrolase family protein
926	 25.34	-1	1111208..1111570	-	120	150015818	-	Cbei_0932	-	XRE family transcriptional regulator
927	 31.66	0	1111658..1112134	+	158	150015819	-	Cbei_0933	-	ABC transporter substrate-binding protein
928	 31.25	0	1112169..1112936	+	255	150015820	-	Cbei_0934	-	ABC transporter related
929	 30.81	0	1112968..1113759	+	263	150015821	-	Cbei_0935	-	binding-protein-dependent transport systems inner membrane component
930	 31.09	0	1114063..1114419	+	118	150015822	-	Cbei_0936	-	LrgA family protein
931	 31.23	0	1114459..1115172	+	237	150015823	-	Cbei_0937	-	LrgB family protein
932	 26.21	-1	1115508..1116644	+	378	150015824	-	Cbei_0938	-	hypothetical protein
933	 30.19	0	1116818..1117867	-	349	150015825	-	Cbei_0939	-	D-galactose-binding periplasmic protein precursor
934	 32.14	0	1118041..1118625	-	194	150015826	-	Cbei_0940	-	flavin reductase domain-containing protein
935	 30.84	0	1118731..1120053	-	440	150015827	-	Cbei_0941	-	Serine-type D-Ala-D-Ala carboxypeptidase
936	 30.84	0	1120219..1120941	-	240	150015828	-	Cbei_0942	-	glutamine amidotransferase
937	 29.43	0	1120960..1122318	-	452	150015829	-	Cbei_0943	-	hypothetical protein
938	 26.21	-1	1122593..1124557	+	654	150015830	-	Cbei_0944	-	hypothetical protein
939	 28.80	0	1124574..1126934	+	786	150015831	-	Cbei_0945	-	peptidase U32
940	 33.21	0	1127088..1129448	+	786	150015832	-	Cbei_0946	-	recombination and DNA strand exchange inhibitor protein
941	 32.51	0	1129624..1130352	+	242	150015833	-	Cbei_0947	-	hypothetical protein
942	 33.33	0	1130634..1131269	-	211	150015834	-	Cbei_0948	-	hypothetical protein
943	 30.59	0	1131730..1132530	+	266	150015835	-	Cbei_0949	-	glycoside hydrolase family protein
944	 32.94	0	1133610..1134866	+	418	150015836	-	Cbei_0950	-	PTS system lactose/cellobiose family IIC subunit
945	 31.39	0	1134917..1135225	+	102	150015837	-	Cbei_0951	-	phosphotransferase system, lactose/cellobiose-specific IIB subunit
946	 30.38	0	1135239..1135577	+	112	150015838	-	Cbei_0952	-	phosphotransferase system PTS, lactose/cellobiose-specific IIA subunit
947	 29.81	0	1135777..1138476	+	899	150015839	-	Cbei_0953	-	sigma-54 factor interaction domain-containing protein
948	 27.50	0	1138631..1141405	+	924	150015840	-	Cbei_0954	-	sigma-54 factor interaction domain-containing protein
949	 28.61	0	1141528..1141950	+	140	150015841	-	Cbei_0955	-	PTS system fructose subfamily IIA component
950	 29.51	0	1141965..1142435	+	156	150015842	-	Cbei_0956	-	PTS system sorbose subfamily IIB component
951	 35.42	+1	1142450..1143214	+	254	150015843	-	Cbei_0957	-	phosphotransferase system PTS, sorbose-specific IIC subunit
952	 31.43	0	1143201..1144040	+	279	150015844	-	Cbei_0958	-	PTS system mannose/fructose/sorbose family IID component
953	 30.73	0	1144108..1145106	+	332	150015845	-	Cbei_0959	-	sugar isomerase (SIS)
30.63	MEAN

3.23	STD DEV
