IslandPath Analysis: Clostridium beijerinckii NCIMB 8052

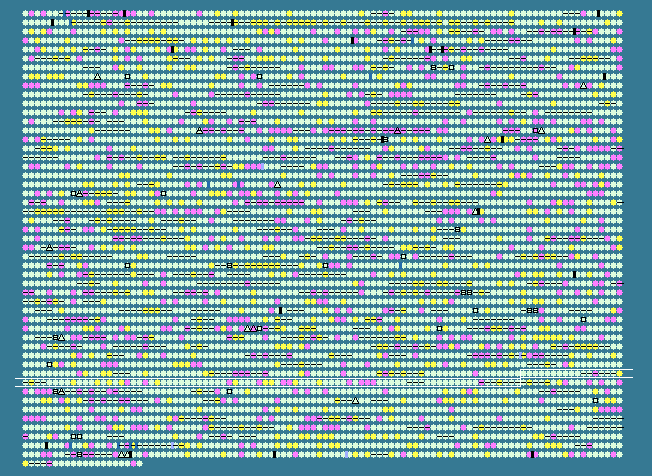

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.63 STD DEV: 3.23
Clostridium beijerinckii NCIMB 8052, complete genome - 1..6000632
5020 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4084	 29.17	0	4794154..4794537	-	127	150018976	-	Cbei_4164	-	hypothetical protein
4085	 30.00	0	4795061..4796830	-	589	150018977	-	Cbei_4165	-	diguanylate cyclase and metal dependent phosphohydrolase
4086	 27.53	0	4796970..4799003	-	677	150018978	-	Cbei_4166	-	hypothetical protein
4087	 31.12	0	4798993..4799760	-	255	150018979	-	Cbei_4167	-	ABC transporter related
4088	 27.61	0	4800101..4801114	-	337	150018980	-	Cbei_4168	-	integral membrane sensor signal transduction histidine kinase
4089	 29.61	0	4801111..4801782	-	223	150018981	-	Cbei_4169	-	two component transcriptional regulator
4090	 31.28	0	4802151..4802783	-	210	150018982	-	Cbei_4170	-	polar amino acid ABC transporter, inner membrane subunit
4091	 32.51	0	4802786..4803514	-	242	150018983	-	Cbei_4171	-	polar amino acid ABC transporter, inner membrane subunit
4092	 33.09	0	4803514..4804326	-	270	150018984	-	Cbei_4172	-	extracellular solute-binding protein
4093	 33.75	0	4804409..4805131	-	240	150018985	-	Cbei_4173	-	ABC transporter related
4094	 28.47	0	4805413..4806297	-	294	150018986	-	Cbei_4174	-	response regulator receiver
4095	 28.03	0	4806325..4807587	-	420	150018987	-	Cbei_4175	-	signal transduction histidine kinase regulating citrate/malate metabolism
4096	 25.86	-1	4807694..4808014	-	106	150018988	-	Cbei_4176	-	branched-chain amino acid transport
4097	 31.70	0	4808011..4808745	-	244	150018989	-	Cbei_4177	-	AzlC family protein
4098	 30.80	0	4808866..4809417	+	183	150018990	-	Cbei_4178	-	XRE family transcriptional regulator
4099	 29.73	0	4809427..4810341	-	304	150018991	-	Cbei_4179	-	auxin efflux carrier
4100	 34.83	+1	4810589..4811656	-	355	150018992	-	Cbei_4180	-	response regulator receiver modulated CheB methylesterase
4101	 28.91	0	4811653..4812465	-	270	150018993	-	Cbei_4181	-	protein-glutamate O-methyltransferase
4102	 35.75	+1	4812626..4817047	-	1473	150018994	-	Cbei_4182	-	methyl-accepting chemotaxis sensory transducer
4103	 30.78	0	4817081..4819237	-	718	150018995	-	Cbei_4183	-	CheA signal transduction histidine kinase
4104	 30.65	0	4819248..4819694	-	148	150018996	-	Cbei_4184	-	putative CheW protein
4105	 27.79	0	4820335..4821381	-	348	150018997	-	Cbei_4185	-	metal dependent phosphohydrolase
4106	 31.73	0	4821648..4823336	-	562	150018998	-	Cbei_4186	-	sulfate adenylyltransferase, large subunit
4107	 33.67	0	4823338..4824237	-	299	150018999	-	Cbei_4187	-	sulfate adenylyltransferase subunit 2
4108	 33.02	0	4824310..4824627	-	105	150019000	-	Cbei_4188	-	4Fe-4S ferredoxin iron-sulfur binding domain-containing protein
4109	 34.15	+1	4824611..4826317	-	568	150019001	-	Cbei_4189	-	adenylylsulfate reductase
4110	 33.43	0	4826614..4827678	-	354	150019002	-	Cbei_4190	-	sulfate ABC transporter, ATPase subunit
4111	 31.74	0	4827684..4828499	-	271	150019003	-	Cbei_4191	-	sulfate ABC transporter, inner membrane subunit CysW
4112	 33.33	0	4828527..4829351	-	274	150019004	-	Cbei_4192	-	sulfate ABC transporter, inner membrane subunit CysT
4113	 35.47	+1	4829551..4830579	-	342	150019005	-	Cbei_4193	-	sulfate ABC transporter, periplasmic sulfate-binding protein
4114	 33.91	+1	4831135..4832181	-	348	150019006	-	Cbei_4194	-	sulfate ABC transporter, periplasmic sulfate-binding protein
4115	 36.36	+1	4832641..4832805	-	54	150019007	-	Cbei_4195	-	hypothetical protein
4116	 32.91	0	4832869..4835019	-	716	150019008	-	Cbei_4196	-	ferrous iron transport protein B
4117	 37.39	+2	4835094..4835315	-	73	150019009	-	Cbei_4197	-	FeoA family protein
4118	 27.14	-1	4835329..4835538	-	69	150019010	-	Cbei_4198	-	FeoA family protein
4119	 32.34	0	4836342..4837550	-	402	150019011	-	Cbei_4199	-	isocitrate dehydrogenase
4120	 28.55	0	4837873..4838667	-	264	150019012	-	Cbei_4200	-	phage replisome organizer, putative
4121	 25.09	-1	4839220..4839510	-	96	150019013	-	Cbei_4201	-	hypothetical protein
4122	 28.43	0	4839679..4840596	-	305	150019014	-	Cbei_4202	-	abortive infection protein
4123	 34.56	+1	4841316..4842788	-	490	150019015	-	Cbei_4203	-	glutamate synthase, NADH/NADPH, small subunit
4124	 32.57	0	4842802..4847412	-	1536	150019016	-	Cbei_4204	-	glutamate synthase (ferredoxin)
4125	 30.30	0	4847552..4848112	-	186	150019017	-	Cbei_4205	-	response regulator receiver/ANTAR domain-containing protein
4126	 34.01	+1	4848154..4849485	-	443	150019018	-	Cbei_4206	-	glutamine synthetase, type I
4127	 31.96	0	4851118..4852431	+	437	150019019	-	Cbei_4207	-	aspartate kinase
4128	 30.89	0	4852756..4853409	-	217	150019020	-	Cbei_4208	-	SNARE associated Golgi protein
4129	 32.26	0	4853572..4856460	-	962	150019021	-	Cbei_4209	-	von Willebrand factor, type A
4130	 30.35	0	4856522..4857091	-	189	150019022	-	Cbei_4210	-	hypothetical protein
4131	 29.02	0	4857107..4859587	-	826	150019023	-	Cbei_4211	-	hypothetical protein
4132	 30.83	0	4859635..4860591	-	318	150019024	-	Cbei_4212	-	hypothetical protein
4133	 28.91	0	4860638..4861972	-	444	150019025	-	Cbei_4213	-	type IV pilus assembly protein PilO
4134	 30.11	0	4861974..4862531	-	185	150019026	-	Cbei_4214	-	fimbrial assembly family protein
4135	 26.89	-1	4862548..4863726	-	392	150019027	-	Cbei_4215	-	type IV pilus assembly protein PilM
4136	 34.26	+1	4863958..4864389	-	143	150019028	-	Cbei_4216	-	putative type IV pilin
4137	 31.01	0	4864466..4865668	-	400	150019029	-	Cbei_4217	-	type II secretion system protein
4138	 32.45	0	4865772..4867466	-	564	150019030	-	Cbei_4218	-	type II secretion system protein E
4139	 28.42	0	4867581..4868333	-	250	150019031	-	Cbei_4219	-	peptidase A24A domain-containing protein
4140	 24.91	-1	4869514..4869798	-	94	150019032	-	Cbei_4220	-	hypothetical protein
4141	 36.42	+1	4870256..4870708	-	150	150019033	-	Cbei_4221	-	cell wall binding repeat-containing protein
4142	 36.04	+1	4872246..4872983	-	245	150019034	-	Cbei_4222	-	hypothetical protein
4143	 33.33	0	4873362..4874009	-	215	150019035	-	Cbei_4223	-	hypothetical protein
4144	 25.85	-1	4874388..4875830	-	480	150019036	-	Cbei_4224	-	GntR family transcriptional regulator
4145	 25.73	-1	4875858..4876778	-	306	150019037	-	Cbei_4225	-	DNA polymerase beta subunit
4146	 34.25	+1	4877288..4877830	-	180	150019038	-	Cbei_4226	-	hypothetical protein
4147	 28.03	0	4877912..4879702	-	596	150019039	-	Cbei_4227	-	GTP-binding protein, HSR1-related
4148	 30.27	0	4880360..4880881	+	173	150019040	-	Cbei_4228	-	hypoxanthine phosphoribosyltransferase
4149	 30.65	0	4880961..4881632	-	223	150019041	-	Cbei_4229	-	sporulation protein YunB
4150	 34.71	+1	4881739..4884213	+	824	150019042	-	Cbei_4230	-	1A family penicillin-binding protein
4151	 28.22	0	4884306..4885166	-	286	150019043	-	Cbei_4231	-	hypothetical protein
4152	 32.11	0	4885530..4885937	-	135	150019044	-	Cbei_4232	-	nucleoside-diphosphate kinase
4153	 29.30	0	4886375..4886647	+	90	150019045	-	Cbei_4233	-	acylphosphatase
4154	 32.52	0	4886720..4887454	-	244	150019046	-	Cbei_4234	-	putative hydrolase
4155	 27.02	-1	4887985..4890186	-	733	150019047	-	Cbei_4235	-	cellulose synthase
4156	 28.87	0	4890198..4891451	-	417	150019048	-	Cbei_4236	-	glycosyl transferase family protein
4157	 25.45	-1	4891456..4892736	-	426	150019049	-	Cbei_4237	-	hypothetical protein
4158	 27.02	-1	4892720..4893574	-	284	150019050	-	Cbei_4238	-	diguanylate cyclase
4159	 24.75	-1	4894070..4895548	-	492	150019051	-	Cbei_4239	-	transmembrane protein
4160	 29.84	0	4895743..4896516	+	257	150019052	-	Cbei_4240	-	Cof-like hydrolase
4161	 30.66	0	4897097..4898143	-	348	150019053	-	Cbei_4241	-	DNA-directed DNA polymerase
4162	 28.94	0	4898982..4899413	+	143	150019054	-	Cbei_4242	-	hypothetical protein
4163	 31.82	0	4899435..4902071	-	878	150019055	-	Cbei_4243	-	ATPase, P-type (transporting), HAD superfamily, subfamily IC
4164	 33.02	0	4902312..4902956	-	214	150019056	-	Cbei_4244	-	cell wall binding repeat-containing protein
4165	 30.72	0	4903266..4904912	-	548	150019057	-	Cbei_4245	-	putative manganese-dependent inorganic pyrophosphatase
4166	 33.72	0	4905244..4906011	-	255	150019058	flgG	Cbei_4246	-	flagellar basal body rod protein FlgG
4167	 29.96	0	4906099..4906869	-	256	150019059	flgG	Cbei_4247	-	flagellar basal body rod protein FlgG
4168	 27.38	-1	4907065..4907685	-	206	150019060	-	Cbei_4248	-	hypothetical protein
4169	 31.14	0	4907965..4908693	-	242	150019061	-	Cbei_4249	-	RNA polymerase, sigma 28 subunit, FliA/WhiG
4170	 28.50	0	4908746..4909387	-	213	150019062	-	Cbei_4250	-	type IV pilus assembly PilZ
4171	 30.55	0	4909400..4910260	-	286	150019063	-	Cbei_4251	-	cobyrinic acid a,c-diamide synthase
4172	 30.05	0	4910254..4911594	-	446	150019064	flhF	Cbei_4252	-	flagellar biosynthesis regulator FlhF
4173	 33.67	0	4911595..4913661	-	688	150019065	flhA	Cbei_4253	-	flagellar biosynthesis protein FlhA
4174	 30.67	0	4913794..4915635	-	613	150019066	-	Cbei_4254	-	bifunctional flagellar biosynthesis protein FliR/FlhB
4175	 32.22	0	4915649..4915918	-	89	150019067	-	Cbei_4255	-	export protein FliQ
4176	 32.44	0	4915930..4916709	-	259	150019068	-	Cbei_4256	-	flagellar biosynthetic protein FliP
4177	 24.56	-1	4916699..4917097	-	132	150019069	-	Cbei_4257	-	putative flagellar formation protein
4178	 29.84	0	4917107..4917592	-	161	150019070	-	Cbei_4258	-	flagellar basal body-associated protein FliL
4179	 28.65	0	4917672..4917863	-	63	150019071	-	Cbei_4259	-	flagellar FlbD family protein
4180	 36.17	+1	4918115..4919206	-	363	150019072	-	Cbei_4260	-	hypothetical protein
4181	 29.57	0	4919291..4919689	-	132	150019073	-	Cbei_4261	-	flagellar operon protein
4182	 32.55	0	4919690..4920709	-	339	150019074	-	Cbei_4262	-	flagellar hook capping protein
4183	 28.73	0	4920721..4922067	-	448	150019075	-	Cbei_4263	-	flagellar hook-length control protein
30.63	MEAN

3.23	STD DEV
