IslandPath Analysis: Clostridium beijerinckii NCIMB 8052

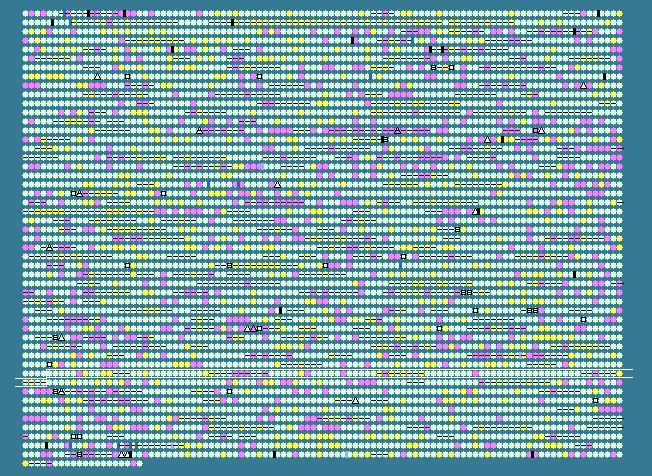

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.63 STD DEV: 3.23
Clostridium beijerinckii NCIMB 8052, complete genome - 1..6000632
5020 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
4005	 28.12	0	4693466..4694137	-	223	150018897	-	Cbei_4085	-	GntR family transcriptional regulator
4006	 29.40	0	4694484..4696163	+	559	150018898	-	Cbei_4086	-	methyl-accepting chemotaxis sensory transducer
4007	 33.59	0	4696245..4697420	+	391	150018899	-	Cbei_4087	-	ABC transporter, periplasmic substrate-binding protein
4008	 31.03	0	4697500..4699362	-	620	150018900	-	Cbei_4088	-	amino acid permease
4009	 29.29	0	4699934..4700230	+	98	150018901	-	Cbei_4089	-	hypothetical protein
4010	 25.45	-1	4700368..4700811	-	147	150018902	-	Cbei_4090	-	GCN5-related N-acetyltransferase
4011	 34.62	+1	4701100..4701255	-	51	150018903	-	Cbei_4091	-	hypothetical protein
4012	 30.23	0	4701408..4702469	-	353	150018904	-	Cbei_4092	-	3-dehydroquinate synthase
4013	 27.24	-1	4702565..4702876	-	103	150018905	-	Cbei_4093	-	hypothetical protein
4014	 37.50	+2	4702960..4703151	-	63	150018906	-	Cbei_4094	-	phage shock protein C, PspC
4015	 36.71	+1	4703556..4705271	-	571	150018907	-	Cbei_4095	-	dihydroxy-acid dehydratase
4016	 30.45	0	4705502..4706230	-	242	150018908	-	Cbei_4096	-	GntR domain-containing protein
4017	 31.70	0	4706787..4708190	-	467	150018909	-	Cbei_4097	-	amino acid permease-associated region
4018	 28.96	0	4708602..4709081	-	159	150018910	-	Cbei_4098	-	MarR family transcriptional regulator
4019	 34.09	+1	4709047..4710639	-	530	150018911	-	Cbei_4099	-	EmrB/QacA family drug resistance transporter
4020	 29.97	0	4710652..4711305	-	217	150018912	-	Cbei_4100	-	secretion protein HlyD
4021	 36.18	+1	4711325..4712308	-	327	150018913	-	Cbei_4101	-	secretion protein HlyD family protein
4022	 28.64	0	4712576..4713982	-	468	150018914	-	Cbei_4102	-	integral membrane sensor signal transduction histidine kinase
4023	 30.71	0	4713969..4714655	-	228	150018915	-	Cbei_4103	-	two component transcriptional regulator
4024	 31.47	0	4714802..4716193	-	463	150018916	-	Cbei_4104	-	ErfK/YbiS/YcfS/YnhG family protein
4025	 33.10	0	4716312..4718045	-	577	150018917	-	Cbei_4105	-	amine oxidase
4026	 30.66	0	4718178..4719563	-	461	150018918	-	Cbei_4106	-	ErfK family protein
4027	 29.11	0	4719764..4720237	-	157	150018919	-	Cbei_4107	-	iron dependent repressor
4028	 32.48	0	4720583..4720933	-	116	150018920	-	Cbei_4108	-	HxlR family transcriptional regulator
4029	 32.04	0	4721061..4721369	+	102	150018921	-	Cbei_4109	-	pyridoxamine 5'-phosphate oxidase-related, FMN-binding
4030	 33.63	0	4721470..4723173	-	567	150018922	-	Cbei_4110	-	hydrogenase, Fe-only
4031	 35.89	+1	4723253..4725133	-	626	150018923	-	Cbei_4111	-	NADH dehydrogenase (quinone)
4032	 34.55	+1	4725123..4725617	-	164	150018924	-	Cbei_4112	-	NADH dehydrogenase (ubiquinone), 24 kDa subunit
4033	 31.19	0	4726029..4727192	+	387	150018925	alr	Cbei_4113	-	alanine racemase
4034	 28.46	0	4727633..4729438	-	601	150018926	-	Cbei_4114	-	GTP-binding protein, HSR1-related
4035	 27.86	0	4729444..4731216	-	590	150018927	-	Cbei_4115	-	hypothetical protein
4036	 26.09	-1	4731223..4731912	-	229	150018928	-	Cbei_4116	-	hypothetical protein
4037	 27.05	-1	4731921..4734434	-	837	150018929	-	Cbei_4117	-	hypothetical protein
4038	 25.27	-1	4734977..4735708	-	243	150018930	-	Cbei_4118	-	aminotransferase, class IV
4039	 28.39	0	4735708..4737063	-	451	150018931	-	Cbei_4119	-	para-aminobenzoate synthase, subunit I
4040	 31.30	0	4737050..4737640	-	196	150018932	-	Cbei_4120	-	glutamine amidotransferase of anthranilate synthase
4041	 26.90	-1	4737953..4739134	-	393	150018933	-	Cbei_4121	-	cyclopropane-fatty-acyl-phospholipid synthase
4042	 28.54	0	4739363..4740550	-	395	150018934	-	Cbei_4122	-	hypothetical protein
4043	 27.56	0	4740893..4741342	-	149	150018935	-	Cbei_4123	-	heat shock protein Hsp20
4044	 28.40	0	4741552..4743252	-	566	150018936	-	Cbei_4124	-	methyl-accepting chemotaxis sensory transducer
4045	 33.41	0	4743686..4745059	-	457	150018937	-	Cbei_4125	-	sugar (glycoside-Pentoside-hexuronide) transporter
4046	 33.69	0	4745302..4746963	-	553	150018938	-	Cbei_4126	-	Alpha-N-arabinofuranosidase
4047	 37.54	+2	4747125..4748861	-	578	150018939	-	Cbei_4127	-	dihydroxy-acid dehydratase
4048	 24.77	-1	4748927..4749814	-	295	150018940	-	Cbei_4128	-	dihydrodipicolinate synthetase
4049	 29.30	0	4749899..4750666	-	255	150018941	-	Cbei_4129	-	transcriptional regulator IclR-like protein
4050	 28.15	0	4750827..4752002	-	391	150018942	-	Cbei_4130	-	methyltransferase type 11
4051	 27.25	-1	4752177..4752998	+	273	150018943	-	Cbei_4131	-	hypothetical protein
4052	 31.12	0	4753094..4754269	-	391	150018944	-	Cbei_4132	-	DegT/DnrJ/EryC1/StrS aminotransferase
4053	 31.41	0	4754675..4756390	-	571	150018945	-	Cbei_4133	-	beta-lactamase domain-containing protein
4054	 26.33	-1	4756624..4757394	-	256	150018946	-	Cbei_4134	-	hypothetical protein
4055	 31.56	0	4757423..4759396	-	657	150018947	-	Cbei_4135	-	pullulanase, type I
4056	 28.94	0	4759496..4760839	-	447	150018948	-	Cbei_4136	-	alpha amylase, catalytic region
4057	 29.11	0	4761099..4761572	+	157	150018949	-	Cbei_4137	-	hypothetical protein
4058	 28.67	0	4761643..4762671	-	342	150018950	-	Cbei_4138	-	alpha/beta hydrolase fold
4059	 29.21	0	4762971..4764038	-	355	150018951	-	Cbei_4139	-	metal dependent phosphohydrolase
4060	 34.59	+1	4764378..4764536	-	52	150018952	-	Cbei_4140	-	hypothetical protein
4061	 24.71	-1	4764654..4765001	-	115	150018953	-	Cbei_4141	-	arsenate reductase and related
4062	 34.45	+1	4765404..4766117	-	237	150018954	-	Cbei_4142	-	purine nucleoside phosphorylase
4063	 32.41	0	4766192..4766842	-	216	150018955	-	Cbei_4143	-	deoxyribose-phosphate aldolase
4064	 36.84	+1	4767040..4767924	-	294	150018956	-	Cbei_4144	-	inner-membrane translocator
4065	 31.91	0	4767914..4769041	-	375	150018957	-	Cbei_4145	-	inner-membrane translocator
4066	 30.88	0	4769016..4770566	-	516	150018958	-	Cbei_4146	-	ABC transporter related
4067	 34.18	+1	4770763..4771821	-	352	150018959	-	Cbei_4147	-	basic membrane lipoprotein
4068	 30.38	0	4772080..4773096	-	338	150018960	-	Cbei_4148	-	alanine racemase
4069	 33.84	0	4773518..4774690	-	390	150018961	-	Cbei_4149	-	aminotransferase, class I and II
4070	 31.25	0	4774687..4775166	-	159	150018962	-	Cbei_4150	-	AsnC family transcriptional regulator
4071	 33.97	+1	4775777..4775932	-	51	150018963	-	Cbei_4151	-	hypothetical protein
4072	 31.09	0	4776175..4778451	-	758	150018964	-	Cbei_4152	-	ATPase
4073	 30.33	0	4778455..4778754	-	99	150018965	-	Cbei_4153	-	ATP-dependent Clp protease adaptor protein ClpS
4074	 28.57	0	4778879..4780306	-	475	150018966	-	Cbei_4154	-	Orn/Lys/Arg decarboxylase, major region
4075	 31.47	0	4780786..4781805	-	339	150018967	-	Cbei_4155	-	threonine aldolase
4076	 27.15	-1	4781820..4783064	-	414	150018968	-	Cbei_4156	-	peptidase M16 domain-containing protein
4077	 30.91	0	4783430..4784791	-	453	150018969	-	Cbei_4157	-	radical SAM domain-containing protein
4078	 28.79	0	4785200..4785463	-	87	150018970	-	Cbei_4158	-	phosphotransferase system PTS, EIIB protein
4079	 27.83	0	4785663..4788131	-	822	150018971	-	Cbei_4159	-	regulatory protein, LuxR
4080	 29.51	0	4788381..4790315	-	644	150018972	-	Cbei_4160	-	heat shock protein 90
4081	 30.30	0	4790529..4792241	-	570	150018973	-	Cbei_4161	-	methyl-accepting chemotaxis sensory transducer
4082	 32.55	0	4792458..4793222	+	254	150018974	-	Cbei_4162	-	MerR family transcriptional regulator
4083	 30.07	0	4793388..4794062	-	224	150018975	-	Cbei_4163	-	metal dependent phosphohydrolase
4084	 29.17	0	4794154..4794537	-	127	150018976	-	Cbei_4164	-	hypothetical protein
4085	 30.00	0	4795061..4796830	-	589	150018977	-	Cbei_4165	-	diguanylate cyclase and metal dependent phosphohydrolase
4086	 27.53	0	4796970..4799003	-	677	150018978	-	Cbei_4166	-	hypothetical protein
4087	 31.12	0	4798993..4799760	-	255	150018979	-	Cbei_4167	-	ABC transporter related
4088	 27.61	0	4800101..4801114	-	337	150018980	-	Cbei_4168	-	integral membrane sensor signal transduction histidine kinase
4089	 29.61	0	4801111..4801782	-	223	150018981	-	Cbei_4169	-	two component transcriptional regulator
4090	 31.28	0	4802151..4802783	-	210	150018982	-	Cbei_4170	-	polar amino acid ABC transporter, inner membrane subunit
4091	 32.51	0	4802786..4803514	-	242	150018983	-	Cbei_4171	-	polar amino acid ABC transporter, inner membrane subunit
4092	 33.09	0	4803514..4804326	-	270	150018984	-	Cbei_4172	-	extracellular solute-binding protein
4093	 33.75	0	4804409..4805131	-	240	150018985	-	Cbei_4173	-	ABC transporter related
4094	 28.47	0	4805413..4806297	-	294	150018986	-	Cbei_4174	-	response regulator receiver
4095	 28.03	0	4806325..4807587	-	420	150018987	-	Cbei_4175	-	signal transduction histidine kinase regulating citrate/malate metabolism
4096	 25.86	-1	4807694..4808014	-	106	150018988	-	Cbei_4176	-	branched-chain amino acid transport
4097	 31.70	0	4808011..4808745	-	244	150018989	-	Cbei_4177	-	AzlC family protein
4098	 30.80	0	4808866..4809417	+	183	150018990	-	Cbei_4178	-	XRE family transcriptional regulator
4099	 29.73	0	4809427..4810341	-	304	150018991	-	Cbei_4179	-	auxin efflux carrier
4100	 34.83	+1	4810589..4811656	-	355	150018992	-	Cbei_4180	-	response regulator receiver modulated CheB methylesterase
4101	 28.91	0	4811653..4812465	-	270	150018993	-	Cbei_4181	-	protein-glutamate O-methyltransferase
4102	 35.75	+1	4812626..4817047	-	1473	150018994	-	Cbei_4182	-	methyl-accepting chemotaxis sensory transducer
4103	 30.78	0	4817081..4819237	-	718	150018995	-	Cbei_4183	-	CheA signal transduction histidine kinase
4104	 30.65	0	4819248..4819694	-	148	150018996	-	Cbei_4184	-	putative CheW protein
30.63	MEAN

3.23	STD DEV
