IslandPath Analysis: Clostridium beijerinckii NCIMB 8052

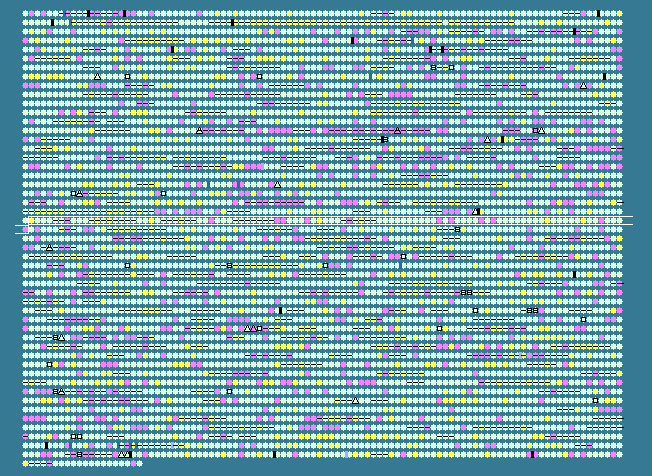

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 30.63 STD DEV: 3.23
Clostridium beijerinckii NCIMB 8052, complete genome - 1..6000632
5020 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2302	 35.82	+1	2697452..2697973	+	173	150017194	-	Cbei_2332	-	3D domain-containing protein
2303	 32.89	0	2698202..2698882	+	226	150017195	-	Cbei_2333	-	RelA/SpoT domain-containing protein
2304	 32.28	0	2698896..2699462	+	188	150017196	-	Cbei_2334	-	nitroreductase
2305	 32.84	0	2699754..2699957	+	67	150017197	-	Cbei_2335	-	heavy metal transport/detoxification protein
2306	 29.17	0	2700056..2700463	-	135	150017198	-	Cbei_2336	-	hypothetical protein
2307	 32.24	0	2700930..2701385	+	151	150017199	-	Cbei_2337	-	cell wall binding repeat-containing protein
2308	 26.67	-1	2701567..2701956	-	129	150017200	-	Cbei_2338	-	hemerythrin-like metal-binding protein
2309	 29.12	0	2702289..2702834	+	181	150017201	-	Cbei_2339	-	phosphoesterase, PA-phosphatase related
2310	 30.83	0	2703011..2703370	+	119	150017202	-	Cbei_2340	-	hypothetical protein
2311	 27.29	-1	2703468..2704145	+	225	150017203	-	Cbei_2341	-	hypothetical protein
2312	 32.22	0	2704292..2705722	-	476	150017204	aspA	Cbei_2342	-	aspartate ammonia-lyase
2313	 34.44	+1	2706424..2706876	+	150	150017205	-	Cbei_2343	-	AsnC family transcriptional regulator
2314	 31.60	0	2707073..2707303	+	76	150017206	-	Cbei_2344	-	hypothetical protein
2315	 34.30	+1	2709196..2709402	+	68	150017207	-	Cbei_2345	-	small acid-soluble spore protein, alpha/beta type
2316	 31.48	0	2709672..2709833	+	53	150017208	-	Cbei_2346	-	hypothetical protein
2317	 27.71	0	2709984..2710214	+	76	150017209	-	Cbei_2347	-	hypothetical protein
2318	 28.99	0	2710802..2711308	+	168	150017210	-	Cbei_2348	-	hypothetical protein
2319	 27.45	0	2711627..2711932	+	101	150017211	-	Cbei_2349	-	hypothetical protein
2320	 28.42	0	2712567..2713481	+	304	150017212	-	Cbei_2350	-	polysaccharide deacetylase
2321	 32.96	0	2713694..2713963	+	89	150017213	-	Cbei_2351	-	hypothetical protein
2322	 36.28	+1	2713976..2715331	+	451	150017214	-	Cbei_2352	-	hypothetical protein
2323	 32.68	0	2715997..2717976	+	659	150017215	-	Cbei_2353	-	hypothetical protein
2324	 32.13	0	2718243..2719154	+	303	150017216	-	Cbei_2354	-	auxin efflux carrier
2325	 30.59	0	2719410..2720174	+	254	150017217	-	Cbei_2355	-	exodeoxyribonuclease III Xth
2326	 28.91	0	2720236..2720913	-	225	150017218	-	Cbei_2356	-	hypothetical protein
2327	 34.37	+1	2721474..2722820	+	448	150017219	-	Cbei_2357	-	extracellular solute-binding protein
2328	 30.19	0	2722917..2723807	+	296	150017220	-	Cbei_2358	-	binding-protein-dependent transport systems inner membrane component
2329	 28.96	0	2723809..2724699	+	296	150017221	-	Cbei_2359	-	monosaccharide-transporting ATPase
2330	 32.94	0	2724763..2726280	+	505	150017222	-	Cbei_2360	-	Alpha-N-arabinofuranosidase
2331	 30.95	0	2726387..2727310	-	307	150017223	-	Cbei_2361	-	regulatory protein, ArsR
2332	 26.09	-1	2727513..2728409	-	298	150017224	-	Cbei_2362	-	helix-turn-helix domain-containing protein
2333	 32.16	0	2728599..2730551	+	650	150017225	-	Cbei_2363	-	hypothetical protein
2334	 31.80	0	2730663..2731835	+	390	150017226	-	Cbei_2364	-	glycerol-1-phosphate dehydrogenase (NAD(P)(+))
2335	 27.78	0	2731840..2732631	+	263	150017227	-	Cbei_2365	-	HAD family hydrolase
2336	 29.02	0	2733071..2733673	+	200	150017228	-	Cbei_2366	-	NUDIX hydrolase
2337	 30.63	0	2734373..2735074	+	233	150017229	-	Cbei_2367	-	ribose 5-phosphate isomerase
2338	 29.66	0	2735116..2735550	+	144	150017230	-	Cbei_2368	-	GCN5-related N-acetyltransferase
2339	 29.49	0	2735586..2736443	+	285	150017231	-	Cbei_2369	-	AAA ATPase
2340	 29.94	0	2736514..2736690	+	58	150017232	-	Cbei_2370	-	acetyltransferase
2341	 27.36	-1	2737005..2737556	+	183	150017233	-	Cbei_2371	-	hypothetical protein
2342	 31.15	0	2737809..2738174	-	121	150017234	-	Cbei_2372	-	carboxymuconolactone decarboxylase
2343	 23.97	-2	2738254..2738616	+	120	150017235	-	Cbei_2373	-	MerR family transcriptional regulator
2344	 22.91	-2	2738669..2739253	+	194	150017236	-	Cbei_2374	-	CF-9 family membrane protein
2345	 28.99	0	2739234..2739647	-	137	150017237	-	Cbei_2375	-	AsnC family transcriptional regulator
2346	 28.57	0	2739773..2740318	+	181	150017238	-	Cbei_2376	-	isochorismatase hydrolase
2347	 32.62	0	2740798..2741778	+	326	150017239	-	Cbei_2377	-	periplasmic binding protein/LacI transcriptional regulator
2348	 26.93	-1	2741891..2743264	+	457	150017240	-	Cbei_2378	-	signal transduction histidine kinase, LytS
2349	 27.44	0	2743242..2744582	+	446	150017241	-	Cbei_2379	-	response regulator receiver protein
2350	 34.26	+1	2744876..2745955	+	359	150017242	-	Cbei_2380	-	D-xylose ABC transporter, periplasmic substrate-binding protein
2351	 31.69	0	2746020..2747597	+	525	150017243	-	Cbei_2381	-	ABC transporter related
2352	 32.05	0	2747599..2748768	+	389	150017244	-	Cbei_2382	-	monosaccharide-transporting ATPase
2353	 32.20	0	2749301..2750626	+	441	150017245	-	Cbei_2383	-	xylose isomerase
2354	 33.40	0	2751087..2752589	+	500	150017246	-	Cbei_2384	-	xylulokinase
2355	 26.72	-1	2752779..2753927	+	382	150017247	-	Cbei_2385	-	ROK family protein
2356	 34.10	+1	2754275..2754922	+	215	150017248	-	Cbei_2386	-	putative transaldolase
2357	 35.24	+1	2755573..2757564	+	663	150017249	-	Cbei_2387	-	transketolase
2358	 30.45	0	2757892..2758515	+	207	150017250	-	Cbei_2388	-	hypothetical protein
2359	 34.08	+1	2758809..2760281	+	490	150017251	-	Cbei_2389	-	L-fucose isomerase related protein
2360	 31.09	0	2760938..2761606	+	222	150017252	-	Cbei_2390	-	GntR family transcriptional regulator
2361	 30.28	0	2761774..2762559	+	261	150017253	-	Cbei_2391	-	extracellular solute-binding protein
2362	 31.82	0	2764482..2765210	+	242	150017254	-	Cbei_2394	-	ABC transporter related
2363	 33.14	0	2765468..2766478	+	336	150017255	-	Cbei_2395	-	L-asparaginase, type II
2364	 31.51	0	2767396..2768328	+	310	150017256	-	Cbei_2396	-	hypothetical protein
2365	 28.63	0	2768360..2769295	+	311	150017257	-	Cbei_2397	-	membrane dipeptidase
2366	 33.60	0	2769531..2770274	+	247	150017258	fabG	Cbei_2398	-	3-ketoacyl-(acyl-carrier-protein) reductase
2367	 28.14	0	2770286..2771806	-	506	150017259	-	Cbei_2399	-	integral membrane sensor signal transduction histidine kinase
2368	 30.36	0	2771807..2772478	-	223	150017260	-	Cbei_2400	-	two component transcriptional regulator
2369	 29.63	0	2773176..2774417	+	413	150017261	-	Cbei_2401	-	peptidase M16 domain-containing protein
2370	 26.48	-1	2774453..2775094	+	213	150017262	recX	Cbei_2402	-	recombination regulator RecX
2371	 31.67	0	2775233..2775952	+	239	150017263	-	Cbei_2403	-	transglutaminase domain-containing protein
2372	 26.33	-1	2775954..2776310	-	118	150017264	-	Cbei_2404	-	TPR repeat-containing protein
2373	 31.78	0	2776527..2780840	+	1437	150017265	-	Cbei_2405	-	putative CoA-substrate-specific enzyme activase
2374	 33.05	0	2781068..2782108	+	346	150017266	-	Cbei_2406	-	hypothetical protein
2375	 28.93	0	2782201..2783268	+	355	150017267	-	Cbei_2407	-	hypothetical protein
2376	 27.37	-1	2783461..2784231	+	256	150017268	-	Cbei_2408	-	hypothetical protein
2377	 26.71	-1	2784308..2785168	+	286	150017269	-	Cbei_2409	-	hypothetical protein
2378	 33.33	0	2785312..2785728	+	138	150017270	-	Cbei_2410	-	flavodoxin
2379	 25.16	-1	2785751..2786386	+	211	150017271	-	Cbei_2411	-	hypothetical protein
2380	 27.78	0	2786979..2787518	+	179	150017272	-	Cbei_2412	-	NUDIX hydrolase
2381	 30.88	0	2788138..2789481	+	447	150017273	-	Cbei_2413	-	MATE efflux family protein
2382	 30.11	0	2789810..2790772	+	320	150017274	uvsE	Cbei_2414	-	putative UV damage endonuclease
2383	 29.92	0	2791002..2792027	+	341	150017275	-	Cbei_2415	-	cell wall binding repeat-containing protein
2384	 29.54	0	2792506..2793717	+	403	150017276	-	Cbei_2416	-	tyrosyl-tRNA synthetase
2385	 29.53	0	2793816..2794997	-	393	150017277	-	Cbei_2417	-	hypothetical protein
2386	 27.97	0	2795099..2796607	-	502	150017278	-	Cbei_2418	-	Ppx/GppA phosphatase
2387	 29.72	0	2796811..2798859	+	682	150017279	-	Cbei_2419	-	polyphosphate kinase
2388	 35.96	+1	2799084..2799653	+	189	150017280	-	Cbei_2420	-	cell wall binding repeat-containing protein
2389	 31.70	0	2800166..2801329	+	387	150017281	-	Cbei_2421	-	iron-containing alcohol dehydrogenase
2390	 28.09	0	2801478..2802335	+	285	150017282	-	Cbei_2422	-	peptidase U61, LD-carboxypeptidase A
2391	 31.02	0	2802471..2803940	+	489	150017283	-	Cbei_2423	-	hypothetical protein
2392	 29.16	0	2804000..2806969	+	989	150017284	-	Cbei_2424	-	diguanylate cyclase/phosphodiesterase
2393	 29.93	0	2807001..2808734	+	577	150017285	-	Cbei_2425	-	hypothetical protein
2394	 34.44	+1	2809129..2810481	+	450	150017286	-	Cbei_2426	-	uracil-xanthine permease
2395	 31.06	0	2810483..2811055	+	190	150017287	-	Cbei_2427	-	xanthine phosphoribosyltransferase
2396	 32.02	0	2811480..2812700	+	406	150017288	-	Cbei_2428	-	peptidase T
2397	 22.48	-2	2813317..2813574	-	85	150017289	-	Cbei_2429	-	hypothetical protein
2398	 29.47	0	2813821..2815578	+	585	150017290	-	Cbei_2430	-	helicase domain-containing protein
2399	 31.47	0	2815832..2816527	+	231	150017291	-	Cbei_2431	-	ABC transporter related
2400	 31.14	0	2816854..2817945	+	363	150017292	-	Cbei_2432	-	phosphoribosylpyrophosphate synthetase
2401	 23.33	-2	2818099..2818368	-	89	150017293	-	Cbei_2433	-	hypothetical protein
30.63	MEAN

3.23	STD DEV
