IslandPath Analysis: Clostridium beijerinckii NCIMB 8052

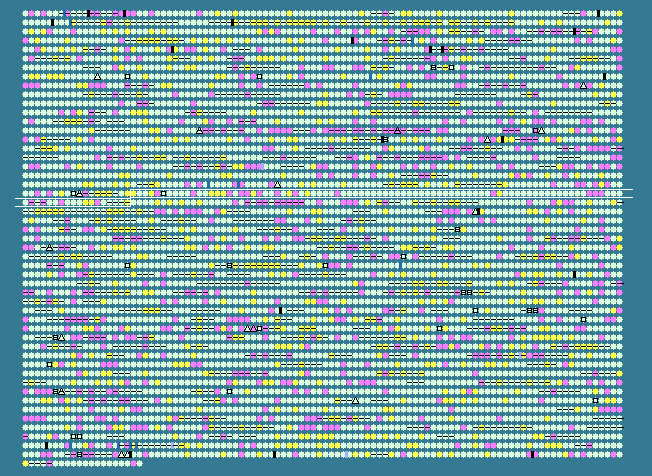

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 30.63   STD DEV: 3.23
Clostridium beijerinckii NCIMB 8052, complete genome - 1..6000632
5020 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2019	 36.77	+1	2372518..2373912	+	464	150016911	-	Cbei_2041	-	citrate transporter
2020	 32.65	0	2374977..2375852	+	291	150016912	-	Cbei_2042	-	transcription activator, effector binding
2021	 28.33	0	2376998..2377777	+	259	150016913	-	Cbei_2043	-	hypothetical protein
2022	 38.54	+2	2377887..2378078	+	63	150016914	-	Cbei_2044	-	hypothetical protein
2023	 22.58	-2	2378460..2380886	+	808	150016915	-	Cbei_2045	-	AAA ATPase
2024	 33.74	0	2381227..2382684	-	485	150016916	-	Cbei_2046	-	transposase
2025	 34.07	+1	2382993..2383670	+	225	150016917	-	Cbei_2047	-	two component transcriptional regulator
2026	 32.73	0	2383672..2384673	+	333	150016918	-	Cbei_2048	-	integral membrane sensor signal transduction histidine kinase
2027	 33.76	0	2384782..2385492	+	236	150016919	-	Cbei_2049	-	ABC transporter related
2028	 30.54	0	2385489..2388098	+	869	150016920	-	Cbei_2050	-	hypothetical protein
2029	 26.83	-1	2388709..2388954	+	81	150016921	-	Cbei_2051	-	hypothetical protein
2030	 27.21	-1	2388954..2389361	+	135	150016922	-	Cbei_2052	-	hypothetical protein
2031	 33.55	0	2389530..2390468	-	312	150016923	-	Cbei_2053	-	ApbE family lipoprotein
2032	 34.60	+1	2390461..2391408	-	315	150016924	-	Cbei_2054	-	LysR family transcriptional regulator
2033	 35.67	+1	2391661..2392260	+	199	150016925	-	Cbei_2055	-	NADPH-dependent FMN reductase
2034	 36.47	+1	2392275..2394698	+	807	150016926	-	Cbei_2056	-	flavocytochrome c
2035	 26.56	-1	2395103..2395471	+	122	150016927	-	Cbei_2057	-	hypothetical protein
2036	 31.06	0	2395545..2396204	+	219	150016928	-	Cbei_2058	-	DSBA oxidoreductase
2037	 25.53	-1	2396471..2397790	+	439	150016929	-	Cbei_2059	-	SecC motif-containing protein
2038	 22.99	-2	2397962..2398570	+	202	150016930	-	Cbei_2060	-	hypothetical protein
2039	 36.47	+1	2399301..2400545	+	414	150016931	-	Cbei_2061	-	ammonium transporter
2040	 25.51	-1	2401047..2401442	+	131	150016932	-	Cbei_2062	-	hypothetical protein
2041	 33.49	0	2401624..2404248	-	874	150016933	-	Cbei_2063	-	phosphoenolpyruvate synthase
2042	 28.70	0	2404307..2404954	-	215	150016934	-	Cbei_2064	-	TetR family transcriptional regulator
2043	 25.20	-1	2405203..2405817	+	204	150016935	-	Cbei_2065	-	TetR family transcriptional regulator
2044	 32.35	0	2405840..2408494	+	884	150016936	-	Cbei_2066	-	phosphoenolpyruvate synthase
2045	 35.95	+1	2408734..2410107	-	457	150016937	-	Cbei_2067	-	amidohydrolase
2046	 26.92	-1	2410725..2411114	+	129	150016938	-	Cbei_2068	-	glutaredoxin-like protein
2047	 32.45	0	2411617..2412183	-	188	150016939	-	Cbei_2069	-	manganese containing catalase
2048	 34.85	+1	2412190..2412453	-	87	150016940	-	Cbei_2070	-	spore coat peptide assembly protein CotJB
2049	 31.43	0	2412463..2412777	-	104	150016941	-	Cbei_2071	-	hypothetical protein
2050	 28.94	0	2412959..2413822	-	287	150016942	-	Cbei_2072	-	extracellular solute-binding protein
2051	 32.66	0	2414204..2415538	+	444	150016943	-	Cbei_2073	-	histidine kinase
2052	 29.98	0	2416228..2416764	-	178	150016944	-	Cbei_2074	-	GCN5-related N-acetyltransferase
2053	 26.96	-1	2417507..2418400	+	297	150016945	-	Cbei_2075	-	NUDIX hydrolase
2054	 27.22	-1	2418470..2419270	+	266	150016946	-	Cbei_2076	-	ribose-phosphate pyrophosphokinase
2055	 30.19	0	2419768..2420307	+	179	150016947	-	Cbei_2077	-	amidase
2056	 31.63	0	2420319..2421788	+	489	150016948	-	Cbei_2078	-	putative nicotinate phosphoribosyltransferase
2057	 29.39	0	2422056..2423096	+	346	150016949	-	Cbei_2080	-	hypothetical protein
2058	 33.44	0	2423239..2424162	+	307	150016950	-	Cbei_2081	-	hypothetical protein
2059	 28.74	0	2424269..2425531	+	420	150016951	-	Cbei_2082	-	adenylosuccinate synthase
2060	 30.08	0	2426183..2427658	+	491	150016952	-	Cbei_2083	-	GntR family transcriptional regulator
2061	 29.77	0	2427766..2428383	+	205	150016953	-	Cbei_2084	-	lysine exporter protein LysE/YggA
2062	 30.83	0	2429141..2430097	+	318	150016954	-	Cbei_2085	-	dihydrouridine synthase, DuS
2063	 32.08	0	2430700..2431896	+	398	150016955	-	Cbei_2086	-	trans-2-enoyl-CoA reductase
2064	 28.73	0	2432104..2434038	+	644	150016956	-	Cbei_2087	-	integral membrane sensor signal transduction histidine kinase
2065	 33.33	0	2434280..2434948	+	222	150016957	-	Cbei_2088	-	TenA family transcription regulator
2066	 30.60	0	2434949..2435716	+	255	150016958	-	Cbei_2089	-	ABC transporter related
2067	 30.01	0	2435713..2436495	+	260	150016959	-	Cbei_2090	-	binding-protein-dependent transport systems inner membrane component
2068	 31.64	0	2436476..2437480	+	334	150016960	-	Cbei_2091	-	NMT1/THI5-like protein
2069	 28.38	0	2438193..2438636	+	147	150016961	-	Cbei_2092	-	transcriptional regulator, TrmB
2070	 31.64	0	2438650..2440425	+	591	150016962	-	Cbei_2093	-	ABC transporter related
2071	 31.78	0	2440422..2442350	+	642	150016963	-	Cbei_2094	-	ABC transporter, transmembrane region
2072	 31.28	0	2442825..2443067	+	80	150016964	-	Cbei_2095	-	putative acyl carrier protein
2073	 30.22	0	2443064..2444542	+	492	150016965	-	Cbei_2096	-	AMP-dependent synthetase and ligase
2074	 29.42	0	2444539..2445636	+	365	150016966	-	Cbei_2097	-	acyl-protein synthetase, LuxE
2075	 29.40	0	2445633..2446928	+	431	150016967	-	Cbei_2098	-	acyl-CoA reductase
2076	 31.19	0	2447041..2448813	+	590	150016968	-	Cbei_2099	-	sigma-54 dependent trancsriptional regulator
2077	 33.33	0	2449273..2450727	+	484	150016969	-	Cbei_2100	-	vinylacetyl-CoA Delta-isomerase
2078	 32.98	0	2450729..2451010	+	93	150016970	-	Cbei_2101	-	NifU domain-containing protein
2079	 26.52	-1	2451026..2451289	+	87	150016971	-	Cbei_2102	-	hypothetical protein
2080	 35.01	+1	2451308..2452618	+	436	150016972	-	Cbei_2103	-	acetyl-CoA hydrolase/transferase
2081	 31.72	0	2452654..2453457	+	267	150016973	-	Cbei_2104	-	beta-lactamase domain-containing protein
2082	 27.67	0	2453926..2454402	+	158	150016974	-	Cbei_2105	-	GCN5-related N-acetyltransferase
2083	 30.09	0	2454840..2455640	+	266	150016975	-	Cbei_2106	-	histidinol-phosphatase
2084	 32.51	0	2455683..2456288	+	201	150016976	-	Cbei_2107	-	hypothetical protein
2085	 29.32	0	2456705..2457028	+	107	150016977	-	Cbei_2108	-	regulatory protein, ArsR
2086	 31.78	0	2457103..2457489	+	128	150016978	-	Cbei_2109	-	arsenical resistance operon trans-acting repressor ArsD
2087	 32.93	0	2457545..2459293	+	582	150016979	-	Cbei_2110	-	arsenite-activated ATPase ArsA
2088	 30.43	0	2459319..2459732	+	137	150016980	-	Cbei_2111	-	protein tyrosine phosphatase
2089	 32.29	0	2459761..2460810	+	349	150016981	-	Cbei_2112	-	arsenical-resistance protein
2090	 27.97	0	2461021..2461281	+	86	150016982	-	Cbei_2113	-	hypothetical protein
2091	 33.66	0	2461773..2463281	+	502	150016983	-	Cbei_2114	-	inositol-5-monophosphate dehydrogenase
2092	 28.56	0	2463906..2465792	+	628	150016984	-	Cbei_2115	-	DNA mismatch repair protein MutS domain-containing protein
2093	 27.67	0	2466533..2467786	+	417	150016985	-	Cbei_2116	-	metal dependent phosphohydrolase
2094	 30.64	0	2468425..2469129	+	234	150016986	-	Cbei_2117	-	two component transcriptional regulator
2095	 25.89	-1	2469116..2471290	+	724	150016987	-	Cbei_2118	-	integral membrane sensor signal transduction histidine kinase
2096	 25.56	-1	2471393..2471572	+	59	150016988	-	Cbei_2119	-	hypothetical protein
2097	 25.44	-1	2471753..2472094	+	113	150016989	-	Cbei_2120	-	hypothetical protein
2098	 28.79	0	2472213..2473268	+	351	150016990	-	Cbei_2121	-	alpha/beta hydrolase fold
2099	 34.11	+1	2473332..2474741	-	469	150016991	-	Cbei_2122	-	amino acid/peptide transporter
2100	 29.91	0	2475110..2476015	+	301	150016992	-	Cbei_2123	-	hypothetical protein
2101	 31.54	0	2476049..2477161	+	370	150016993	-	Cbei_2124	-	hypothetical protein
2102	 26.31	-1	2477320..2477874	+	184	150016994	-	Cbei_2125	-	GCN5-related N-acetyltransferase
2103	 30.85	0	2478461..2479750	+	429	150016995	aspC	Cbei_2126	-	aspartyl-tRNA synthetase
2104	 23.86	-2	2479958..2480242	+	94	150016996	-	Cbei_2127	-	glutamyl-tRNA(Gln) amidotransferase, C subunit
2105	 31.94	0	2480258..2481697	+	479	150016997	-	Cbei_2128	-	glutamyl-tRNA(Gln) amidotransferase, A subunit
2106	 32.71	0	2481711..2483150	+	479	150016998	gatB	Cbei_2129	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
2107	 26.01	-1	2483344..2485215	+	623	150016999	-	Cbei_2130	-	hypothetical protein
2108	 32.13	0	2485619..2486284	+	221	150017000	-	Cbei_2131	-	cell wall binding repeat-containing protein
2109	 27.67	0	2487770..2488405	+	211	150017001	-	Cbei_2132	-	ankyrin
2110	 32.05	0	2488552..2488707	+	51	150017002	-	Cbei_2133	-	hypothetical protein
2111	 36.08	+1	2488814..2490343	-	509	150017003	-	Cbei_2134	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
2112	 34.40	+1	2490355..2490918	-	187	150017004	-	Cbei_2135	-	peroxiredoxin
2113	 26.95	-1	2491078..2492079	-	333	150017005	-	Cbei_2136	-	helix-turn-helix domain-containing protein
2114	 31.30	0	2492294..2493913	+	539	150017006	-	Cbei_2137	-	cell wall binding repeat-containing protein
2115	 30.91	0	2494282..2495232	+	316	150017007	-	Cbei_2138	-	periplasmic binding protein
2116	 32.63	0	2495219..2496211	+	330	150017008	-	Cbei_2139	-	transport system permease protein
2117	 33.43	0	2496213..2497220	+	335	150017009	-	Cbei_2140	-	transport system permease protein
2118	 34.73	+1	2497221..2498009	+	262	150017010	-	Cbei_2141	-	ABC transporter related
30.63	MEAN

3.23	STD DEV
