IslandPath Analysis: Chlamydophila pneumoniae TW-183

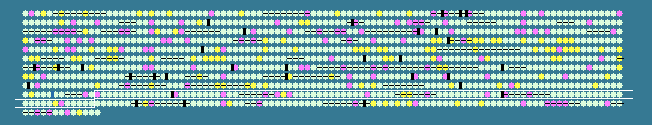

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.62 STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
913	 31.96	-2	1008777..1008995	+	72	33242248	-	CpB0917	-	hypothetical protein
914	 42.00	0	1009015..1011483	+	822	33242249	-	CpB0919	-	putative chltr phosphoprotein
915	 43.73	0	1011439..1012746	-	435	33242250	-	CpB0918	-	protoporphyrinogen oxidase
916	 40.38	0	1012782..1014158	-	458	33242251	-	CpB0920	-	coproporphyrinogen III oxidase
917	 40.30	0	1014139..1015128	-	329	33242252	hemE	CpB0921	-	uroporphyrinogen decarboxylase
918	 41.31	0	1015139..1018396	-	1085	33242253	-	CpB0922	-	transcription-repair coupling factor
919	 42.42	0	1018366..1020984	-	872	33242254	alaS	CpB0923	-	alanyl-tRNA synthetase
920	 42.59	0	1021163..1023214	+	683	33242255	-	CpB0924	-	transketolase
921	 41.61	0	1023208..1024089	-	293	33242256	-	CpB0925	-	AMP nucleosidase
922	 42.58	0	1024311..1024883	+	190	33242257	-	CpB0926	-	elongation factor P
923	 38.53	0	1024918..1025148	+	76	33242258	-	CpB0927	-	hypothetical protein
924	 41.89	0	1025173..1026060	-	295	33242259	cpdA	CpB0928	-	3,5'-cyclic-nucleotide phosphodiesterase
925	 40.32	0	1026224..1027783	-	519	33242260	-	CpB0929	-	chaperonin HSP60
926	 34.72	-1	1027937..1028152	+	71	33242261	-	CpB0930	-	hypothetical protein
927	 41.89	0	1028198..1029541	+	447	33242262	-	CpB0931	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanine ligase
928	 42.48	0	1029558..1030607	+	349	33242263	mraY	CpB0932	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
929	 41.95	0	1030610..1031863	+	417	33242264	murD	CpB0933	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
930	 43.87	+1	1031866..1032567	+	233	33242265	lytE	CpB0934	-	cell wall hydrolase
931	 43.26	0	1032586..1033743	+	385	33242266	-	CpB0935	-	stage V sporulation protein E
932	 42.76	0	1033652..1034722	+	356	33242267	murG	CpB0936	-	N-acetylglucosaminyl transferase
933	 40.99	0	1034732..1037161	+	809	33242268	-	CpB0937	-	UDP-N-acetylmuramate--alanine ligase
934	 35.41	-1	1037235..1037813	-	192	33242269	-	CpB0938	-	hypothetical protein
935	 42.48	0	1037765..1038103	-	112	33242270	cutA1	CpB0939	-	divalent cation tolerance protein
936	 37.53	0	1038100..1038885	-	261	33242271	-	CpB0940	-	hypothetical protein
937	 37.64	0	1038945..1039292	+	115	33242272	-	CpB0941	-	sigma-F 5-region regulatory protein SpoIIAA
938	 38.87	0	1039302..1040330	+	342	33242273	miaA	CpB0943	-	tRNA delta(2)-isopentenylpyrophosphate transferase
939	 42.00	0	1040305..1041366	-	353	33242274	-	CpB0942	-	hypothetical protein
940	 38.21	0	1041452..1043113	+	553	33242275	-	CpB0944	-	hypothetical protein
941	 35.98	-1	1043110..1043298	+	62	33242276	-	CpB0945	-	hypothetical protein
942	 39.30	0	1043349..1043750	+	133	33242277	-	CpB0946	-	hypothetical protein
943	 35.56	-1	1043811..1044170	+	119	33242278	-	CpB0947	-	Iojap
944	 44.36	+1	1044187..1045437	+	416	33242279	-	CpB0948	-	3-oxoacyl-(acyl carrier protein) synthase II
945	 36.87	-1	1045440..1045892	+	150	33242280	-	CpB0949	-	diadenosine tetraphosphatase
946	 39.20	0	1045926..1046573	-	215	33242281	-	CpB0950	-	inorganic pyrophosphatase
947	 42.71	0	1046728..1047783	+	351	33242282	-	CpB0951	-	leucine dehydrogenase
948	 41.72	0	1047778..1048755	-	325	33242283	-	CpB0952	-	bisphosphonucleoside 3(2')-phosphohydrolase-like protein
949	 39.90	0	1048885..1049646	+	253	33242284	-	CpB0953	-	2-acylglycerophosphoethanolamine acyl transferase/acyl carrier
950	 41.25	0	1049664..1051280	+	538	33242285	-	CpB0954	-	long chain fatty acid--[acyl-carrier-protein] ligase
951	 40.79	0	1051334..1052446	+	370	33242286	-	CpB0956	-	8-amino-7-oxononanoate synthase
952	 42.89	0	1052375..1054624	-	749	33242287	priA	CpB0955	-	primosome assembly protein PriA
953	 38.35	0	1054573..1055250	-	225	33242288	-	CpB0957	-	hypothetical protein
954	 41.92	0	1055410..1055910	+	166	33242289	-	CpB0958	-	putative thioredoxin disulfide isomerase
955	 42.17	0	1056017..1057159	-	380	33242290	-	CpB0959	-	hypothetical protein
956	 41.69	0	1057231..1058331	-	366	33242291	-	CpB0960	-	hypothetical protein
957	 41.26	0	1058533..1059642	-	369	33242292	-	CpB0961	-	hypothetical protein
958	 35.95	-1	1059728..1059880	+	50	33242293	-	CpB0962	-	hypothetical protein
959	 43.76	0	1060243..1060683	+	146	33242294	-	CpB0963	-	hypothetical protein
960	 38.89	0	1060719..1060898	-	59	33242295	-	CpB0964	-	hypothetical protein
961	 41.04	0	1061488..1063071	+	527	33242296	lysS	CpB0965	-	lysyl-tRNA synthetase
962	 42.32	0	1063068..1064492	-	474	33242297	cysS	CpB0966	-	cysteinyl-tRNA synthetase
963	 42.02	0	1064885..1065931	+	348	33242298	-	CpB0968	-	putative disulfide bond isomerase
964	 44.29	+1	1065873..1066292	-	139	33242299	rnpA	CpB0967	-	ribonuclease P
965	 46.38	+1	1066304..1066441	-	45	33242300	rpmH	CpB0969	-	50S ribosomal protein L34
966	 39.86	0	1066686..1066823	+	45	33242301	rpmJ	CpB0970	-	50S ribosomal protein L36
967	 39.54	0	1066846..1067151	+	101	33242302	rpsN	CpB0971	-	30S ribosomal protein S14
968	 36.06	-1	1067196..1067672	-	158	33242303	-	CpB0972	-	hypothetical protein
969	 38.00	0	1068078..1068548	+	156	33242304	-	CpB0973	-	hypothetical protein
970	 41.50	0	1068551..1070362	-	603	33242305	uvrC	CpB0974	-	excinuclease ABC subunit C
971	 41.94	0	1070365..1072851	-	828	33242306	mutS	CpB0975	-	DNA mismatch repair protein
972	 41.36	0	1072944..1073105	-	53	33242307	-	CpB0976	-	hypothetical protein
973	 40.27	0	1073335..1075107	+	590	33242308	dnaG	CpB0977	-	DNA primase
974	 40.15	0	1075328..1075591	+	87	33242309	-	CpB0978	-	hypothetical protein
975	 43.35	0	1075862..1076350	+	162	33242310	-	CpB0979	-	hypothetical protein
976	 43.10	0	1076420..1077013	+	197	33242311	-	CpB0980	-	hypothetical protein
977	 41.21	0	1077092..1080124	-	1010	33242312	-	CpB0981	-	glycyl-tRNA synthetase
978	 36.92	-1	1080167..1080361	-	64	33242313	-	CpB0982	-	hypothetical protein
979	 39.45	0	1080792..1081412	+	206	33242314	-	CpB0984	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
980	 40.95	0	1081394..1082824	-	476	33242315	glgA	CpB0983	-	glycogen synthase
981	 35.94	-1	1083045..1083236	+	63	33242316	-	CpB0985	-	hypothetical protein
982	 38.71	0	1083279..1083836	+	185	33242317	-	CpB0986	-	50S ribosomal protein L25/general stress protein Ctc
983	 41.80	0	1083838..1084380	+	180	33242318	-	CpB0987	-	peptidyl-tRNA hydrolase
984	 37.46	0	1084472..1084810	+	112	33242319	rpsF	CpB0988	-	30S ribosomal protein S6
985	 36.14	-1	1084828..1085076	+	82	33242320	rpsR	CpB0989	-	30S ribosomal protein S18
986	 38.82	0	1085092..1085601	+	169	33242321	rplI	CpB0990	-	50S ribosomal protein L9
987	 39.91	0	1085636..1086061	+	141	33242322	-	CpB0991	-	4-diphosphocytidyl-2-C-methyl-D-erythritol kinase
988	 39.24	0	1086004..1086528	+	174	33242323	-	CpB0992	-	putative kinase
989	 40.95	0	1086910..1088262	+	450	33242324	-	CpB0993	-	hypothetical protein
990	 40.76	0	1088310..1091138	-	942	33242325	-	CpB0994	-	protein-degrading enzyme
991	 37.75	0	1091140..1092135	-	331	33242326	-	CpB0995	-	glycerol-3-phosphate acyltransferase
992	 38.31	0	1092146..1093693	-	515	33242327	-	CpB0996	-	cytosolic axial filament protein cafA and ribonuclease E
993	 41.13	0	1093994..1094455	+	153	33242328	-	CpB0997	-	hypothetical protein
994	 40.98	0	1094468..1094650	+	60	33242329	rpmF	CpB0998	-	50S ribosomal protein L32
995	 42.89	0	1094666..1095628	+	320	33242330	-	CpB0999	-	putative glycerol-3-phosphate acyltransferase PlsX
996	 39.71	0	1095814..1100577	+	1587	33242331	-	CpB1000	-	outer membrane protein 11
997	 40.76	0	1100648..1102102	-	484	33242332	-	CpB1001	-	hypothetical protein
998	 41.10	0	1102272..1104086	-	604	33242333	lpxB	CpB1002	-	lipid-A-disaccharide synthase
999	 37.41	-1	1104095..1105345	-	416	33242334	-	CpB1003	-	poly(A) polymerase
1000	 42.41	0	1105862..1107238	+	458	33242335	-	CpB1004	-	phosphohexosemutase
1001	 41.42	0	1107245..1109074	+	609	33242336	-	CpB1005	-	D-fructose-6-phosphate amidotransferase
1002	 40.13	0	1109162..1110352	+	396	33242337	-	CpB1006	-	tyrosine-specific transport protein
1003	 41.14	0	1110403..1111119	+	238	33242338	-	CpB1007	-	putative transport permease
1004	 41.26	0	1111128..1112060	-	310	33242339	-	CpB1008	-	ftsY cell division protein
1005	 43.93	+1	1112071..1113231	+	386	33242340	sucC	CpB1009	-	succinyl-CoA synthetase subunit beta
1006	 48.41	+2	1113245..1114126	+	293	33242341	-	CpB1010	-	succinyl-CoA synthetase subunit alpha
1007	 36.84	-1	1114378..1114548	+	56	33242342	-	CpB1011	-	hypothetical protein
1008	 42.96	0	1114937..1115341	+	134	33242343	-	CpB1012	-	hypothetical protein
1009	 40.29	0	1115783..1116889	+	368	33242344	-	CpB1013	-	hypothetical protein
1010	 39.90	0	1117072..1118106	+	344	33242345	-	CpB1014	-	hypothetical protein
1011	 39.15	0	1118366..1119397	+	343	33242346	-	CpB1015	-	hypothetical protein
1012	 42.36	0	1119696..1121147	+	483	33242347	htrA	CpB1016	-	serine protease DO
40.62	MEAN

3.18	STD DEV
