IslandPath Analysis: Chlamydophila pneumoniae TW-183

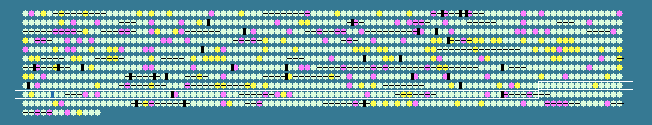

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.62 STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
887	 43.98	+1	977042..978196	-	384	33242222	nifS	CpB0891	-	nitrogen fixation protein
888	 39.30	0	978151..978837	-	228	33242223	-	CpB0892	-	phosphoglyceromutase
889	 42.66	0	978993..979700	+	235	33242224	-	CpB0893	-	putative pseudouridine synthase
890	 42.42	0	979741..980268	+	175	33242225	-	CpB0895	-	hypothetical protein
891	 41.62	0	980236..980814	-	192	33242226	birA	CpB0894	-	biotin--protein ligase
892	 41.35	0	980746..981993	+	415	33242227	-	CpB0896	-	stage V sporulation protein E
893	 42.08	0	981990..983966	-	658	33242228	copA	CpB0897	-	copper-transporting ATPase
894	 39.36	0	983978..984724	-	248	33242229	-	CpB0898	-	hypothetical protein
895	 42.37	0	984768..986051	-	427	33242230	-	CpB0899	-	seryl-tRNA synthetase
896	 45.62	+1	986095..987225	+	376	33242231	-	CpB0900	-	riboflavin-specific deaminase
897	 42.80	0	987286..988542	+	418	33242232	-	CpB0901	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
898	 42.32	0	988565..989020	+	151	33242233	ribH	CpB0902	-	riboflavin synthase subunit beta
899	 42.22	0	989069..990430	-	453	33242234	-	CpB0903	-	hypothetical protein
900	 42.35	0	990695..991348	+	217	33242235	-	CpB0904	-	hypothetical protein
901	 43.86	+1	991467..992843	+	458	33242236	-	CpB0905	-	D-alanine/glycine transport protein, sodium-dependent
902	 44.59	+1	992856..993308	+	150	33242237	-	CpB0906	-	hypothetical protein
903	 41.74	0	993312..993977	-	221	33242238	-	CpB0907	-	SET domain-containing protein
904	 39.47	0	993965..994762	-	265	33242239	-	CpB0908	-	putative metal dependent hydrolase
905	 39.07	0	994764..997184	-	806	33242240	-	CpB0909	-	DNA translocase SpoIIIE
906	 42.19	0	1003107..1003535	+	142	33242241	-	CpB0910	-	hypothetical protein
907	 41.93	0	1003591..1004730	+	379	33242242	-	CpB0911	-	hypothetical protein
908	 40.35	0	1004893..1006188	-	431	33242243	-	CpB0912	-	Na(+)-translocating NADH-quinone reductase subunit F
909	 38.42	0	1006329..1006682	-	117	33242244	yajC	CpB0913	-	preprotein translocase subunit YajC
910	 40.71	0	1006753..1007958	-	401	33242245	-	CpB0914	-	protein Hom1
911	 32.72	-2	1008045..1008206	+	53	33242246	-	CpB0915	-	hypothetical protein
912	 38.26	0	1008228..1008572	-	114	33242247	-	CpB0916	-	histone H1-like protein
913	 31.96	-2	1008777..1008995	+	72	33242248	-	CpB0917	-	hypothetical protein
914	 42.00	0	1009015..1011483	+	822	33242249	-	CpB0919	-	putative chltr phosphoprotein
915	 43.73	0	1011439..1012746	-	435	33242250	-	CpB0918	-	protoporphyrinogen oxidase
916	 40.38	0	1012782..1014158	-	458	33242251	-	CpB0920	-	coproporphyrinogen III oxidase
917	 40.30	0	1014139..1015128	-	329	33242252	hemE	CpB0921	-	uroporphyrinogen decarboxylase
918	 41.31	0	1015139..1018396	-	1085	33242253	-	CpB0922	-	transcription-repair coupling factor
919	 42.42	0	1018366..1020984	-	872	33242254	alaS	CpB0923	-	alanyl-tRNA synthetase
920	 42.59	0	1021163..1023214	+	683	33242255	-	CpB0924	-	transketolase
921	 41.61	0	1023208..1024089	-	293	33242256	-	CpB0925	-	AMP nucleosidase
922	 42.58	0	1024311..1024883	+	190	33242257	-	CpB0926	-	elongation factor P
923	 38.53	0	1024918..1025148	+	76	33242258	-	CpB0927	-	hypothetical protein
924	 41.89	0	1025173..1026060	-	295	33242259	cpdA	CpB0928	-	3,5'-cyclic-nucleotide phosphodiesterase
925	 40.32	0	1026224..1027783	-	519	33242260	-	CpB0929	-	chaperonin HSP60
926	 34.72	-1	1027937..1028152	+	71	33242261	-	CpB0930	-	hypothetical protein
927	 41.89	0	1028198..1029541	+	447	33242262	-	CpB0931	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanine ligase
928	 42.48	0	1029558..1030607	+	349	33242263	mraY	CpB0932	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
929	 41.95	0	1030610..1031863	+	417	33242264	murD	CpB0933	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
930	 43.87	+1	1031866..1032567	+	233	33242265	lytE	CpB0934	-	cell wall hydrolase
931	 43.26	0	1032586..1033743	+	385	33242266	-	CpB0935	-	stage V sporulation protein E
932	 42.76	0	1033652..1034722	+	356	33242267	murG	CpB0936	-	N-acetylglucosaminyl transferase
933	 40.99	0	1034732..1037161	+	809	33242268	-	CpB0937	-	UDP-N-acetylmuramate--alanine ligase
934	 35.41	-1	1037235..1037813	-	192	33242269	-	CpB0938	-	hypothetical protein
935	 42.48	0	1037765..1038103	-	112	33242270	cutA1	CpB0939	-	divalent cation tolerance protein
936	 37.53	0	1038100..1038885	-	261	33242271	-	CpB0940	-	hypothetical protein
937	 37.64	0	1038945..1039292	+	115	33242272	-	CpB0941	-	sigma-F 5-region regulatory protein SpoIIAA
938	 38.87	0	1039302..1040330	+	342	33242273	miaA	CpB0943	-	tRNA delta(2)-isopentenylpyrophosphate transferase
939	 42.00	0	1040305..1041366	-	353	33242274	-	CpB0942	-	hypothetical protein
940	 38.21	0	1041452..1043113	+	553	33242275	-	CpB0944	-	hypothetical protein
941	 35.98	-1	1043110..1043298	+	62	33242276	-	CpB0945	-	hypothetical protein
942	 39.30	0	1043349..1043750	+	133	33242277	-	CpB0946	-	hypothetical protein
943	 35.56	-1	1043811..1044170	+	119	33242278	-	CpB0947	-	Iojap
944	 44.36	+1	1044187..1045437	+	416	33242279	-	CpB0948	-	3-oxoacyl-(acyl carrier protein) synthase II
945	 36.87	-1	1045440..1045892	+	150	33242280	-	CpB0949	-	diadenosine tetraphosphatase
946	 39.20	0	1045926..1046573	-	215	33242281	-	CpB0950	-	inorganic pyrophosphatase
947	 42.71	0	1046728..1047783	+	351	33242282	-	CpB0951	-	leucine dehydrogenase
948	 41.72	0	1047778..1048755	-	325	33242283	-	CpB0952	-	bisphosphonucleoside 3(2')-phosphohydrolase-like protein
949	 39.90	0	1048885..1049646	+	253	33242284	-	CpB0953	-	2-acylglycerophosphoethanolamine acyl transferase/acyl carrier
950	 41.25	0	1049664..1051280	+	538	33242285	-	CpB0954	-	long chain fatty acid--[acyl-carrier-protein] ligase
951	 40.79	0	1051334..1052446	+	370	33242286	-	CpB0956	-	8-amino-7-oxononanoate synthase
952	 42.89	0	1052375..1054624	-	749	33242287	priA	CpB0955	-	primosome assembly protein PriA
953	 38.35	0	1054573..1055250	-	225	33242288	-	CpB0957	-	hypothetical protein
954	 41.92	0	1055410..1055910	+	166	33242289	-	CpB0958	-	putative thioredoxin disulfide isomerase
955	 42.17	0	1056017..1057159	-	380	33242290	-	CpB0959	-	hypothetical protein
956	 41.69	0	1057231..1058331	-	366	33242291	-	CpB0960	-	hypothetical protein
957	 41.26	0	1058533..1059642	-	369	33242292	-	CpB0961	-	hypothetical protein
958	 35.95	-1	1059728..1059880	+	50	33242293	-	CpB0962	-	hypothetical protein
959	 43.76	0	1060243..1060683	+	146	33242294	-	CpB0963	-	hypothetical protein
960	 38.89	0	1060719..1060898	-	59	33242295	-	CpB0964	-	hypothetical protein
961	 41.04	0	1061488..1063071	+	527	33242296	lysS	CpB0965	-	lysyl-tRNA synthetase
962	 42.32	0	1063068..1064492	-	474	33242297	cysS	CpB0966	-	cysteinyl-tRNA synthetase
963	 42.02	0	1064885..1065931	+	348	33242298	-	CpB0968	-	putative disulfide bond isomerase
964	 44.29	+1	1065873..1066292	-	139	33242299	rnpA	CpB0967	-	ribonuclease P
965	 46.38	+1	1066304..1066441	-	45	33242300	rpmH	CpB0969	-	50S ribosomal protein L34
966	 39.86	0	1066686..1066823	+	45	33242301	rpmJ	CpB0970	-	50S ribosomal protein L36
967	 39.54	0	1066846..1067151	+	101	33242302	rpsN	CpB0971	-	30S ribosomal protein S14
968	 36.06	-1	1067196..1067672	-	158	33242303	-	CpB0972	-	hypothetical protein
969	 38.00	0	1068078..1068548	+	156	33242304	-	CpB0973	-	hypothetical protein
970	 41.50	0	1068551..1070362	-	603	33242305	uvrC	CpB0974	-	excinuclease ABC subunit C
971	 41.94	0	1070365..1072851	-	828	33242306	mutS	CpB0975	-	DNA mismatch repair protein
972	 41.36	0	1072944..1073105	-	53	33242307	-	CpB0976	-	hypothetical protein
973	 40.27	0	1073335..1075107	+	590	33242308	dnaG	CpB0977	-	DNA primase
974	 40.15	0	1075328..1075591	+	87	33242309	-	CpB0978	-	hypothetical protein
975	 43.35	0	1075862..1076350	+	162	33242310	-	CpB0979	-	hypothetical protein
976	 43.10	0	1076420..1077013	+	197	33242311	-	CpB0980	-	hypothetical protein
977	 41.21	0	1077092..1080124	-	1010	33242312	-	CpB0981	-	glycyl-tRNA synthetase
978	 36.92	-1	1080167..1080361	-	64	33242313	-	CpB0982	-	hypothetical protein
979	 39.45	0	1080792..1081412	+	206	33242314	-	CpB0984	-	CDP-diacylglycerol-glycerol-3-phosphate 3-phosphatidyltransferase
980	 40.95	0	1081394..1082824	-	476	33242315	glgA	CpB0983	-	glycogen synthase
981	 35.94	-1	1083045..1083236	+	63	33242316	-	CpB0985	-	hypothetical protein
982	 38.71	0	1083279..1083836	+	185	33242317	-	CpB0986	-	50S ribosomal protein L25/general stress protein Ctc
983	 41.80	0	1083838..1084380	+	180	33242318	-	CpB0987	-	peptidyl-tRNA hydrolase
984	 37.46	0	1084472..1084810	+	112	33242319	rpsF	CpB0988	-	30S ribosomal protein S6
985	 36.14	-1	1084828..1085076	+	82	33242320	rpsR	CpB0989	-	30S ribosomal protein S18
986	 38.82	0	1085092..1085601	+	169	33242321	rplI	CpB0990	-	50S ribosomal protein L9
40.62	MEAN

3.18	STD DEV
