IslandPath Analysis: Chlamydophila pneumoniae TW-183

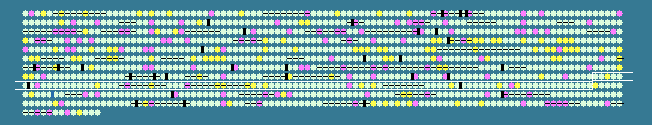

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.62   STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
796	 40.16	0	867788..869707	-	639	33242131	-	CpB0800	-	hypothetical protein
797	 41.91	0	869810..870520	+	236	33242132	-	CpB0801	-	uracil-DNA glycosylase
798	 46.34	+1	870505..870750	+	81	33242133	-	CpB0803	-	hypothetical protein
799	 41.38	0	870733..871353	-	206	33242134	-	CpB0802	-	putative deoxyribonucleotide triphosphate pyrophosphatase
800	 41.88	0	871538..872812	+	424	33242135	-	CpB0804	-	hypothetical protein
801	 43.01	0	872923..874503	+	526	33242136	groEL	CpB0805	-	chaperonin GroEL
802	 40.78	0	874827..875417	+	196	33242137	-	CpB0806	-	2-cys peroxiredoxin BAS1 precursor
803	 35.38	-1	875414..875803	-	129	33242138	-	CpB0807	-	hypothetical protein
804	 38.67	0	875910..876527	-	205	33242139	-	CpB0808	-	protein p60 precursor
805	 41.45	0	876517..877095	-	192	33242140	-	CpB0809	-	peptidoglycan-associated lipoprotein precursor
806	 42.21	0	877092..878387	-	431	33242141	tolB	CpB0810	-	translocation protein TolB
807	 41.44	0	878419..879207	-	262	33242142	-	CpB0811	-	hypothetical protein
808	 42.89	0	879211..879618	-	135	33242143	exbD	CpB0812	-	hypothetical protein
809	 40.34	0	879615..880313	-	232	33242144	exbB	CpB0813	-	ExbB
810	 43.68	0	880474..882618	+	714	33242145	dsbD	CpB0814	-	thiol:disulfide interchange protein
811	 43.89	+1	882941..883726	+	261	33242146	mttC	CpB0815	-	MttC
812	 41.95	0	883864..884757	+	297	33242147	-	CpB0816	-	succinate dehydrogenase subunit C
813	 44.28	+1	884761..886641	+	626	33242148	sdhA	CpB0817	-	succinate dehydrogenase flavoprotein subunit
814	 42.76	0	886655..887428	+	257	33242149	sdhB	CpB0818	-	succinate dehydrogenase iron-sulfur subunit
815	 42.26	0	887430..890396	-	988	33242150	-	CpB0819	-	hypothetical protein
816	 40.72	0	890427..892241	-	604	33242151	-	CpB0820	-	hypothetical protein
817	 40.62	0	892238..894145	-	635	33242152	rsbU	CpB0821	-	hypothetical protein
818	 34.64	-1	894151..894303	-	50	33242153	-	CpB0822	-	hypothetical protein
819	 43.88	+1	894496..895329	+	277	33242154	-	CpB0823	-	hypothetical protein
820	 42.48	0	895450..896520	+	356	33242155	-	CpB0824	-	hypothetical protein
821	 42.88	0	896623..898665	+	680	33242156	-	CpB0825	-	hypothetical protein
822	 44.94	+1	898874..900019	+	381	33242157	-	CpB0826	-	hypothetical protein
823	 42.60	0	900168..901181	+	337	33242158	-	CpB0827	-	hypothetical protein
824	 42.29	0	901259..902308	-	349	33242159	-	CpB0828	-	hypothetical protein
825	 42.97	0	902568..903854	-	428	33242160	eno	CpB0829	-	phosphopyruvate hydratase
826	 43.77	0	904046..906019	-	657	33242161	-	CpB0830	-	excinuclease ABC subunit B
827	 42.90	0	906028..907062	-	344	33242162	-	CpB0831	-	tryptophanyl-tRNA synthetase
828	 36.04	-1	907071..907625	-	184	33242163	-	CpB0832	-	hypothetical protein
829	 40.64	0	907629..908381	-	250	33242164	-	CpB0833	-	plasmid virulence protein pGP6-D
830	 42.19	0	908386..909153	-	255	33242165	soj	CpB0834	-	Spo0A activation inhibitor
831	 42.09	0	909186..911093	-	635	33242166	thrS	CpB0835	-	threonyl-tRNA synthetase
832	 41.72	0	911287..912204	+	305	33242167	-	CpB0836	-	hypothetical protein
833	 45.47	+1	912275..913609	-	444	33242168	-	CpB0837	-	hypothetical protein
834	 46.28	+1	913642..915108	-	488	33242169	-	CpB0838	-	hypothetical protein
835	 40.22	0	915145..915507	-	120	33242170	-	CpB0839	-	hypothetical protein
836	 40.80	0	915528..916223	-	231	33242171	lcrH	CpB0840	-	LcrH
837	 42.86	0	916446..918188	+	580	33242172	mutL	CpB0841	-	DNA mismatch repair protein
838	 44.29	+1	918193..919260	+	355	33242173	-	CpB0842	-	X-Pro aminopeptidase
839	 46.71	+1	919406..920683	+	425	33242174	-	CpB0843	-	hypothetical protein
840	 43.97	+1	920684..922948	+	754	33242175	-	CpB0844	-	general secretion pathway protein D precursor
841	 45.34	+1	922938..924428	+	496	33242176	xcpR	CpB0845	-	XcpR
842	 43.96	+1	924438..925613	+	391	33242177	-	CpB0846	-	XcpS
843	 39.25	0	925637..926008	+	123	33242178	-	CpB0847	-	general secretion pathway protein g precursor
844	 43.18	0	926012..926458	+	148	33242179	-	CpB0848	-	hypothetical protein
845	 39.59	0	926443..926985	+	180	33242180	-	CpB0849	-	hypothetical protein
846	 42.30	0	926969..927994	+	341	33242181	-	CpB0850	-	hypothetical protein
847	 38.64	0	928028..928555	+	175	33242182	-	CpB0851	-	hypothetical protein
848	 42.76	0	928821..929690	-	289	33242183	-	CpB0852	-	YOP proteins translocation protein T
849	 38.54	0	929698..929985	-	95	33242184	-	CpB0853	-	translocation protein S
850	 42.02	0	929997..930917	-	306	33242185	yscR	CpB0854	-	type III secretion system protein
851	 38.89	0	930932..931633	-	233	33242186	-	CpB0855	-	type III secretion system protein
852	 39.57	0	931754..932587	-	277	33242187	-	CpB0856	-	hypothetical protein
853	 43.06	0	932587..933594	-	335	33242188	-	CpB0857	-	secretion protein
854	 37.63	0	934067..934624	+	185	33242189	-	CpB0858	-	hypothetical protein
855	 35.45	-1	934767..935285	+	172	33242190	-	CpB0859	-	hypothetical protein
856	 40.35	0	935590..935760	+	56	33242191	-	CpB0860	-	hypothetical protein
857	 45.67	+1	936147..937070	-	307	33242192	-	CpB0861	-	lipoyl synthase
858	 44.01	+1	937067..938452	-	461	33242193	-	CpB0862	-	dihydrolipoamide dehydrogenase
859	 45.16	+1	938876..939340	+	154	33242194	-	CpB0863	-	hypothetical protein
860	 40.84	0	939365..943012	-	1215	33242195	-	CpB0864	-	SNF protein
861	 39.55	0	943042..944280	-	412	33242196	brnQ	CpB0865	-	branched-chain amino acid transporter
862	 42.22	0	944465..945094	-	209	33242197	-	CpB0866	-	endonuclease III
863	 43.49	0	945101..946429	-	442	33242198	trmE	CpB0867	-	tRNA modification GTPase TrmE
864	 39.96	0	946580..947485	+	301	33242199	-	CpB0868	-	phosphatidylserine decarboxylase
865	 42.76	0	947545..948870	+	441	33242200	-	CpB0869	-	hypothetical protein
866	 41.74	0	949054..951966	+	970	33242201	secA	CpB0870	-	preprotein translocase subunit SecA
867	 39.90	0	952136..952333	+	65	33242202	-	CpB0872	-	hypothetical protein
868	 38.31	0	952314..952514	-	66	33242203	-	CpB0871	-	hypothetical protein
869	 39.07	0	952590..954053	-	487	33242204	engA	CpB0873	-	GTP-binding protein EngA
870	 42.01	0	954170..955402	-	410	33242205	-	CpB0874	-	poly(A) polymerase
871	 40.28	0	955432..956697	-	421	33242206	clpX	CpB0875	-	ATP-dependent protease ATP-binding subunit
872	 45.10	+1	956707..957318	-	203	33242207	clpP	CpB0876	-	ATP-dependent Clp protease proteolytic subunit
873	 39.20	0	957497..958825	-	442	33242208	tig	CpB0877	-	trigger factor
874	 40.59	0	959111..962611	+	1166	33242209	-	CpB0878	-	swf/snf helicase
875	 43.14	0	962616..963716	+	366	33242210	-	CpB0879	-	rod shape-determining protein
876	 43.76	0	963719..965521	+	600	33242211	-	CpB0880	-	phosphoenolpyruvate carboxykinase
877	 40.42	0	965639..967939	+	766	33242212	-	CpB0881	-	hypothetical protein
878	 40.77	0	967960..969129	+	389	33242213	-	CpB0882	-	hypothetical protein
879	 43.30	0	969126..970148	-	340	33242214	-	CpB0883	-	major outer membrane protein
880	 45.27	+1	970314..971318	-	334	33242215	gpsA	CpB0884	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
881	 41.99	0	971315..972700	-	461	33242216	-	CpB0885	-	UDP-N-acetylglucosamine pyrophosphorylase
882	 31.98	-2	972712..973080	-	122	33242217	-	CpB0886	-	hypothetical protein
883	 44.55	+1	973077..974378	-	433	33242218	-	CpB0887	-	type III secretion system ATPase
884	 43.39	0	974375..974911	-	178	33242219	-	CpB0888	-	hypothetical protein
885	 38.79	0	974928..975953	-	341	33242220	-	CpB0889	-	type III secretion system protein
886	 43.07	0	976245..977045	-	266	33242221	-	CpB0890	-	NifU-like protein
887	 43.98	+1	977042..978196	-	384	33242222	nifS	CpB0891	-	nitrogen fixation protein
888	 39.30	0	978151..978837	-	228	33242223	-	CpB0892	-	phosphoglyceromutase
889	 42.66	0	978993..979700	+	235	33242224	-	CpB0893	-	putative pseudouridine synthase
890	 42.42	0	979741..980268	+	175	33242225	-	CpB0895	-	hypothetical protein
891	 41.62	0	980236..980814	-	192	33242226	birA	CpB0894	-	biotin--protein ligase
892	 41.35	0	980746..981993	+	415	33242227	-	CpB0896	-	stage V sporulation protein E
893	 42.08	0	981990..983966	-	658	33242228	copA	CpB0897	-	copper-transporting ATPase
894	 39.36	0	983978..984724	-	248	33242229	-	CpB0898	-	hypothetical protein
895	 42.37	0	984768..986051	-	427	33242230	-	CpB0899	-	seryl-tRNA synthetase
40.62	MEAN

3.18	STD DEV
