IslandPath Analysis: Chlamydophila pneumoniae TW-183

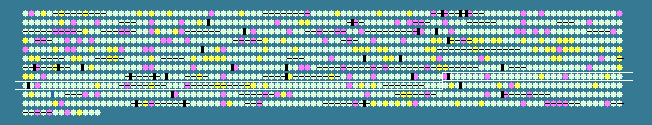

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.62 STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
771	 35.69	-1	840981..841235	+	84	33242106	-	CpB0775	-	hypothetical protein
772	 40.57	0	841440..842309	-	289	33242107	-	CpB0776	-	geranylgeranyl pyrophosphate synthase
773	 41.79	0	842325..842951	-	208	33242108	-	CpB0777	-	UDP-N-acetylglucosamine pyrophosphorylase
774	 38.56	0	843026..843733	-	235	33242109	tctD	CpB0778	-	trans-activating transcription regulator
775	 38.36	0	843930..845759	+	609	33242110	-	CpB0779	-	hypothetical protein
776	 39.74	0	845926..847407	+	493	33242111	recD	CpB0780	-	exonuclease V alpha-subunit
777	 42.87	0	847480..848328	-	282	33242112	-	CpB0781	-	hypothetical protein
778	 36.33	-1	848359..848658	-	99	161484683	rpsT	CpB0782	-	30S ribosomal protein S20
779	 37.15	-1	848919..850124	+	401	33242114	-	CpB0783	-	hypothetical protein
780	 39.97	0	850283..852001	+	572	33242115	-	CpB0784	-	RNA polymerase sigma factor
781	 38.02	0	852055..852459	+	134	33242116	-	CpB0785	-	dihydroneopterin-triphosphate epimerase
782	 41.91	0	852432..853784	+	450	33242117	-	CpB0786	-	dihydropteroate synthase
783	 38.40	0	853810..854322	+	170	33242118	-	CpB0787	-	dihydrofolate reductase
784	 39.41	0	854279..855019	+	246	33242119	-	CpB0788	-	hypothetical protein
785	 39.39	0	855074..855700	+	208	33242120	-	CpB0789	-	coenzyme pyrrolo-quinoline-quinone biosynthesis protein
786	 41.62	0	855858..856919	-	353	33242121	recA	CpB0790	-	recombinase A
787	 45.12	+1	857291..857833	-	180	33242122	-	CpB0791	-	5-formyltetrahydrofolate cyclo-ligase
788	 41.72	0	857843..859129	-	428	33242123	-	CpB0792	-	hypothetical protein
789	 38.63	0	859120..859704	-	194	33242124	-	CpB0793	-	hypothetical protein
790	 42.10	0	859713..861104	-	463	33242125	-	CpB0794	-	hypothetical protein
791	 36.36	-1	861206..861502	+	98	33242126	-	CpB0795	-	hypothetical protein
792	 43.45	0	861481..862488	+	335	33242127	nifR3	CpB0797	-	nitrogen regulating protein
793	 40.56	0	862440..865055	-	871	33242128	-	CpB0796	-	fused DNA topoisomerase I/SWI domain-containing protein
794	 42.14	0	865662..866456	+	264	33242129	-	CpB0798	-	hypothetical protein
795	 41.04	0	866463..867785	-	440	33242130	-	CpB0799	-	RNA polymerase factor sigma-54
796	 40.16	0	867788..869707	-	639	33242131	-	CpB0800	-	hypothetical protein
797	 41.91	0	869810..870520	+	236	33242132	-	CpB0801	-	uracil-DNA glycosylase
798	 46.34	+1	870505..870750	+	81	33242133	-	CpB0803	-	hypothetical protein
799	 41.38	0	870733..871353	-	206	33242134	-	CpB0802	-	putative deoxyribonucleotide triphosphate pyrophosphatase
800	 41.88	0	871538..872812	+	424	33242135	-	CpB0804	-	hypothetical protein
801	 43.01	0	872923..874503	+	526	33242136	groEL	CpB0805	-	chaperonin GroEL
802	 40.78	0	874827..875417	+	196	33242137	-	CpB0806	-	2-cys peroxiredoxin BAS1 precursor
803	 35.38	-1	875414..875803	-	129	33242138	-	CpB0807	-	hypothetical protein
804	 38.67	0	875910..876527	-	205	33242139	-	CpB0808	-	protein p60 precursor
805	 41.45	0	876517..877095	-	192	33242140	-	CpB0809	-	peptidoglycan-associated lipoprotein precursor
806	 42.21	0	877092..878387	-	431	33242141	tolB	CpB0810	-	translocation protein TolB
807	 41.44	0	878419..879207	-	262	33242142	-	CpB0811	-	hypothetical protein
808	 42.89	0	879211..879618	-	135	33242143	exbD	CpB0812	-	hypothetical protein
809	 40.34	0	879615..880313	-	232	33242144	exbB	CpB0813	-	ExbB
810	 43.68	0	880474..882618	+	714	33242145	dsbD	CpB0814	-	thiol:disulfide interchange protein
811	 43.89	+1	882941..883726	+	261	33242146	mttC	CpB0815	-	MttC
812	 41.95	0	883864..884757	+	297	33242147	-	CpB0816	-	succinate dehydrogenase subunit C
813	 44.28	+1	884761..886641	+	626	33242148	sdhA	CpB0817	-	succinate dehydrogenase flavoprotein subunit
814	 42.76	0	886655..887428	+	257	33242149	sdhB	CpB0818	-	succinate dehydrogenase iron-sulfur subunit
815	 42.26	0	887430..890396	-	988	33242150	-	CpB0819	-	hypothetical protein
816	 40.72	0	890427..892241	-	604	33242151	-	CpB0820	-	hypothetical protein
817	 40.62	0	892238..894145	-	635	33242152	rsbU	CpB0821	-	hypothetical protein
818	 34.64	-1	894151..894303	-	50	33242153	-	CpB0822	-	hypothetical protein
819	 43.88	+1	894496..895329	+	277	33242154	-	CpB0823	-	hypothetical protein
820	 42.48	0	895450..896520	+	356	33242155	-	CpB0824	-	hypothetical protein
821	 42.88	0	896623..898665	+	680	33242156	-	CpB0825	-	hypothetical protein
822	 44.94	+1	898874..900019	+	381	33242157	-	CpB0826	-	hypothetical protein
823	 42.60	0	900168..901181	+	337	33242158	-	CpB0827	-	hypothetical protein
824	 42.29	0	901259..902308	-	349	33242159	-	CpB0828	-	hypothetical protein
825	 42.97	0	902568..903854	-	428	33242160	eno	CpB0829	-	phosphopyruvate hydratase
826	 43.77	0	904046..906019	-	657	33242161	-	CpB0830	-	excinuclease ABC subunit B
827	 42.90	0	906028..907062	-	344	33242162	-	CpB0831	-	tryptophanyl-tRNA synthetase
828	 36.04	-1	907071..907625	-	184	33242163	-	CpB0832	-	hypothetical protein
829	 40.64	0	907629..908381	-	250	33242164	-	CpB0833	-	plasmid virulence protein pGP6-D
830	 42.19	0	908386..909153	-	255	33242165	soj	CpB0834	-	Spo0A activation inhibitor
831	 42.09	0	909186..911093	-	635	33242166	thrS	CpB0835	-	threonyl-tRNA synthetase
832	 41.72	0	911287..912204	+	305	33242167	-	CpB0836	-	hypothetical protein
833	 45.47	+1	912275..913609	-	444	33242168	-	CpB0837	-	hypothetical protein
834	 46.28	+1	913642..915108	-	488	33242169	-	CpB0838	-	hypothetical protein
835	 40.22	0	915145..915507	-	120	33242170	-	CpB0839	-	hypothetical protein
836	 40.80	0	915528..916223	-	231	33242171	lcrH	CpB0840	-	LcrH
837	 42.86	0	916446..918188	+	580	33242172	mutL	CpB0841	-	DNA mismatch repair protein
838	 44.29	+1	918193..919260	+	355	33242173	-	CpB0842	-	X-Pro aminopeptidase
839	 46.71	+1	919406..920683	+	425	33242174	-	CpB0843	-	hypothetical protein
840	 43.97	+1	920684..922948	+	754	33242175	-	CpB0844	-	general secretion pathway protein D precursor
841	 45.34	+1	922938..924428	+	496	33242176	xcpR	CpB0845	-	XcpR
842	 43.96	+1	924438..925613	+	391	33242177	-	CpB0846	-	XcpS
843	 39.25	0	925637..926008	+	123	33242178	-	CpB0847	-	general secretion pathway protein g precursor
844	 43.18	0	926012..926458	+	148	33242179	-	CpB0848	-	hypothetical protein
845	 39.59	0	926443..926985	+	180	33242180	-	CpB0849	-	hypothetical protein
846	 42.30	0	926969..927994	+	341	33242181	-	CpB0850	-	hypothetical protein
847	 38.64	0	928028..928555	+	175	33242182	-	CpB0851	-	hypothetical protein
848	 42.76	0	928821..929690	-	289	33242183	-	CpB0852	-	YOP proteins translocation protein T
849	 38.54	0	929698..929985	-	95	33242184	-	CpB0853	-	translocation protein S
850	 42.02	0	929997..930917	-	306	33242185	yscR	CpB0854	-	type III secretion system protein
851	 38.89	0	930932..931633	-	233	33242186	-	CpB0855	-	type III secretion system protein
852	 39.57	0	931754..932587	-	277	33242187	-	CpB0856	-	hypothetical protein
853	 43.06	0	932587..933594	-	335	33242188	-	CpB0857	-	secretion protein
854	 37.63	0	934067..934624	+	185	33242189	-	CpB0858	-	hypothetical protein
855	 35.45	-1	934767..935285	+	172	33242190	-	CpB0859	-	hypothetical protein
856	 40.35	0	935590..935760	+	56	33242191	-	CpB0860	-	hypothetical protein
857	 45.67	+1	936147..937070	-	307	33242192	-	CpB0861	-	lipoyl synthase
858	 44.01	+1	937067..938452	-	461	33242193	-	CpB0862	-	dihydrolipoamide dehydrogenase
859	 45.16	+1	938876..939340	+	154	33242194	-	CpB0863	-	hypothetical protein
860	 40.84	0	939365..943012	-	1215	33242195	-	CpB0864	-	SNF protein
861	 39.55	0	943042..944280	-	412	33242196	brnQ	CpB0865	-	branched-chain amino acid transporter
862	 42.22	0	944465..945094	-	209	33242197	-	CpB0866	-	endonuclease III
863	 43.49	0	945101..946429	-	442	33242198	trmE	CpB0867	-	tRNA modification GTPase TrmE
864	 39.96	0	946580..947485	+	301	33242199	-	CpB0868	-	phosphatidylserine decarboxylase
865	 42.76	0	947545..948870	+	441	33242200	-	CpB0869	-	hypothetical protein
866	 41.74	0	949054..951966	+	970	33242201	secA	CpB0870	-	preprotein translocase subunit SecA
867	 39.90	0	952136..952333	+	65	33242202	-	CpB0872	-	hypothetical protein
868	 38.31	0	952314..952514	-	66	33242203	-	CpB0871	-	hypothetical protein
869	 39.07	0	952590..954053	-	487	33242204	engA	CpB0873	-	GTP-binding protein EngA
870	 42.01	0	954170..955402	-	410	33242205	-	CpB0874	-	poly(A) polymerase
40.62	MEAN

3.18	STD DEV
