IslandPathversion 1.0

IslandPath Analysis: Chlamydophila pneumoniae TW-183

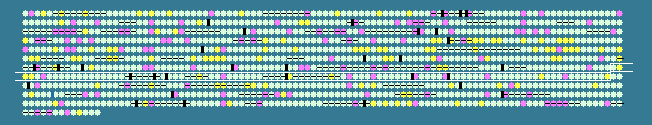

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.62 STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
699	 43.25	0	755370..756539	-	389	33242034	-	CpB0703	-	hypothetical protein
700	 45.60	+1	756575..757723	-	382	33242035	-	CpB0704	-	hypothetical protein
701	 54.86	+2	758001..758525	-	174	33242036	-	CpB0705	-	hypothetical protein
702	 44.33	+1	759044..760252	-	402	33242037	pgk	CpB0706	-	phosphoglycerate kinase
703	 42.86	0	760290..761570	-	426	33242038	-	CpB0707	-	phosphate permease
704	 36.89	-1	761577..762251	-	224	33242039	-	CpB0708	-	hypothetical protein
705	 43.90	+1	762306..763280	+	324	33242040	-	CpB0709	-	dipeptide ABC transporter, ATP-binding protein
706	 41.23	0	763270..764244	+	324	33242041	dppF	CpB0710	-	dipeptide transport protein
707	 39.71	0	764316..764519	+	67	33242042	-	CpB0712	-	hypothetical protein
708	 43.09	0	764500..765360	-	286	33242043	spoOJ	CpB0711	-	Soj antagonist
709	 40.74	0	765495..765683	-	62	33242044	-	CpB0713	-	hypothetical protein
710	 40.37	0	765886..766539	+	217	33242045	-	CpB0714	-	hypothetical protein
711	 40.16	0	766848..767462	+	204	33242046	-	CpB0715	-	hypothetical protein
712	 42.51	0	767506..768726	-	406	33242047	-	CpB0716	-	putative NifS-related protein
713	 41.47	0	768755..770020	-	421	33242048	-	CpB0717	-	putative ABC transporter membrane protein
714	 41.12	0	770004..770774	-	256	33242049	-	CpB0718	-	ABC transporter ATPase
715	 41.92	0	770780..772234	-	484	33242050	-	CpB0719	-	cysteine desulfurase activator complex subunit SufB
716	 40.59	0	772559..773578	-	339	33242051	-	CpB0720	-	UDP-N-acetylglucosamine--peptide N-acetylglucosaminyltransferase
717	 40.67	0	773649..776921	-	1090	33242052	-	CpB0721	-	penicillin-binding protein 2
718	 42.82	0	777538..778707	+	389	33242053	-	CpB0722	-	major outer membrane protein
719	 38.13	0	779091..779924	+	277	33242054	rpsB	CpB0723	-	30S ribosomal protein S2
720	 39.81	0	779924..780772	+	282	33242055	tsf	CpB0724	-	elongation factor Ts
721	 39.89	0	780780..781526	+	248	33242056	pyrH	CpB0725	-	uridylate kinase
722	 38.86	0	781504..782046	+	180	33242057	frr	CpB0726	-	ribosome recycling factor
723	 40.50	0	782419..782934	+	171	33242058	-	CpB0727	-	hypothetical protein
724	 37.79	0	782921..783997	+	358	33242059	-	CpB0728	-	ATP:guanido phosphotransferase
725	 41.41	0	784248..787007	-	919	33242060	-	CpB0729	-	outer membrane secretion protein Q
726	 40.29	0	787004..788512	-	502	33242061	-	CpB0730	-	serine/threonine-protein kinase
727	 42.11	0	788528..789643	-	371	33242062	fliN	CpB0731	-	type III secretion system protein
728	 37.60	0	789653..790495	-	280	33242063	-	CpB0732	-	hypothetical protein
729	 39.25	0	790499..791005	-	168	33242064	-	CpB0733	-	hypothetical protein
730	 45.82	+1	791023..792351	-	442	33242065	yopN	CpB0734	-	type III secretion system ATPase
731	 42.22	0	792353..793027	-	224	33242066	-	CpB0735	-	hypothetical protein
732	 38.89	0	793061..793510	-	149	33242067	-	CpB0736	-	hypothetical protein
733	 39.61	0	793529..793783	-	84	33242068	-	CpB0737	-	hypothetical protein
734	 35.76	-1	793805..794092	-	95	33242069	-	CpB0738	-	hypothetical protein
735	 40.07	0	794100..796622	-	840	33242070	-	CpB0739	-	forkhead domain-containing protein
736	 39.71	0	796636..797043	-	135	33242071	-	CpB0740	-	hypothetical protein
737	 39.41	0	797395..798414	-	339	33242072	hemA	CpB0741	-	glutamyl-tRNA reductase
738	 40.18	0	798694..798912	-	72	33242073	-	CpB0742	-	hypothetical protein
739	 38.09	0	798964..800772	+	602	33242074	-	CpB0743	-	DNA topoisomerase IV subunit B
740	 40.99	0	800776..802212	+	478	33242075	-	CpB0744	-	DNA topoisomerase IV subunit A
741	 41.67	0	802317..802616	+	99	33242076	-	CpB0745	-	hypothetical protein
742	 41.12	0	802616..802936	+	106	33242077	-	CpB0746	-	hypothetical protein
743	 41.41	0	803223..804200	+	325	33242078	-	CpB0747	-	ribosomal large subunit pseudouridine synthase A
744	 39.24	0	804310..804546	+	78	33242079	-	CpB0748	-	hypothetical protein
745	 44.69	+1	804990..805799	+	269	33242080	-	CpB0749	-	2-dehydro-3-deoxyphosphooctonate aldolase
746	 38.45	0	805796..806284	+	162	33242081	-	CpB0750	-	hypothetical protein
747	 40.94	0	806291..807013	+	240	33242082	-	CpB0751	-	ABC transporter
748	 41.58	0	807010..807834	-	274	33242083	-	CpB0752	-	hypothetical protein
749	 42.11	0	807891..808118	-	75	33242084	-	CpB0753	-	hypothetical protein
750	 40.99	0	808184..810679	-	831	33242085	-	CpB0754	-	hypothetical protein
751	 39.44	0	810884..813502	+	872	33242086	-	CpB0755	-	hypothetical protein
752	 44.84	+1	813829..815784	-	651	33242087	-	CpB0756	-	hypothetical protein
753	 39.32	0	815896..817164	-	422	33242088	-	CpB0757	-	hypothetical protein
754	 41.00	0	817267..818910	-	547	33242089	mviN	CpB0758	-	hypothetical protein
755	 36.16	-1	818894..819070	+	58	33242090	-	CpB0759	-	hypothetical protein
756	 40.59	0	819405..820286	+	293	33242091	-	CpB0760	-	endonuclease IV
757	 40.48	0	820405..821034	-	209	33242092	rpsD	CpB0761	-	30S ribosomal protein S4
758	 39.08	0	821251..822225	+	324	33242093	yceA	CpB0762	-	hypothetical protein
759	 35.72	-1	822306..822974	-	222	33242094	-	CpB0763	-	uridine kinase
760	 39.87	0	823295..824992	-	565	33242095	-	CpB0764	-	putative efflux protein
761	 38.21	0	824991..828065	+	1024	33242096	-	CpB0765	-	putative exodeoxyribonuclease V gamma
762	 37.81	0	828052..831204	+	1050	33242097	-	CpB0767	-	exodeoxyribonuclease V 135K chain
763	 39.74	0	831164..832177	-	337	33242098	-	CpB0766	-	hypothetical protein
764	 38.22	0	832167..833354	-	395	33242099	-	CpB0768	-	aromatic amino acid aminotransferase
765	 39.51	0	833488..835656	-	722	33242100	greA	CpB0769	-	fused transcript cleavage factor/uncharacterized domain-containing protein
766	 33.56	-2	835754..836197	+	147	33242101	-	CpB0770	-	hypothetical protein
767	 38.96	0	836268..837671	+	467	33242102	-	CpB0771	-	Na(+)-translocating NADH-quinone reductase subunit A
768	 39.24	0	837692..838690	-	332	33242103	-	CpB0772	-	delta-aminolevulinic acid dehydratase
769	 43.64	0	839045..839209	-	54	33242104	-	CpB0773	-	hypothetical protein
770	 40.29	0	839281..840876	+	531	33242105	-	CpB0774	-	hypothetical protein
771	 35.69	-1	840981..841235	+	84	33242106	-	CpB0775	-	hypothetical protein
772	 40.57	0	841440..842309	-	289	33242107	-	CpB0776	-	geranylgeranyl pyrophosphate synthase
773	 41.79	0	842325..842951	-	208	33242108	-	CpB0777	-	UDP-N-acetylglucosamine pyrophosphorylase
774	 38.56	0	843026..843733	-	235	33242109	tctD	CpB0778	-	trans-activating transcription regulator
775	 38.36	0	843930..845759	+	609	33242110	-	CpB0779	-	hypothetical protein
776	 39.74	0	845926..847407	+	493	33242111	recD	CpB0780	-	exonuclease V alpha-subunit
777	 42.87	0	847480..848328	-	282	33242112	-	CpB0781	-	hypothetical protein
778	 36.33	-1	848359..848658	-	99	161484683	rpsT	CpB0782	-	30S ribosomal protein S20
779	 37.15	-1	848919..850124	+	401	33242114	-	CpB0783	-	hypothetical protein
780	 39.97	0	850283..852001	+	572	33242115	-	CpB0784	-	RNA polymerase sigma factor
781	 38.02	0	852055..852459	+	134	33242116	-	CpB0785	-	dihydroneopterin-triphosphate epimerase
782	 41.91	0	852432..853784	+	450	33242117	-	CpB0786	-	dihydropteroate synthase
783	 38.40	0	853810..854322	+	170	33242118	-	CpB0787	-	dihydrofolate reductase
784	 39.41	0	854279..855019	+	246	33242119	-	CpB0788	-	hypothetical protein
785	 39.39	0	855074..855700	+	208	33242120	-	CpB0789	-	coenzyme pyrrolo-quinoline-quinone biosynthesis protein
786	 41.62	0	855858..856919	-	353	33242121	recA	CpB0790	-	recombinase A
787	 45.12	+1	857291..857833	-	180	33242122	-	CpB0791	-	5-formyltetrahydrofolate cyclo-ligase
788	 41.72	0	857843..859129	-	428	33242123	-	CpB0792	-	hypothetical protein
789	 38.63	0	859120..859704	-	194	33242124	-	CpB0793	-	hypothetical protein
790	 42.10	0	859713..861104	-	463	33242125	-	CpB0794	-	hypothetical protein
791	 36.36	-1	861206..861502	+	98	33242126	-	CpB0795	-	hypothetical protein
792	 43.45	0	861481..862488	+	335	33242127	nifR3	CpB0797	-	nitrogen regulating protein
793	 40.56	0	862440..865055	-	871	33242128	-	CpB0796	-	fused DNA topoisomerase I/SWI domain-containing protein
794	 42.14	0	865662..866456	+	264	33242129	-	CpB0798	-	hypothetical protein
795	 41.04	0	866463..867785	-	440	33242130	-	CpB0799	-	RNA polymerase factor sigma-54
796	 40.16	0	867788..869707	-	639	33242131	-	CpB0800	-	hypothetical protein
797	 41.91	0	869810..870520	+	236	33242132	-	CpB0801	-	uracil-DNA glycosylase
798	 46.34	+1	870505..870750	+	81	33242133	-	CpB0803	-	hypothetical protein
40.62	MEAN

3.18	STD DEV
