IslandPath Analysis: Chlamydophila pneumoniae TW-183

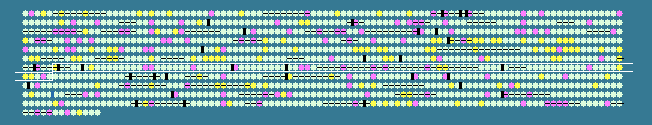

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.62 STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
606	 44.73	+1	673324..674508	+	394	33241941	atoC	CpB0610	-	acetate metabolism regulatory protein
607	 43.38	0	674763..675449	+	228	33241942	-	CpB0611	-	hypothetical protein
608	 43.73	0	675394..675951	+	185	33241943	-	CpB0612	-	hypothetical protein
609	 41.37	0	675962..676720	+	252	33241944	recO	CpB0613	-	DNA repair protein RecO
610	 37.50	0	676835..677434	-	199	33241945	-	CpB0614	-	hypothetical protein
611	 42.70	0	677695..678345	+	216	33241946	-	CpB0615	-	hypothetical protein
612	 44.23	+1	678475..678786	+	103	33241947	hlyA	CpB0617	-	alpha-hemolysin
613	 42.06	0	678710..679798	-	362	33241948	-	CpB0616	-	hypothetical protein
614	 43.93	+1	679905..682283	+	792	33241949	pheT	CpB0618	-	phenylalanyl-tRNA synthetase subunit beta
615	 42.70	0	682280..683251	+	323	33241950	-	CpB0619	-	hypothetical protein
616	 43.87	+1	683261..683782	+	173	33241951	-	CpB0620	-	methylated-DNA-protein-cysteine S-methyltransferase
617	 43.51	0	683798..685537	-	579	33241952	-	CpB0621	-	oligopeptide ABC transporter permease protein
618	 40.82	0	685538..687019	-	493	33241953	dppB	CpB0622	-	dipeptide transport system permease protein
619	 41.87	0	687001..689109	-	702	33241954	-	CpB0623	-	oligopeptide ABC transporter
620	 37.65	0	689146..689469	-	107	33241955	-	CpB0624	-	hypothetical protein
621	 35.35	-1	689783..690229	-	148	33241956	-	CpB0625	-	hypothetical protein
622	 35.82	-1	690423..691427	-	334	33241957	-	CpB0626	-	hypothetical protein
623	 41.46	0	691527..692510	+	327	161484685	hemH	CpB0627	-	ferrochelatase
624	 38.91	0	692515..693267	-	250	33241959	-	CpB0628	-	glutamine-binding periplasmic protein precursor
625	 39.04	0	693469..694029	-	186	33241960	-	CpB0629	-	putative methylase
626	 42.97	0	694026..694793	-	255	33241961	-	CpB0630	-	hypothetical protein
627	 38.01	0	694892..696217	-	441	33241962	-	CpB0631	-	glucose-1-phosphate adenylyltransferase
628	 41.55	0	696335..696967	-	210	33241963	-	CpB0632	-	UMP synthase
629	 36.49	-1	697027..697311	+	94	33241964	-	CpB0633	-	hypothetical protein
630	 42.15	0	697348..698742	-	464	33241965	rho	CpB0634	-	transcription termination factor Rho
631	 38.03	0	698739..699356	-	205	33241966	coaE	CpB0635	-	dephospho-CoA kinase
632	 38.12	0	699341..701953	-	870	33241967	-	CpB0636	-	DNA polymerase I
633	 41.69	0	701977..702969	-	330	33241968	-	CpB0637	-	proteinase IV
634	 42.45	0	703102..704724	-	540	33241969	-	CpB0638	-	plastidic ATP/ADP-transporter
635	 40.63	0	704953..705459	-	168	33241970	-	CpB0639	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
636	 36.54	-1	705823..705978	-	51	33241971	-	CpB0640	-	hypothetical protein
637	 39.94	0	706056..707462	+	468	33241972	dnaB	CpB0641	-	replicative DNA helicase
638	 38.36	0	707591..707749	-	52	33241973	-	CpB0642	-	hypothetical protein
639	 42.81	0	707806..709641	+	611	33241974	gidA	CpB0643	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
640	 40.11	0	709628..710335	+	235	33241975	-	CpB0644	-	lipoate--protein ligase A
641	 40.69	0	710332..710766	-	144	33241976	ndk	CpB0645	-	nucleoside diphosphate kinase
642	 41.35	0	710838..711461	-	207	33241977	ruvA	CpB0646	-	Holliday junction DNA helicase motor protein
643	 42.41	0	711463..711969	-	168	33241978	ruvC	CpB0647	-	Holliday junction resolvase
644	 38.32	0	712112..713074	-	320	33241979	-	CpB0648	-	hypothetical protein
645	 40.77	0	713482..714315	-	277	33241980	-	CpB0649	-	hypothetical protein
646	 38.69	0	714330..715337	-	335	33241981	-	CpB0650	-	glyceraldehyde-3-phosphate dehydrogenase
647	 35.90	-1	715379..715807	-	142	33241982	rplQ	CpB0651	-	50S ribosomal protein L17
648	 36.62	-1	715814..716938	-	374	33241983	-	CpB0652	-	DNA-directed RNA polymerase subunit alpha
649	 41.54	0	716959..717360	-	133	33241984	-	CpB0653	-	30S ribosomal protein S11
650	 37.40	-1	717382..717750	-	122	33241985	rpsM	CpB0654	-	30S ribosomal protein S13
651	 39.74	0	717806..719179	-	457	33241986	secY	CpB0655	-	preprotein translocase subunit SecY
652	 39.08	0	719204..719638	-	144	33241987	rplO	CpB0656	-	50S ribosomal protein L15
653	 39.16	0	719631..720128	-	165	33241988	rpsE	CpB0657	-	30S ribosomal protein S5
654	 37.10	-1	720146..720517	-	123	33241989	rplR	CpB0658	-	50S ribosomal protein L18
655	 39.67	0	720528..721079	-	183	33241990	rplF	CpB0659	-	50S ribosomal protein L6
656	 41.54	0	721106..721507	-	133	33241991	rpsH	CpB0660	-	30S ribosomal protein S8
657	 37.75	0	721525..722067	-	180	33241992	rplE	CpB0661	-	50S ribosomal protein L5
658	 39.58	0	722069..722404	-	111	33241993	rplX	CpB0662	-	50S ribosomal protein L24
659	 36.86	-1	722418..722786	-	122	33241994	rplN	CpB0663	-	50S ribosomal protein L14
660	 37.16	-1	722809..723069	-	86	33241995	rpsQ	CpB0664	-	30S ribosomal protein S17
661	 36.07	-1	723062..723280	-	72	33241996	rpmC	CpB0665	-	50S ribosomal protein L29
662	 41.49	0	723283..723699	-	138	33241997	rplP	CpB0666	-	50S ribosomal protein L16
663	 41.82	0	723728..724399	-	223	33241998	rpsC	CpB0667	-	30S ribosomal protein S3
664	 41.37	0	724415..724750	-	111	33241999	rplV	CpB0668	-	50S ribosomal protein L22
665	 38.20	0	724769..725035	-	88	33242000	rpsS	CpB0669	-	30S ribosomal protein S19
666	 42.22	0	725041..725895	-	284	33242001	rplB	CpB0670	-	50S ribosomal protein L2
667	 38.39	0	725917..726252	-	111	33242002	rplW	CpB0671	-	50S ribosomal protein L23
668	 36.89	-1	726269..726943	-	224	33242003	rplD	CpB0672	-	50S ribosomal protein L4
669	 41.36	0	726976..727635	-	219	161484684	rplC	CpB0673	-	50S ribosomal protein L3
670	 44.21	+1	727924..728925	-	333	33242005	-	CpB0674	-	hypothetical protein
671	 44.72	+1	729029..729994	-	321	33242006	fmt	CpB0675	-	methionyl-tRNA formyltransferase
672	 42.14	0	729984..730823	-	279	33242007	-	CpB0676	-	UDP-N-acetylglucosamine acyltransferase
673	 40.26	0	730836..731297	-	153	33242008	fabZ	CpB0677	-	(3R)-hydroxymyristoyl-ACP dehydratase
674	 39.46	0	731309..732157	-	282	33242009	lpxC	CpB0678	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
675	 42.44	0	732187..733812	-	541	33242010	lnt	CpB0679	-	apolipoprotein N-acyltransferase
676	 41.45	0	733822..734289	-	155	33242011	-	CpB0680	-	cytosolic acyl coenzyme A thioester hydrolase
677	 37.20	-1	734420..735169	-	249	33242012	-	CpB0681	-	DNA polymerase III subunit epsilon
678	 38.33	0	735194..735373	+	59	33242013	-	CpB0682	-	hypothetical protein
679	 39.29	0	735370..735705	-	111	33242014	-	CpB0683	-	hypothetical protein
680	 39.75	0	735774..736490	-	238	33242015	-	CpB0684	-	hypothetical protein
681	 41.42	0	736855..737163	+	102	33242016	-	CpB0685	-	thioredoxin
682	 40.13	0	737179..737649	-	156	33242017	-	CpB0686	-	putative rRNA methylase
683	 38.61	0	737646..738422	-	258	33242018	-	CpB0687	-	MIP protein
684	 40.85	0	738491..740245	-	584	33242019	aspS	CpB0688	-	aspartyl-tRNA synthetase
685	 41.07	0	740220..741512	-	430	33242020	hisS	CpB0689	-	histidyl-tRNA synthetase
686	 39.22	0	741876..742079	-	67	33242021	-	CpB0690	-	hypothetical protein
687	 42.18	0	742323..743690	+	455	33242022	uhpC	CpB0691	-	hexose phosphate transport system regulatory protein
688	 40.26	0	743710..747432	+	1240	33242023	dnaE	CpB0692	-	DNA polymerase III subunit alpha
689	 43.39	0	747496..748380	-	294	33242024	-	CpB0693	-	hypothetical protein
690	 40.02	0	748531..749487	+	318	33242025	-	CpB0694	-	hypothetical protein
691	 38.83	0	749501..750100	+	199	33242026	-	CpB0695	-	hypothetical protein
692	 40.62	0	750069..750521	+	150	33242027	-	CpB0696	-	putative sigma regulatory factor-histidine kinase
693	 40.09	0	750524..750952	-	142	33242028	-	CpB0697	-	hypothetical protein
694	 44.09	+1	751063..752373	+	436	33242029	dacB	CpB0698	-	serine-type D-Ala-D-Ala carboxypeptidase
695	 36.67	-1	752445..752624	+	59	33242030	-	CpB0699	-	hypothetical protein
696	 38.33	0	752609..752788	+	59	33242031	-	CpB0700	-	hypothetical protein
697	 41.10	0	752896..753990	-	364	33242032	-	CpB0701	-	fmu methyltransferase
698	 40.87	0	754087..755241	-	384	33242033	-	CpB0702	-	hypothetical protein
699	 43.25	0	755370..756539	-	389	33242034	-	CpB0703	-	hypothetical protein
700	 45.60	+1	756575..757723	-	382	33242035	-	CpB0704	-	hypothetical protein
701	 54.86	+2	758001..758525	-	174	33242036	-	CpB0705	-	hypothetical protein
702	 44.33	+1	759044..760252	-	402	33242037	pgk	CpB0706	-	phosphoglycerate kinase
703	 42.86	0	760290..761570	-	426	33242038	-	CpB0707	-	phosphate permease
704	 36.89	-1	761577..762251	-	224	33242039	-	CpB0708	-	hypothetical protein
705	 43.90	+1	762306..763280	+	324	33242040	-	CpB0709	-	dipeptide ABC transporter, ATP-binding protein
40.62	MEAN

3.18	STD DEV
