IslandPath Analysis: Chlamydophila pneumoniae TW-183

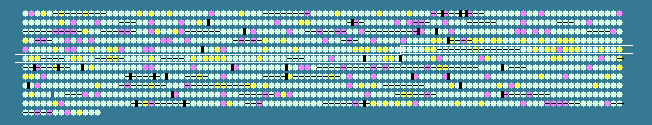

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.62   STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
464	 38.60	0	502346..502516	-	56	33241799	-	CpB0466	-	hypothetical protein
465	 42.56	0	502828..505611	-	927	33241800	-	CpB0467	-	outer membrane protein 5
466	 43.74	0	505774..508560	+	928	33241801	-	CpB0468	-	outer membrane protein 4
467	 43.88	+1	508818..510362	+	514	33241802	-	CpB0469	-	outer membrane protein 13
468	 44.32	+1	510733..513654	+	973	33241803	-	CpB0470	-	outer membrane protein 14
469	 45.08	+1	513681..516617	+	978	33241804	-	CpB0471	-	outer membrane protein 11
470	 40.61	0	516670..516834	-	54	33241805	-	CpB0472	-	hypothetical protein
471	 43.70	0	516955..518874	-	639	33241806	-	CpB0473	-	hypothetical protein
472	 42.91	0	519477..521366	-	629	33241807	-	CpB0474	-	hypothetical protein
473	 43.63	0	521734..523821	-	695	33241808	-	CpB0475	-	hypothetical protein
474	 40.74	0	524117..524548	-	143	33241809	-	CpB0476	-	hypothetical protein
475	 43.08	0	524490..525341	-	283	33241810	-	CpB0477	-	hypothetical protein
476	 45.01	+1	525342..525992	-	216	33241811	-	CpB0478	-	hypothetical protein
477	 43.44	0	526535..528553	-	672	33241812	-	CpB0479	-	hypothetical protein
478	 42.92	0	528689..529960	-	423	33241813	-	CpB0480	-	hypothetical protein
479	 42.92	0	529864..530343	-	159	33241814	-	CpB0481	-	hypothetical protein
480	 43.77	0	530369..530713	-	114	33241815	-	CpB0482	-	hypothetical protein
481	 41.52	0	530766..530936	-	56	33241816	-	CpB0483	-	hypothetical protein
482	 44.06	+1	531246..534041	+	931	33241817	-	CpB0484	-	outer membrane protein 11
483	 43.58	0	534080..536938	+	952	33241818	-	CpB0485	-	outer membrane protein 5
484	 39.84	0	537184..537936	+	250	33241819	-	CpB0486	-	outer membrane protein 10
485	 40.80	0	538041..538964	+	307	33241820	-	CpB0487	-	outer membrane protein 11
486	 44.87	+1	538858..540036	+	392	33241821	-	CpB0488	-	outer membrane protein
487	 41.46	0	540065..542905	+	946	33241822	-	CpB0489	-	outer membrane protein 11
488	 46.65	+1	543079..545406	-	775	33241823	-	CpB0490	-	hypothetical protein
489	 46.33	+1	545568..546914	-	448	33241824	-	CpB0491	-	hypothetical protein
490	 22.22	-2	546954..547115	-	53	33241825	-	CpB0492	-	hypothetical protein
491	 45.21	+1	547125..548858	-	577	33241826	-	CpB0493	-	hypothetical protein
492	 45.77	+1	549003..551165	-	720	33241827	-	CpB0494	-	glycogen branching enzyme
493	 45.76	+1	551176..552165	-	329	33241828	-	CpB0495	-	hypothetical protein
494	 43.05	0	552162..553427	-	421	33241829	-	CpB0496	-	hypothetical protein
495	 43.97	+1	553528..554946	-	472	33241830	-	CpB0497	-	GTP binding protein hflX
496	 42.19	0	554934..555746	-	270	33241831	-	CpB0498	-	putative metal dependent hydrolase
497	 44.44	+1	555968..556624	-	218	33241832	-	CpB0499	-	hypothetical protein
498	 42.18	0	558279..559013	-	244	33241833	-	CpB0502	-	arginine-binding periplasmic protein 2 precursor
499	 43.23	0	559187..562288	+	1033	33241834	-	CpB0503	-	hypothetical protein
500	 48.83	+2	562291..563148	+	285	33241835	-	CpB0504	-	3-deoxy-7-phosphoheptulonate synthase
501	 41.03	0	563359..563553	+	64	33241836	-	CpB0505	-	hypothetical protein
502	 45.17	+1	563723..565057	-	444	33241837	-	CpB0506	-	prolin permease protein
503	 44.72	+1	565430..566983	-	517	33241838	-	CpB0507	-	hypothetical protein
504	 39.64	0	567085..567417	-	110	33241839	-	CpB0508	-	histidine triad homology
505	 39.63	0	567414..568286	-	290	33241840	-	CpB0509	-	hypothetical protein
506	 43.88	+1	568600..570657	+	685	33241841	-	CpB0510	-	hypothetical protein
507	 42.54	0	570654..571793	-	379	33241842	-	CpB0511	-	hypothetical protein
508	 42.95	0	571973..572128	+	51	33241843	-	CpB0512	-	hypothetical protein
509	 44.44	+1	572173..572325	-	50	33241844	-	CpB0513	-	hypothetical protein
510	 45.50	+1	572464..572685	-	73	33241845	-	CpB0514	-	hypothetical protein
511	 43.44	0	572852..574117	+	421	33241846	-	CpB0515	-	L,L-diaminopimelate aminotransferase
512	 40.76	0	574114..575136	+	340	33241847	-	CpB0516	-	hypothetical protein
513	 37.73	0	575138..575410	-	90	33241848	-	CpB0517	-	hypothetical protein
514	 43.29	0	575403..576356	-	317	33241849	-	CpB0518	-	hypothetical protein
515	 46.20	+1	576524..577681	-	385	33241850	-	CpB0519	-	hypothetical protein
516	 45.40	+1	577981..579687	+	568	33241851	-	CpB0520	-	prolyl-tRNA synthetase
517	 40.03	0	579752..580975	+	407	33241852	hrcA	CpB0521	-	heat-inducible transcription repressor
518	 38.20	0	580972..581526	+	184	33241853	grpE	CpB0522	-	hypothetical protein
519	 42.21	0	581556..583538	+	660	33241854	dnaK	CpB0523	-	molecular chaperone DnaK
520	 38.89	0	583575..583808	-	77	33241855	-	CpB0524	-	hypothetical protein
521	 42.98	0	583809..585839	+	676	33241856	-	CpB0525	-	proteins of ribonuclease
522	 46.02	+1	585841..586431	+	196	33241857	-	CpB0526	-	N-methylpurine-DNA glycosylase
523	 40.74	0	586383..587165	+	260	33241858	-	CpB0527	-	hypothetical protein
524	 40.61	0	587283..587447	+	54	33241859	-	CpB0528	-	hypothetical protein
525	 38.89	0	587464..587625	+	53	33241860	-	CpB0529	-	hypothetical protein
526	 38.78	0	587657..588133	+	158	33241861	-	CpB0530	-	hypothetical protein
527	 43.99	+1	588135..589298	+	387	33241862	-	CpB0531	-	hemolysin C
528	 39.60	0	589463..589813	+	116	33241863	-	CpB0532	-	sigma F regulatory factor
529	 44.71	+1	589875..591737	+	620	33241864	-	CpB0533	-	hypothetical protein
530	 42.77	0	591924..593078	+	384	33241865	-	CpB0534	-	hypothetical protein
531	 45.41	+1	593051..593845	+	264	33241866	-	CpB0535	-	hypothetical protein
532	 44.68	+1	593793..594506	+	237	33241867	ubiE	CpB0536	-	ubiquinone/menaquinone biosynthesis methyltransferase
533	 45.31	+1	594574..596193	-	539	33241868	-	CpB0537	-	hypothetical protein
534	 45.12	+1	596114..596953	-	279	33241869	-	CpB0538	-	hypothetical protein
535	 38.36	0	597151..598125	-	324	33241870	-	CpB0539	-	hypothetical protein
536	 43.51	0	598223..599008	-	261	33241871	dapF	CpB0540	-	diaminopimelate epimerase
537	 40.45	0	598965..599540	-	191	33241872	clp	CpB0541	-	ATP-dependent Clp protease proteolytic subunit
538	 41.67	0	599560..601119	-	519	33241873	glyA	CpB0542	-	serine hydroxymethyltransferase
539	 42.41	0	601309..601980	+	223	33241874	hemD	CpB0543	-	uroporphyrinogen-III synthase
540	 45.35	+1	602045..602377	+	110	33241875	-	CpB0544	-	hypothetical protein
541	 41.76	0	602425..603504	+	359	33241876	-	CpB0545	-	hypothetical protein
542	 37.91	0	603844..604608	+	254	33241877	-	CpB0546	-	hypothetical protein
543	 41.11	0	605029..606018	-	329	33241878	kpsF	CpB0547	-	KpsF
544	 44.08	+1	606045..607226	-	393	33241879	-	CpB0548	-	branched-chain alpha-keto acid dehydrogenase subunit E2
545	 42.25	0	607240..608484	-	414	33241880	-	CpB0549	-	proton/sodium glutamate symport transporter
546	 43.81	+1	608484..609581	-	365	33241881	lpxK	CpB0550	-	tetraacyldisaccharide 4'-kinase
547	 38.60	0	609779..610576	-	265	33241882	spoU	CpB0551	-	tRNA methylase
548	 43.24	0	610564..611391	-	275	33241883	-	CpB0552	-	putative SAM dependent methyltransferase
549	 38.31	0	611394..611996	-	200	33241884	-	CpB0553	-	riboflavin synthase subunit alpha
550	 38.13	0	612252..612710	+	152	33241885	-	CpB0554	-	transcriptional regulator NrdR
551	 39.73	0	612735..613109	+	124	33241886	-	CpB0555	-	general stress protein 160
552	 36.48	-1	613145..613621	+	158	33241887	lspA	CpB0556	-	lipoprotein signal peptidase
553	 42.81	0	613667..615016	+	449	33241888	-	CpB0557	-	alanine/glycine transporter protein
554	 38.61	0	615155..615514	+	119	33241889	-	CpB0558	-	hypothetical protein
555	 38.36	0	615519..615836	+	105	33241890	-	CpB0559	-	hypothetical protein
556	 42.41	0	616027..618870	+	947	33241891	-	CpB0560	-	Omp11
557	 43.12	0	619016..624187	+	1723	33241892	-	CpB0561	-	outer membrane protein omp5
558	 39.67	0	624492..625328	+	278	33241893	-	CpB0562	-	adhesin B protein
559	 41.33	0	625325..626062	+	245	33241894	-	CpB0563	-	ABC transporter ATPase
560	 41.67	0	626041..626928	+	295	33241895	-	CpB0565	-	iron transport protein
561	 45.34	+1	626844..627851	-	335	33241896	obgE	CpB0564	-	GTPase ObgE
562	 45.10	+1	627952..628206	-	84	33241897	rpmA	CpB0566	-	50S ribosomal protein L27
563	 40.43	0	628231..628554	-	107	33241898	rplU	CpB0567	-	50S ribosomal protein L21
40.62	MEAN

3.18	STD DEV
