IslandPath Analysis: Chlamydophila pneumoniae TW-183

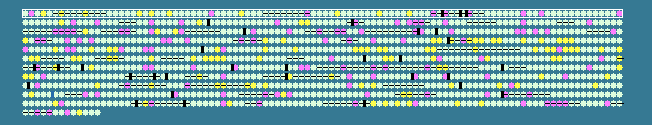

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.62   STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1	 40.07	0	1..282	-	93	33241336	-	CpB0001	-	hypothetical protein
2	 26.80	-2	417..569	+	50	33241337	-	CpB0002	-	hypothetical protein
3	 38.56	0	573..878	+	101	33241338	gatC	CpB0003	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
4	 44.15	+1	895..2373	+	492	33241339	gatA	CpB0004	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
5	 43.08	0	2370..3836	+	488	33241340	gatB	CpB0005	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
6	 41.10	0	4127..6895	+	922	33241341	-	CpB0006	-	outer membrane protein 6
7	 51.28	+2	7138..7293	-	51	33241342	-	CpB0007	-	hypothetical protein
8	 40.90	0	7605..10499	+	964	33241343	-	CpB0008	-	hypothetical protein
9	 44.00	+1	10864..11688	+	274	33241344	-	CpB0009	-	hypothetical protein
10	 41.21	0	11815..13122	+	435	33241345	-	CpB0010	-	hypothetical protein
11	 44.93	+1	13323..13598	+	91	33241346	-	CpB0011	-	HB2 protein
12	 43.88	+1	13692..15749	+	685	33241347	-	CpB0012	-	hypothetical protein
13	 38.15	0	15892..16617	+	241	33241348	-	CpB0013	-	hypothetical protein
14	 38.36	0	16644..18215	+	523	33241349	-	CpB0014	-	hypothetical protein
15	 43.15	0	18563..20722	+	719	33241350	-	CpB0015	-	outer membrane protein 7
16	 43.64	0	20653..21108	+	151	33241351	-	CpB0016	-	outer membrane protein 5
17	 41.57	0	21391..21924	+	177	33241352	-	CpB0017	-	to outer membrane protein 5
18	 42.43	0	21858..24176	+	772	33241353	-	CpB0018	-	outer membrane protein 5
19	 43.07	0	24415..26190	+	591	33241354	-	CpB0019	-	outer membrane protein 5
20	 44.41	+1	26108..27172	+	354	33241355	-	CpB0020	-	outer membrane protein 5
21	 40.21	0	27317..27505	+	62	33241356	-	CpB0021	-	hypothetical protein
22	 44.31	+1	27521..29005	+	494	33241357	-	CpB0022	-	outer membrane protein 11
23	 42.83	0	29021..30358	+	445	33241358	-	CpB0023	-	outer membrane protein 5
24	 43.03	0	30599..32713	-	704	33241359	-	CpB0024	-	putative outer membrane protein
25	 44.29	+1	32703..34409	-	568	33241360	-	CpB0025	-	putative outer membrane protein
26	 40.27	0	34391..34981	-	196	33241361	maf	CpB0026	-	Maf-like protein
27	 41.18	0	35010..36614	-	534	33241362	-	CpB0027	-	putative ABC transporter protein ATPase
28	 42.07	0	36657..37595	-	312	33241363	xerC	CpB0028	-	site-specific tyrosine recombinase XerC
29	 43.18	0	37680..38603	-	307	33241364	-	CpB0029	-	ribonuclease Z
30	 41.75	0	38758..39624	-	288	33241365	-	CpB0030	-	hypothetical protein
31	 40.77	0	39774..42233	-	819	33241366	-	CpB0031	-	lon ATP-dependent proteinase
32	 36.39	-1	42539..43324	-	261	33241367	-	CpB0032	-	hypothetical protein
33	 37.40	-1	43386..43754	-	122	33241368	-	CpB0033	-	hypothetical protein
34	 41.59	0	43890..44531	+	213	33241369	-	CpB0034	-	putative o-sialoglycoprotein endopeptidase
35	 40.68	0	44710..44886	+	58	33241370	rpsU	CpB0035	-	30S ribosomal protein S21
36	 43.85	+1	44922..46100	+	392	33241371	-	CpB0036	-	heat shock protein dnaJ
37	 45.16	+1	46137..48173	+	678	33241372	-	CpB0037	-	2-oxoisovalerate dehydrogenase alpha and beta subunit
38	 41.57	0	48206..49456	-	416	33241373	-	CpB0038	-	hypothetical protein
39	 43.92	+1	49565..51028	-	487	33241374	-	CpB0039	-	hypothetical protein
40	 40.35	0	51001..51798	+	265	33241375	-	CpB0040	-	hypothetical protein
41	 40.98	0	51791..52117	+	108	33241376	-	CpB0041	-	phosphotransferase system phosphohistidine-containing protein
42	 42.89	0	52118..53833	+	571	33241377	-	CpB0042	-	phosphoenolpyruvate-protein phosphotransferase
43	 41.92	0	53959..54249	-	96	33241378	-	CpB0043	-	hypothetical protein
44	 40.71	0	54314..55642	-	442	33241379	-	CpB0044	-	DNA polymerase III subunits gamma and tau
45	 43.26	0	55995..57344	+	449	33241380	-	CpB0045	-	hypothetical protein
46	 40.74	0	57402..58184	+	260	33241381	-	CpB0046	-	hypothetical protein
47	 42.53	0	58555..60762	+	735	33241382	-	CpB0047	-	HB3/HB4 fusion protein
48	 33.33	-2	60951..61151	+	66	33241383	-	CpB0048	-	hypothetical protein
49	 41.97	0	61183..63300	+	705	33241384	-	CpB0049	-	hypothetical protein
50	 39.75	0	63310..63792	-	160	33241385	-	CpB0050	-	hypothetical protein
51	 39.94	0	63992..64309	-	105	33241386	-	CpB0051	-	hypothetical protein
52	 41.49	0	64329..64610	+	93	33241387	-	CpB0052	-	hypothetical protein
53	 45.39	+1	64797..65501	-	234	33241388	-	CpB0053	-	porphobilinogen deaminase
54	 43.83	+1	65479..66840	-	453	33241389	-	CpB0054	-	DNA repair protein RadA
55	 43.14	0	66806..67519	-	237	33241390	rnc	CpB0055	-	ribonuclease III
56	 40.86	0	67625..68089	+	154	33241391	-	CpB0056	-	hypothetical protein
57	 43.13	0	68449..70245	+	598	33241392	-	CpB0057	-	phosphomannomutase
58	 39.90	0	70430..71053	+	207	33241393	-	CpB0058	-	manganese superoxide dismutase precursor
59	 43.04	0	71135..72061	+	308	33241394	-	CpB0059	-	acetyl-CoA carboxylase subunit beta
60	 45.66	+1	72112..72549	+	145	33241395	dut	CpB0060	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
61	 41.72	0	72527..73027	+	166	33241396	fruA	CpB0061	-	PTS fructose-specific enzyme IIBC component
62	 39.23	0	73030..73707	+	225	33241397	ptsN	CpB0062	-	phosphotransferase system enzyme II
63	 40.98	0	73804..75189	+	461	33241398	mst101	CpB0063	-	hypothetical protein
64	 40.61	0	75468..75728	+	86	33241399	-	CpB0064	-	hypothetical protein
65	 46.15	+1	75842..76075	+	77	33241400	-	CpB0065	-	hypothetical protein
66	 41.44	0	76399..78150	+	583	33241401	-	CpB0066	-	hypothetical protein
67	 42.85	0	78421..80154	+	577	33241402	-	CpB0067	-	hypothetical protein
68	 39.31	0	80449..81552	+	367	33241403	-	CpB0068	-	hypothetical protein
69	 36.11	-1	81824..82399	-	191	33241404	-	CpB0069	-	hypothetical protein
70	 43.38	0	83022..84584	+	520	33241405	-	CpB0070	-	hypothetical protein
71	 36.00	-1	85090..85539	-	149	33241406	-	CpB0071	-	hypothetical protein
72	 37.40	-1	85548..86579	-	343	33241407	-	CpB0072	-	hypothetical protein
73	 42.79	0	86850..87071	+	73	33241408	infA	CpB0073	-	translation initiation factor IF-1
74	 43.12	0	87268..88452	+	394	33241409	tuf	CpB0074	-	elongation factor Tu
75	 32.54	-2	88596..88847	+	83	33241410	secE	CpB0075	-	preprotein translocase subunit SecE
76	 38.07	0	88852..89400	+	182	33241411	nusG	CpB0076	-	transcription antitermination protein NusG
77	 38.26	0	89507..89932	+	141	33241412	rplK	CpB0077	-	50S ribosomal protein L11
78	 38.63	0	89959..90657	+	232	33241413	rplA	CpB0078	-	50S ribosomal protein L1
79	 40.35	0	90673..91185	+	170	33241414	rplJ	CpB0079	-	50S ribosomal protein L10
80	 38.72	0	91229..91618	+	129	33241415	rplL	CpB0080	-	50S ribosomal protein L7/L12
81	 40.22	0	91755..95513	+	1252	33241416	rpoB	CpB0081	-	DNA-directed RNA polymerase subunit beta
82	 40.44	0	95537..99718	+	1393	33241417	-	CpB0082	-	DNA-directed RNA polymerase subunit beta'
83	 38.82	0	99827..100810	+	327	33241418	-	CpB0083	-	transaldolase B
84	 33.86	-2	100869..101249	+	126	33241419	-	CpB0084	-	putative predied ferredoxin
85	 38.98	0	101258..102001	-	247	33241420	-	CpB0085	-	hypothetical protein
86	 40.83	0	102399..103025	+	208	33241421	HrpE	CpB0086	-	V-type ATP synthase subunit E
87	 36.58	-1	103074..103874	+	266	33241422	-	CpB0087	-	hypothetical protein
88	 42.00	0	103868..105643	+	591	33241423	-	CpB0088	-	V-type ATP synthase subunit A
89	 40.09	0	105648..106964	+	438	33241424	-	CpB0089	-	V-type ATP synthase subunit B
90	 39.68	0	106949..107578	+	209	161484689	-	CpB0090	-	V-type ATP synthase subunit D
91	 39.69	0	107569..109551	+	660	33241426	ntpI	CpB0091	-	V-type ATP synthase subunit I
92	 43.66	0	109646..110071	+	141	33241427	-	CpB0092	-	V-type ATP synthase subunit K
93	 43.26	0	109950..110513	+	187	33241428	-	CpB0093	-	hypothetical protein
94	 42.47	0	110647..113469	+	940	33241429	valS	CpB0094	-	valyl-tRNA synthetase
95	 40.62	0	113490..116288	+	932	33241430	pknD	CpB0095	-	serine/threonine-protein kinase
96	 42.24	0	116329..121809	-	1826	33241431	-	CpB0096	-	excinuclease ABC subunit A
97	 42.61	0	122050..123504	+	484	33241432	-	CpB0097	-	pyruvate kinase
98	 38.95	0	123598..124986	-	462	33241433	-	CpB0098	-	lipid A biosynthesis lauroyl acyltransferase
99	 42.00	0	125039..125338	-	99	33241434	-	CpB0099	-	hypothetical protein
100	 36.38	-1	125374..126651	-	425	33241435	-	CpB0100	-	hypothetical protein
40.62	MEAN

3.18	STD DEV
