IslandPath Analysis: Chlamydophila pneumoniae TW-183

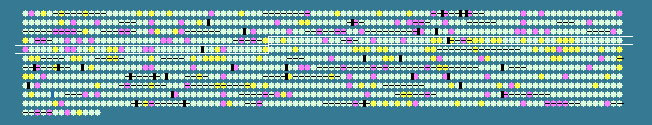

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.62   STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
342	 39.12	0	376211..376504	-	97	33241677	ltuB	CpB0342	-	LtuB
343	 39.34	0	376725..377240	+	171	33241678	-	CpB0343	-	hypothetical protein
344	 46.46	+1	377231..378091	+	286	33241679	-	CpB0344	-	methenyltetrahydrofolate cyclohydrolase
345	 40.63	0	378064..379008	+	314	33241680	apbE	CpB0346	-	thiamine biosynthesis lipoprotein precursor
346	 42.97	0	378986..379483	-	165	33241681	smpB	CpB0345	-	SsrA-binding protein
347	 40.33	0	379692..380792	+	366	33241682	-	CpB0347	-	DNA polymerase III subunit beta
348	 40.08	0	382036..383013	+	325	33241683	-	CpB0351	-	hypothetical protein
349	 40.30	0	382970..384835	-	621	33241684	-	CpB0350	-	putative metalloproteinase
350	 40.26	0	384848..385987	-	379	33241685	-	CpB0352	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
351	 36.41	-1	386116..387090	-	324	33241686	-	CpB0353	-	putative integral membrane protein
352	 39.16	0	387090..388445	-	451	33241687	-	CpB0354	-	putative integral membrane protein
353	 40.90	0	388439..389218	-	259	33241688	-	CpB0355	-	ABC transporter
354	 40.02	0	389202..390173	-	323	33241689	-	CpB0356	-	periplasmic substrate binding protein TroA
355	 22.06	-2	390301..390504	+	67	33241690	-	CpB0357	-	hypothetical protein
356	 39.84	0	390681..391187	+	168	33241691	-	CpB0358	-	hypothetical protein
357	 40.44	0	391388..392935	+	515	33241692	-	CpB0359	-	ATP/ADP-transporter
358	 37.78	0	393053..394333	+	426	33241693	-	CpB0360	-	hypothetical protein
359	 23.17	-2	394393..394638	+	81	33241694	-	CpB0361	-	hypothetical protein
360	 37.80	0	394667..396010	+	447	33241695	-	CpB0362	-	hypothetical protein
361	 39.02	0	396088..397389	-	433	33241696	-	CpB0363	-	hypothetical protein
362	 38.14	0	397606..397959	-	117	33241697	-	CpB0364	-	hypothetical protein
363	 38.26	0	397966..398817	-	283	33241698	-	CpB0365	-	hypothetical protein
364	 33.90	-2	399075..399251	-	58	33241699	-	CpB0366	-	hypothetical protein
365	 37.43	-1	399327..399497	+	56	33241700	-	CpB0367	-	hypothetical protein
366	 40.85	0	399512..401320	+	602	33241701	-	CpB0368	-	GTP-binding protein LepA
367	 44.03	+1	401419..402858	-	479	33241702	-	CpB0369	-	6-phosphogluconate dehydrogenase
368	 41.45	0	402879..404147	-	422	33241703	-	CpB0370	-	tyrosyl-tRNA synthetase
369	 48.63	+2	404270..404452	-	60	33241704	-	CpB0371	-	hypothetical protein
370	 44.19	+1	404552..405325	-	257	33241705	-	CpB0372	-	RNA polymerase sigma factor sigma-28
371	 41.11	0	405440..407188	-	582	33241706	-	CpB0373	-	type III secretion system protein
372	 44.20	+1	407466..407741	+	91	33241707	-	CpB0374	-	ferredoxin IV
373	 41.26	0	408013..409047	+	344	33241708	-	CpB0375	-	hypothetical protein
374	 29.41	-2	409199..409351	+	50	33241709	-	CpB0376	-	hypothetical protein
375	 44.23	+1	409476..409943	+	155	33241710	-	CpB0377	-	hypothetical protein
376	 44.14	+1	410209..410430	-	73	33241711	-	CpB0378	-	hypothetical protein
377	 44.99	+1	410602..411339	+	245	33241712	-	CpB0379	-	hypothetical protein
378	 42.40	0	411269..411610	+	113	33241713	-	CpB0380	-	hypothetical protein
379	 46.17	+1	411851..413065	+	404	33241714	-	CpB0381	-	hypothetical protein
380	 44.80	+1	413300..414415	+	371	33241715	-	CpB0382	-	hypothetical protein
381	 41.11	0	414647..415006	+	119	33241716	-	CpB0383	-	hypothetical protein
382	 41.19	0	415187..415504	+	105	33241717	-	CpB0384	-	hypothetical protein
383	 43.59	0	415880..417721	+	613	33241718	aarC	CpB0385	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
384	 46.87	+1	417778..418464	+	228	33241719	-	CpB0386	-	hypothetical protein
385	 42.37	0	418621..419118	+	165	33241720	-	CpB0387	-	hypothetical protein
386	 38.51	0	419354..419797	+	147	33241721	-	CpB0388	-	hypothetical protein
387	 44.47	+1	419844..420938	-	364	33241722	-	CpB0389	-	dihydrolipoamide acetyltransferase
388	 42.17	0	420942..423668	-	908	33241723	kgd	CpB0390	-	alpha-ketoglutarate decarboxylase
389	 43.62	0	423822..424268	+	148	33241724	-	CpB0391	-	hypothetical protein
390	 44.59	+1	424234..425379	+	381	33241725	-	CpB0392	-	coproporphyrinogen III oxidase
391	 44.52	+1	425534..427312	-	592	33241726	-	CpB0393	-	hypothetical protein
392	 45.19	+1	427533..428249	-	238	33241727	-	CpB0394	-	hypothetical protein
393	 42.41	0	428246..429193	-	315	33241728	-	CpB0395	-	hypothetical protein
394	 42.97	0	429359..429877	-	172	33241729	-	CpB0396	-	putative histone-like protein 2
395	 41.93	0	430019..431518	-	499	33241730	-	CpB0397	-	leucyl aminopeptidase
396	 41.61	0	431543..432025	-	160	33241731	-	CpB0398	-	single-strand DNA-binding protein
397	 40.12	0	432196..432696	-	166	33241732	-	CpB0399	-	hypothetical protein
398	 43.16	0	432829..434823	+	664	33241733	-	CpB0401	-	glycogen hydrolase (debranching)
399	 40.66	0	434816..435634	-	272	33241734	-	CpB0400	-	hypothetical protein
400	 42.70	0	435631..436644	-	337	33241735	ruvB	CpB0402	-	Holliday junction DNA helicase B
401	 37.10	-1	437007..437192	-	61	33241736	-	CpB0403	-	hypothetical protein
402	 40.66	0	437314..437886	+	190	33241737	dcd	CpB0404	-	deoxycytidine triphosphate deaminase
403	 41.61	0	437780..438226	+	148	33241738	-	CpB0405	-	hypothetical protein
404	 39.81	0	438236..439471	+	411	33241739	-	CpB0406	-	hemolysin
405	 37.20	-1	439464..440678	+	404	33241740	-	CpB0407	-	hypothetical protein
406	 44.62	+1	440738..441853	-	371	33241741	nifS	CpB0408	-	nitrogen fixation protein
407	 43.90	+1	441878..442615	-	245	33241742	-	CpB0409	-	hypothetical protein
408	 29.09	-2	442679..442843	-	54	33241743	-	CpB0410	-	hypothetical protein
409	 32.85	-2	442954..443160	-	68	33241744	-	CpB0411	-	hypothetical protein
410	 40.97	0	443268..444026	+	252	33241745	-	CpB0412	-	hypothetical protein
411	 41.09	0	444036..444809	+	257	33241746	-	CpB0413	-	hypothetical protein
412	 46.06	+1	444992..445384	-	130	33241747	-	CpB0414	-	beta-lactamase regulatory protein
413	 40.81	0	445385..446494	-	369	33241748	-	CpB0415	-	A/G-specific adenine glycosylase
414	 43.63	0	446515..447213	+	232	33241749	sfhB	CpB0416	-	pseudouridine synthetase
415	 45.13	+1	447368..448333	-	321	33241750	-	CpB0417	-	hypothetical protein
416	 48.33	+2	448463..449209	-	248	33241751	-	CpB0418	-	hypothetical protein
417	 33.92	-2	449281..449451	-	56	33241752	-	CpB0419	-	hypothetical protein
418	 43.78	0	449469..450368	+	299	33241753	-	CpB0421	-	enoyl-(acyl carrier protein) reductase
419	 41.81	0	450355..451227	-	290	33241754	-	CpB0420	-	putative had hydrolase/phosphatase
420	 42.19	0	451227..451418	-	63	33241755	-	CpB0422	-	hypothetical protein
421	 35.35	-1	451415..451711	-	98	33241756	-	CpB0423	-	hypothetical protein
422	 35.83	-1	451605..452084	+	159	33241757	-	CpB0424	-	hypothetical protein
423	 37.45	0	452145..452630	+	161	33241758	-	CpB0425	-	hypothetical protein
424	 41.77	0	452638..453336	+	232	33241759	-	CpB0426	-	DNA polymerase III subunit epsilon
425	 42.44	0	453333..454112	+	259	33241760	-	CpB0427	-	hypothetical protein
426	 41.36	0	454090..454749	+	219	33241761	-	CpB0429	-	hypothetical protein
427	 40.15	0	454724..456703	-	659	33241762	hetA	CpB0428	-	HetA
428	 42.46	0	456669..457643	-	324	33241763	-	CpB0430	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
429	 41.92	0	457718..458998	-	426	33241764	-	CpB0431	-	hypothetical protein
430	 40.26	0	459054..459356	-	100	33241765	-	CpB0432	-	integration host factor beta chain
431	 43.02	0	459741..460535	-	264	33241766	-	CpB0433	-	N-acetylmuramoyl-L-alanine amidase 50K precursor
432	 42.70	0	460450..461901	-	483	33241767	murE	CpB0434	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
433	 44.24	+1	462374..464335	-	653	33241768	-	CpB0435	-	penicillin-binding protein 2
434	 35.07	-1	464322..464609	-	95	33241769	-	CpB0436	-	hypothetical protein
435	 42.73	0	464606..465499	-	297	33241770	mraW	CpB0437	-	S-adenosyl-methyltransferase MraW
436	 39.19	0	465743..466288	+	181	33241771	-	CpB0438	-	hypothetical protein
437	 39.16	0	466292..466720	+	142	33241772	-	CpB0439	-	hypothetical protein
438	 37.77	0	467113..468465	+	450	33241773	dnaA	CpB0440	-	chromosomal replication initiation protein
439	 42.52	0	468481..469068	+	195	33241774	-	CpB0442	-	hypothetical protein
440	 42.31	0	469034..469612	-	192	33241775	-	CpB0441	-	hypothetical protein
441	 44.25	+1	469708..471219	+	503	33241776	nrqB	CpB0443	-	Na(+)-translocating NADH-quinone reductase subunit B
40.62	MEAN

3.18	STD DEV
