IslandPath Analysis: Chlamydophila pneumoniae TW-183

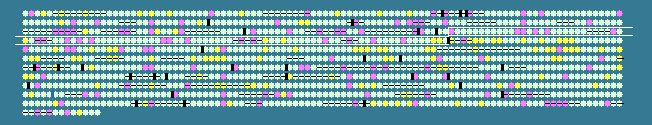

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.62 STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
272	 34.45	-1	295141..296034	-	297	33241607	ubiA	CpB0272	-	prenyltransferase
273	 42.67	0	296598..297293	+	231	33241608	-	CpB0273	-	HB6 protein
274	 40.87	0	297545..298327	+	260	33241609	-	CpB0274	-	hypothetical protein
275	 43.77	0	298391..298735	+	114	33241610	-	CpB0275	-	hypothetical protein
276	 40.18	0	298887..299864	-	325	33241611	-	CpB0276	-	membrane dipeptidase precursor
277	 37.63	0	299879..300739	-	286	33241612	-	CpB0277	-	SUA5 protein
278	 40.71	0	301048..301779	+	243	33241613	-	CpB0279	-	esterase
279	 38.23	0	301751..302506	-	251	33241614	dnaX	CpB0278	-	DNA polymerase III subunit delta'
280	 42.83	0	302638..303258	-	206	33241615	tdk	CpB0280	-	thymidylate kinase
281	 41.00	0	303263..305767	-	834	33241616	-	CpB0281	-	DNA gyrase subunit A
282	 39.25	0	305783..308200	-	805	33241617	gyrB	CpB0282	-	DNA gyrase subunit B
283	 35.34	-1	308204..308551	-	115	33241618	-	CpB0283	-	hypothetical protein
284	 31.34	-2	308618..308818	+	66	33241619	-	CpB0284	-	hypothetical protein
285	 39.02	0	308815..309324	-	169	33241620	-	CpB0285	-	hypothetical protein
286	 36.26	-1	309471..310289	-	272	33241621	-	CpB0286	-	gene encoding a 29 kDa immunogenic protein
287	 39.64	0	310286..310951	-	221	33241622	-	CpB0287	-	ABC transporter
288	 36.16	-1	310961..311986	-	341	33241623	-	CpB0288	-	amino-acid ABC transporter protein
289	 39.90	0	312471..313520	+	349	33241624	-	CpB0289	-	fructose-bisphosphate aldolase
290	 39.30	0	313540..314946	+	468	33241625	-	CpB0290	-	extreme acid resistance protein xasA
291	 37.46	0	314943..315911	-	322	33241626	-	CpB0291	-	hypothetical protein
292	 38.06	0	315962..316384	-	140	33241627	-	CpB0292	-	hypothetical protein
293	 39.15	0	316462..318009	-	515	33241628	-	CpB0293	-	hypothetical protein
294	 41.54	0	318061..319473	-	470	33241629	mgtE	CpB0294	-	MgtE
295	 38.81	0	319500..321635	-	711	33241630	-	CpB0295	-	hypothetical protein
296	 41.08	0	321982..323130	-	382	33241631	-	CpB0296	-	hypothetical protein
297	 38.22	0	323226..324413	+	395	33241632	-	CpB0297	-	amino acid (glutamate) transporter
298	 40.47	0	324456..325940	+	494	33241633	-	CpB0299	-	sodium-dependent amino acid transporter
299	 28.21	-2	325925..326080	-	51	33241634	-	CpB0298	-	hypothetical protein
300	 41.43	0	326081..326611	+	176	33241635	-	CpB0300	-	inclusion membrane protein B
301	 44.61	+1	326642..327253	+	203	33241636	-	CpB0301	-	inclusion membrane protein C
302	 38.84	0	327363..330140	+	925	33241637	-	CpB0302	-	hypothetical protein
303	 34.78	-1	330506..330919	+	137	33241638	-	CpB0303	-	cAMP-dependent protein kinase type I regulatory subunit
304	 31.25	-2	331038..331277	-	79	33241639	acpP	CpB0304	-	acyl carrier protein
305	 42.30	0	331433..332179	-	248	33241640	fabG	CpB0305	-	3-ketoacyl-(acyl-carrier-protein) reductase
306	 39.48	0	332185..333111	-	308	33241641	fabD	CpB0306	-	acyl-carrier-protein S-malonyltransferase
307	 42.16	0	333128..334135	-	335	33241642	yjaX	CpB0307	-	3-oxoacyl-(acyl carrier protein) synthase III
308	 36.32	-1	334230..334832	+	200	33241643	recR	CpB0308	-	recombination protein RecR
309	 38.08	0	335191..337569	+	792	33241644	-	CpB0309	-	putative omp85 analog
310	 33.91	-2	337664..338179	+	171	33241645	-	CpB0310	-	OmpH-like outer membrane protein
311	 40.54	0	338201..339283	+	360	33241646	lpxD	CpB0311	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
312	 34.58	-1	339332..340372	-	346	33241647	-	CpB0312	-	hypothetical protein
313	 42.37	0	340547..341575	+	342	33241648	-	CpB0313	-	pyruvate dehydrogenase complex E1 alpha subunit
314	 39.92	0	341568..342554	+	328	33241649	-	CpB0314	-	pyruvate dehydrogenase E1 beta subunit
315	 42.48	0	342559..343848	+	429	33241650	-	CpB0315	-	branched-chain alpha-keto acid dehydrogenase subunit E2
316	 38.83	0	343926..346400	-	824	33241651	-	CpB0316	-	glycogen phosphorylase
317	 41.80	0	346648..347013	+	121	33241652	-	CpB0318	-	hypothetical protein
318	 37.31	-1	347006..348388	-	460	33241653	dnaA	CpB0317	-	chromosomal replication initiation protein
319	 37.29	-1	348460..350832	-	790	33241654	-	CpB0319	-	putative inner membrane protein translocase component YidC
320	 38.29	0	350986..351852	-	288	33241655	-	CpB0320	-	prolipoprotein diacylglyceryl transferase
321	 37.94	0	351938..352393	+	151	33241656	-	CpB0321	-	hypothetical protein
322	 42.28	0	352404..352772	+	122	33241657	acpS	CpB0323	-	4'-phosphopantetheinyl transferase
323	 41.56	0	352764..353699	-	311	33241658	-	CpB0322	-	thioredoxin reductase
324	 31.58	-2	354164..354334	+	56	33241659	-	CpB0324	-	hypothetical protein
325	 36.95	-1	354391..356133	+	580	33241660	rpsA	CpB0325	-	30S ribosomal protein S1
326	 37.16	-1	356234..357538	+	434	33241661	nusA	CpB0326	-	transcription elongation factor NusA
327	 40.88	0	357477..360167	+	896	33241662	infB	CpB0327	-	translation initiation factor IF-2
328	 34.99	-1	360181..360543	+	120	33241663	rbfA	CpB0328	-	ribosome-binding factor A
329	 41.10	0	360589..361296	+	235	33241664	truB	CpB0329	-	tRNA pseudouridine synthase B
330	 38.98	0	361280..362200	+	306	33241665	ribC	CpB0331	-	bifunctional riboflavin kinase/FMN adenylyltransferase
331	 40.00	0	362178..363272	-	364	33241666	-	CpB0330	-	translation-associated GTPase
332	 37.21	-1	363663..364745	+	360	33241667	-	CpB0332	-	type III secretion system protein
333	 42.80	0	364745..366877	+	710	33241668	lcrD	CpB0333	-	low calcium response D
334	 43.58	0	366906..368105	+	399	33241669	copN	CpB0334	-	CopN
335	 41.44	0	368122..368565	+	147	33241670	scc1	CpB0335	-	Scc1
336	 40.42	0	368562..370142	+	526	33241671	-	CpB0336	-	4-alpha-glucanotransferase
337	 37.04	-1	370359..370628	+	89	33241672	rpmB	CpB0337	-	50S ribosomal protein L28
338	 44.05	+1	370655..372409	+	584	33241673	-	CpB0338	-	hypothetical protein
339	 35.40	-1	372502..373563	+	353	33241674	-	CpB0339	-	putative phopholipase D
340	 39.83	0	373613..374089	-	158	33241675	-	CpB0340	-	hypothetical protein
341	 45.80	+1	374112..375851	-	579	33241676	-	CpB0341	-	hypothetical protein
342	 39.12	0	376211..376504	-	97	33241677	ltuB	CpB0342	-	LtuB
343	 39.34	0	376725..377240	+	171	33241678	-	CpB0343	-	hypothetical protein
344	 46.46	+1	377231..378091	+	286	33241679	-	CpB0344	-	methenyltetrahydrofolate cyclohydrolase
345	 40.63	0	378064..379008	+	314	33241680	apbE	CpB0346	-	thiamine biosynthesis lipoprotein precursor
346	 42.97	0	378986..379483	-	165	33241681	smpB	CpB0345	-	SsrA-binding protein
347	 40.33	0	379692..380792	+	366	33241682	-	CpB0347	-	DNA polymerase III subunit beta
348	 40.08	0	382036..383013	+	325	33241683	-	CpB0351	-	hypothetical protein
349	 40.30	0	382970..384835	-	621	33241684	-	CpB0350	-	putative metalloproteinase
350	 40.26	0	384848..385987	-	379	33241685	-	CpB0352	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
351	 36.41	-1	386116..387090	-	324	33241686	-	CpB0353	-	putative integral membrane protein
352	 39.16	0	387090..388445	-	451	33241687	-	CpB0354	-	putative integral membrane protein
353	 40.90	0	388439..389218	-	259	33241688	-	CpB0355	-	ABC transporter
354	 40.02	0	389202..390173	-	323	33241689	-	CpB0356	-	periplasmic substrate binding protein TroA
355	 22.06	-2	390301..390504	+	67	33241690	-	CpB0357	-	hypothetical protein
356	 39.84	0	390681..391187	+	168	33241691	-	CpB0358	-	hypothetical protein
357	 40.44	0	391388..392935	+	515	33241692	-	CpB0359	-	ATP/ADP-transporter
358	 37.78	0	393053..394333	+	426	33241693	-	CpB0360	-	hypothetical protein
359	 23.17	-2	394393..394638	+	81	33241694	-	CpB0361	-	hypothetical protein
360	 37.80	0	394667..396010	+	447	33241695	-	CpB0362	-	hypothetical protein
361	 39.02	0	396088..397389	-	433	33241696	-	CpB0363	-	hypothetical protein
362	 38.14	0	397606..397959	-	117	33241697	-	CpB0364	-	hypothetical protein
363	 38.26	0	397966..398817	-	283	33241698	-	CpB0365	-	hypothetical protein
364	 33.90	-2	399075..399251	-	58	33241699	-	CpB0366	-	hypothetical protein
365	 37.43	-1	399327..399497	+	56	33241700	-	CpB0367	-	hypothetical protein
366	 40.85	0	399512..401320	+	602	33241701	-	CpB0368	-	GTP-binding protein LepA
367	 44.03	+1	401419..402858	-	479	33241702	-	CpB0369	-	6-phosphogluconate dehydrogenase
368	 41.45	0	402879..404147	-	422	33241703	-	CpB0370	-	tyrosyl-tRNA synthetase
369	 48.63	+2	404270..404452	-	60	33241704	-	CpB0371	-	hypothetical protein
370	 44.19	+1	404552..405325	-	257	33241705	-	CpB0372	-	RNA polymerase sigma factor sigma-28
371	 41.11	0	405440..407188	-	582	33241706	-	CpB0373	-	type III secretion system protein
40.62	MEAN

3.18	STD DEV
