IslandPath Analysis: Chlamydophila pneumoniae TW-183

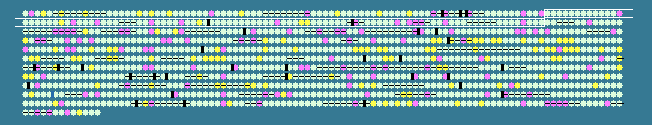

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.62 STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
88	 42.00	0	103868..105643	+	591	33241423	-	CpB0088	-	V-type ATP synthase subunit A
89	 40.09	0	105648..106964	+	438	33241424	-	CpB0089	-	V-type ATP synthase subunit B
90	 39.68	0	106949..107578	+	209	161484689	-	CpB0090	-	V-type ATP synthase subunit D
91	 39.69	0	107569..109551	+	660	33241426	ntpI	CpB0091	-	V-type ATP synthase subunit I
92	 43.66	0	109646..110071	+	141	33241427	-	CpB0092	-	V-type ATP synthase subunit K
93	 43.26	0	109950..110513	+	187	33241428	-	CpB0093	-	hypothetical protein
94	 42.47	0	110647..113469	+	940	33241429	valS	CpB0094	-	valyl-tRNA synthetase
95	 40.62	0	113490..116288	+	932	33241430	pknD	CpB0095	-	serine/threonine-protein kinase
96	 42.24	0	116329..121809	-	1826	33241431	-	CpB0096	-	excinuclease ABC subunit A
97	 42.61	0	122050..123504	+	484	33241432	-	CpB0097	-	pyruvate kinase
98	 38.95	0	123598..124986	-	462	33241433	-	CpB0098	-	lipid A biosynthesis lauroyl acyltransferase
99	 42.00	0	125039..125338	-	99	33241434	-	CpB0099	-	hypothetical protein
100	 36.38	-1	125374..126651	-	425	33241435	-	CpB0100	-	hypothetical protein
101	 40.95	0	126633..127472	-	279	33241436	-	CpB0101	-	hypothetical protein
102	 38.08	0	127618..128964	+	448	33241437	-	CpB0102	-	cytochrome oxidase chain I
103	 39.61	0	128975..130009	+	344	33241438	-	CpB0103	-	cytochrome oxidase chain II
104	 40.65	0	130168..131370	-	400	33241439	-	CpB0104	-	hypothetical protein
105	 39.30	0	131521..132375	-	284	33241440	-	CpB0105	-	hypothetical protein
106	 40.57	0	132574..133872	+	432	33241441	psiH	CpB0106	-	phosphate starvation-inducible protein
107	 44.58	+1	133884..134621	-	245	33241442	-	CpB0107	-	hypothetical protein
108	 39.78	0	134795..135352	-	185	33241443	-	CpB0108	-	hypothetical protein
109	 32.05	-2	135446..135601	-	51	33241444	-	CpB0109	-	hypothetical protein
110	 39.30	0	136150..139281	+	1043	33241445	ileS	CpB0110	-	isoleucyl-tRNA synthetase
111	 40.61	0	139319..141229	-	636	33241446	-	CpB0111	-	signal peptidase I
112	 41.39	0	141426..142232	-	268	33241447	-	CpB0112	-	hypothetical protein
113	 35.15	-1	142262..142591	+	109	33241448	rpmE2	CpB0113	-	50S ribosomal protein L31 type B
114	 40.69	0	142830..143903	+	357	33241449	prfA	CpB0114	-	peptide chain release factor 1
115	 41.75	0	143869..144759	+	296	33241450	-	CpB0115	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
116	 38.75	0	144774..146120	+	448	33241451	ffh	CpB0116	-	signal recognition particle chain
117	 41.11	0	146111..146470	+	119	33241452	rpsP	CpB0117	-	30S ribosomal protein S16
118	 41.25	0	146484..147569	+	361	33241453	trmD	CpB0118	-	fused tRNA (guanine-N(1)-)-methyltransferase/uncharacterized domain-containing protein
119	 41.26	0	147597..147962	+	121	33241454	rplS	CpB0119	-	50S ribosomal protein L19
120	 40.31	0	148018..148662	+	214	33241455	rnhB	CpB0120	-	ribonuclease HII
121	 40.78	0	148659..149276	+	205	161484688	gmk	CpB0121	-	guanylate kinase
122	 36.73	-1	149273..149566	+	97	33241457	-	CpB0122	-	hypothetical protein
123	 39.92	0	149566..151221	+	551	33241458	-	CpB0123	-	methionyl-tRNA synthetase
124	 39.61	0	151266..153464	-	732	33241459	-	CpB0124	-	exodeoxyribonuclease V 67K chain
125	 38.93	0	154226..155566	+	446	33241460	-	CpB0125	-	hypothetical protein
126	 39.38	0	155591..156103	+	170	33241461	-	CpB0126	-	hypothetical protein
127	 34.64	-1	156164..156316	-	50	33241462	-	CpB0127	-	hypothetical protein
128	 39.82	0	156304..158583	+	759	33241463	-	CpB0128	-	hypothetical protein
129	 44.05	+1	158622..159638	-	338	33241464	-	CpB0129	-	putative cationic amino acid transporter
130	 45.51	+1	159772..160551	+	259	33241465	-	CpB0130	-	biotin--[acetyl-CoA-carboxylase] ligase
131	 37.38	-1	160556..161740	-	394	33241466	-	CpB0131	-	hypothetical protein
132	 38.03	0	162056..163078	+	340	33241467	-	CpB0132	-	hypothetical protein
133	 38.45	0	163082..164059	+	325	33241468	-	CpB0133	-	hypothetical protein
134	 43.15	0	164056..164829	-	257	33241469	-	CpB0134	-	hypothetical protein
135	 41.35	0	164959..166593	-	544	33241470	groEL	CpB0135	-	chaperonin GroEL
136	 42.07	0	166635..166943	-	102	33241471	groES	CpB0136	-	co-chaperonin GroES
137	 40.36	0	167061..168896	-	611	33241472	-	CpB0137	-	oligoendopeptidase F
138	 44.05	+1	168994..169749	-	251	33241473	ybgI	CpB0138	-	YbgI
139	 43.39	0	170192..171514	-	440	33241474	-	CpB0139	-	glutamate-1-semialdehyde aminotransferase
140	 40.74	0	171585..172151	-	188	33241475	-	CpB0140	-	hypothetical protein
141	 38.32	0	172165..172605	-	146	33241476	-	CpB0141	-	hypothetical protein
142	 40.66	0	172602..173297	-	231	33241477	-	CpB0142	-	ribose-5-phosphate isomerase A
143	 33.69	-2	173308..173586	-	92	33241478	-	CpB0143	-	hypothetical protein
144	 39.47	0	173706..174830	-	374	33241479	-	CpB0144	-	hypothetical protein
145	 40.31	0	175449..178058	+	869	33241480	-	CpB0145	-	ClpB
146	 39.71	0	178299..179867	+	522	33241481	-	CpB0146	-	hypothetical protein
147	 44.44	+1	180108..180593	+	161	33241482	-	CpB0147	-	hypothetical protein
148	 46.22	+1	180720..181169	+	149	33241483	-	CpB0148	-	hypothetical protein
149	 40.70	0	181341..183200	+	619	33241484	-	CpB0149	-	protein kinase
150	 41.48	0	183210..185198	+	662	33241485	ligA	CpB0150	-	NAD-dependent DNA ligase LigA
151	 40.75	0	185329..189942	+	1537	33241486	-	CpB0151	-	hypothetical protein
152	 39.18	0	190117..191637	-	506	33241487	-	CpB0152	-	pentachlorophenol 4-monooxygenase
153	 42.17	0	191810..192760	-	316	33241488	-	CpB0153	-	hypothetical protein
154	 42.63	0	192928..195390	+	820	33241489	leuS	CpB0154	-	leucyl-tRNA synthetase
155	 39.65	0	195387..196700	+	437	33241490	-	CpB0155	-	3-deoxy-D-manno-octulosonic-acid transferase
156	 30.92	-2	196980..197186	-	68	33241491	-	CpB0156	-	hypothetical protein
157	 37.20	-1	197262..197804	-	180	33241492	-	CpB0157	-	kdtA KDO-transferase
158	 38.69	0	197791..198219	-	142	33241493	-	CpB0158	-	hypothetical protein
159	 37.41	-1	198387..198926	-	179	33241494	-	CpB0159	-	KDO-transferase
160	 40.45	0	198960..199268	-	102	33241495	-	CpB0160	-	hypothetical protein
161	 39.51	0	199564..201198	-	544	33241496	-	CpB0161	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
162	 40.34	0	201202..202029	-	275	33241497	cinI	CpB0162	-	cinnamoyl ester hydrolase
163	 37.03	-1	202207..203235	-	342	33241498	-	CpB0163	-	hypothetical protein
164	 42.74	0	203433..203804	+	123	33241499	-	CpB0164	-	hypothetical protein
165	 32.26	-2	203851..204408	+	185	33241500	-	CpB0165	-	hypothetical protein
166	 36.73	-1	204405..204992	+	195	33241501	-	CpB0166	-	hypothetical protein
167	 33.33	-2	205037..205372	+	111	33241502	-	CpB0167	-	hypothetical protein
168	 39.64	0	205381..205713	-	110	33241503	-	CpB0168	-	hypothetical protein
169	 39.91	0	205821..206048	-	75	33241504	-	CpB0169	-	hypothetical protein
170	 37.36	-1	206114..206908	-	264	33241505	-	CpB0170	-	hypothetical protein
171	 29.49	-2	207058..207213	+	51	33241506	-	CpB0171	-	hypothetical protein
172	 38.91	0	207429..208433	-	334	33241507	-	CpB0172	-	hypothetical protein
173	 41.16	0	208553..209842	-	429	33241508	-	CpB0173	-	GMP synthase
174	 42.11	0	209844..210584	-	246	33241509	-	CpB0174	-	guaB gene for inosine 5-monophosphase dehydrogenase subunit
175	 37.50	0	210645..210908	-	87	33241510	-	CpB0175	-	guaB gene for inosine 5-monophosphase dehydrogenase subunit
176	 37.68	0	211119..211394	-	91	33241511	-	CpB0176	-	hypothetical protein
177	 39.80	0	211640..212134	+	164	33241512	-	CpB0177	-	hypothetical protein
178	 39.90	0	212305..212685	+	126	33241513	-	CpB0178	-	hypothetical protein
179	 37.94	0	212693..213928	+	411	33241514	-	CpB0179	-	hypothetical protein
180	 40.47	0	214012..214866	-	284	33241515	-	CpB0180	-	hypothetical protein
181	 40.82	0	215193..215459	-	88	33241516	-	CpB0181	-	hypothetical protein
182	 38.75	0	215460..215810	-	116	33241517	-	CpB0182	-	hypothetical protein
183	 38.38	0	215759..216313	-	184	33241518	-	CpB0183	-	hypothetical protein
184	 36.32	-1	216181..216582	-	133	33241519	-	CpB0184	-	hypothetical protein
185	 39.56	0	216738..218102	-	454	33241520	-	CpB0185	-	acetyl-CoA carboxylase biotin carboxylase subunit
186	 39.09	0	218099..218602	-	167	33241521	-	CpB0186	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
187	 37.28	-1	218625..219182	-	185	33241522	-	CpB0187	-	elongation factor P
40.62	MEAN

3.18	STD DEV
