IslandPath Analysis: Chlamydophila pneumoniae TW-183

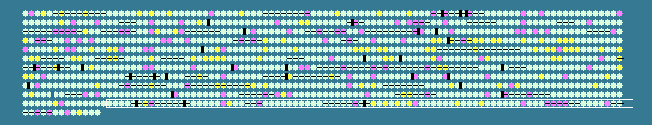

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.62   STD DEV: 3.18
Chlamydophila pneumoniae TW-183, complete genome - 1..1225935
1113 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
1015	 40.13	0	1125660..1126895	-	411	33242350	-	CpB1019	-	hypothetical protein
1016	 40.98	0	1126904..1127701	-	265	33242351	-	CpB1020	-	CDP-diacylglycerol-serine O-phosphatidyltransferase
1017	 40.93	0	1128080..1131214	+	1044	33242352	-	CpB1021	-	ribonucleotide-diphosphate reductase subunit alpha
1018	 37.80	0	1131178..1132275	+	365	33242353	-	CpB1022	-	ribonucleotide-diphosphate reductase subunit beta
1019	 39.56	0	1132425..1133099	+	224	33242354	trmB	CpB1023	-	tRNA (guanine-N(7))-methyltransferase
1020	 42.45	0	1133217..1133819	+	200	33242355	-	CpB1025	-	putative rRNA methylase
1021	 44.26	+1	1133773..1134669	-	298	33242356	murB	CpB1024	-	UDP-N-acetylenolpyruvoylglucosamine reductase
1022	 35.61	-1	1134714..1135109	-	131	33242357	nusB	CpB1026	-	transcription antitermination protein NusB
1023	 38.17	0	1135494..1135679	-	61	33242358	-	CpB1027	-	hypothetical protein
1024	 37.91	0	1135687..1136145	+	152	33242359	infC	CpB1028	-	translation initiation factor IF-3
1025	 38.46	0	1136123..1136317	+	64	33242360	rpmI	CpB1029	-	50S ribosomal protein L35
1026	 41.80	0	1136336..1136701	+	121	33242361	rplT	CpB1030	-	50S ribosomal protein L20
1027	 39.61	0	1136716..1137735	+	339	33242362	pheS	CpB1031	-	phenylalanyl-tRNA synthetase subunit alpha
1028	 37.88	0	1138100..1140145	+	681	33242363	-	CpB1033	-	hypothetical protein
1029	 39.69	0	1140114..1141214	-	366	33242364	-	CpB1032	-	hypothetical protein
1030	 38.55	0	1141218..1142291	-	357	33242365	-	CpB1034	-	hypothetical protein
1031	 38.54	0	1142410..1143369	+	319	33242366	-	CpB1035	-	putative p-loop ATPase
1032	 43.14	0	1143557..1146289	+	910	33242367	ftsH	CpB1036	-	hypothetical protein
1033	 40.43	0	1146465..1148549	-	694	33242368	-	CpB1037	-	polynucleotide phosphorylase/polyadenylase
1034	 35.93	-1	1148590..1148859	-	89	33242369	rpsO	CpB1038	-	30S ribosomal protein S15
1035	 44.52	+1	1149128..1149574	+	148	33242370	-	CpB1039	-	putative cytosine deaminase
1036	 42.42	0	1149564..1149794	+	76	33242371	-	CpB1040	-	hypothetical protein
1037	 41.38	0	1149791..1150498	-	235	33242372	-	CpB1041	-	hypothetical protein
1038	 40.80	0	1150578..1151099	-	173	33242373	-	CpB1042	-	hypothetical protein
1039	 40.04	0	1151114..1151635	-	173	33242374	-	CpB1043	-	hypothetical protein
1040	 35.90	-1	1151689..1152078	-	129	33242375	-	CpB1044	-	hypothetical protein
1041	 40.09	0	1152392..1152613	+	73	33242376	-	CpB1045	-	hypothetical protein
1042	 40.49	0	1152631..1153929	+	432	33242377	-	CpB1047	-	hypothetical protein
1043	 43.26	0	1153886..1154761	-	291	161484682	-	CpB1046	-	methionine aminopeptidase
1044	 40.89	0	1154767..1155375	-	202	33242379	-	CpB1048	-	hypothetical protein
1045	 43.63	0	1155602..1156009	-	135	33242380	-	CpB1049	-	hypothetical protein
1046	 42.29	0	1156121..1157896	-	591	33242381	-	CpB1050	-	ABC transporter
1047	 40.27	0	1157948..1159330	+	460	33242382	fumC	CpB1051	-	fumarate hydratase
1048	 43.76	0	1159432..1161129	-	565	33242383	-	CpB1052	-	sulfate transporter
1049	 40.62	0	1161337..1162599	+	420	33242384	-	CpB1053	-	hypothetical protein
1050	 41.45	0	1162745..1164604	+	619	33242385	-	CpB1054	-	hypothetical protein
1051	 41.48	0	1164709..1165641	+	310	33242386	ispH	CpB1055	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
1052	 39.46	0	1165601..1166335	+	244	33242387	-	CpB1056	-	hypothetical protein
1053	 42.92	0	1166338..1167693	-	451	33242388	-	CpB1057	-	hypothetical protein
1054	 40.74	0	1167700..1167861	+	53	33242389	-	CpB1059	-	hypothetical protein
1055	 39.14	0	1167850..1169382	-	510	33242390	-	CpB1058	-	hypothetical protein
1056	 36.80	-1	1169398..1169916	-	172	33242391	-	CpB1060	-	chaperone SycD
1057	 41.75	0	1169916..1171376	-	486	33242392	-	CpB1061	-	hypothetical protein
1058	 39.33	0	1171738..1172037	+	99	33242393	-	CpB1062	-	hypothetical protein
1059	 46.22	+1	1172034..1172933	-	299	33242394	xerD	CpB1063	-	site-specific tyrosine recombinase XerD
1060	 44.09	+1	1173005..1174585	+	526	33242395	pgi	CpB1064	-	glucose-6-phosphate isomerase
1061	 45.83	+1	1174700..1174843	+	47	33242396	-	CpB1065	-	late stage protein
1062	 43.52	0	1174878..1176458	+	526	33242397	-	CpB1066	-	hypothetical protein
1063	 46.21	+1	1176701..1177702	+	333	33242398	-	CpB1067	-	malate dehydrogenase
1064	 38.21	0	1177708..1178547	+	279	33242399	-	CpB1069	-	hypothetical protein
1065	 45.37	+1	1178540..1179586	-	348	33242400	-	CpB1068	-	putative D-amino acid dehydrogenase
1066	 36.56	-1	1179577..1179762	-	61	33242401	-	CpB1070	-	hypothetical protein
1067	 43.55	0	1179795..1181252	-	485	33242402	-	CpB1071	-	arginine/ornithine antiporter protein
1068	 42.01	0	1181263..1181850	-	195	33242403	-	CpB1072	-	hypothetical protein
1069	 42.18	0	1181884..1183308	-	474	33242404	-	CpB1073	-	hypothetical protein
1070	 42.46	0	1183429..1184217	-	262	33242405	-	CpB1074	-	putative outer membrane protein
1071	 43.58	0	1184267..1185700	-	477	161484681	aroDE	CpB1075	-	bifunctional 3-dehydroquinate dehydratase/shikimate dehydrogenase protein
1072	 40.07	0	1185681..1186823	-	380	33242407	aroB	CpB1076	-	3-dehydroquinate synthase
1073	 46.39	+1	1186820..1187899	-	359	33242408	-	CpB1077	-	chorismate synthase
1074	 40.87	0	1187896..1188426	-	176	33242409	-	CpB1078	-	shikimate kinase
1075	 43.50	0	1188362..1189699	-	445	33242410	-	CpB1079	-	3-phosphoshikimate 1-carboxyvinyltransferase
1076	 40.33	0	1189770..1190441	-	223	33242411	-	CpB1080	-	hypothetical protein
1077	 44.65	+1	1190423..1191694	-	423	33242412	-	CpB1081	-	adenosylmethionine--8-amino-7-oxononanoate transaminase
1078	 42.42	0	1191631..1192290	-	219	33242413	-	CpB1082	-	dethiobiotin synthase
1079	 41.95	0	1192269..1193417	-	382	33242414	-	CpB1083	-	8-amino-7-oxononanoate synthase
1080	 43.78	0	1193396..1194391	-	331	33242415	-	CpB1084	-	biotin synthetase
1081	 38.20	0	1194598..1195296	-	232	33242416	-	CpB1085	-	hypothetical protein
1082	 38.66	0	1195287..1196375	-	362	33242417	phhA	CpB1086	-	phenylalanine 4-monooxygenase
1083	 42.15	0	1196264..1197046	+	260	33242418	-	CpB1088	-	dihydrodipicolinate reductase
1084	 35.42	-1	1197024..1197215	-	63	33242419	-	CpB1087	-	hypothetical protein
1085	 42.42	0	1197306..1198307	+	333	33242420	-	CpB1089	-	aspartate-semialdehyde dehydrogenase
1086	 41.04	0	1198295..1199617	+	440	33242421	-	CpB1090	-	aspartate kinase
1087	 42.12	0	1199626..1200501	+	291	33242422	dapA	CpB1091	-	dihydrodipicolinate synthase
1088	 32.37	-2	1200662..1200973	+	103	33242423	-	CpB1092	-	hypothetical protein
1089	 36.24	-1	1201117..1201872	+	251	33242424	-	CpB1093	-	hypothetical protein
1090	 36.59	-1	1201853..1202404	+	183	33242425	-	CpB1095	-	hypothetical protein
1091	 32.35	-2	1202388..1202489	-	33	33242426	-	CpB1094	-	hypothetical protein
1092	 43.08	0	1205398..1206228	+	276	33242427	-	CpB1097	-	Hb4
1093	 40.99	0	1206231..1206935	+	234	33242428	-	CpB1098	-	hypothetical protein
1094	 41.42	0	1207201..1209303	+	700	33242429	-	CpB1099	-	hypothetical protein
1095	 41.85	0	1209452..1210543	+	363	33242430	-	CpB1100	-	hypothetical protein
1096	 41.73	0	1210552..1211385	+	277	33242431	ksgA	CpB1101	-	dimethyladenosine transferase
1097	 43.20	0	1211428..1213362	-	644	33242432	-	CpB1102	-	1-deoxy-D-xylulose-5-phosphate synthase
1098	 34.11	-2	1213367..1213624	-	85	33242433	-	CpB1103	-	hypothetical protein
1099	 42.98	0	1213629..1213856	-	75	33242434	xseB	CpB1104	-	exodeoxyribonuclease VII small subunit
1100	 43.66	0	1213860..1215524	-	554	33242435	xseA	CpB1105	-	exodeoxyribonuclease VII large subunit
1101	 43.01	0	1215655..1216419	+	254	33242436	tpiA	CpB1106	-	triosephosphate isomerase
1102	 40.94	0	1216432..1216602	+	56	33242437	-	CpB1107	-	hypothetical protein
1103	 36.84	-1	1216629..1216799	-	56	33242438	-	CpB1108	-	hypothetical protein
1104	 39.78	0	1216839..1217195	+	118	33242439	secG	CpB1109	-	preprotein translocase subunit SecG
1105	 33.99	-2	1217209..1217361	-	50	33242440	-	CpB1110	-	hypothetical protein
1106	 40.98	0	1217385..1217999	+	204	33242441	def	CpB1111	-	peptide deformylase
1107	 39.58	0	1218066..1218962	-	298	33242442	-	CpB1112	-	ribonuclease HIII
1108	 31.15	-2	1219052..1219234	-	60	33242443	-	CpB1113	-	hypothetical protein
1109	 38.66	0	1219217..1219648	+	143	33242444	-	CpB1114	-	putative HTH transcription regulator
1110	 45.66	+1	1219845..1221215	-	456	33242445	-	CpB1115	-	hypothetical protein
1111	 41.09	0	1221587..1223029	-	480	33242446	-	CpB1116	-	hypothetical protein
1112	 42.76	0	1223674..1224543	+	289	33242447	-	CpB1117	-	hypothetical protein
1113	 42.30	0	1224716..1225540	+	274	33242448	-	CpB1118	-	putative outer membrane protein
40.62	MEAN

3.18	STD DEV
