IslandPath Analysis: Chlamydophila pneumoniae AR39

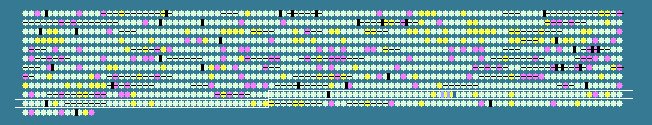

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
942	 37.53	0	1029880..1030665	+	261	16752128	-	CP0958	-	hypothetical protein
943	 42.18	0	1030662..1031000	+	112	16752129	-	CP0959	-	periplasmic divalent cation tolerance protein CutA1
944	 37.06	-1	1031102..1031530	+	142	16752130	-	CP0960	-	hypothetical protein
945	 40.95	0	1031604..1034033	-	809	16752131	-	CP0961	-	UDP-N-acetylmuramate--alanine ligase/D-alanine--D-alanine ligase
946	 42.74	0	1034043..1035116	-	357	16752132	murG	CP0962	-	N-acetylglucosaminyl transferase
947	 43.26	0	1035022..1036179	-	385	16752133	-	CP0963	-	cell division protein FtsW
948	 43.87	0	1036198..1036899	-	233	16752134	-	CP0964	-	hypothetical protein
949	 42.03	0	1036902..1038155	-	417	16752135	murD	CP0965	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
950	 42.38	0	1038158..1039207	-	349	16752136	mraY	CP0966	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
951	 41.74	0	1039224..1040567	-	447	16752137	-	CP0967	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
952	 40.32	0	1040982..1042541	+	519	16752138	-	CP0968	-	60 kDa chaperonin, putative
953	 41.89	0	1042705..1043592	+	295	16752139	-	CP0969	-	hypothetical protein
954	 38.29	0	1043617..1043838	-	73	16752140	-	CP0970	-	hypothetical protein
955	 42.58	0	1043882..1044454	-	190	16752141	-	CP0971	-	elongation factor P
956	 41.61	0	1044676..1045557	+	293	16752142	-	CP0972	-	AMP nucleosidase
957	 42.64	0	1045551..1047548	-	665	16752143	-	CP0973	-	transketolase
958	 42.42	0	1047781..1050399	+	872	16752144	alaS	CP0974	-	alanyl-tRNA synthetase
959	 41.31	0	1050369..1053626	+	1085	16752145	-	CP0975	-	transcription-repair coupling factor
960	 40.30	0	1053637..1054626	+	329	16752146	hemE	CP0976	-	uroporphyrinogen decarboxylase
961	 40.38	0	1054607..1055983	+	458	16752147	-	CP0977	-	coproporphyrinogen III oxidase
962	 43.88	0	1056019..1057326	+	435	16752148	-	CP0978	-	protoporphyrinogen oxidase
963	 42.04	0	1057282..1059750	-	822	16752149	-	CP0979	-	hypothetical protein
964	 38.17	0	1060166..1060537	+	123	16752150	-	CP0980	-	histone H1-like protein HC1
965	 40.71	0	1060807..1062012	+	401	16752151	-	CP0981	-	RNA methyltransferase
966	 38.42	0	1062083..1062436	+	117	16752152	yajC	CP0982	-	preprotein translocase subunit YajC
967	 40.43	0	1062577..1063872	+	431	16752153	-	CP0983	-	Na(+)-translocating NADH-quinone reductase subunit F
968	 41.47	0	1064035..1064931	-	298	16752154	-	CP0984	-	hypothetical protein
969	 44.25	+1	1065045..1065392	+	115	16752155	-	CP0985	-	hypothetical protein
970	 42.67	0	1065230..1065775	-	181	16752156	-	CP0986	-	hypothetical protein
971	 47.47	+2	1066555..1067205	+	216	16752157	-	CP0987	-	hypothetical protein
972	 48.43	+2	1069264..1069422	+	52	16752158	-	CP0988	-	hypothetical protein
973	 39.07	0	1071581..1074001	+	806	16752159	-	CP0989	-	cell division protein FtsK, putative
974	 39.47	0	1074003..1074800	+	265	16752160	-	CP0990	-	hypothetical protein
975	 41.74	0	1074788..1075453	+	221	16752161	-	CP0991	-	hypothetical protein
976	 44.59	+1	1075457..1075909	-	150	16752162	-	CP0992	-	hypothetical protein
977	 43.86	0	1075922..1077298	-	458	16752163	-	CP0993	-	sodium/alanine symporter family protein
978	 42.20	0	1077417..1078070	-	217	16752164	-	CP0994	-	hypothetical protein
979	 42.22	0	1078335..1079696	+	453	16752165	-	CP0995	-	hypothetical protein
980	 41.94	0	1079745..1080209	-	154	16752166	ribH	CP0996	-	riboflavin synthase subunit beta
981	 42.80	0	1080223..1081479	-	418	16752167	-	CP0997	-	bifunctional 3,4-dihydroxy-2-butanone 4-phosphate synthase/GTP cyclohydrolase II protein
982	 45.62	+1	1081540..1082670	-	376	16752168	-	CP0998	-	riboflavin-specific deaminase
983	 42.37	0	1082714..1083997	+	427	16752169	-	CP0999	-	seryl-tRNA synthetase
984	 39.22	0	1084041..1084787	+	248	16752170	-	CP1000	-	hypothetical protein
985	 41.91	0	1084724..1086775	+	683	16752171	-	CP1001	-	cation transporter E1-E2 family ATPase
986	 42.37	0	1086772..1087911	-	379	16752172	-	CP1002	-	cell shape-determining protein MrdB
987	 41.62	0	1087951..1088529	+	192	16752173	-	CP1003	-	biotin--protein ligase
988	 42.42	0	1088497..1089024	-	175	16752174	-	CP1004	-	hypothetical protein
989	 42.66	0	1089065..1089772	-	235	16752175	-	CP1005	-	ribosomal large subunit pseudouridine synthase B
990	 39.45	0	1089928..1090614	+	228	16752176	-	CP1006	-	phosphoglyceromutase
991	 43.98	+1	1090569..1091723	+	384	16752177	-	CP1007	-	nifS protein, putative
992	 42.95	0	1091720..1092520	+	266	16752178	-	CP1008	-	nifU protein, putative
993	 38.79	0	1092812..1093837	+	341	16752179	-	CP1009	-	type III secretion system protein
994	 43.39	0	1093854..1094390	+	178	16752180	-	CP1010	-	hypothetical protein
995	 44.62	+1	1094387..1095688	+	433	16752181	-	CP1011	-	type III secretion system ATPase
996	 31.98	-2	1095685..1096053	+	122	16752182	-	CP1012	-	hypothetical protein
997	 42.06	0	1096065..1097450	+	461	16752183	-	CP1013	-	UDP-N-acetylglucosamine pyrophosphorylase, putative
998	 45.27	+1	1097447..1098451	+	334	16752184	gpsA	CP1014	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
999	 43.19	0	1098605..1099639	+	344	16752185	-	CP1015	-	major outer membrane protein, putative
1000	 40.77	0	1099636..1100805	-	389	16752186	-	CP1016	-	hypothetical protein
1001	 40.42	0	1100826..1103126	-	766	16752187	-	CP1017	-	hypothetical protein
1002	 43.76	0	1103244..1105046	-	600	16752188	-	CP1018	-	phosphoenolpyruvate carboxykinase
1003	 43.14	0	1105049..1106149	-	366	16752189	-	CP1019	-	cell shape-determining protein MreB
1004	 40.59	0	1106154..1109654	-	1166	16752190	-	CP1020	-	SNF2 family helicase
1005	 39.20	0	1109940..1111268	+	442	16752191	tig	CP1021	-	trigger factor
1006	 45.10	+1	1111447..1112058	+	203	16752192	clpP	CP1022	-	ATP-dependent Clp protease proteolytic subunit
1007	 40.28	0	1112068..1113333	+	421	16752193	clpX	CP1023	-	ATP-dependent protease ATP-binding subunit
1008	 42.01	0	1113363..1114595	+	410	16752194	-	CP1024	-	poly(A) polymerase family protein
1009	 39.07	0	1114712..1116175	+	487	16752195	engA	CP1025	-	GTP-binding protein EngA
1010	 38.31	0	1116251..1116451	+	66	16753064	-	CP1026	-	hypothetical protein
1011	 41.40	0	1116520..1116705	-	61	16752196	-	CP1027	-	hypothetical protein
1012	 41.78	0	1116799..1119711	-	970	16752197	secA	CP1028	-	preprotein translocase subunit SecA
1013	 42.76	0	1119895..1121220	-	441	16752198	-	CP1029	-	hypothetical protein
1014	 39.96	0	1121280..1122185	-	301	16752199	-	CP1030	-	phosphatidylserine decarboxylase
1015	 43.49	0	1122336..1123664	+	442	16752200	trmE	CP1031	-	tRNA modification GTPase TrmE
1016	 42.22	0	1123671..1124300	+	209	16752201	-	CP1032	-	endonuclease III
1017	 39.55	0	1124485..1125723	+	412	16752202	-	CP1033	-	branched-chain amino acid transport system carrier protein, putative
1018	 40.84	0	1125753..1129400	+	1215	16752203	-	CP1034	-	Snf2/Rad54 family helicase
1019	 45.16	+1	1129425..1129889	-	154	16752204	-	CP1035	-	hypothetical protein
1020	 37.40	0	1129945..1130067	+	40	16752205	-	CP1036	-	hypothetical protein
1021	 43.94	0	1130313..1131698	+	461	16752206	-	CP1037	-	dihydrolipoamide dehydrogenase
1022	 45.67	+1	1131695..1132618	+	307	16752207	-	CP1038	-	lipoyl synthase
1023	 40.35	0	1133005..1133175	-	56	16752208	-	CP1039	-	hypothetical protein
1024	 40.38	0	1133394..1133606	+	70	16752209	-	CP1040	-	hypothetical protein
1025	 37.50	0	1133480..1133791	-	103	16752210	-	CP1041	-	hypothetical protein
1026	 37.63	0	1134141..1134698	-	185	16752211	-	CP1042	-	hypothetical protein
1027	 43.06	0	1135171..1136178	+	335	16752212	-	CP1043	-	type III secretion protein SctJ
1028	 39.57	0	1136178..1137011	+	277	16752213	-	CP1044	-	hypothetical protein
1029	 38.89	0	1137132..1137833	+	233	16752214	-	CP1045	-	type III secretion system protein
1030	 42.02	0	1137848..1138768	+	306	16752215	-	CP1046	-	type III secretion system protein
1031	 38.54	0	1138780..1139067	+	95	16752216	-	CP1047	-	type III secretion inner membrane protein SctS
1032	 42.76	0	1139075..1139944	+	289	16752217	-	CP1048	-	type III secretion inner membrane protein SctT
1033	 40.04	0	1140210..1140686	-	158	16752218	-	CP1049	-	hypothetical protein
1034	 42.19	0	1140771..1141775	-	334	16752219	-	CP1050	-	hypothetical protein
1035	 39.81	0	1141780..1142304	-	174	16752220	-	CP1051	-	hypothetical protein
1036	 43.45	0	1142307..1142741	-	144	16752221	-	CP1052	-	hypothetical protein
1037	 39.25	0	1142757..1143128	-	123	16752222	-	CP1053	-	hypothetical protein
1038	 43.96	+1	1143152..1144327	-	391	16752223	-	CP1054	-	general secretion pathway protein F
1039	 45.34	+1	1144337..1145827	-	496	16752224	-	CP1055	-	general secretion pathway protein E
1040	 43.97	+1	1145817..1148081	-	754	16752225	-	CP1056	-	general secretion pathway protein D
1041	 46.65	+1	1148082..1149335	-	417	16752226	-	CP1057	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
