IslandPathversion 1.0

IslandPath Analysis: Chlamydophila pneumoniae AR39

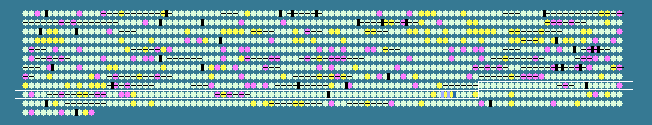

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
877	 41.42	0	959691..961520	-	609	16752064	-	CP0892	-	D-fructose-6-phosphate amidotransferase
878	 42.41	0	961527..962903	-	458	16752065	-	CP0893	-	phosphoglucomutase/phosphomannomutase family protein
879	 37.74	0	963378..964670	+	430	16752066	-	CP0894	-	poly(A) polymerase family protein
880	 41.10	0	964679..966493	+	604	16752067	lpxB	CP0895	-	lipid-A-disaccharide synthase
881	 40.73	0	966657..968117	+	486	16752068	-	CP0896	-	hypothetical protein
882	 39.61	0	968188..973017	-	1609	16752069	-	CP0897	-	polymorphic membrane protein D family protein
883	 42.89	0	973137..974099	-	320	16752070	-	CP0898	-	putative glycerol-3-phosphate acyltransferase PlsX
884	 40.98	0	974115..974297	-	60	16752071	rpmF	CP0899	-	50S ribosomal protein L32
885	 42.40	0	974310..974651	-	113	16752072	-	CP0900	-	hypothetical protein
886	 38.31	0	975072..976619	+	515	16752073	-	CP0901	-	ribonuclease G
887	 37.75	0	976630..977625	+	331	16752074	-	CP0902	-	glycerol-3-phosphate acyltransferase, putative
888	 40.76	0	977627..980455	+	942	16752075	-	CP0903	-	insulinase family metalloprotease
889	 40.95	0	980503..981855	-	450	16752076	-	CP0904	-	hypothetical protein
890	 39.02	0	983164..983673	-	169	16752077	rplI	CP0906	-	50S ribosomal protein L9
891	 36.14	-1	983689..983937	-	82	16752078	rpsR	CP0907	-	30S ribosomal protein S18
892	 37.46	0	983955..984293	-	112	16752079	rpsF	CP0908	-	30S ribosomal protein S6
893	 41.80	0	984385..984927	-	180	16752080	-	CP0909	-	peptidyl-tRNA hydrolase
894	 38.71	0	984929..985486	-	185	16752081	-	CP0910	-	50S ribosomal protein L25/general stress protein Ctc
895	 40.95	0	985941..987371	+	476	16752082	glgA	CP0911	-	glycogen synthase
896	 39.45	0	987353..987973	-	206	16752083	-	CP0912	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase
897	 41.21	0	988641..991673	+	1010	16752084	-	CP0913	-	glycyl-tRNA synthetase, tetrameric type, alpha/beta subunits
898	 43.10	0	991752..992345	-	197	16752085	-	CP0914	-	hypothetical protein
899	 43.35	0	992415..992903	-	162	16752086	-	CP0915	-	hypothetical protein
900	 35.77	-1	993049..993171	-	40	16752087	-	CP0916	-	hypothetical protein
901	 40.15	0	993174..993437	-	87	16752088	-	CP0917	-	hypothetical protein
902	 36.19	-1	993497..993601	-	34	16752089	-	CP0918	-	hypothetical protein
903	 40.39	0	993658..995442	-	594	16752090	dnaG	CP0919	-	DNA primase
904	 41.94	0	995914..998400	+	828	16752091	-	CP0920	-	DNA mismatch repair protein
905	 41.50	0	998403..1000214	+	603	16752092	uvrC	CP0921	-	excinuclease ABC subunit C
906	 38.00	0	1000217..1000687	-	156	16752093	-	CP0922	-	hypothetical protein
907	 35.85	-1	1001093..1001569	+	158	16752094	-	CP0923	-	hypothetical protein
908	 39.54	0	1001614..1001919	-	101	16752095	rpsN	CP0924	-	30S ribosomal protein S14
909	 39.86	0	1001942..1002079	-	45	16752096	rpmJ	CP0925	-	50S ribosomal protein L36
910	 46.38	+1	1002324..1002461	+	45	16753063	rpmH	CP0926	-	50S ribosomal protein L34
911	 44.29	+1	1002473..1002892	+	139	16752097	rnpA	CP0927	-	ribonuclease P
912	 42.02	0	1002834..1003880	-	348	16752098	-	CP0928	-	hypothetical protein
913	 30.16	-2	1003942..1004067	+	41	16752099	-	CP0929	-	hypothetical protein
914	 22.46	-2	1004064..1004201	+	45	16752100	-	CP0930	-	hypothetical protein
915	 42.25	0	1004273..1005697	+	474	16752101	cysS	CP0931	-	cysteinyl-tRNA synthetase
916	 41.04	0	1005694..1007277	-	527	16752102	lysS	CP0932	-	lysyl-tRNA synthetase
917	 35.46	-1	1007419..1007559	-	46	16752103	-	CP0933	-	hypothetical protein
918	 34.15	-1	1007684..1007806	-	40	16752104	-	CP0934	-	hypothetical protein
919	 45.07	+1	1008082..1008558	-	158	16752105	-	CP0935	-	hypothetical protein
920	 43.48	0	1008956..1009093	+	45	16752106	-	CP0936	-	hypothetical protein
921	 41.35	0	1009123..1010232	+	369	16752107	-	CP0937	-	hypothetical protein
922	 41.69	0	1010434..1011534	+	366	16752108	-	CP0938	-	hypothetical protein
923	 42.17	0	1011606..1012748	+	380	16752109	-	CP0939	-	hypothetical protein
924	 41.92	0	1012855..1013355	-	166	16752110	-	CP0940	-	hypothetical protein
925	 38.35	0	1013515..1014192	+	225	16752111	-	CP0941	-	hypothetical protein
926	 42.89	0	1014141..1016390	+	749	16752112	-	CP0942	-	primosome assembly protein PriA
927	 40.79	0	1016319..1017431	-	370	16752113	-	CP0943	-	8-amino-7-oxononanoate synthase
928	 41.25	0	1017485..1019101	-	538	16752114	-	CP0944	-	long chain fatty acid--[acyl-carrier-protein] ligase
929	 39.90	0	1019119..1019880	-	253	16752115	-	CP0945	-	hypothetical protein
930	 41.72	0	1020010..1020987	+	325	16752116	-	CP0946	-	3'(2'),5'-bisphosphate nucleotidase
931	 42.71	0	1020982..1022037	-	351	16752117	-	CP0947	-	Glu/Leu/Phe/Val dehydrogenase family protein
932	 39.20	0	1022192..1022839	+	215	16752118	-	CP0948	-	inorganic pyrophosphatase
933	 36.87	-1	1022873..1023325	-	150	16752119	-	CP0949	-	MutT/Nudix family protein
934	 44.36	+1	1023328..1024578	-	416	16752120	-	CP0950	-	3-oxoacyl-(acyl carrier protein) synthase II
935	 35.56	-1	1024595..1024954	-	119	16752121	-	CP0951	-	iojap-related protein
936	 39.55	0	1025015..1025416	-	133	16752122	-	CP0952	-	hypothetical protein
937	 35.98	-1	1025467..1025655	-	62	16752123	-	CP0953	-	hypothetical protein
938	 38.15	0	1025652..1027313	-	553	16752124	-	CP0954	-	hypothetical protein
939	 42.00	0	1027399..1028460	+	353	16752125	-	CP0955	-	hypothetical protein
940	 38.78	0	1028435..1029463	-	342	16752126	miaA	CP0956	-	tRNA delta(2)-isopentenylpyrophosphate transferase
941	 37.54	0	1029473..1029805	-	110	16752127	-	CP0957	-	anti-anti-sigma factor
942	 37.53	0	1029880..1030665	+	261	16752128	-	CP0958	-	hypothetical protein
943	 42.18	0	1030662..1031000	+	112	16752129	-	CP0959	-	periplasmic divalent cation tolerance protein CutA1
944	 37.06	-1	1031102..1031530	+	142	16752130	-	CP0960	-	hypothetical protein
945	 40.95	0	1031604..1034033	-	809	16752131	-	CP0961	-	UDP-N-acetylmuramate--alanine ligase/D-alanine--D-alanine ligase
946	 42.74	0	1034043..1035116	-	357	16752132	murG	CP0962	-	N-acetylglucosaminyl transferase
947	 43.26	0	1035022..1036179	-	385	16752133	-	CP0963	-	cell division protein FtsW
948	 43.87	0	1036198..1036899	-	233	16752134	-	CP0964	-	hypothetical protein
949	 42.03	0	1036902..1038155	-	417	16752135	murD	CP0965	-	UDP-N-acetylmuramoyl-L-alanyl-D-glutamate synthetase
950	 42.38	0	1038158..1039207	-	349	16752136	mraY	CP0966	-	phospho-N-acetylmuramoyl-pentapeptide-transferase
951	 41.74	0	1039224..1040567	-	447	16752137	-	CP0967	-	UDP-N-acetylmuramoylalanyl-D-glutamyl-2,6-diaminopimelate--D-alanyl-D-alanyl ligase
952	 40.32	0	1040982..1042541	+	519	16752138	-	CP0968	-	60 kDa chaperonin, putative
953	 41.89	0	1042705..1043592	+	295	16752139	-	CP0969	-	hypothetical protein
954	 38.29	0	1043617..1043838	-	73	16752140	-	CP0970	-	hypothetical protein
955	 42.58	0	1043882..1044454	-	190	16752141	-	CP0971	-	elongation factor P
956	 41.61	0	1044676..1045557	+	293	16752142	-	CP0972	-	AMP nucleosidase
957	 42.64	0	1045551..1047548	-	665	16752143	-	CP0973	-	transketolase
958	 42.42	0	1047781..1050399	+	872	16752144	alaS	CP0974	-	alanyl-tRNA synthetase
959	 41.31	0	1050369..1053626	+	1085	16752145	-	CP0975	-	transcription-repair coupling factor
960	 40.30	0	1053637..1054626	+	329	16752146	hemE	CP0976	-	uroporphyrinogen decarboxylase
961	 40.38	0	1054607..1055983	+	458	16752147	-	CP0977	-	coproporphyrinogen III oxidase
962	 43.88	0	1056019..1057326	+	435	16752148	-	CP0978	-	protoporphyrinogen oxidase
963	 42.04	0	1057282..1059750	-	822	16752149	-	CP0979	-	hypothetical protein
964	 38.17	0	1060166..1060537	+	123	16752150	-	CP0980	-	histone H1-like protein HC1
965	 40.71	0	1060807..1062012	+	401	16752151	-	CP0981	-	RNA methyltransferase
966	 38.42	0	1062083..1062436	+	117	16752152	yajC	CP0982	-	preprotein translocase subunit YajC
967	 40.43	0	1062577..1063872	+	431	16752153	-	CP0983	-	Na(+)-translocating NADH-quinone reductase subunit F
968	 41.47	0	1064035..1064931	-	298	16752154	-	CP0984	-	hypothetical protein
969	 44.25	+1	1065045..1065392	+	115	16752155	-	CP0985	-	hypothetical protein
970	 42.67	0	1065230..1065775	-	181	16752156	-	CP0986	-	hypothetical protein
971	 47.47	+2	1066555..1067205	+	216	16752157	-	CP0987	-	hypothetical protein
972	 48.43	+2	1069264..1069422	+	52	16752158	-	CP0988	-	hypothetical protein
973	 39.07	0	1071581..1074001	+	806	16752159	-	CP0989	-	cell division protein FtsK, putative
974	 39.47	0	1074003..1074800	+	265	16752160	-	CP0990	-	hypothetical protein
975	 41.74	0	1074788..1075453	+	221	16752161	-	CP0991	-	hypothetical protein
976	 44.59	+1	1075457..1075909	-	150	16752162	-	CP0992	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
