IslandPath Analysis: Chlamydophila pneumoniae AR39

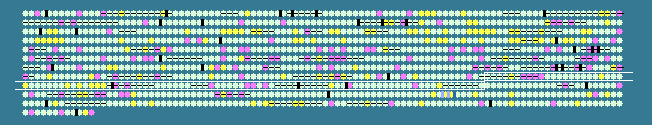

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
778	 41.85	0	856593..857684	-	363	16753058	-	CP0792	-	hypothetical protein
779	 41.42	0	857833..859935	-	700	16753059	-	CP0793	-	hypothetical protein
780	 40.98	0	860201..860932	-	243	16753060	-	CP0794	-	hypothetical protein
781	 43.08	0	860908..861738	-	276	16753061	-	CP0795	-	hypothetical protein
782	 46.01	+1	861966..862691	-	241	16753062	-	CP0796	-	hypothetical protein
783	 43.79	0	862706..864274	-	522	16753080	-	CP0797	-	hypothetical protein
784	 29.52	-2	864591..864695	-	34	16751971	-	CP0798	-	hypothetical protein
785	 36.59	-1	864713..865264	-	183	16751972	-	CP0799	-	hypothetical protein
786	 36.24	-1	865245..866000	-	251	16751973	-	CP0800	-	hypothetical protein
787	 32.37	-2	866144..866455	-	103	16751974	-	CP0801	-	hypothetical protein
788	 42.12	0	866616..867491	-	291	16751975	dapA	CP0802	-	dihydrodipicolinate synthase
789	 40.97	0	867500..868822	-	440	16751976	-	CP0803	-	aspartate kinase
790	 42.51	0	868810..869811	-	333	16751977	-	CP0804	-	aspartate-semialdehyde dehydrogenase
791	 42.39	0	870071..870865	-	264	16751978	-	CP0805	-	dihydrodipicolinate reductase
792	 38.57	0	870742..871830	+	362	16751979	phhA	CP0806	-	phenylalanine 4-monooxygenase
793	 38.20	0	871821..872519	+	232	16751980	-	CP0807	-	hypothetical protein
794	 43.78	0	872726..873721	+	331	16751981	-	CP0808	-	biotin synthase
795	 41.95	0	873700..874848	+	382	16751982	-	CP0809	-	8-amino-7-oxononanoate synthase
796	 42.42	0	874827..875486	+	219	16751983	-	CP0810	-	dethiobiotin synthase BioD, putative
797	 44.65	+1	875423..876694	+	423	16751984	-	CP0811	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
798	 40.33	0	876676..877347	+	223	16751985	-	CP0812	-	hypothetical protein
799	 43.50	0	877418..878755	+	445	16751986	-	CP0813	-	3-phosphoshikimate 1-carboxyvinyltransferase
800	 40.87	0	878691..879221	+	176	16751987	-	CP0814	-	shikimate kinase
801	 46.39	+1	879218..880297	+	359	16751988	-	CP0815	-	chorismate synthase
802	 40.09	0	880282..881436	+	384	16751989	aroB	CP0816	-	3-dehydroquinate synthase
803	 43.58	0	881417..882850	+	477	16751990	aroDE	CP0817	-	bifunctional 3-dehydroquinate dehydratase/shikimate dehydrogenase protein
804	 42.46	0	882900..883688	+	262	16751991	-	CP0818	-	hypothetical protein
805	 42.75	0	883917..885233	+	438	16751992	-	CP0819	-	hypothetical protein
806	 42.01	0	885267..885854	+	195	16751993	-	CP0820	-	hypothetical protein
807	 43.48	0	885865..887322	+	485	16751994	-	CP0821	-	amino acid permease
808	 45.37	+1	887531..888577	+	348	16751995	-	CP0822	-	DadA family oxidoreductase
809	 38.08	0	888570..889391	-	273	16751996	-	CP0823	-	hypothetical protein
810	 46.00	+1	889415..890401	-	328	16751997	-	CP0824	-	malate dehydrogenase
811	 43.52	0	890659..892239	-	526	16751998	-	CP0825	-	hypothetical protein
812	 45.83	+1	892274..892417	-	47	16751999	-	CP0826	-	hypothetical protein
813	 44.09	+1	892532..894112	-	526	16752000	pgi	CP0827	-	glucose-6-phosphate isomerase
814	 46.14	+1	894178..895083	+	301	16752001	xerD	CP0828	-	site-specific tyrosine recombinase XerD
815	 39.33	0	895080..895379	-	99	16752002	-	CP0829	-	hypothetical protein
816	 29.91	-2	895628..895744	+	38	16752003	-	CP0830	-	hypothetical protein
817	 41.82	0	895741..897201	+	486	16752004	-	CP0831	-	hypothetical protein
818	 36.80	-1	897201..897719	+	172	16752005	-	CP0832	-	type III secretion chaperone
819	 39.14	0	897735..899267	+	510	16752006	-	CP0833	-	hypothetical protein
820	 43.04	0	899286..900779	+	497	16752007	-	CP0834	-	hypothetical protein
821	 39.55	0	900782..901441	-	219	16752008	-	CP0835	-	hypothetical protein
822	 41.48	0	901476..902408	-	310	16752009	ispH	CP0836	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
823	 41.40	0	902513..904372	-	619	16752010	-	CP0837	-	hypothetical protein
824	 40.74	0	904518..905786	-	422	16752011	-	CP0838	-	hypothetical protein
825	 43.82	0	905988..907685	+	565	16752012	-	CP0839	-	sulfate transporter family protein
826	 40.27	0	907787..909169	-	460	16752013	fumC	CP0840	-	fumarate hydratase
827	 42.34	0	909221..910996	+	591	16752014	-	CP0841	-	ABC transporter, permease protein, putative
828	 41.05	0	911742..912350	+	202	16752015	-	CP0843	-	hypothetical protein
829	 43.26	0	912356..913231	+	291	161353775	-	CP0844	-	methionine aminopeptidase
830	 40.48	0	913188..914474	-	428	16752017	-	CP0845	-	hypothetical protein
831	 39.78	0	914504..914689	-	61	16752018	-	CP0846	-	hypothetical protein
832	 37.04	-1	914942..915427	+	161	16752019	-	CP0847	-	hypothetical protein
833	 40.04	0	915481..916002	+	173	16752020	-	CP0848	-	hypothetical protein
834	 40.80	0	916017..916538	+	173	16752021	-	CP0849	-	hypothetical protein
835	 41.53	0	916618..917325	+	235	16752022	-	CP0850	-	hypothetical protein
836	 42.42	0	917322..917552	-	76	16752023	-	CP0851	-	hypothetical protein
837	 43.16	0	917542..918009	-	155	16752024	-	CP0852	-	cytidine/deoxycytidylate deaminase family protein
838	 33.33	-2	918114..918245	+	43	16752025	-	CP0853	-	hypothetical protein
839	 35.93	-1	918257..918526	+	89	16752026	rpsO	CP0854	-	30S ribosomal protein S15
840	 40.48	0	918567..920651	+	694	16752027	-	CP0855	-	polynucleotide phosphorylase/polyadenylase
841	 34.41	-1	920723..920815	+	30	16752028	-	CP0856	-	hypothetical protein
842	 43.14	0	920827..923559	-	910	16752029	-	CP0857	-	cell division protein FtsH, putative
843	 38.54	0	923747..924706	-	319	16752030	-	CP0858	-	MesJ/Ycf62 family protein
844	 38.45	0	924825..925898	+	357	16752031	-	CP0859	-	hypothetical protein
845	 39.69	0	925902..927002	+	366	16752032	-	CP0860	-	hypothetical protein
846	 37.83	0	926971..929016	-	681	16752033	-	CP0861	-	hypothetical protein
847	 39.61	0	929381..930400	-	339	16752034	pheS	CP0862	-	phenylalanyl-tRNA synthetase subunit alpha
848	 41.80	0	930415..930780	-	121	16752035	rplT	CP0863	-	50S ribosomal protein L20
849	 38.46	0	930799..930993	-	64	16752036	rpmI	CP0864	-	50S ribosomal protein L35
850	 37.97	0	930971..931531	-	186	16752037	infC	CP0865	-	translation initiation factor IF-3
851	 37.40	0	931911..932402	+	163	16752038	nusB	CP0866	-	transcription antitermination protein NusB
852	 44.48	+1	932429..933343	+	304	16752039	murB	CP0867	-	UDP-N-acetylenolpyruvoylglucosamine reductase
853	 42.45	0	933297..933899	-	200	16752040	-	CP0868	-	hypothetical protein
854	 39.56	0	934017..934691	-	224	16752041	trmB	CP0869	-	tRNA (guanine-N(7))-methyltransferase
855	 36.43	-1	934688..934816	-	42	16752042	-	CP0870	-	hypothetical protein
856	 37.85	0	934841..935881	-	346	16752043	-	CP0871	-	ribonucleotide-diphosphate reductase subunit beta
857	 40.89	0	935902..939036	-	1044	16752044	-	CP0872	-	ribonucleotide-diphosphate reductase subunit alpha
858	 40.98	0	939415..940212	+	265	16752045	-	CP0873	-	CDP-diacylglycerol--serine O-phosphatidyltransferase, putative
859	 40.13	0	940221..941456	+	411	16752046	-	CP0874	-	hypothetical protein
860	 41.68	0	941460..944384	-	974	16752047	-	CP0875	-	insulinase family metalloprotease
861	 41.63	0	944433..945914	+	493	16752048	-	CP0876	-	M20/M25/M40 family peptidase
862	 42.13	0	945969..947435	-	488	16752049	-	CP0877	-	serine protease
863	 39.15	0	947719..948750	-	343	16752050	-	CP0878	-	hypothetical protein
864	 39.92	0	949010..950041	-	343	16752051	-	CP0879	-	hypothetical protein
865	 40.31	0	950227..951330	-	367	16752052	-	CP0880	-	hypothetical protein
866	 23.19	-2	951408..951545	-	45	16752053	-	CP0881	-	hypothetical protein
867	 42.63	0	951775..952269	-	164	16752054	-	CP0882	-	hypothetical protein
868	 38.52	0	952378..952512	-	44	16752055	-	CP0883	-	hypothetical protein
869	 40.74	0	952807..952941	-	44	16752056	-	CP0884	-	hypothetical protein
870	 48.41	+2	952990..953871	-	293	16752057	-	CP0885	-	succinyl-CoA synthetase subunit alpha
871	 43.93	0	953885..955045	-	386	16752058	sucC	CP0886	-	succinyl-CoA synthetase subunit beta
872	 42.27	0	955116..955988	+	290	16752059	-	CP0887	-	signal recognition particle protein FtsY
873	 41.14	0	955997..956713	-	238	16752060	-	CP0888	-	hypothetical protein
874	 40.30	0	956764..957954	-	396	16752061	-	CP0889	-	Mtr/TnaB/TyrO permease family protein
875	 41.12	0	958042..958362	-	106	16752062	-	CP0890	-	hypothetical protein
876	 40.22	0	958413..959603	-	396	16752063	-	CP0891	-	Mtr/TnaB/TyrO permease family protein
877	 41.42	0	959691..961520	-	609	16752064	-	CP0892	-	D-fructose-6-phosphate amidotransferase
40.53	MEAN

3.43	STD DEV
