IslandPath Analysis: Chlamydophila pneumoniae AR39

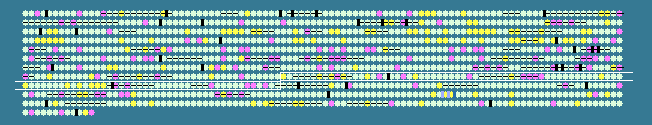

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
744	 44.23	+1	806791..808497	+	568	16753024	-	CP0755	-	hypothetical protein
745	 43.07	0	808487..810601	+	704	16753025	-	CP0756	-	hypothetical protein
746	 40.21	0	813695..813883	-	62	16753026	-	CP0758	-	hypothetical protein
747	 43.31	0	820085..822610	-	841	16753027	-	CP0761	-	polymorphic membrane protein G family protein
748	 38.42	0	822979..824550	-	523	16753028	-	CP0762	-	hypothetical protein
749	 38.29	0	824577..825302	-	241	16753029	-	CP0763	-	hypothetical protein
750	 44.69	+1	825445..827769	-	774	16753030	-	CP0764	-	hypothetical protein
751	 41.21	0	828079..829386	-	435	16753031	-	CP0765	-	hypothetical protein
752	 44.28	+1	829513..830316	-	267	16753032	-	CP0766	-	hypothetical protein
753	 29.03	-2	830422..830514	-	30	16753033	-	CP0767	-	hypothetical protein
754	 48.06	+2	830626..830754	-	42	16753034	-	CP0768	-	hypothetical protein
755	 40.98	0	830702..833668	-	988	16753035	-	CP0769	-	hypothetical protein
756	 41.03	0	834306..837074	-	922	16753036	-	CP0770	-	polymorphic membrane protein G family protein
757	 43.01	0	837365..838831	-	488	16753037	gatB	CP0771	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
758	 44.08	+1	838828..840306	-	492	16753038	gatA	CP0772	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
759	 38.56	0	840323..840628	-	101	16753039	gatC	CP0773	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
760	 26.80	-2	840632..840784	-	50	16753040	-	CP0774	-	hypothetical protein
761	 40.07	0	840919..841200	+	93	16753041	-	CP0775	-	hypothetical protein
762	 42.30	0	841596..842420	-	274	16753042	-	CP0776	-	hypothetical protein
763	 42.76	0	842593..843462	-	289	16753043	-	CP0777	-	hypothetical protein
764	 27.50	-2	843715..843834	-	39	16753044	-	CP0778	-	hypothetical protein
765	 41.09	0	844107..845549	+	480	16753045	-	CP0779	-	hypothetical protein
766	 45.66	+1	845921..847291	+	456	16753046	-	CP0780	-	hypothetical protein
767	 38.66	0	847488..847919	-	143	16753047	-	CP0781	-	hypothetical protein
768	 39.58	0	848174..849070	+	298	161353772	-	CP0782	-	ribonuclease HIII
769	 40.11	0	849137..849697	-	186	16753049	def	CP0783	-	peptide deformylase
770	 39.78	0	849941..850297	-	118	16753050	secG	CP0784	-	preprotein translocase subunit SecG
771	 41.11	0	850534..850713	-	59	16753051	-	CP0785	-	hypothetical protein
772	 43.01	0	850717..851481	-	254	16753052	tpiA	CP0786	-	triosephosphate isomerase
773	 43.66	0	851612..853276	+	554	16753053	xseA	CP0787	-	exodeoxyribonuclease VII large subunit
774	 42.98	0	853280..853507	+	75	16753054	xseB	CP0788	-	exodeoxyribonuclease VII small subunit
775	 34.11	-1	853512..853769	+	85	16753055	-	CP0789	-	hypothetical protein
776	 43.15	0	853774..855708	+	644	16753056	-	CP0790	-	1-deoxy-D-xylulose-5-phosphate synthase
777	 41.73	0	855751..856584	-	277	16753057	ksgA	CP0791	-	dimethyladenosine transferase
778	 41.85	0	856593..857684	-	363	16753058	-	CP0792	-	hypothetical protein
779	 41.42	0	857833..859935	-	700	16753059	-	CP0793	-	hypothetical protein
780	 40.98	0	860201..860932	-	243	16753060	-	CP0794	-	hypothetical protein
781	 43.08	0	860908..861738	-	276	16753061	-	CP0795	-	hypothetical protein
782	 46.01	+1	861966..862691	-	241	16753062	-	CP0796	-	hypothetical protein
783	 43.79	0	862706..864274	-	522	16753080	-	CP0797	-	hypothetical protein
784	 29.52	-2	864591..864695	-	34	16751971	-	CP0798	-	hypothetical protein
785	 36.59	-1	864713..865264	-	183	16751972	-	CP0799	-	hypothetical protein
786	 36.24	-1	865245..866000	-	251	16751973	-	CP0800	-	hypothetical protein
787	 32.37	-2	866144..866455	-	103	16751974	-	CP0801	-	hypothetical protein
788	 42.12	0	866616..867491	-	291	16751975	dapA	CP0802	-	dihydrodipicolinate synthase
789	 40.97	0	867500..868822	-	440	16751976	-	CP0803	-	aspartate kinase
790	 42.51	0	868810..869811	-	333	16751977	-	CP0804	-	aspartate-semialdehyde dehydrogenase
791	 42.39	0	870071..870865	-	264	16751978	-	CP0805	-	dihydrodipicolinate reductase
792	 38.57	0	870742..871830	+	362	16751979	phhA	CP0806	-	phenylalanine 4-monooxygenase
793	 38.20	0	871821..872519	+	232	16751980	-	CP0807	-	hypothetical protein
794	 43.78	0	872726..873721	+	331	16751981	-	CP0808	-	biotin synthase
795	 41.95	0	873700..874848	+	382	16751982	-	CP0809	-	8-amino-7-oxononanoate synthase
796	 42.42	0	874827..875486	+	219	16751983	-	CP0810	-	dethiobiotin synthase BioD, putative
797	 44.65	+1	875423..876694	+	423	16751984	-	CP0811	-	adenosylmethionine-8-amino-7-oxononanoate aminotransferase
798	 40.33	0	876676..877347	+	223	16751985	-	CP0812	-	hypothetical protein
799	 43.50	0	877418..878755	+	445	16751986	-	CP0813	-	3-phosphoshikimate 1-carboxyvinyltransferase
800	 40.87	0	878691..879221	+	176	16751987	-	CP0814	-	shikimate kinase
801	 46.39	+1	879218..880297	+	359	16751988	-	CP0815	-	chorismate synthase
802	 40.09	0	880282..881436	+	384	16751989	aroB	CP0816	-	3-dehydroquinate synthase
803	 43.58	0	881417..882850	+	477	16751990	aroDE	CP0817	-	bifunctional 3-dehydroquinate dehydratase/shikimate dehydrogenase protein
804	 42.46	0	882900..883688	+	262	16751991	-	CP0818	-	hypothetical protein
805	 42.75	0	883917..885233	+	438	16751992	-	CP0819	-	hypothetical protein
806	 42.01	0	885267..885854	+	195	16751993	-	CP0820	-	hypothetical protein
807	 43.48	0	885865..887322	+	485	16751994	-	CP0821	-	amino acid permease
808	 45.37	+1	887531..888577	+	348	16751995	-	CP0822	-	DadA family oxidoreductase
809	 38.08	0	888570..889391	-	273	16751996	-	CP0823	-	hypothetical protein
810	 46.00	+1	889415..890401	-	328	16751997	-	CP0824	-	malate dehydrogenase
811	 43.52	0	890659..892239	-	526	16751998	-	CP0825	-	hypothetical protein
812	 45.83	+1	892274..892417	-	47	16751999	-	CP0826	-	hypothetical protein
813	 44.09	+1	892532..894112	-	526	16752000	pgi	CP0827	-	glucose-6-phosphate isomerase
814	 46.14	+1	894178..895083	+	301	16752001	xerD	CP0828	-	site-specific tyrosine recombinase XerD
815	 39.33	0	895080..895379	-	99	16752002	-	CP0829	-	hypothetical protein
816	 29.91	-2	895628..895744	+	38	16752003	-	CP0830	-	hypothetical protein
817	 41.82	0	895741..897201	+	486	16752004	-	CP0831	-	hypothetical protein
818	 36.80	-1	897201..897719	+	172	16752005	-	CP0832	-	type III secretion chaperone
819	 39.14	0	897735..899267	+	510	16752006	-	CP0833	-	hypothetical protein
820	 43.04	0	899286..900779	+	497	16752007	-	CP0834	-	hypothetical protein
821	 39.55	0	900782..901441	-	219	16752008	-	CP0835	-	hypothetical protein
822	 41.48	0	901476..902408	-	310	16752009	ispH	CP0836	-	4-hydroxy-3-methylbut-2-enyl diphosphate reductase
823	 41.40	0	902513..904372	-	619	16752010	-	CP0837	-	hypothetical protein
824	 40.74	0	904518..905786	-	422	16752011	-	CP0838	-	hypothetical protein
825	 43.82	0	905988..907685	+	565	16752012	-	CP0839	-	sulfate transporter family protein
826	 40.27	0	907787..909169	-	460	16752013	fumC	CP0840	-	fumarate hydratase
827	 42.34	0	909221..910996	+	591	16752014	-	CP0841	-	ABC transporter, permease protein, putative
828	 41.05	0	911742..912350	+	202	16752015	-	CP0843	-	hypothetical protein
829	 43.26	0	912356..913231	+	291	161353775	-	CP0844	-	methionine aminopeptidase
830	 40.48	0	913188..914474	-	428	16752017	-	CP0845	-	hypothetical protein
831	 39.78	0	914504..914689	-	61	16752018	-	CP0846	-	hypothetical protein
832	 37.04	-1	914942..915427	+	161	16752019	-	CP0847	-	hypothetical protein
833	 40.04	0	915481..916002	+	173	16752020	-	CP0848	-	hypothetical protein
834	 40.80	0	916017..916538	+	173	16752021	-	CP0849	-	hypothetical protein
835	 41.53	0	916618..917325	+	235	16752022	-	CP0850	-	hypothetical protein
836	 42.42	0	917322..917552	-	76	16752023	-	CP0851	-	hypothetical protein
837	 43.16	0	917542..918009	-	155	16752024	-	CP0852	-	cytidine/deoxycytidylate deaminase family protein
838	 33.33	-2	918114..918245	+	43	16752025	-	CP0853	-	hypothetical protein
839	 35.93	-1	918257..918526	+	89	16752026	rpsO	CP0854	-	30S ribosomal protein S15
840	 40.48	0	918567..920651	+	694	16752027	-	CP0855	-	polynucleotide phosphorylase/polyadenylase
841	 34.41	-1	920723..920815	+	30	16752028	-	CP0856	-	hypothetical protein
842	 43.14	0	920827..923559	-	910	16752029	-	CP0857	-	cell division protein FtsH, putative
843	 38.54	0	923747..924706	-	319	16752030	-	CP0858	-	MesJ/Ycf62 family protein
40.53	MEAN

3.43	STD DEV
