IslandPathversion 1.0

IslandPath Analysis: Chlamydophila pneumoniae AR39

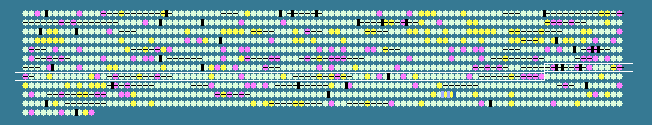

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
688	 38.25	0	749296..749844	-	182	16752968	nusG	CP0699	-	transcription antitermination protein NusG
689	 32.54	-2	749849..750100	-	83	16752969	secE	CP0700	-	preprotein translocase subunit SecE
690	 43.12	0	750244..751428	-	394	16752970	tuf	CP0701	-	elongation factor Tu
691	 42.79	0	751625..751846	-	73	16752971	infA	CP0702	-	translation initiation factor IF-1
692	 37.40	0	752117..753148	+	343	16752972	-	CP0703	-	hypothetical protein
693	 35.93	-1	753145..753606	+	153	16752973	-	CP0704	-	hypothetical protein
694	 43.38	0	754112..755674	-	520	16752974	-	CP0705	-	hypothetical protein
695	 36.11	-1	756293..756868	+	191	16752975	-	CP0706	-	hypothetical protein
696	 39.31	0	757140..758243	-	367	16752976	-	CP0707	-	hypothetical protein
697	 42.85	0	758538..760271	-	577	16752977	-	CP0708	-	hypothetical protein
698	 41.38	0	760542..762293	-	583	16752978	-	CP0709	-	hypothetical protein
699	 46.15	+1	762617..762850	-	77	16752979	-	CP0710	-	hypothetical protein
700	 36.48	-1	762926..763084	-	52	16752980	-	CP0711	-	hypothetical protein
701	 35.04	-1	763327..763443	-	38	16752981	-	CP0712	-	hypothetical protein
702	 40.98	0	763503..764888	-	461	16752982	-	CP0713	-	hypothetical protein
703	 39.09	0	764985..765662	-	225	16752983	-	CP0714	-	PTS system, IIA component
704	 41.51	0	765665..766141	-	158	16752984	-	CP0715	-	PTS system, IIA component
705	 45.66	+1	766143..766580	-	145	16752985	dut	CP0716	-	deoxyuridine 5'-triphosphate nucleotidohydrolase
706	 42.93	0	766631..767557	-	308	16752986	-	CP0717	-	acetyl-CoA carboxylase subunit beta
707	 39.90	0	767639..768262	-	207	16752987	-	CP0718	-	superoxide dismutase
708	 43.13	0	768447..770243	-	598	16752988	-	CP0719	-	phosphoglucomutase/phosphomannomutase, putative
709	 41.08	0	770603..771067	-	154	16752989	-	CP0720	-	hypothetical protein
710	 43.00	0	771173..771886	+	237	16752990	rnc	CP0721	-	ribonuclease III
711	 43.83	0	771852..773213	+	453	16752991	-	CP0722	-	DNA repair protein RadA
712	 45.39	+1	773191..773895	+	234	16752992	-	CP0723	-	porphobilinogen deaminase
713	 33.33	-2	773982..774137	-	51	16752993	-	CP0724	-	hypothetical protein
714	 39.75	0	774895..775377	+	160	16752994	-	CP0725	-	hypothetical protein
715	 41.88	0	775387..777504	-	705	16752995	-	CP0726	-	hypothetical protein
716	 33.99	-1	777536..777688	-	50	16752996	-	CP0727	-	hypothetical protein
717	 42.48	0	777925..780132	-	735	16752997	-	CP0728	-	hypothetical protein
718	 38.57	0	780420..780782	-	120	16752998	-	CP0729	-	hypothetical protein
719	 43.23	0	780826..782754	-	642	16752999	-	CP0730	-	hypothetical protein
720	 46.94	+1	782873..783019	-	48	16753000	-	CP0731	-	hypothetical protein
721	 40.74	0	783016..783798	-	260	16753001	-	CP0732	-	hypothetical protein
722	 43.26	0	783856..785205	-	449	16753002	-	CP0733	-	hypothetical protein
723	 29.17	-2	785447..785542	-	31	16753003	-	CP0734	-	hypothetical protein
724	 40.71	0	785558..786886	+	442	16753004	-	CP0735	-	DNA polymerase III subunits gamma and tau
725	 41.92	0	786951..787241	+	96	16753005	-	CP0736	-	hypothetical protein
726	 42.95	0	787367..789082	-	571	16753006	-	CP0737	-	phosphoenolpyruvate-protein phosphotransferase
727	 40.98	0	789083..789409	-	108	16753007	-	CP0738	-	phosphocarrier protein HPr
728	 40.33	0	789402..789887	-	161	16753008	-	CP0739	-	hypothetical protein
729	 42.28	0	789934..790257	+	107	16753009	-	CP0740	-	hypothetical protein
730	 43.92	0	790172..791635	+	487	16753010	-	CP0741	-	hypothetical protein
731	 41.47	0	791717..792994	+	425	16753011	-	CP0742	-	hypothetical protein
732	 45.16	+1	793027..795063	-	678	16753012	-	CP0743	-	2-oxoisovalerate dehydrogenase, E1 component, alpha and beta subunit
733	 43.85	0	795100..796278	-	392	16753013	-	CP0744	-	dnaJ protein
734	 40.68	0	796314..796490	-	58	16753014	rpsU	CP0745	-	30S ribosomal protein S21
735	 41.43	0	796669..797310	-	213	16753015	-	CP0746	-	hypothetical protein
736	 37.40	0	797446..797814	+	122	16753016	-	CP0747	-	hypothetical protein
737	 36.39	-1	797876..798661	+	261	16753017	-	CP0748	-	hypothetical protein
738	 40.81	0	798967..801426	+	819	16753018	-	CP0749	-	Lon family protease
739	 41.98	0	801576..802442	+	288	16753019	-	CP0750	-	hypothetical protein
740	 43.18	0	802597..803520	+	307	16753020	-	CP0751	-	ribonuclease Z
741	 42.07	0	803605..804543	+	312	16753021	xerC	CP0752	-	site-specific tyrosine recombinase XerC
742	 41.12	0	804598..806190	+	530	16753022	-	CP0753	-	ABC transporter, ATP-binding protein
743	 40.27	0	806219..806809	+	196	16753023	maf	CP0754	-	Maf-like protein
744	 44.23	+1	806791..808497	+	568	16753024	-	CP0755	-	hypothetical protein
745	 43.07	0	808487..810601	+	704	16753025	-	CP0756	-	hypothetical protein
746	 40.21	0	813695..813883	-	62	16753026	-	CP0758	-	hypothetical protein
747	 43.31	0	820085..822610	-	841	16753027	-	CP0761	-	polymorphic membrane protein G family protein
748	 38.42	0	822979..824550	-	523	16753028	-	CP0762	-	hypothetical protein
749	 38.29	0	824577..825302	-	241	16753029	-	CP0763	-	hypothetical protein
750	 44.69	+1	825445..827769	-	774	16753030	-	CP0764	-	hypothetical protein
751	 41.21	0	828079..829386	-	435	16753031	-	CP0765	-	hypothetical protein
752	 44.28	+1	829513..830316	-	267	16753032	-	CP0766	-	hypothetical protein
753	 29.03	-2	830422..830514	-	30	16753033	-	CP0767	-	hypothetical protein
754	 48.06	+2	830626..830754	-	42	16753034	-	CP0768	-	hypothetical protein
755	 40.98	0	830702..833668	-	988	16753035	-	CP0769	-	hypothetical protein
756	 41.03	0	834306..837074	-	922	16753036	-	CP0770	-	polymorphic membrane protein G family protein
757	 43.01	0	837365..838831	-	488	16753037	gatB	CP0771	-	aspartyl/glutamyl-tRNA amidotransferase subunit B
758	 44.08	+1	838828..840306	-	492	16753038	gatA	CP0772	-	aspartyl/glutamyl-tRNA amidotransferase subunit A
759	 38.56	0	840323..840628	-	101	16753039	gatC	CP0773	-	aspartyl/glutamyl-tRNA amidotransferase subunit C
760	 26.80	-2	840632..840784	-	50	16753040	-	CP0774	-	hypothetical protein
761	 40.07	0	840919..841200	+	93	16753041	-	CP0775	-	hypothetical protein
762	 42.30	0	841596..842420	-	274	16753042	-	CP0776	-	hypothetical protein
763	 42.76	0	842593..843462	-	289	16753043	-	CP0777	-	hypothetical protein
764	 27.50	-2	843715..843834	-	39	16753044	-	CP0778	-	hypothetical protein
765	 41.09	0	844107..845549	+	480	16753045	-	CP0779	-	hypothetical protein
766	 45.66	+1	845921..847291	+	456	16753046	-	CP0780	-	hypothetical protein
767	 38.66	0	847488..847919	-	143	16753047	-	CP0781	-	hypothetical protein
768	 39.58	0	848174..849070	+	298	161353772	-	CP0782	-	ribonuclease HIII
769	 40.11	0	849137..849697	-	186	16753049	def	CP0783	-	peptide deformylase
770	 39.78	0	849941..850297	-	118	16753050	secG	CP0784	-	preprotein translocase subunit SecG
771	 41.11	0	850534..850713	-	59	16753051	-	CP0785	-	hypothetical protein
772	 43.01	0	850717..851481	-	254	16753052	tpiA	CP0786	-	triosephosphate isomerase
773	 43.66	0	851612..853276	+	554	16753053	xseA	CP0787	-	exodeoxyribonuclease VII large subunit
774	 42.98	0	853280..853507	+	75	16753054	xseB	CP0788	-	exodeoxyribonuclease VII small subunit
775	 34.11	-1	853512..853769	+	85	16753055	-	CP0789	-	hypothetical protein
776	 43.15	0	853774..855708	+	644	16753056	-	CP0790	-	1-deoxy-D-xylulose-5-phosphate synthase
777	 41.73	0	855751..856584	-	277	16753057	ksgA	CP0791	-	dimethyladenosine transferase
778	 41.85	0	856593..857684	-	363	16753058	-	CP0792	-	hypothetical protein
779	 41.42	0	857833..859935	-	700	16753059	-	CP0793	-	hypothetical protein
780	 40.98	0	860201..860932	-	243	16753060	-	CP0794	-	hypothetical protein
781	 43.08	0	860908..861738	-	276	16753061	-	CP0795	-	hypothetical protein
782	 46.01	+1	861966..862691	-	241	16753062	-	CP0796	-	hypothetical protein
783	 43.79	0	862706..864274	-	522	16753080	-	CP0797	-	hypothetical protein
784	 29.52	-2	864591..864695	-	34	16751971	-	CP0798	-	hypothetical protein
785	 36.59	-1	864713..865264	-	183	16751972	-	CP0799	-	hypothetical protein
786	 36.24	-1	865245..866000	-	251	16751973	-	CP0800	-	hypothetical protein
787	 32.37	-2	866144..866455	-	103	16751974	-	CP0801	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
