IslandPathversion 1.0

IslandPath Analysis: Chlamydophila pneumoniae AR39

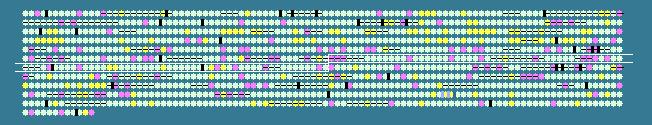

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
552	 31.31	-2	594959..595156	-	65	16752836	-	CP0562	-	hypothetical protein
553	 36.51	-1	595284..595472	-	62	16752837	-	CP0563	-	hypothetical protein
554	 36.59	-1	595484..596281	-	265	16753074	-	CP0564	-	hypothetical protein
555	 41.06	0	596786..597574	-	262	16752838	-	CP0565	-	peptide ABC transporter, ATP-binding protein
556	 40.12	0	597571..598425	-	284	16752839	-	CP0566	-	peptide ABC transporter, ATP-binding protein
557	 42.69	0	598418..599272	-	284	16752840	-	CP0567	-	peptide ABC transporter, permease protein
558	 39.15	0	599303..600247	-	314	16752841	-	CP0568	-	peptide ABC transporter, permease protein
559	 40.01	0	600540..602126	-	528	16752842	-	CP0569	-	peptide ABC transporter, periplasmic peptide-binding protein
560	 41.44	0	602404..603711	-	435	16752843	-	CP0570	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
561	 40.03	0	603767..605350	-	527	16752844	-	CP0571	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
562	 40.71	0	605501..607099	-	532	16752845	-	CP0572	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
563	 41.55	0	607045..608079	-	344	16752846	-	CP0573	-	O-sialoglycoprotein endopeptidase
564	 42.34	0	608163..608606	+	147	16752847	-	CP0574	-	arginine repressor
565	 35.63	-1	608655..609308	+	217	16752848	-	CP0575	-	amino acid ABC transporter, permease protein
566	 41.70	0	609298..609978	+	226	16752849	-	CP0576	-	amino acid ABC transporter, ATP-binding protein
567	 40.40	0	610012..611370	-	452	16752850	-	CP0577	-	hypothetical protein
568	 39.90	0	611461..614889	-	1142	16752851	-	CP0578	-	hypothetical protein
569	 38.05	0	614886..616178	-	430	16752852	-	CP0579	-	hypothetical protein
570	 39.20	0	616241..617041	-	266	16752853	-	CP0580	-	hypothetical protein
571	 40.92	0	617218..618390	-	390	16752854	-	CP0581	-	hypothetical protein
572	 27.78	-2	618445..618552	-	35	16752855	-	CP0582	-	hypothetical protein
573	 38.41	0	618838..619527	+	229	16752856	-	CP0583	-	ribulose-phosphate 3-epimerase
574	 37.28	0	619514..620071	+	185	16752857	-	CP0584	-	elongation factor P
575	 39.09	0	620094..620597	+	167	16752858	-	CP0585	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
576	 39.49	0	620594..621958	+	454	16752859	-	CP0586	-	acetyl-CoA carboxylase biotin carboxylase subunit
577	 36.32	-1	622114..622515	+	133	16752860	-	CP0587	-	hypothetical protein
578	 38.38	0	622383..622937	+	184	16752861	-	CP0588	-	hypothetical protein
579	 38.75	0	622886..623236	+	116	16752862	-	CP0589	-	hypothetical protein
580	 40.45	0	623237..623503	+	88	16752863	-	CP0590	-	hypothetical protein
581	 44.09	+1	623683..623775	+	30	16752864	-	CP0591	-	hypothetical protein
582	 40.47	0	623830..624684	+	284	16752865	-	CP0592	-	hypothetical protein
583	 37.94	0	624768..626003	-	411	16752866	-	CP0593	-	hypothetical protein
584	 39.90	0	626011..626391	-	126	16752867	-	CP0594	-	hypothetical protein
585	 39.80	0	626562..627056	-	164	16752868	-	CP0595	-	hypothetical protein
586	 32.56	-2	627010..627138	-	42	16752869	-	CP0596	-	hypothetical protein
587	 37.68	0	627302..627577	+	91	16752870	-	CP0597	-	hypothetical protein
588	 41.16	0	628854..630143	+	429	16752871	-	CP0599	-	GMP synthase
589	 38.91	0	630263..631267	+	334	16752872	-	CP0600	-	hypothetical protein
590	 40.62	0	631378..631473	+	31	16752873	-	CP0601	-	hypothetical protein
591	 37.48	0	631788..632582	+	264	16752874	-	CP0602	-	hypothetical protein
592	 39.91	0	632648..632875	+	75	16752875	-	CP0603	-	hypothetical protein
593	 39.04	0	632983..633315	+	110	16752876	-	CP0604	-	hypothetical protein
594	 33.33	-2	633324..633659	-	111	16752877	-	CP0605	-	hypothetical protein
595	 36.90	-1	633704..634291	-	195	16752878	-	CP0606	-	hypothetical protein
596	 32.26	-2	634288..634845	-	185	16752879	-	CP0607	-	hypothetical protein
597	 42.47	0	634892..635263	-	123	16752880	-	CP0608	-	hypothetical protein
598	 37.03	-1	635461..636489	+	342	16752881	-	CP0609	-	hypothetical protein
599	 40.22	0	636667..637494	+	275	16752882	-	CP0610	-	dienelactone hydrolase family protein
600	 39.51	0	637498..639132	+	544	16752883	-	CP0611	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
601	 40.45	0	639428..639736	+	102	16752884	-	CP0612	-	hypothetical protein
602	 37.41	0	639770..640309	+	179	16752885	-	CP0613	-	KDO-transferase 2, putative
603	 38.69	0	640477..640905	+	142	16752886	-	CP0614	-	hypothetical protein
604	 37.20	0	640892..641434	+	180	16752887	-	CP0615	-	KDO-transferase 2
605	 30.92	-2	641510..641716	+	68	16752888	-	CP0616	-	hypothetical protein
606	 39.73	0	641996..643309	-	437	16752889	-	CP0617	-	3-deoxy-D-manno-octulosonic-acid transferase
607	 42.63	0	643306..645768	-	820	16752890	leuS	CP0618	-	leucyl-tRNA synthetase
608	 39.84	0	645808..645930	+	40	16752891	-	CP0619	-	hypothetical protein
609	 42.06	0	645936..646886	+	316	16752892	-	CP0620	-	hypothetical protein
610	 35.83	-1	646955..647074	+	39	16752893	-	CP0621	-	hypothetical protein
611	 39.20	0	647113..648579	+	488	16753082	-	CP0622	-	hypothetical protein
612	 40.75	0	648754..653367	-	1537	16752894	-	CP0623	-	hypothetical protein
613	 41.43	0	653498..655486	-	662	16752895	ligA	CP0624	-	NAD-dependent DNA ligase LigA
614	 40.70	0	655496..657355	-	619	16752896	-	CP0625	-	hypothetical protein
615	 46.22	+1	657527..657976	-	149	16752897	-	CP0626	-	hypothetical protein
616	 44.44	+1	658103..658588	-	161	16752898	-	CP0627	-	hypothetical protein
617	 39.71	0	658829..660397	-	522	16752899	-	CP0628	-	hypothetical protein
618	 40.40	0	660638..663256	-	872	16752900	-	CP0629	-	ATP-dependent Clp protease, subunit B
619	 39.47	0	663866..664990	+	374	16752901	-	CP0630	-	hypothetical protein
620	 40.80	0	665399..666094	+	231	16752902	-	CP0631	-	ribose-5-phosphate isomerase A
621	 38.32	0	666091..666531	+	146	16752903	-	CP0632	-	hypothetical protein
622	 40.74	0	666545..667111	+	188	16752904	-	CP0633	-	hypothetical protein
623	 43.31	0	667182..668504	+	440	16752905	-	CP0634	-	glutamate-1-semialdehyde aminotransferase
624	 44.05	+1	668947..669702	+	251	16752906	-	CP0635	-	hypothetical protein
625	 40.41	0	669800..671635	+	611	16752907	-	CP0636	-	oligoendopeptidase F
626	 42.07	0	671753..672061	+	102	16752908	groES	CP0637	-	co-chaperonin GroES
627	 41.35	0	672103..673737	+	544	16752909	groEL	CP0638	-	chaperonin GroEL
628	 43.15	0	673867..674640	+	257	16752910	-	CP0639	-	hypothetical protein
629	 38.45	0	674637..675614	-	325	16752911	-	CP0640	-	hypothetical protein
630	 37.94	0	675618..676658	-	346	16752912	-	CP0641	-	hypothetical protein
631	 37.38	0	676956..678140	+	394	16752913	-	CP0642	-	hypothetical protein
632	 45.51	+1	678145..678924	-	259	16752914	-	CP0643	-	biotin apo-protein ligase-related protein
633	 31.71	-2	678918..679040	-	40	16752915	-	CP0644	-	hypothetical protein
634	 44.15	+1	679058..680074	+	338	16752916	-	CP0645	-	hypothetical protein
635	 39.78	0	680113..682392	-	759	16752917	-	CP0646	-	hypothetical protein
636	 35.09	-1	682337..682507	-	56	16752918	-	CP0647	-	hypothetical protein
637	 39.38	0	682593..683105	-	170	16752919	-	CP0648	-	hypothetical protein
638	 39.37	0	683130..684587	-	485	16752920	-	CP0649	-	hypothetical protein
639	 39.65	0	685232..687430	+	732	16752921	-	CP0650	-	exodeoxyribonuclease V, alpha subunit
640	 39.86	0	687475..689130	-	551	16752922	-	CP0651	-	methionyl-tRNA synthetase
641	 36.73	-1	689130..689423	-	97	16752923	-	CP0652	-	hypothetical protein
642	 40.78	0	689420..690037	-	205	16752924	gmk	CP0653	-	guanylate kinase
643	 40.31	0	690034..690678	-	214	16752925	rnhB	CP0654	-	ribonuclease HII
644	 41.26	0	690734..691099	-	121	16752926	rplS	CP0655	-	50S ribosomal protein L19
645	 41.25	0	691127..692212	-	361	16752927	trmD	CP0656	-	fused tRNA (guanine-N(1)-)-methyltransferase/uncharacterized domain-containing protein
646	 41.11	0	692226..692585	-	119	16752928	rpsP	CP0657	-	30S ribosomal protein S16
647	 38.75	0	692576..693922	-	448	16752929	-	CP0658	-	signal recognition particle protein FFH
648	 41.64	0	693937..694803	-	288	16752930	-	CP0659	-	N5-glutamine S-adenosyl-L-methionine-dependent methyltransferase
649	 40.69	0	694793..695866	-	357	16752931	prfA	CP0660	-	peptide chain release factor 1
650	 35.15	-1	696105..696434	-	109	16752932	rpmE2	CP0661	-	50S ribosomal protein L31 type B
651	 41.67	0	696515..697270	+	251	16752933	-	CP0662	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
