IslandPath Analysis: Chlamydophila pneumoniae AR39

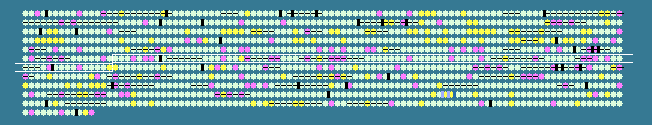

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.53   STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
516	 40.00	0	567066..567530	-	154	16752801	-	CP0525	-	Holliday junction resolvase-like protein
517	 41.70	0	567514..569127	-	537	16752802	-	CP0526	-	CTP synthetase
518	 40.26	0	569103..569867	-	254	16752803	-	CP0527	-	3-deoxy-manno-octulosonate cytidylyltransferase
519	 21.95	-2	569893..570015	+	40	16752804	-	CP0528	-	hypothetical protein
520	 39.51	0	570043..570738	+	231	16753081	-	CP0529	-	hypothetical protein
521	 34.17	-1	570773..570892	+	39	16752805	-	CP0530	-	hypothetical protein
522	 35.56	-1	570859..571038	+	59	16752806	-	CP0531	-	hypothetical protein
523	 38.37	0	571161..572054	+	297	16752807	-	CP0532	-	hypothetical protein
524	 40.96	0	572326..573033	+	235	16752808	-	CP0533	-	ABC transporter, ATP-binding protein
525	 37.64	0	573177..573710	+	177	16752809	-	CP0534	-	hypothetical protein
526	 41.91	0	573720..574955	-	411	16752810	-	CP0535	-	hypothetical protein
527	 39.17	0	575173..575874	+	233	16752811	-	CP0536	-	hypothetical protein
528	 38.44	0	575867..576277	+	136	16752812	-	CP0537	-	putative disulfide oxidoreductase
529	 40.25	0	576313..576717	-	134	16752813	-	CP0538	-	hypothetical protein
530	 41.96	0	576739..577410	-	223	16752814	-	CP0539	-	hypothetical protein
531	 40.35	0	577457..577627	-	56	16752815	-	CP0540	-	hypothetical protein
532	 38.68	0	577606..577848	-	80	16752816	-	CP0541	-	hypothetical protein
533	 37.53	0	577947..578327	-	126	16752817	-	CP0542	-	hypothetical protein
534	 34.50	-1	578438..578779	-	113	16752818	-	CP0543	-	hypothetical protein
535	 37.23	0	579216..579626	-	136	16752819	-	CP0544	-	hypothetical protein
536	 41.76	0	580042..580587	-	181	16752820	-	CP0545	-	hypothetical protein
537	 44.15	+1	580808..581926	-	372	16752821	-	CP0546	-	queuine tRNA-ribosyltransferase
538	 34.21	-1	582135..582704	+	189	16752822	-	CP0547	-	hypothetical protein
539	 38.27	0	582701..583369	-	222	16752823	-	CP0548	-	hypothetical protein
540	 38.36	0	583674..584111	+	145	16752824	-	CP0549	-	hypothetical protein
541	 39.13	0	584267..585526	+	419	16752825	-	CP0550	-	hypothetical protein
542	 36.05	-1	585625..586839	+	404	16752826	-	CP0551	-	hypothetical protein
543	 35.61	-1	586940..587071	+	43	16752827	-	CP0552	-	hypothetical protein
544	 39.00	0	587223..588404	+	393	16752828	-	CP0553	-	hypothetical protein
545	 38.05	0	588533..588829	+	98	16752829	-	CP0554	-	hypothetical protein
546	 38.82	0	588905..589852	+	315	16752830	-	CP0555	-	hypothetical protein
547	 41.06	0	590014..590259	-	81	16752831	-	CP0557	-	hypothetical protein
548	 34.13	-1	590350..590475	-	41	16752832	-	CP0558	-	hypothetical protein
549	 42.04	0	590684..592336	-	550	16752833	-	CP0559	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
550	 45.51	+1	592669..594081	-	470	16752834	-	CP0560	-	sodium:sulfate symporter family protein
551	 42.33	0	594125..594880	-	251	16752835	-	CP0561	-	hypothetical protein
552	 31.31	-2	594959..595156	-	65	16752836	-	CP0562	-	hypothetical protein
553	 36.51	-1	595284..595472	-	62	16752837	-	CP0563	-	hypothetical protein
554	 36.59	-1	595484..596281	-	265	16753074	-	CP0564	-	hypothetical protein
555	 41.06	0	596786..597574	-	262	16752838	-	CP0565	-	peptide ABC transporter, ATP-binding protein
556	 40.12	0	597571..598425	-	284	16752839	-	CP0566	-	peptide ABC transporter, ATP-binding protein
557	 42.69	0	598418..599272	-	284	16752840	-	CP0567	-	peptide ABC transporter, permease protein
558	 39.15	0	599303..600247	-	314	16752841	-	CP0568	-	peptide ABC transporter, permease protein
559	 40.01	0	600540..602126	-	528	16752842	-	CP0569	-	peptide ABC transporter, periplasmic peptide-binding protein
560	 41.44	0	602404..603711	-	435	16752843	-	CP0570	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
561	 40.03	0	603767..605350	-	527	16752844	-	CP0571	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
562	 40.71	0	605501..607099	-	532	16752845	-	CP0572	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
563	 41.55	0	607045..608079	-	344	16752846	-	CP0573	-	O-sialoglycoprotein endopeptidase
564	 42.34	0	608163..608606	+	147	16752847	-	CP0574	-	arginine repressor
565	 35.63	-1	608655..609308	+	217	16752848	-	CP0575	-	amino acid ABC transporter, permease protein
566	 41.70	0	609298..609978	+	226	16752849	-	CP0576	-	amino acid ABC transporter, ATP-binding protein
567	 40.40	0	610012..611370	-	452	16752850	-	CP0577	-	hypothetical protein
568	 39.90	0	611461..614889	-	1142	16752851	-	CP0578	-	hypothetical protein
569	 38.05	0	614886..616178	-	430	16752852	-	CP0579	-	hypothetical protein
570	 39.20	0	616241..617041	-	266	16752853	-	CP0580	-	hypothetical protein
571	 40.92	0	617218..618390	-	390	16752854	-	CP0581	-	hypothetical protein
572	 27.78	-2	618445..618552	-	35	16752855	-	CP0582	-	hypothetical protein
573	 38.41	0	618838..619527	+	229	16752856	-	CP0583	-	ribulose-phosphate 3-epimerase
574	 37.28	0	619514..620071	+	185	16752857	-	CP0584	-	elongation factor P
575	 39.09	0	620094..620597	+	167	16752858	-	CP0585	-	acetyl-CoA carboxylase biotin carboxyl carrier protein subunit
576	 39.49	0	620594..621958	+	454	16752859	-	CP0586	-	acetyl-CoA carboxylase biotin carboxylase subunit
577	 36.32	-1	622114..622515	+	133	16752860	-	CP0587	-	hypothetical protein
578	 38.38	0	622383..622937	+	184	16752861	-	CP0588	-	hypothetical protein
579	 38.75	0	622886..623236	+	116	16752862	-	CP0589	-	hypothetical protein
580	 40.45	0	623237..623503	+	88	16752863	-	CP0590	-	hypothetical protein
581	 44.09	+1	623683..623775	+	30	16752864	-	CP0591	-	hypothetical protein
582	 40.47	0	623830..624684	+	284	16752865	-	CP0592	-	hypothetical protein
583	 37.94	0	624768..626003	-	411	16752866	-	CP0593	-	hypothetical protein
584	 39.90	0	626011..626391	-	126	16752867	-	CP0594	-	hypothetical protein
585	 39.80	0	626562..627056	-	164	16752868	-	CP0595	-	hypothetical protein
586	 32.56	-2	627010..627138	-	42	16752869	-	CP0596	-	hypothetical protein
587	 37.68	0	627302..627577	+	91	16752870	-	CP0597	-	hypothetical protein
588	 41.16	0	628854..630143	+	429	16752871	-	CP0599	-	GMP synthase
589	 38.91	0	630263..631267	+	334	16752872	-	CP0600	-	hypothetical protein
590	 40.62	0	631378..631473	+	31	16752873	-	CP0601	-	hypothetical protein
591	 37.48	0	631788..632582	+	264	16752874	-	CP0602	-	hypothetical protein
592	 39.91	0	632648..632875	+	75	16752875	-	CP0603	-	hypothetical protein
593	 39.04	0	632983..633315	+	110	16752876	-	CP0604	-	hypothetical protein
594	 33.33	-2	633324..633659	-	111	16752877	-	CP0605	-	hypothetical protein
595	 36.90	-1	633704..634291	-	195	16752878	-	CP0606	-	hypothetical protein
596	 32.26	-2	634288..634845	-	185	16752879	-	CP0607	-	hypothetical protein
597	 42.47	0	634892..635263	-	123	16752880	-	CP0608	-	hypothetical protein
598	 37.03	-1	635461..636489	+	342	16752881	-	CP0609	-	hypothetical protein
599	 40.22	0	636667..637494	+	275	16752882	-	CP0610	-	dienelactone hydrolase family protein
600	 39.51	0	637498..639132	+	544	16752883	-	CP0611	-	diphosphate--fructose-6-phosphate 1-phosphotransferase
601	 40.45	0	639428..639736	+	102	16752884	-	CP0612	-	hypothetical protein
602	 37.41	0	639770..640309	+	179	16752885	-	CP0613	-	KDO-transferase 2, putative
603	 38.69	0	640477..640905	+	142	16752886	-	CP0614	-	hypothetical protein
604	 37.20	0	640892..641434	+	180	16752887	-	CP0615	-	KDO-transferase 2
605	 30.92	-2	641510..641716	+	68	16752888	-	CP0616	-	hypothetical protein
606	 39.73	0	641996..643309	-	437	16752889	-	CP0617	-	3-deoxy-D-manno-octulosonic-acid transferase
607	 42.63	0	643306..645768	-	820	16752890	leuS	CP0618	-	leucyl-tRNA synthetase
608	 39.84	0	645808..645930	+	40	16752891	-	CP0619	-	hypothetical protein
609	 42.06	0	645936..646886	+	316	16752892	-	CP0620	-	hypothetical protein
610	 35.83	-1	646955..647074	+	39	16752893	-	CP0621	-	hypothetical protein
611	 39.20	0	647113..648579	+	488	16753082	-	CP0622	-	hypothetical protein
612	 40.75	0	648754..653367	-	1537	16752894	-	CP0623	-	hypothetical protein
613	 41.43	0	653498..655486	-	662	16752895	ligA	CP0624	-	NAD-dependent DNA ligase LigA
614	 40.70	0	655496..657355	-	619	16752896	-	CP0625	-	hypothetical protein
615	 46.22	+1	657527..657976	-	149	16752897	-	CP0626	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
