IslandPath Analysis: Chlamydophila pneumoniae AR39

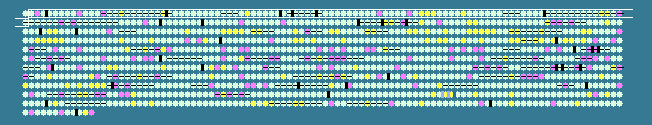

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.53   STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
2	 38.89	0	1220..2623	-	467	16752298	-	CP0002	-	Na(+)-translocating NADH-quinone reductase subunit A
3	 33.57	-2	2694..3122	-	142	16752299	-	CP0003	-	hypothetical protein
4	 39.51	0	3235..5403	+	722	16752300	-	CP0004	-	fused transcript cleavage factor/uncharacterized domain-containing protein
5	 38.22	0	5537..6724	+	395	16752301	-	CP0005	-	aromatic amino acid aminotransferase
6	 39.74	0	6714..7727	+	337	16752302	-	CP0006	-	hypothetical protein
7	 37.81	0	7687..10839	-	1050	16752303	-	CP0007	-	exodeoxyribonuclease V, beta chain, putative
8	 38.15	0	10826..13900	-	1024	16752304	-	CP0008	-	exodeoxyribonuclease V, gamma subunit, putative
9	 39.94	0	13887..15596	+	569	16752305	-	CP0009	-	hypothetical protein
10	 35.72	-1	15917..16585	+	222	16752306	-	CP0011	-	uridine kinase
11	 39.08	0	16667..17641	-	324	16752307	-	CP0012	-	hypothetical protein
12	 40.48	0	17858..18487	+	209	16752308	rpsD	CP0013	-	30S ribosomal protein S4
13	 40.59	0	18606..19487	-	293	16752309	-	CP0014	-	endonuclease IV
14	 36.16	-1	19822..19998	-	58	16752310	-	CP0015	-	hypothetical protein
15	 41.00	0	19982..21625	+	547	16752311	-	CP0016	-	hypothetical protein
16	 39.24	0	21728..22996	+	422	16753066	-	CP0017	-	hypothetical protein
17	 44.84	+1	23108..25063	+	651	16752312	-	CP0018	-	hypothetical protein
18	 39.44	0	25390..28008	-	872	16752313	-	CP0019	-	hypothetical protein
19	 41.37	0	28270..30708	+	812	16752314	-	CP0020	-	hypothetical protein
20	 42.11	0	30774..31001	+	75	16752315	-	CP0021	-	hypothetical protein
21	 41.58	0	31058..31882	+	274	16752316	-	CP0022	-	hypothetical protein
22	 40.94	0	31879..32601	-	240	16752317	-	CP0023	-	ABC transporter, ATP-binding protein
23	 38.45	0	32608..33096	-	162	16752318	-	CP0024	-	hypothetical protein
24	 44.73	+1	33093..33908	-	271	16752319	-	CP0025	-	2-dehydro-3-deoxyphosphooctonate aldolase
25	 39.24	0	34346..34582	-	78	16752320	-	CP0026	-	hypothetical protein
26	 41.41	0	34692..35669	-	325	16752321	-	CP0027	-	ribosomal large subunit pseudouridine synthase D
27	 41.12	0	35956..36276	-	106	16752322	-	CP0028	-	hypothetical protein
28	 41.67	0	36276..36575	-	99	16752323	-	CP0029	-	hypothetical protein
29	 40.99	0	36680..38116	-	478	16752324	-	CP0030	-	DNA topoisomerase IV subunit A
30	 38.09	0	38120..39928	-	602	16752325	-	CP0031	-	DNA topoisomerase IV subunit B
31	 39.41	0	40478..41497	+	339	16752326	hemA	CP0032	-	glutamyl-tRNA reductase
32	 39.69	0	41864..42256	+	130	16752327	-	CP0033	-	hypothetical protein
33	 39.99	0	42270..44807	+	845	16752328	-	CP0034	-	hypothetical protein
34	 38.15	0	44854..45102	+	82	16752329	-	CP0035	-	hypothetical protein
35	 39.61	0	45124..45378	+	84	16752330	-	CP0036	-	hypothetical protein
36	 38.89	0	45397..45846	+	149	16752331	-	CP0037	-	hypothetical protein
37	 42.22	0	45880..46554	+	224	16752332	-	CP0038	-	hypothetical protein
38	 45.82	+1	46556..47884	+	442	16752333	-	CP0039	-	type III secretion system ATPase
39	 39.25	0	47902..48408	+	168	16752334	-	CP0040	-	hypothetical protein
40	 37.60	0	48412..49254	+	280	16752335	-	CP0041	-	hypothetical protein
41	 42.11	0	49264..50379	+	371	16752336	-	CP0042	-	type III secretion system protein
42	 40.23	0	50395..51903	+	502	16752337	-	CP0043	-	serine/threonine-protein kinase
43	 41.41	0	51900..54659	+	919	16752338	-	CP0044	-	type III secretion protein SctC
44	 37.70	0	54910..55986	-	358	16752339	-	CP0045	-	ATP:guanido phosphotransferase
45	 40.50	0	55973..56488	-	171	16752340	-	CP0046	-	hypothetical protein
46	 38.86	0	56861..57403	-	180	16752341	frr	CP0047	-	ribosome recycling factor
47	 39.89	0	57381..58127	-	248	16752342	pyrH	CP0048	-	uridylate kinase
48	 39.81	0	58135..58983	-	282	16752343	tsf	CP0049	-	elongation factor Ts
49	 38.13	0	58983..59816	-	277	16752344	rpsB	CP0050	-	30S ribosomal protein S2
50	 42.82	0	60200..61369	-	389	16752345	-	CP0051	-	major outer membrane protein, porin
51	 40.60	0	61985..65257	+	1090	16752346	-	CP0052	-	penicillin-binding protein, putative
52	 40.59	0	65328..66347	+	339	16752347	-	CP0053	-	type III secretion chaperone, putative
53	 41.92	0	66672..68126	+	484	16752348	-	CP0054	-	cysteine desulfurase activator complex subunit SufB
54	 40.86	0	68132..68902	+	256	16752349	-	CP0055	-	ABC transporter, ATP-binding protein
55	 41.27	0	68904..70151	+	415	16752350	-	CP0056	-	hypothetical protein
56	 42.51	0	70180..71400	+	406	16752351	-	CP0057	-	aminotransferase, class V
57	 40.58	0	71444..72202	-	252	16752352	-	CP0058	-	hypothetical protein
58	 40.37	0	72367..73020	-	217	16752353	-	CP0059	-	hypothetical protein
59	 40.74	0	73223..73411	+	62	16752354	-	CP0060	-	hypothetical protein
60	 31.58	-2	73364..73477	-	37	16752355	-	CP0061	-	hypothetical protein
61	 43.09	0	73546..74406	+	286	16752356	-	CP0062	-	ParB family chromosome partioning protein
62	 39.71	0	74387..74590	-	67	16752357	-	CP0063	-	hypothetical protein
63	 41.23	0	74662..75636	-	324	16752358	-	CP0064	-	peptide ABC transporter, ATP-binding protein
64	 43.90	0	75626..76600	-	324	16752359	-	CP0065	-	peptide ABC transporter, ATP-binding protein
65	 36.89	-1	76655..77329	+	224	16752360	-	CP0066	-	hypothetical protein
66	 42.86	0	77336..78616	+	426	16752361	-	CP0067	-	phosphate permease family protein
67	 44.33	+1	78654..79862	+	402	16752362	pgk	CP0068	-	phosphoglycerate kinase
68	 52.65	+2	80264..80905	+	213	16752363	-	CP0069	-	hypothetical protein
69	 45.69	+1	81183..82331	+	382	16752364	-	CP0070	-	hypothetical protein
70	 43.25	0	82367..83536	+	389	16752365	-	CP0071	-	hypothetical protein
71	 40.87	0	83665..84819	+	384	16752366	-	CP0072	-	hypothetical protein
72	 41.10	0	84916..86010	+	364	16752367	-	CP0073	-	Nol1/Nop2/Sun family protein
73	 37.78	0	86118..86297	-	59	16752368	-	CP0074	-	hypothetical protein
74	 44.09	+1	86533..87843	-	436	16752369	-	CP0075	-	D-alanyl-D-alanine carboxypeptidase
75	 40.09	0	87954..88382	+	142	16752370	-	CP0076	-	hypothetical protein
76	 40.62	0	88385..88837	-	150	16752371	-	CP0077	-	rsbW protein, putative
77	 38.83	0	88806..89405	-	199	16752372	-	CP0078	-	hypothetical protein
78	 39.92	0	89419..90375	-	318	16753067	-	CP0079	-	hypothetical protein
79	 43.39	0	90527..91411	+	294	16752373	-	CP0080	-	hypothetical protein
80	 40.26	0	91475..95197	-	1240	16752374	dnaE	CP0081	-	DNA polymerase III subunit alpha
81	 42.18	0	95217..96584	-	455	16752375	-	CP0082	-	GlpT/PgpT/UhpT family protein
82	 39.22	0	96828..97031	+	67	16752376	-	CP0083	-	hypothetical protein
83	 41.14	0	97395..98687	+	430	16752377	hisS	CP0084	-	histidyl-tRNA synthetase
84	 40.85	0	98662..100416	+	584	16752378	aspS	CP0085	-	aspartyl-tRNA synthetase
85	 38.61	0	100485..101261	+	258	16752379	-	CP0086	-	peptidyl-prolyl cis-trans isomerase Mip
86	 40.13	0	101258..101728	+	156	16752380	-	CP0087	-	spoU rRNA methylase family protein
87	 41.42	0	101744..102052	-	102	16752381	-	CP0088	-	thioredoxin
88	 39.75	0	102417..103133	+	238	16752382	-	CP0089	-	hypothetical protein
89	 39.91	0	103112..103537	+	141	16752383	-	CP0090	-	hypothetical protein
90	 41.44	0	103534..103644	-	36	16752384	-	CP0091	-	hypothetical protein
91	 37.20	0	103738..104487	+	249	16752385	-	CP0092	-	DNA polymerase III subunit epsilon
92	 41.45	0	104618..105085	+	155	16752386	-	CP0093	-	cytosolic acyl-CoA thioester hydrolase family protein
93	 42.44	0	105095..106720	+	541	16752387	lnt	CP0094	-	apolipoprotein N-acyltransferase
94	 39.35	0	106735..107598	+	287	16752388	lpxC	CP0095	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
95	 40.26	0	107610..108071	+	153	16752389	fabZ	CP0096	-	(3R)-hydroxymyristoyl-ACP dehydratase
96	 42.14	0	108084..108923	+	279	16752390	-	CP0097	-	UDP-N-acetylglucosamine acyltransferase
97	 44.82	+1	108913..109878	+	321	16752391	fmt	CP0098	-	methionyl-tRNA formyltransferase
98	 44.31	+1	109982..110983	+	333	16752392	-	CP0099	-	hypothetical protein
99	 41.36	0	111272..111931	+	219	16752393	rplC	CP0100	-	50S ribosomal protein L3
100	 36.89	-1	111964..112638	+	224	16752394	rplD	CP0101	-	50S ribosomal protein L4
101	 38.39	0	112655..112990	+	111	16752395	rplW	CP0102	-	50S ribosomal protein L23
40.53	MEAN

3.43	STD DEV
