IslandPath Analysis: Chlamydophila pneumoniae AR39

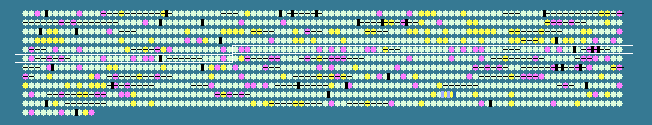

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.53   STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
436	 37.16	0	481159..482463	-	434	16752722	nusA	CP0441	-	transcription elongation factor NusA
437	 36.95	-1	482564..484306	-	580	16752723	rpsA	CP0442	-	30S ribosomal protein S1
438	 29.86	-2	484750..484893	-	47	16752724	-	CP0443	-	hypothetical protein
439	 41.56	0	484998..485933	+	311	16752725	-	CP0444	-	thioredoxin reductase
440	 42.28	0	485925..486293	-	122	16752726	acpS	CP0445	-	4'-phosphopantetheinyl transferase
441	 37.94	0	486304..486759	-	151	16752727	-	CP0446	-	hypothetical protein
442	 38.57	0	486833..487711	+	292	16752728	-	CP0447	-	prolipoprotein diacylglyceryl transferase
443	 37.31	0	487850..490237	+	795	16752729	-	CP0448	-	putative inner membrane protein translocase component YidC
444	 37.31	0	490309..491691	+	460	16752730	dnaA	CP0449	-	chromosomal replication initiation protein
445	 41.80	0	491684..492049	-	121	16752731	-	CP0450	-	hypothetical protein
446	 38.87	0	492297..494771	+	824	16752732	-	CP0451	-	glycogen phosphorylase
447	 42.48	0	494849..496138	-	429	16752733	-	CP0452	-	branched-chain alpha-keto acid dehydrogenase subunit E2
448	 39.92	0	496143..497129	-	328	16752734	-	CP0453	-	pyruvate dehydrogenase, E1 component, beta subunit
449	 42.37	0	497122..498150	-	342	16752735	-	CP0454	-	pyruvate dehydrogenase, E1 component, alpha subunit
450	 34.68	-1	498325..499365	+	346	16752736	-	CP0455	-	hypothetical protein
451	 40.54	0	499414..500496	-	360	16752737	lpxD	CP0456	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
452	 33.91	-1	500518..501033	-	171	16752738	-	CP0457	-	cationic outer membrane protein OmpH, putative
453	 38.17	0	501128..503506	-	792	16752739	-	CP0458	-	outer membrane protein, putative
454	 36.32	-1	503865..504467	-	200	16752740	recR	CP0459	-	recombination protein RecR
455	 42.16	0	504562..505569	+	335	16752741	-	CP0460	-	3-oxoacyl-(acyl carrier protein) synthase III
456	 39.59	0	505586..506512	+	308	16752742	-	CP0461	-	acyl-carrier-protein S-malonyltransferase
457	 42.30	0	506518..507264	+	248	16752743	fabG	CP0462	-	3-ketoacyl-(acyl-carrier-protein) reductase
458	 31.25	-2	507420..507659	+	79	16752744	acpP	CP0463	-	acyl carrier protein
459	 34.78	-1	507778..508191	-	137	16752745	-	CP0464	-	cyclic nucleotide-binding protein
460	 38.84	0	508557..511334	-	925	16753073	-	CP0465	-	hypothetical protein
461	 44.61	+1	511444..512055	-	203	16752746	-	CP0466	-	hypothetical protein
462	 41.43	0	512086..512616	-	176	16752747	-	CP0467	-	inclusion membrane protein B
463	 40.40	0	512757..514241	-	494	16752748	-	CP0468	-	sodium-dependent transporter, putative
464	 38.30	0	514284..515471	-	395	16752749	-	CP0469	-	sodium:dicarboxylate symporter family protein
465	 41.08	0	515567..516715	+	382	16752750	-	CP0470	-	hypothetical protein
466	 38.81	0	517062..519197	+	711	16752751	-	CP0471	-	hypothetical protein
467	 41.54	0	519224..520636	+	470	16752752	-	CP0472	-	magnesium transporter
468	 39.15	0	520688..522235	+	515	16752753	-	CP0473	-	hypothetical protein
469	 39.16	0	522238..522735	+	165	16752754	-	CP0474	-	hypothetical protein
470	 39.30	0	523751..525157	-	468	16752755	-	CP0476	-	amino acid antiporter
471	 39.90	0	525177..526226	-	349	16752756	-	CP0477	-	fructose-bisphosphate aldolase
472	 36.06	-1	526711..527736	+	341	16752757	-	CP0478	-	ABC transporter, ATP-binding protein
473	 39.64	0	527746..528411	+	221	16752758	-	CP0479	-	ABC transporter, permease protein
474	 36.39	-1	528408..529226	+	272	16752759	-	CP0480	-	putative lipoprotein
475	 39.02	0	529373..529882	+	169	16752760	-	CP0481	-	hypothetical protein
476	 30.67	-2	529898..530047	+	49	16752761	-	CP0482	-	hypothetical protein
477	 35.34	-1	530146..530493	+	115	16752762	-	CP0483	-	hypothetical protein
478	 39.25	0	530497..532914	+	805	16752763	gyrB	CP0484	-	DNA gyrase subunit B
479	 40.96	0	532930..535434	+	834	16752764	-	CP0485	-	DNA gyrase subunit A
480	 42.83	0	535439..536059	+	206	16752765	tdk	CP0486	-	thymidylate kinase
481	 38.91	0	536050..536946	+	298	16752766	-	CP0487	-	DNA polymerase III subunit delta'
482	 40.71	0	536918..537649	-	243	16752767	-	CP0488	-	serine esterase, putative
483	 37.51	0	537958..538818	+	286	16752768	-	CP0489	-	Sua5/YciO/YrdC family protein
484	 40.18	0	538833..539810	+	325	16752769	-	CP0490	-	dipeptidase, putative
485	 39.01	0	539816..539956	-	46	16752770	-	CP0491	-	hypothetical protein
486	 43.93	0	539962..540348	-	128	16752771	-	CP0492	-	hypothetical protein
487	 40.78	0	540370..541161	-	263	16752772	-	CP0493	-	hypothetical protein
488	 26.26	-2	541264..541362	-	32	16752773	-	CP0494	-	hypothetical protein
489	 42.67	0	541404..542099	-	231	16752774	-	CP0495	-	hypothetical protein
490	 34.45	-1	542663..543556	+	297	16752775	ubiA	CP0496	-	prenyltransferase
491	 39.55	0	543553..544131	+	192	16752776	-	CP0497	-	aromatic acid decarboxylase
492	 39.84	0	544144..545034	-	296	16752777	-	CP0498	-	hypothetical protein
493	 40.90	0	545347..546192	-	281	16752778	surE	CP0499	-	stationary phase survival protein SurE
494	 41.90	0	546247..546981	-	244	16752779	-	CP0500	-	hypothetical protein
495	 35.47	-1	547223..547738	+	171	16752780	-	CP0501	-	hypothetical protein
496	 34.26	-1	547932..548039	-	35	16752781	-	CP0502	-	hypothetical protein
497	 38.43	0	549156..550019	+	287	16752782	-	CP0504	-	hypothetical protein
498	 37.24	0	550019..550888	+	289	16752783	-	CP0505	-	hypothetical protein
499	 38.45	0	551118..551957	+	279	16752784	-	CP0506	-	hypothetical protein
500	 39.90	0	552021..552827	+	268	16752785	-	CP0507	-	hypothetical protein
501	 37.76	0	553721..555232	-	503	16752786	-	CP0510	-	hypothetical protein
502	 33.96	-1	555226..555384	+	52	16752787	rpmG	CP0511	-	50S ribosomal protein L33
503	 38.49	0	555442..556953	+	503	16752788	-	CP0512	-	hypothetical protein
504	 39.35	0	556956..557636	+	226	16752789	-	CP0513	-	ABC transporter, ATP-binding protein
505	 30.00	-2	557675..557824	+	49	16752790	-	CP0514	-	hypothetical protein
506	 37.11	0	557868..558317	+	149	16752791	rplM	CP0515	-	50S ribosomal protein L13
507	 37.04	-1	558331..558735	+	134	16752792	rpsI	CP0516	-	30S ribosomal protein S9
508	 40.68	0	558781..559638	-	285	16752793	-	CP0517	-	NLP/P60 family protein
509	 40.97	0	559724..560365	-	213	16752794	adk	CP0518	-	adenylate kinase
510	 38.03	0	560728..561153	+	141	16752795	-	CP0519	-	hypothetical protein
511	 38.62	0	561365..561799	+	144	16752796	-	CP0520	-	hypothetical protein
512	 41.56	0	561929..563083	+	384	16752797	-	CP0521	-	hypothetical protein
513	 43.70	0	563422..564588	+	388	16752798	-	CP0522	-	hypothetical protein
514	 36.70	-1	564608..565408	-	266	16752799	-	CP0523	-	6-phosphogluconolactonase
515	 39.64	0	565442..566980	-	512	16752800	-	CP0524	-	glucose-6-phosphate 1-dehydrogenase
516	 40.00	0	567066..567530	-	154	16752801	-	CP0525	-	Holliday junction resolvase-like protein
517	 41.70	0	567514..569127	-	537	16752802	-	CP0526	-	CTP synthetase
518	 40.26	0	569103..569867	-	254	16752803	-	CP0527	-	3-deoxy-manno-octulosonate cytidylyltransferase
519	 21.95	-2	569893..570015	+	40	16752804	-	CP0528	-	hypothetical protein
520	 39.51	0	570043..570738	+	231	16753081	-	CP0529	-	hypothetical protein
521	 34.17	-1	570773..570892	+	39	16752805	-	CP0530	-	hypothetical protein
522	 35.56	-1	570859..571038	+	59	16752806	-	CP0531	-	hypothetical protein
523	 38.37	0	571161..572054	+	297	16752807	-	CP0532	-	hypothetical protein
524	 40.96	0	572326..573033	+	235	16752808	-	CP0533	-	ABC transporter, ATP-binding protein
525	 37.64	0	573177..573710	+	177	16752809	-	CP0534	-	hypothetical protein
526	 41.91	0	573720..574955	-	411	16752810	-	CP0535	-	hypothetical protein
527	 39.17	0	575173..575874	+	233	16752811	-	CP0536	-	hypothetical protein
528	 38.44	0	575867..576277	+	136	16752812	-	CP0537	-	putative disulfide oxidoreductase
529	 40.25	0	576313..576717	-	134	16752813	-	CP0538	-	hypothetical protein
530	 41.96	0	576739..577410	-	223	16752814	-	CP0539	-	hypothetical protein
531	 40.35	0	577457..577627	-	56	16752815	-	CP0540	-	hypothetical protein
532	 38.68	0	577606..577848	-	80	16752816	-	CP0541	-	hypothetical protein
533	 37.53	0	577947..578327	-	126	16752817	-	CP0542	-	hypothetical protein
534	 34.50	-1	578438..578779	-	113	16752818	-	CP0543	-	hypothetical protein
535	 37.23	0	579216..579626	-	136	16752819	-	CP0544	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
