IslandPath Analysis: Chlamydophila pneumoniae AR39

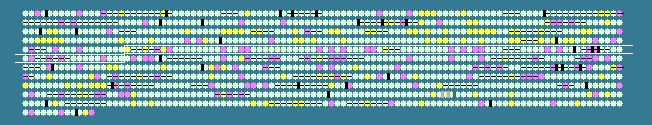

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
418	 46.46	+1	460606..461466	-	286	16752704	-	CP0423	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
419	 39.57	0	461457..461921	-	154	16752705	-	CP0424	-	hypothetical protein
420	 39.12	0	462193..462486	+	97	16752706	-	CP0425	-	hypothetical protein
421	 45.80	+1	462846..464585	+	579	16752707	-	CP0426	-	hypothetical protein
422	 39.83	0	464608..465084	+	158	16752708	-	CP0427	-	hypothetical protein
423	 35.40	-1	465134..466195	-	353	16752709	-	CP0428	-	phospholipase D family protein
424	 44.05	+1	466288..468042	-	584	16752710	-	CP0429	-	hypothetical protein
425	 37.04	-1	468069..468338	-	89	16752711	rpmB	CP0430	-	50S ribosomal protein L28
426	 40.42	0	468555..470135	-	526	16752712	-	CP0431	-	4-alpha-glucanotransferase
427	 41.44	0	470132..470575	-	147	16752713	-	CP0432	-	type III secretion chaperone
428	 43.58	0	470592..471791	-	399	16752714	-	CP0433	-	type III secreted protein SctW
429	 42.80	0	471820..473952	-	710	16752715	-	CP0434	-	type III secretion inner membrane protein SctV
430	 37.21	0	473952..475034	-	360	16752716	-	CP0435	-	type III secretion system protein
431	 40.00	0	475425..476519	+	364	16752717	-	CP0436	-	translation-associated GTPase
432	 39.05	0	476497..477423	-	308	16752718	-	CP0437	-	bifunctional riboflavin kinase/FMN adenylyltransferase
433	 41.10	0	477401..478108	-	235	16752719	truB	CP0438	-	tRNA pseudouridine synthase B
434	 34.51	-1	478154..478579	-	141	16752720	rbfA	CP0439	-	ribosome-binding factor A
435	 40.85	0	478530..481202	-	890	16752721	infB	CP0440	-	translation initiation factor IF-2
436	 37.16	0	481159..482463	-	434	16752722	nusA	CP0441	-	transcription elongation factor NusA
437	 36.95	-1	482564..484306	-	580	16752723	rpsA	CP0442	-	30S ribosomal protein S1
438	 29.86	-2	484750..484893	-	47	16752724	-	CP0443	-	hypothetical protein
439	 41.56	0	484998..485933	+	311	16752725	-	CP0444	-	thioredoxin reductase
440	 42.28	0	485925..486293	-	122	16752726	acpS	CP0445	-	4'-phosphopantetheinyl transferase
441	 37.94	0	486304..486759	-	151	16752727	-	CP0446	-	hypothetical protein
442	 38.57	0	486833..487711	+	292	16752728	-	CP0447	-	prolipoprotein diacylglyceryl transferase
443	 37.31	0	487850..490237	+	795	16752729	-	CP0448	-	putative inner membrane protein translocase component YidC
444	 37.31	0	490309..491691	+	460	16752730	dnaA	CP0449	-	chromosomal replication initiation protein
445	 41.80	0	491684..492049	-	121	16752731	-	CP0450	-	hypothetical protein
446	 38.87	0	492297..494771	+	824	16752732	-	CP0451	-	glycogen phosphorylase
447	 42.48	0	494849..496138	-	429	16752733	-	CP0452	-	branched-chain alpha-keto acid dehydrogenase subunit E2
448	 39.92	0	496143..497129	-	328	16752734	-	CP0453	-	pyruvate dehydrogenase, E1 component, beta subunit
449	 42.37	0	497122..498150	-	342	16752735	-	CP0454	-	pyruvate dehydrogenase, E1 component, alpha subunit
450	 34.68	-1	498325..499365	+	346	16752736	-	CP0455	-	hypothetical protein
451	 40.54	0	499414..500496	-	360	16752737	lpxD	CP0456	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
452	 33.91	-1	500518..501033	-	171	16752738	-	CP0457	-	cationic outer membrane protein OmpH, putative
453	 38.17	0	501128..503506	-	792	16752739	-	CP0458	-	outer membrane protein, putative
454	 36.32	-1	503865..504467	-	200	16752740	recR	CP0459	-	recombination protein RecR
455	 42.16	0	504562..505569	+	335	16752741	-	CP0460	-	3-oxoacyl-(acyl carrier protein) synthase III
456	 39.59	0	505586..506512	+	308	16752742	-	CP0461	-	acyl-carrier-protein S-malonyltransferase
457	 42.30	0	506518..507264	+	248	16752743	fabG	CP0462	-	3-ketoacyl-(acyl-carrier-protein) reductase
458	 31.25	-2	507420..507659	+	79	16752744	acpP	CP0463	-	acyl carrier protein
459	 34.78	-1	507778..508191	-	137	16752745	-	CP0464	-	cyclic nucleotide-binding protein
460	 38.84	0	508557..511334	-	925	16753073	-	CP0465	-	hypothetical protein
461	 44.61	+1	511444..512055	-	203	16752746	-	CP0466	-	hypothetical protein
462	 41.43	0	512086..512616	-	176	16752747	-	CP0467	-	inclusion membrane protein B
463	 40.40	0	512757..514241	-	494	16752748	-	CP0468	-	sodium-dependent transporter, putative
464	 38.30	0	514284..515471	-	395	16752749	-	CP0469	-	sodium:dicarboxylate symporter family protein
465	 41.08	0	515567..516715	+	382	16752750	-	CP0470	-	hypothetical protein
466	 38.81	0	517062..519197	+	711	16752751	-	CP0471	-	hypothetical protein
467	 41.54	0	519224..520636	+	470	16752752	-	CP0472	-	magnesium transporter
468	 39.15	0	520688..522235	+	515	16752753	-	CP0473	-	hypothetical protein
469	 39.16	0	522238..522735	+	165	16752754	-	CP0474	-	hypothetical protein
470	 39.30	0	523751..525157	-	468	16752755	-	CP0476	-	amino acid antiporter
471	 39.90	0	525177..526226	-	349	16752756	-	CP0477	-	fructose-bisphosphate aldolase
472	 36.06	-1	526711..527736	+	341	16752757	-	CP0478	-	ABC transporter, ATP-binding protein
473	 39.64	0	527746..528411	+	221	16752758	-	CP0479	-	ABC transporter, permease protein
474	 36.39	-1	528408..529226	+	272	16752759	-	CP0480	-	putative lipoprotein
475	 39.02	0	529373..529882	+	169	16752760	-	CP0481	-	hypothetical protein
476	 30.67	-2	529898..530047	+	49	16752761	-	CP0482	-	hypothetical protein
477	 35.34	-1	530146..530493	+	115	16752762	-	CP0483	-	hypothetical protein
478	 39.25	0	530497..532914	+	805	16752763	gyrB	CP0484	-	DNA gyrase subunit B
479	 40.96	0	532930..535434	+	834	16752764	-	CP0485	-	DNA gyrase subunit A
480	 42.83	0	535439..536059	+	206	16752765	tdk	CP0486	-	thymidylate kinase
481	 38.91	0	536050..536946	+	298	16752766	-	CP0487	-	DNA polymerase III subunit delta'
482	 40.71	0	536918..537649	-	243	16752767	-	CP0488	-	serine esterase, putative
483	 37.51	0	537958..538818	+	286	16752768	-	CP0489	-	Sua5/YciO/YrdC family protein
484	 40.18	0	538833..539810	+	325	16752769	-	CP0490	-	dipeptidase, putative
485	 39.01	0	539816..539956	-	46	16752770	-	CP0491	-	hypothetical protein
486	 43.93	0	539962..540348	-	128	16752771	-	CP0492	-	hypothetical protein
487	 40.78	0	540370..541161	-	263	16752772	-	CP0493	-	hypothetical protein
488	 26.26	-2	541264..541362	-	32	16752773	-	CP0494	-	hypothetical protein
489	 42.67	0	541404..542099	-	231	16752774	-	CP0495	-	hypothetical protein
490	 34.45	-1	542663..543556	+	297	16752775	ubiA	CP0496	-	prenyltransferase
491	 39.55	0	543553..544131	+	192	16752776	-	CP0497	-	aromatic acid decarboxylase
492	 39.84	0	544144..545034	-	296	16752777	-	CP0498	-	hypothetical protein
493	 40.90	0	545347..546192	-	281	16752778	surE	CP0499	-	stationary phase survival protein SurE
494	 41.90	0	546247..546981	-	244	16752779	-	CP0500	-	hypothetical protein
495	 35.47	-1	547223..547738	+	171	16752780	-	CP0501	-	hypothetical protein
496	 34.26	-1	547932..548039	-	35	16752781	-	CP0502	-	hypothetical protein
497	 38.43	0	549156..550019	+	287	16752782	-	CP0504	-	hypothetical protein
498	 37.24	0	550019..550888	+	289	16752783	-	CP0505	-	hypothetical protein
499	 38.45	0	551118..551957	+	279	16752784	-	CP0506	-	hypothetical protein
500	 39.90	0	552021..552827	+	268	16752785	-	CP0507	-	hypothetical protein
501	 37.76	0	553721..555232	-	503	16752786	-	CP0510	-	hypothetical protein
502	 33.96	-1	555226..555384	+	52	16752787	rpmG	CP0511	-	50S ribosomal protein L33
503	 38.49	0	555442..556953	+	503	16752788	-	CP0512	-	hypothetical protein
504	 39.35	0	556956..557636	+	226	16752789	-	CP0513	-	ABC transporter, ATP-binding protein
505	 30.00	-2	557675..557824	+	49	16752790	-	CP0514	-	hypothetical protein
506	 37.11	0	557868..558317	+	149	16752791	rplM	CP0515	-	50S ribosomal protein L13
507	 37.04	-1	558331..558735	+	134	16752792	rpsI	CP0516	-	30S ribosomal protein S9
508	 40.68	0	558781..559638	-	285	16752793	-	CP0517	-	NLP/P60 family protein
509	 40.97	0	559724..560365	-	213	16752794	adk	CP0518	-	adenylate kinase
510	 38.03	0	560728..561153	+	141	16752795	-	CP0519	-	hypothetical protein
511	 38.62	0	561365..561799	+	144	16752796	-	CP0520	-	hypothetical protein
512	 41.56	0	561929..563083	+	384	16752797	-	CP0521	-	hypothetical protein
513	 43.70	0	563422..564588	+	388	16752798	-	CP0522	-	hypothetical protein
514	 36.70	-1	564608..565408	-	266	16752799	-	CP0523	-	6-phosphogluconolactonase
515	 39.64	0	565442..566980	-	512	16752800	-	CP0524	-	glucose-6-phosphate 1-dehydrogenase
516	 40.00	0	567066..567530	-	154	16752801	-	CP0525	-	Holliday junction resolvase-like protein
517	 41.70	0	567514..569127	-	537	16752802	-	CP0526	-	CTP synthetase
40.53	MEAN

3.43	STD DEV
