IslandPath Analysis: Chlamydophila pneumoniae AR39

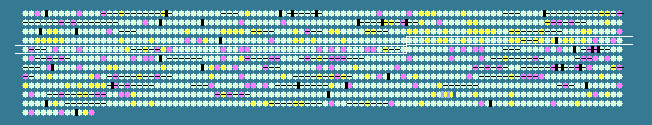

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
365	 41.93	0	407179..408678	+	499	16752653	-	CP0370	-	leucyl aminopeptidase
366	 42.97	0	408820..409338	+	172	16752654	-	CP0371	-	Hc2 nucleoprotein
367	 42.41	0	409504..410451	+	315	16752655	-	CP0372	-	hypothetical protein
368	 45.19	+1	410448..411164	+	238	16752656	-	CP0373	-	tetrapyrrole methylase family protein
369	 41.56	0	411330..411560	-	76	16752657	-	CP0374	-	hypothetical protein
370	 44.23	+1	411595..413163	+	522	16752658	-	CP0375	-	hypothetical protein
371	 44.98	+1	413318..414502	-	394	16752659	-	CP0376	-	coproporphyrinogen III oxidase
372	 43.62	0	414429..414875	-	148	16752660	-	CP0377	-	hypothetical protein
373	 42.17	0	415029..417755	+	908	16752661	kgd	CP0378	-	alpha-ketoglutarate decarboxylase
374	 44.47	+1	417759..418853	+	364	16752662	-	CP0379	-	dihydrolipoamide acetyltransferase
375	 38.51	0	418900..419343	-	147	16752663	-	CP0380	-	hypothetical protein
376	 42.37	0	419579..420076	-	165	16752664	-	CP0381	-	hypothetical protein
377	 46.59	+1	420233..420979	-	248	16752665	-	CP0382	-	hypothetical protein
378	 43.59	0	420976..422817	-	613	16752666	-	CP0383	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
379	 40.74	0	423046..423153	-	35	16752667	-	CP0384	-	hypothetical protein
380	 41.19	0	423193..423510	-	105	16752668	-	CP0385	-	hypothetical protein
381	 40.83	0	423691..424050	-	119	16752669	-	CP0386	-	hypothetical protein
382	 44.80	+1	424282..425397	-	371	16752670	-	CP0387	-	hypothetical protein
383	 46.17	+1	425632..426846	-	404	16752671	-	CP0388	-	hypothetical protein
384	 46.46	+1	426961..427059	-	32	16752672	-	CP0389	-	hypothetical protein
385	 42.06	0	427087..427407	-	106	16753077	-	CP0389.1	-	hypothetical protein
386	 44.99	+1	427358..428095	-	245	16753078	-	CP0390	-	hypothetical protein
387	 44.23	+1	428754..429221	-	155	16752673	-	CP0391	-	hypothetical protein
388	 41.26	0	429650..430684	-	344	16752674	-	CP0392	-	hypothetical protein
389	 44.20	+1	430956..431231	-	91	16752675	-	CP0393	-	ferredoxin
390	 41.05	0	431509..433257	+	582	16752676	-	CP0394	-	type III secretion system protein
391	 44.19	+1	433372..434145	+	257	16752677	-	CP0395	-	RNA polymerase sigma factor sigma-28
392	 45.99	+1	434094..434417	-	107	16752678	-	CP0396	-	hypothetical protein
393	 41.65	0	434580..435818	+	412	16752679	-	CP0397	-	tyrosyl-tRNA synthetase
394	 44.03	+1	435839..437278	+	479	16752680	-	CP0398	-	6-phosphogluconate dehydrogenase
395	 40.85	0	437377..439185	-	602	16752681	-	CP0399	-	GTP-binding protein LepA
396	 33.90	-1	439446..439622	+	58	16752682	-	CP0400	-	hypothetical protein
397	 38.26	0	439880..440731	+	283	16752683	-	CP0401	-	hypothetical protein
398	 38.14	0	440738..441091	+	117	16752684	-	CP0402	-	hypothetical protein
399	 33.33	-2	441125..441241	+	38	16752685	-	CP0403	-	hypothetical protein
400	 38.99	0	441302..442609	+	435	16752686	-	CP0404	-	hypothetical protein
401	 37.64	0	442687..444078	-	463	16752687	-	CP0405	-	hypothetical protein
402	 23.17	-2	444059..444304	-	81	16752688	-	CP0406	-	hypothetical protein
403	 37.78	0	444364..445644	-	426	16752689	-	CP0407	-	hypothetical protein
404	 40.50	0	445762..447309	-	515	16752690	-	CP0408	-	ADP, ATP carrier protein
405	 40.12	0	447510..448025	-	171	16752691	-	CP0409	-	hypothetical protein
406	 22.06	-2	448193..448396	-	67	16752692	-	CP0410	-	hypothetical protein
407	 40.04	0	448512..449495	+	327	16752693	-	CP0411	-	ABC transporter, periplasmic substrate-binding protein, putative
408	 40.90	0	449479..450258	+	259	16752694	-	CP0412	-	ABC transporter, ATP-binding protein
409	 39.16	0	450252..451607	+	451	16752695	-	CP0413	-	ABC transporter, permease protein, putative
410	 36.41	-1	451607..452581	+	324	16752696	-	CP0414	-	ABC transporter, permease protein, putative
411	 40.26	0	452710..453849	+	379	16752697	-	CP0415	-	1-deoxy-D-xylulose 5-phosphate reductoisomerase
412	 40.30	0	453862..455727	+	621	16752698	-	CP0416	-	zinc protease
413	 40.08	0	455684..456661	-	325	16752699	-	CP0417	-	hypothetical protein
414	 40.24	0	457905..459005	-	366	16752700	-	CP0419	-	DNA polymerase III subunit beta
415	 38.67	0	459035..459184	+	49	16752701	-	CP0420	-	hypothetical protein
416	 42.77	0	459214..459711	+	165	16752702	smpB	CP0421	-	SsrA-binding protein
417	 40.63	0	459689..460633	-	314	16752703	-	CP0422	-	thiamine biosynthesis lipoprotein
418	 46.46	+1	460606..461466	-	286	16752704	-	CP0423	-	methylenetetrahydrofolate dehydrogenase/methenyltetrahydrofolate cyclohydrolase
419	 39.57	0	461457..461921	-	154	16752705	-	CP0424	-	hypothetical protein
420	 39.12	0	462193..462486	+	97	16752706	-	CP0425	-	hypothetical protein
421	 45.80	+1	462846..464585	+	579	16752707	-	CP0426	-	hypothetical protein
422	 39.83	0	464608..465084	+	158	16752708	-	CP0427	-	hypothetical protein
423	 35.40	-1	465134..466195	-	353	16752709	-	CP0428	-	phospholipase D family protein
424	 44.05	+1	466288..468042	-	584	16752710	-	CP0429	-	hypothetical protein
425	 37.04	-1	468069..468338	-	89	16752711	rpmB	CP0430	-	50S ribosomal protein L28
426	 40.42	0	468555..470135	-	526	16752712	-	CP0431	-	4-alpha-glucanotransferase
427	 41.44	0	470132..470575	-	147	16752713	-	CP0432	-	type III secretion chaperone
428	 43.58	0	470592..471791	-	399	16752714	-	CP0433	-	type III secreted protein SctW
429	 42.80	0	471820..473952	-	710	16752715	-	CP0434	-	type III secretion inner membrane protein SctV
430	 37.21	0	473952..475034	-	360	16752716	-	CP0435	-	type III secretion system protein
431	 40.00	0	475425..476519	+	364	16752717	-	CP0436	-	translation-associated GTPase
432	 39.05	0	476497..477423	-	308	16752718	-	CP0437	-	bifunctional riboflavin kinase/FMN adenylyltransferase
433	 41.10	0	477401..478108	-	235	16752719	truB	CP0438	-	tRNA pseudouridine synthase B
434	 34.51	-1	478154..478579	-	141	16752720	rbfA	CP0439	-	ribosome-binding factor A
435	 40.85	0	478530..481202	-	890	16752721	infB	CP0440	-	translation initiation factor IF-2
436	 37.16	0	481159..482463	-	434	16752722	nusA	CP0441	-	transcription elongation factor NusA
437	 36.95	-1	482564..484306	-	580	16752723	rpsA	CP0442	-	30S ribosomal protein S1
438	 29.86	-2	484750..484893	-	47	16752724	-	CP0443	-	hypothetical protein
439	 41.56	0	484998..485933	+	311	16752725	-	CP0444	-	thioredoxin reductase
440	 42.28	0	485925..486293	-	122	16752726	acpS	CP0445	-	4'-phosphopantetheinyl transferase
441	 37.94	0	486304..486759	-	151	16752727	-	CP0446	-	hypothetical protein
442	 38.57	0	486833..487711	+	292	16752728	-	CP0447	-	prolipoprotein diacylglyceryl transferase
443	 37.31	0	487850..490237	+	795	16752729	-	CP0448	-	putative inner membrane protein translocase component YidC
444	 37.31	0	490309..491691	+	460	16752730	dnaA	CP0449	-	chromosomal replication initiation protein
445	 41.80	0	491684..492049	-	121	16752731	-	CP0450	-	hypothetical protein
446	 38.87	0	492297..494771	+	824	16752732	-	CP0451	-	glycogen phosphorylase
447	 42.48	0	494849..496138	-	429	16752733	-	CP0452	-	branched-chain alpha-keto acid dehydrogenase subunit E2
448	 39.92	0	496143..497129	-	328	16752734	-	CP0453	-	pyruvate dehydrogenase, E1 component, beta subunit
449	 42.37	0	497122..498150	-	342	16752735	-	CP0454	-	pyruvate dehydrogenase, E1 component, alpha subunit
450	 34.68	-1	498325..499365	+	346	16752736	-	CP0455	-	hypothetical protein
451	 40.54	0	499414..500496	-	360	16752737	lpxD	CP0456	-	UDP-3-O-[3-hydroxymyristoyl] glucosamine N-acyltransferase
452	 33.91	-1	500518..501033	-	171	16752738	-	CP0457	-	cationic outer membrane protein OmpH, putative
453	 38.17	0	501128..503506	-	792	16752739	-	CP0458	-	outer membrane protein, putative
454	 36.32	-1	503865..504467	-	200	16752740	recR	CP0459	-	recombination protein RecR
455	 42.16	0	504562..505569	+	335	16752741	-	CP0460	-	3-oxoacyl-(acyl carrier protein) synthase III
456	 39.59	0	505586..506512	+	308	16752742	-	CP0461	-	acyl-carrier-protein S-malonyltransferase
457	 42.30	0	506518..507264	+	248	16752743	fabG	CP0462	-	3-ketoacyl-(acyl-carrier-protein) reductase
458	 31.25	-2	507420..507659	+	79	16752744	acpP	CP0463	-	acyl carrier protein
459	 34.78	-1	507778..508191	-	137	16752745	-	CP0464	-	cyclic nucleotide-binding protein
460	 38.84	0	508557..511334	-	925	16753073	-	CP0465	-	hypothetical protein
461	 44.61	+1	511444..512055	-	203	16752746	-	CP0466	-	hypothetical protein
462	 41.43	0	512086..512616	-	176	16752747	-	CP0467	-	inclusion membrane protein B
463	 40.40	0	512757..514241	-	494	16752748	-	CP0468	-	sodium-dependent transporter, putative
464	 38.30	0	514284..515471	-	395	16752749	-	CP0469	-	sodium:dicarboxylate symporter family protein
40.53	MEAN

3.43	STD DEV
