IslandPath Analysis: Chlamydophila pneumoniae AR39

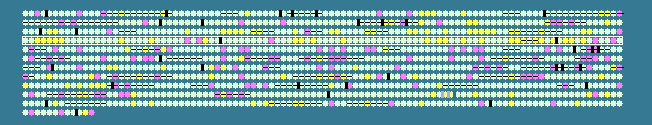

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
301	 40.77	0	336779..337894	+	371	16752592	-	CP0305	-	hypothetical protein
302	 43.92	0	338235..341021	-	928	16752593	-	CP0306	-	polymorphic membrane protein G family protein
303	 44.72	+1	341171..343963	-	930	16752594	-	CP0307	-	polymorphic membrane protein G family protein
304	 44.57	+1	344007..346817	-	936	16752595	-	CP0308	-	polymorphic membrane protein G family protein
305	 44.51	+1	347079..350909	-	1276	16752596	-	CP0309	-	polymorphic membrane protein G family protein
306	 46.89	+1	351214..352467	-	417	16752597	-	CP0310	-	hypothetical protein
307	 45.47	+1	352665..353183	-	172	16752598	-	CP0311	-	hypothetical protein
308	 41.01	0	353355..354305	-	316	16753070	-	CP0312	-	hypothetical protein
309	 41.94	0	354453..355091	-	212	16752599	-	CP0313	-	hypothetical protein
310	 41.29	0	355116..355643	-	175	16752600	-	CP0314	-	hypothetical protein
311	 43.65	0	355780..356865	+	361	16752601	trmU	CP0315	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
312	 43.70	0	356843..359380	-	845	16752602	-	CP0316	-	ATP-dependent Clp protease, ATP-binding subunit
313	 42.92	0	359578..360297	+	239	16752603	-	CP0317	-	hypothetical protein
314	 41.51	0	360294..361724	+	476	16752604	-	CP0318	-	phospholipase D family protein
315	 42.10	0	361734..363923	+	729	16752605	-	CP0319	-	hypothetical protein
316	 41.95	0	363923..364270	+	115	16752606	-	CP0320	-	glycine cleavage system protein H
317	 44.44	+1	364380..364685	+	101	16752607	-	CP0321	-	hypothetical protein
318	 41.07	0	364713..365048	+	111	16752608	-	CP0322	-	hypothetical protein
319	 43.71	0	365100..365870	-	256	16752609	-	CP0323	-	Na(+)-translocating NADH-quinone reductase subunit E
320	 40.03	0	365874..366515	-	213	16752610	-	CP0324	-	Na(+)-translocating NADH-quinone reductase subunit D
321	 41.74	0	366512..367474	-	320	16752611	-	CP0325	-	Na(+)-translocating NADH-quinone reductase subunit C
322	 44.18	+1	367478..368989	-	503	16752612	-	CP0326	-	Na(+)-translocating NADH-quinone reductase subunit B
323	 42.49	0	369085..369663	+	192	16753071	-	CP0327	-	hypothetical protein
324	 42.52	0	369629..370216	-	195	16752613	-	CP0328	-	hypothetical protein
325	 37.89	0	370232..371635	-	467	16752614	dnaA	CP0329	-	chromosomal replication initiation protein
326	 39.16	0	371977..372405	-	142	16752615	-	CP0330	-	hypothetical protein
327	 39.19	0	372409..372954	-	181	16752616	-	CP0331	-	hypothetical protein
328	 35.83	-1	373061..373180	-	39	16752617	-	CP0332	-	hypothetical protein
329	 42.73	0	373198..374091	+	297	16752618	mraW	CP0333	-	S-adenosyl-methyltransferase MraW
330	 35.07	-1	374088..374375	+	95	16752619	-	CP0334	-	hypothetical protein
331	 44.24	+1	374362..376323	+	653	16752620	-	CP0335	-	penicillin-binding protein
332	 42.70	0	376796..378247	+	483	16752621	murE	CP0336	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
333	 42.89	0	378162..378956	+	264	16752622	-	CP0337	-	N-acetylmuramoyl-L-alanine amidase, putative
334	 40.26	0	379341..379643	+	100	16752623	-	CP0338	-	integration host factor beta-subunit, putative
335	 42.55	0	379765..380979	+	404	16752624	-	CP0339	-	hypothetical protein
336	 42.46	0	381054..382028	+	324	16752625	-	CP0340	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
337	 40.00	0	381994..383973	+	659	16752626	-	CP0341	-	ABC transporter, ATP-binding protein
338	 41.36	0	383948..384607	-	219	16752627	-	CP0342	-	hypothetical protein
339	 42.44	0	384585..385364	-	259	16752628	-	CP0343	-	hypothetical protein
340	 41.60	0	385361..386074	-	237	16752629	-	CP0344	-	DNA polymerase III subunit epsilon
341	 37.45	0	386067..386552	-	161	16752630	-	CP0345	-	hypothetical protein
342	 35.83	-1	386613..387092	-	159	16752631	-	CP0346	-	hypothetical protein
343	 42.19	0	387279..387470	+	63	16752632	-	CP0347	-	hypothetical protein
344	 41.55	0	387455..388342	+	295	16752633	-	CP0348	-	hypothetical protein
345	 43.78	0	388329..389228	-	299	16752634	-	CP0349	-	enoyl-(acyl carrier protein) reductase
346	 48.01	+2	389458..390234	+	258	16752635	-	CP0350	-	hypothetical protein
347	 45.39	+1	390310..391329	+	339	16752636	-	CP0351	-	hypothetical protein
348	 40.81	0	392203..393312	+	369	16753072	-	CP0353	-	A/G-specific adenine glycosylase
349	 46.06	+1	393313..393705	+	130	16752637	-	CP0354	-	mazG protein, putative
350	 41.21	0	393888..394661	-	257	16752638	-	CP0355	-	hypothetical protein
351	 42.59	0	394671..395318	-	215	16752639	-	CP0356	-	hypothetical protein
352	 38.01	0	395494..395664	-	56	16752640	-	CP0357	-	hypothetical protein
353	 43.90	0	396082..396819	+	245	16752641	-	CP0358	-	serine/threonine protein phosphatase, putative
354	 44.62	+1	396844..397959	+	371	16752642	-	CP0359	-	nifS protein, putative
355	 37.20	0	398019..399233	-	404	16752643	-	CP0360	-	hypothetical protein
356	 39.81	0	399226..400461	-	411	16752644	-	CP0361	-	hypothetical protein
357	 41.09	0	400471..400818	-	115	16752645	-	CP0362	-	hypothetical protein
358	 40.66	0	400811..401383	-	190	16752646	dcd	CP0363	-	deoxycytidine triphosphate deaminase
359	 37.10	-1	401505..401690	+	61	16752647	-	CP0364	-	hypothetical protein
360	 42.50	0	402053..403066	+	337	16752648	ruvB	CP0365	-	Holliday junction DNA helicase B
361	 40.66	0	403063..403881	+	272	16752649	-	CP0366	-	hypothetical protein
362	 43.16	0	403874..405868	-	664	16752650	-	CP0367	-	glycosyl hydrolase family protein
363	 40.12	0	406001..406501	+	166	16752651	-	CP0368	-	hypothetical protein
364	 41.61	0	406672..407154	+	160	16752652	-	CP0369	-	single-strand DNA-binding protein
365	 41.93	0	407179..408678	+	499	16752653	-	CP0370	-	leucyl aminopeptidase
366	 42.97	0	408820..409338	+	172	16752654	-	CP0371	-	Hc2 nucleoprotein
367	 42.41	0	409504..410451	+	315	16752655	-	CP0372	-	hypothetical protein
368	 45.19	+1	410448..411164	+	238	16752656	-	CP0373	-	tetrapyrrole methylase family protein
369	 41.56	0	411330..411560	-	76	16752657	-	CP0374	-	hypothetical protein
370	 44.23	+1	411595..413163	+	522	16752658	-	CP0375	-	hypothetical protein
371	 44.98	+1	413318..414502	-	394	16752659	-	CP0376	-	coproporphyrinogen III oxidase
372	 43.62	0	414429..414875	-	148	16752660	-	CP0377	-	hypothetical protein
373	 42.17	0	415029..417755	+	908	16752661	kgd	CP0378	-	alpha-ketoglutarate decarboxylase
374	 44.47	+1	417759..418853	+	364	16752662	-	CP0379	-	dihydrolipoamide acetyltransferase
375	 38.51	0	418900..419343	-	147	16752663	-	CP0380	-	hypothetical protein
376	 42.37	0	419579..420076	-	165	16752664	-	CP0381	-	hypothetical protein
377	 46.59	+1	420233..420979	-	248	16752665	-	CP0382	-	hypothetical protein
378	 43.59	0	420976..422817	-	613	16752666	-	CP0383	-	4-hydroxy-3-methylbut-2-en-1-yl diphosphate synthase
379	 40.74	0	423046..423153	-	35	16752667	-	CP0384	-	hypothetical protein
380	 41.19	0	423193..423510	-	105	16752668	-	CP0385	-	hypothetical protein
381	 40.83	0	423691..424050	-	119	16752669	-	CP0386	-	hypothetical protein
382	 44.80	+1	424282..425397	-	371	16752670	-	CP0387	-	hypothetical protein
383	 46.17	+1	425632..426846	-	404	16752671	-	CP0388	-	hypothetical protein
384	 46.46	+1	426961..427059	-	32	16752672	-	CP0389	-	hypothetical protein
385	 42.06	0	427087..427407	-	106	16753077	-	CP0389.1	-	hypothetical protein
386	 44.99	+1	427358..428095	-	245	16753078	-	CP0390	-	hypothetical protein
387	 44.23	+1	428754..429221	-	155	16752673	-	CP0391	-	hypothetical protein
388	 41.26	0	429650..430684	-	344	16752674	-	CP0392	-	hypothetical protein
389	 44.20	+1	430956..431231	-	91	16752675	-	CP0393	-	ferredoxin
390	 41.05	0	431509..433257	+	582	16752676	-	CP0394	-	type III secretion system protein
391	 44.19	+1	433372..434145	+	257	16752677	-	CP0395	-	RNA polymerase sigma factor sigma-28
392	 45.99	+1	434094..434417	-	107	16752678	-	CP0396	-	hypothetical protein
393	 41.65	0	434580..435818	+	412	16752679	-	CP0397	-	tyrosyl-tRNA synthetase
394	 44.03	+1	435839..437278	+	479	16752680	-	CP0398	-	6-phosphogluconate dehydrogenase
395	 40.85	0	437377..439185	-	602	16752681	-	CP0399	-	GTP-binding protein LepA
396	 33.90	-1	439446..439622	+	58	16752682	-	CP0400	-	hypothetical protein
397	 38.26	0	439880..440731	+	283	16752683	-	CP0401	-	hypothetical protein
398	 38.14	0	440738..441091	+	117	16752684	-	CP0402	-	hypothetical protein
399	 33.33	-2	441125..441241	+	38	16752685	-	CP0403	-	hypothetical protein
400	 38.99	0	441302..442609	+	435	16752686	-	CP0404	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
