IslandPath Analysis: Chlamydophila pneumoniae AR39

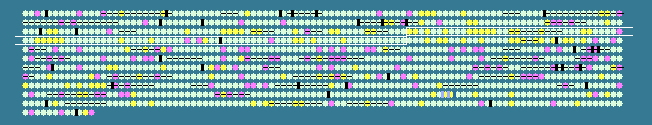

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome.
Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below
--(default is +/- 3.48 of the mean %G+C).
Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff.
Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).




A yellow circle indicates its %G+C value is bigger than the high value.
A green circle indicates its %G+C value is bigger than the low value and smaller than the high value.
A pink circle indicates its %G+C value is smaller than the low value.

A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV.
A black verticle bar indicates a transfer RNA gene lies between the two ORFs.
A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs.
A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs.
A black square indicates the dot is annotated as a transposase.
A black triangle indicates the dot is annotated as an integrase.


Low:  High:    Mean: 40.53   STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
265	 44.73	+1	271846..273477	+	543	16752556	-	CP0267	-	hypothetical protein
266	 45.24	+1	273850..275184	+	444	16752557	-	CP0268	-	sodium:solute symporter family protein
267	 41.03	0	275354..275548	-	64	16752558	-	CP0269	-	hypothetical protein
268	 48.83	+2	275759..276616	-	285	16752559	-	CP0270	-	3-deoxy-7-phosphoheptulonate synthase
269	 43.17	0	276619..279720	-	1033	16752560	-	CP0271	-	hypothetical protein
270	 41.15	0	279849..280628	+	259	16752561	-	CP0272	-	amino acid ABC transporter, periplasmic amino acid-binding protein
271	 44.60	+1	282284..282940	+	218	16752562	-	CP0274	-	hypothetical protein
272	 42.19	0	283162..283974	+	270	16752563	-	CP0275	-	metal-dependent hydrolase, putative
273	 43.90	0	283962..285380	+	472	16752564	-	CP0276	-	GTP-binding protein HflX, putative
274	 43.05	0	285481..286746	+	421	16752565	-	CP0277	-	hypothetical protein
275	 45.76	+1	286743..287732	+	329	16752566	-	CP0278	-	hypothetical protein
276	 45.77	+1	287743..289905	+	720	16752567	-	CP0279	-	glycogen branching enzyme
277	 45.08	+1	290014..291783	+	589	16752568	-	CP0280	-	hypothetical protein
278	 46.43	+1	291994..293520	+	508	16752569	-	CP0281	-	hypothetical protein
279	 46.61	+1	293682..296009	+	775	16752570	-	CP0282	-	hypothetical protein
280	 41.46	0	296183..299023	-	946	16752571	-	CP0283	-	polymorphic membrane protein E/F family protein
281	 43.58	0	302150..305008	-	952	16752572	-	CP0285	-	polymorphic membrane protein E/F family protein
282	 44.02	+1	305047..307863	-	938	16752573	-	CP0286	-	polymorphic membrane protein E/F family protein
283	 44.06	+1	308375..308719	+	114	16752574	-	CP0287	-	hypothetical protein
284	 43.12	0	308745..309224	+	159	16752575	-	CP0288	-	hypothetical protein
285	 42.56	0	309230..310399	+	389	16752576	-	CP0289	-	hypothetical protein
286	 43.44	0	310535..312553	+	672	16752577	-	CP0290	-	hypothetical protein
287	 44.36	+1	312949..313746	+	265	16752578	-	CP0291	-	hypothetical protein
288	 43.08	0	313747..314598	+	283	16752579	-	CP0292	-	hypothetical protein
289	 40.26	0	314582..314971	+	129	16752580	-	CP0293	-	hypothetical protein
290	 43.63	0	315267..317354	+	695	16752581	-	CP0294	-	hypothetical protein
291	 42.96	0	317722..319611	+	629	16752582	-	CP0295	-	hypothetical protein
292	 41.46	0	319632..319754	+	40	16752583	-	CP0296	-	hypothetical protein
293	 43.67	0	320055..322133	+	692	16752584	-	CP0297	-	hypothetical protein
294	 45.01	+1	322470..325406	-	978	16752585	-	CP0298	-	polymorphic membrane protein H family protein
295	 44.11	+1	325433..328420	-	995	16752586	-	CP0299	-	polymorphic membrane protein G family protein
296	 38.54	0	328540..328635	-	31	16752587	-	CP0300	-	hypothetical protein
297	 43.88	0	328725..330269	-	514	16752588	-	CP0301	-	polymorphic membrane protein G family protein
298	 43.30	0	330527..333376	-	949	16752589	-	CP0302	-	polymorphic membrane protein G family protein
299	 42.66	0	333476..336262	+	928	16752590	-	CP0303	-	polymorphic membrane protein G family protein
300	 35.77	-1	336620..336742	-	40	16752591	-	CP0304	-	hypothetical protein
301	 40.77	0	336779..337894	+	371	16752592	-	CP0305	-	hypothetical protein
302	 43.92	0	338235..341021	-	928	16752593	-	CP0306	-	polymorphic membrane protein G family protein
303	 44.72	+1	341171..343963	-	930	16752594	-	CP0307	-	polymorphic membrane protein G family protein
304	 44.57	+1	344007..346817	-	936	16752595	-	CP0308	-	polymorphic membrane protein G family protein
305	 44.51	+1	347079..350909	-	1276	16752596	-	CP0309	-	polymorphic membrane protein G family protein
306	 46.89	+1	351214..352467	-	417	16752597	-	CP0310	-	hypothetical protein
307	 45.47	+1	352665..353183	-	172	16752598	-	CP0311	-	hypothetical protein
308	 41.01	0	353355..354305	-	316	16753070	-	CP0312	-	hypothetical protein
309	 41.94	0	354453..355091	-	212	16752599	-	CP0313	-	hypothetical protein
310	 41.29	0	355116..355643	-	175	16752600	-	CP0314	-	hypothetical protein
311	 43.65	0	355780..356865	+	361	16752601	trmU	CP0315	-	tRNA (5-methylaminomethyl-2-thiouridylate)-methyltransferase
312	 43.70	0	356843..359380	-	845	16752602	-	CP0316	-	ATP-dependent Clp protease, ATP-binding subunit
313	 42.92	0	359578..360297	+	239	16752603	-	CP0317	-	hypothetical protein
314	 41.51	0	360294..361724	+	476	16752604	-	CP0318	-	phospholipase D family protein
315	 42.10	0	361734..363923	+	729	16752605	-	CP0319	-	hypothetical protein
316	 41.95	0	363923..364270	+	115	16752606	-	CP0320	-	glycine cleavage system protein H
317	 44.44	+1	364380..364685	+	101	16752607	-	CP0321	-	hypothetical protein
318	 41.07	0	364713..365048	+	111	16752608	-	CP0322	-	hypothetical protein
319	 43.71	0	365100..365870	-	256	16752609	-	CP0323	-	Na(+)-translocating NADH-quinone reductase subunit E
320	 40.03	0	365874..366515	-	213	16752610	-	CP0324	-	Na(+)-translocating NADH-quinone reductase subunit D
321	 41.74	0	366512..367474	-	320	16752611	-	CP0325	-	Na(+)-translocating NADH-quinone reductase subunit C
322	 44.18	+1	367478..368989	-	503	16752612	-	CP0326	-	Na(+)-translocating NADH-quinone reductase subunit B
323	 42.49	0	369085..369663	+	192	16753071	-	CP0327	-	hypothetical protein
324	 42.52	0	369629..370216	-	195	16752613	-	CP0328	-	hypothetical protein
325	 37.89	0	370232..371635	-	467	16752614	dnaA	CP0329	-	chromosomal replication initiation protein
326	 39.16	0	371977..372405	-	142	16752615	-	CP0330	-	hypothetical protein
327	 39.19	0	372409..372954	-	181	16752616	-	CP0331	-	hypothetical protein
328	 35.83	-1	373061..373180	-	39	16752617	-	CP0332	-	hypothetical protein
329	 42.73	0	373198..374091	+	297	16752618	mraW	CP0333	-	S-adenosyl-methyltransferase MraW
330	 35.07	-1	374088..374375	+	95	16752619	-	CP0334	-	hypothetical protein
331	 44.24	+1	374362..376323	+	653	16752620	-	CP0335	-	penicillin-binding protein
332	 42.70	0	376796..378247	+	483	16752621	murE	CP0336	-	UDP-N-acetylmuramoylalanyl-D-glutamate--2,6-diaminopimelate ligase
333	 42.89	0	378162..378956	+	264	16752622	-	CP0337	-	N-acetylmuramoyl-L-alanine amidase, putative
334	 40.26	0	379341..379643	+	100	16752623	-	CP0338	-	integration host factor beta-subunit, putative
335	 42.55	0	379765..380979	+	404	16752624	-	CP0339	-	hypothetical protein
336	 42.46	0	381054..382028	+	324	16752625	-	CP0340	-	acetyl-CoA carboxylase carboxyltransferase subunit alpha
337	 40.00	0	381994..383973	+	659	16752626	-	CP0341	-	ABC transporter, ATP-binding protein
338	 41.36	0	383948..384607	-	219	16752627	-	CP0342	-	hypothetical protein
339	 42.44	0	384585..385364	-	259	16752628	-	CP0343	-	hypothetical protein
340	 41.60	0	385361..386074	-	237	16752629	-	CP0344	-	DNA polymerase III subunit epsilon
341	 37.45	0	386067..386552	-	161	16752630	-	CP0345	-	hypothetical protein
342	 35.83	-1	386613..387092	-	159	16752631	-	CP0346	-	hypothetical protein
343	 42.19	0	387279..387470	+	63	16752632	-	CP0347	-	hypothetical protein
344	 41.55	0	387455..388342	+	295	16752633	-	CP0348	-	hypothetical protein
345	 43.78	0	388329..389228	-	299	16752634	-	CP0349	-	enoyl-(acyl carrier protein) reductase
346	 48.01	+2	389458..390234	+	258	16752635	-	CP0350	-	hypothetical protein
347	 45.39	+1	390310..391329	+	339	16752636	-	CP0351	-	hypothetical protein
348	 40.81	0	392203..393312	+	369	16753072	-	CP0353	-	A/G-specific adenine glycosylase
349	 46.06	+1	393313..393705	+	130	16752637	-	CP0354	-	mazG protein, putative
350	 41.21	0	393888..394661	-	257	16752638	-	CP0355	-	hypothetical protein
351	 42.59	0	394671..395318	-	215	16752639	-	CP0356	-	hypothetical protein
352	 38.01	0	395494..395664	-	56	16752640	-	CP0357	-	hypothetical protein
353	 43.90	0	396082..396819	+	245	16752641	-	CP0358	-	serine/threonine protein phosphatase, putative
354	 44.62	+1	396844..397959	+	371	16752642	-	CP0359	-	nifS protein, putative
355	 37.20	0	398019..399233	-	404	16752643	-	CP0360	-	hypothetical protein
356	 39.81	0	399226..400461	-	411	16752644	-	CP0361	-	hypothetical protein
357	 41.09	0	400471..400818	-	115	16752645	-	CP0362	-	hypothetical protein
358	 40.66	0	400811..401383	-	190	16752646	dcd	CP0363	-	deoxycytidine triphosphate deaminase
359	 37.10	-1	401505..401690	+	61	16752647	-	CP0364	-	hypothetical protein
360	 42.50	0	402053..403066	+	337	16752648	ruvB	CP0365	-	Holliday junction DNA helicase B
361	 40.66	0	403063..403881	+	272	16752649	-	CP0366	-	hypothetical protein
362	 43.16	0	403874..405868	-	664	16752650	-	CP0367	-	glycosyl hydrolase family protein
363	 40.12	0	406001..406501	+	166	16752651	-	CP0368	-	hypothetical protein
364	 41.61	0	406672..407154	+	160	16752652	-	CP0369	-	single-strand DNA-binding protein
40.53	MEAN

3.43	STD DEV
