IslandPath Analysis: Chlamydophila pneumoniae AR39

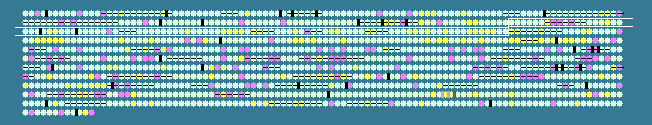

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
182	 39.33	0	185532..185681	-	49	16752473	-	CP0184	-	hypothetical protein
183	 43.42	0	185955..187055	+	366	16752474	-	CP0185	-	hypothetical protein
184	 40.63	0	187235..191443	+	1402	16752475	-	CP0186	-	bifunctional preprotein translocase subunit SecD/SecF
185	 43.35	0	191529..193295	+	588	16752476	-	CP0187	-	single-stranded-DNA-specific exonuclease RecJ
186	 43.14	0	193549..194670	+	373	16752477	-	CP0188	-	hypothetical protein
187	 39.48	0	195181..195717	+	178	16752478	-	CP0189	-	hypothetical protein
188	 45.52	+1	195973..197490	+	505	16752479	gltX	CP0190	-	glutamyl-tRNA synthetase
189	 36.51	-1	197655..197843	-	62	16752480	-	CP0191	-	hypothetical protein
190	 20.37	-2	198101..198208	+	35	16752481	-	CP0192	-	hypothetical protein
191	 41.39	0	198285..198557	+	90	16752482	omcA	CP0193	-	OmcA
192	 35.90	-1	198621..198737	-	38	16752483	-	CP0194	-	hypothetical protein
193	 42.61	0	198724..200394	+	556	16752484	omcB	CP0195	-	60 kDa outer membrane protein
194	 41.12	0	200673..201263	+	196	16752485	srp	CP0196	-	hypothetical protein
195	 40.68	0	201341..203287	-	648	16752486	-	CP0197	-	tail-specific protease precursor, putative
196	 40.89	0	203441..203731	-	96	16752487	-	CP0198	-	hypothetical protein
197	 40.36	0	203838..204776	+	312	16752488	-	CP0199	-	hypothetical protein
198	 44.35	+1	204998..205369	+	123	16752489	rpsL	CP0200	-	30S ribosomal protein S12
199	 42.19	0	205417..205890	+	157	16752490	-	CP0201	-	30S ribosomal protein S7
200	 41.73	0	205924..208008	+	694	16752491	-	CP0202	-	elongation factor G
201	 39.31	0	208016..208333	+	105	16752492	rpsJ	CP0203	-	30S ribosomal protein S10
202	 40.13	0	208354..209397	+	347	16752493	-	CP0204	-	oxidoreductase
203	 41.81	0	209394..209924	-	176	16752494	ispF	CP0205	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
204	 40.50	0	210356..210676	+	106	16752495	rplU	CP0206	-	50S ribosomal protein L21
205	 45.10	+1	210701..210955	+	84	16752496	rpmA	CP0207	-	50S ribosomal protein L27
206	 45.34	+1	211056..212063	+	335	161353773	obgE	CP0208	-	GTPase ObgE
207	 41.84	0	211979..212860	-	293	16752498	-	CP0209	-	ABC transporter, permease protein
208	 41.33	0	212845..213582	-	245	16752499	-	CP0210	-	ABC transporter, ATP-binding protein
209	 39.55	0	213579..214415	-	278	16752500	-	CP0211	-	ABC transporter, periplasmic substrate-binding protein, putative
210	 43.05	0	214720..219918	-	1732	16752501	-	CP0212	-	polymorphic membrane protein B/C family protein
211	 42.41	0	220037..222880	-	947	16752502	-	CP0213	-	polymorphic membrane protein A family protein
212	 38.28	0	223071..223373	-	100	16752503	-	CP0214	-	hypothetical protein
213	 38.61	0	223393..223752	-	119	16752504	-	CP0215	-	hypothetical protein
214	 42.81	0	223891..225240	-	449	16752505	-	CP0216	-	sodium/alanine symporter family protein
215	 36.69	-1	225286..225792	-	168	16752506	lspA	CP0217	-	lipoprotein signal peptidase
216	 39.10	0	225798..226196	-	132	16752507	-	CP0218	-	hypothetical protein
217	 38.13	0	226197..226655	-	152	16752508	-	CP0219	-	transcriptional regulator NrdR
218	 38.31	0	226911..227513	+	200	16752509	-	CP0220	-	riboflavin synthase subunit alpha
219	 43.24	0	227516..228343	+	275	16752510	-	CP0221	-	hypothetical protein
220	 38.60	0	228331..229128	+	265	16752511	-	CP0222	-	spoU rRNA methylase family protein
221	 43.81	0	229326..230423	+	365	16752512	lpxK	CP0223	-	tetraacyldisaccharide 4'-kinase
222	 42.17	0	230423..231667	+	414	16752513	-	CP0224	-	sodium:dicarboxylate symporter family protein
223	 43.91	0	231681..232862	+	393	16752514	-	CP0225	-	branched-chain alpha-keto acid dehydrogenase subunit E2
224	 41.11	0	232889..233878	+	329	16752515	-	CP0226	-	carbohydrate isomerase KpsF/GutQ family protein
225	 40.95	0	234013..234117	+	34	16752516	-	CP0227	-	hypothetical protein
226	 37.91	0	234299..235063	-	254	16752517	-	CP0228	-	hypothetical protein
227	 41.76	0	235403..236482	-	359	16752518	-	CP0229	-	hypothetical protein
228	 45.65	+1	236530..236862	-	110	16752519	-	CP0230	-	hypothetical protein
229	 42.26	0	236927..237598	-	223	16752520	hemD	CP0231	-	uroporphyrinogen-III synthase
230	 42.17	0	237854..239347	+	497	16752521	glyA	CP0232	-	serine hydroxymethyltransferase
231	 40.45	0	239367..239942	+	191	16752522	-	CP0233	-	ATP-dependent Clp protease proteolytic subunit
232	 43.67	0	239911..240684	+	257	16752523	dapF	CP0234	-	diaminopimelate epimerase
233	 38.36	0	240782..241756	+	324	16752524	-	CP0235	-	hypothetical protein
234	 45.00	+1	241954..242793	+	279	16752525	-	CP0236	-	hypothetical protein
235	 45.11	+1	242771..244333	+	520	16752526	-	CP0237	-	hypothetical protein
236	 44.68	+1	244401..245114	-	237	16752527	ubiE	CP0238	-	ubiquinone/menaquinone biosynthesis methyltransferase
237	 45.53	+1	245062..245856	-	264	16752528	-	CP0239	-	hypothetical protein
238	 43.06	0	245829..246938	-	369	16752529	-	CP0240	-	hypothetical protein
239	 44.02	+1	246910..247143	-	77	16752530	-	CP0241	-	hypothetical protein
240	 44.71	+1	247170..249032	-	620	16752531	-	CP0242	-	hypothetical protein
241	 39.60	0	249094..249444	-	116	16752532	-	CP0243	-	anti-anti-sigma factor
242	 43.99	+1	249609..250772	-	387	16752533	-	CP0244	-	hemolysin, putative
243	 38.78	0	250774..251250	-	158	16752534	-	CP0245	-	hypothetical protein
244	 38.89	0	251282..251443	-	53	16752535	-	CP0246	-	hypothetical protein
245	 40.61	0	251742..252524	-	260	16752536	-	CP0247	-	hypothetical protein
246	 46.02	+1	252476..253066	-	196	16752537	-	CP0248	-	DNA-3-methyladenine glycosylase
247	 42.98	0	253068..255098	-	676	16752538	-	CP0249	-	VacB/Rnb family exoribonuclease
248	 30.48	-2	255287..255391	+	34	16752539	-	CP0250	-	hypothetical protein
249	 42.21	0	255369..257351	-	660	16752540	dnaK	CP0251	-	molecular chaperone DnaK
250	 38.20	0	257381..257935	-	184	16752541	-	CP0252	-	heat shock protein GrpE, putative
251	 40.03	0	257932..259155	-	407	16752542	hrcA	CP0253	-	heat-inducible transcription repressor
252	 45.40	+1	259220..260926	-	568	16752543	-	CP0254	-	prolyl-tRNA synthetase
253	 46.20	+1	261226..262383	+	385	16752544	-	CP0255	-	hypothetical protein
254	 43.29	0	262551..263504	+	317	16752545	-	CP0256	-	hypothetical protein
255	 37.73	0	263497..263769	+	90	16752546	-	CP0257	-	hypothetical protein
256	 40.86	0	263771..264793	-	340	16752547	-	CP0258	-	hypothetical protein
257	 43.13	0	264790..265983	-	397	16752548	-	CP0259	-	L,L-diaminopimelate aminotransferase
258	 45.50	+1	266222..266443	+	73	16752549	-	CP0260	-	hypothetical protein
259	 44.44	+1	266582..266734	+	50	16752550	-	CP0261	-	hypothetical protein
260	 42.95	0	266779..266934	-	51	16752551	-	CP0262	-	hypothetical protein
261	 42.90	0	267021..268253	+	410	16752552	-	CP0263	-	hypothetical protein
262	 43.88	0	268250..270307	-	685	16752553	-	CP0264	-	hypothetical protein
263	 39.87	0	270591..271493	+	300	16752554	-	CP0265	-	hypothetical protein
264	 40.48	0	271445..271822	+	125	16752555	-	CP0266	-	HIT family protein
265	 44.73	+1	271846..273477	+	543	16752556	-	CP0267	-	hypothetical protein
266	 45.24	+1	273850..275184	+	444	16752557	-	CP0268	-	sodium:solute symporter family protein
267	 41.03	0	275354..275548	-	64	16752558	-	CP0269	-	hypothetical protein
268	 48.83	+2	275759..276616	-	285	16752559	-	CP0270	-	3-deoxy-7-phosphoheptulonate synthase
269	 43.17	0	276619..279720	-	1033	16752560	-	CP0271	-	hypothetical protein
270	 41.15	0	279849..280628	+	259	16752561	-	CP0272	-	amino acid ABC transporter, periplasmic amino acid-binding protein
271	 44.60	+1	282284..282940	+	218	16752562	-	CP0274	-	hypothetical protein
272	 42.19	0	283162..283974	+	270	16752563	-	CP0275	-	metal-dependent hydrolase, putative
273	 43.90	0	283962..285380	+	472	16752564	-	CP0276	-	GTP-binding protein HflX, putative
274	 43.05	0	285481..286746	+	421	16752565	-	CP0277	-	hypothetical protein
275	 45.76	+1	286743..287732	+	329	16752566	-	CP0278	-	hypothetical protein
276	 45.77	+1	287743..289905	+	720	16752567	-	CP0279	-	glycogen branching enzyme
277	 45.08	+1	290014..291783	+	589	16752568	-	CP0280	-	hypothetical protein
278	 46.43	+1	291994..293520	+	508	16752569	-	CP0281	-	hypothetical protein
279	 46.61	+1	293682..296009	+	775	16752570	-	CP0282	-	hypothetical protein
280	 41.46	0	296183..299023	-	946	16752571	-	CP0283	-	polymorphic membrane protein E/F family protein
281	 43.58	0	302150..305008	-	952	16752572	-	CP0285	-	polymorphic membrane protein E/F family protein
40.53	MEAN

3.43	STD DEV
