IslandPathversion 1.0

IslandPath Analysis: Chlamydophila pneumoniae AR39

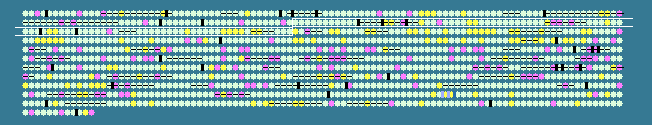

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
146	 41.41	0	149015..149212	+	65	16753079	-	CP0147	-	hypothetical protein
147	 37.65	0	149438..149761	+	107	16752440	-	CP0148	-	hypothetical protein
148	 41.67	0	149783..151906	+	707	16752441	-	CP0149	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
149	 40.82	0	151888..153369	+	493	16752442	-	CP0150	-	peptide ABC transporter, permease protein, putative
150	 43.45	0	153370..155109	+	579	16752443	-	CP0151	-	peptide ABC transporter, permease protein, putative
151	 43.87	0	155125..155646	-	173	16752444	-	CP0152	-	DNA methyltransferase
152	 42.70	0	155656..156627	-	323	16752445	-	CP0153	-	hypothetical protein
153	 43.93	0	156624..159002	-	792	16752446	pheT	CP0154	-	phenylalanyl-tRNA synthetase subunit beta
154	 42.15	0	159109..160197	+	362	16753068	-	CP0155	-	hypothetical protein
155	 43.61	0	160121..160441	-	106	16752447	-	CP0156	-	hypothetical protein
156	 42.70	0	160562..161212	-	216	16753069	-	CP0157	-	hypothetical protein
157	 37.50	0	161473..162072	+	199	16752448	-	CP0158	-	hypothetical protein
158	 41.37	0	162187..162945	-	252	16752449	recO	CP0159	-	DNA repair protein RecO
159	 43.59	0	162956..163501	-	181	16752450	-	CP0160	-	hypothetical protein
160	 43.38	0	163458..164144	-	228	16752451	-	CP0161	-	hypothetical protein
161	 44.73	+1	164399..165583	-	394	16752452	-	CP0162	-	sigma-54 dependent response regulator
162	 44.27	+1	165768..167723	+	651	16752453	-	CP0163	-	hypothetical protein
163	 41.96	0	167784..168908	-	374	16752454	-	CP0164	-	sensor histidine kinase
164	 36.76	-1	168865..169185	-	106	16752455	-	CP0165	-	hypothetical protein
165	 42.92	0	169405..170082	-	225	16752456	-	CP0166	-	hypothetical protein
166	 39.73	0	170109..170843	+	244	16752457	-	CP0167	-	HAD superfamily hydrolase
167	 44.15	+1	170789..171592	-	267	16752458	truA	CP0168	-	tRNA pseudouridine synthase A
168	 43.24	0	171589..172224	-	211	16752459	ispD	CP0169	-	2-C-methyl-D-erythritol 4-phosphate cytidylyltransferase
169	 42.68	0	172217..173179	-	320	16752460	-	CP0170	-	hypothetical protein
170	 35.98	-1	173427..173690	-	87	16752461	-	CP0171	-	hypothetical protein
171	 37.18	0	173690..173845	+	51	16752462	-	CP0172	-	hypothetical protein
172	 39.73	0	175091..175606	+	171	16752463	-	CP0174	-	acetyltransferase
173	 40.54	0	175640..176194	+	184	16752464	-	CP0175	-	hypothetical protein
174	 41.14	0	176181..176897	+	238	16752465	-	CP0176	-	hypothetical protein
175	 46.52	+1	176966..179233	-	755	16752466	-	CP0177	-	hypothetical protein
176	 45.10	+1	179463..180839	+	458	16752467	-	CP0178	-	UDP-N-acetylglucosamine 1-carboxyvinyltransferase
177	 41.22	0	180793..182478	-	561	16752468	argS	CP0179	-	arginyl-tRNA synthetase
178	 40.06	0	182483..183121	-	212	16752469	-	CP0180	-	1-acyl-sn-glycerol-3-phosphate acyltransferase, putative
179	 42.09	0	183118..183768	-	216	16752470	cmk	CP0181	-	cytidylate kinase
180	 40.02	0	183765..184691	-	308	16752471	-	CP0182	-	phosphatidate cytidylyltransferase, putative
181	 39.82	0	184692..185477	-	261	16752472	-	CP0183	-	hypothetical protein
182	 39.33	0	185532..185681	-	49	16752473	-	CP0184	-	hypothetical protein
183	 43.42	0	185955..187055	+	366	16752474	-	CP0185	-	hypothetical protein
184	 40.63	0	187235..191443	+	1402	16752475	-	CP0186	-	bifunctional preprotein translocase subunit SecD/SecF
185	 43.35	0	191529..193295	+	588	16752476	-	CP0187	-	single-stranded-DNA-specific exonuclease RecJ
186	 43.14	0	193549..194670	+	373	16752477	-	CP0188	-	hypothetical protein
187	 39.48	0	195181..195717	+	178	16752478	-	CP0189	-	hypothetical protein
188	 45.52	+1	195973..197490	+	505	16752479	gltX	CP0190	-	glutamyl-tRNA synthetase
189	 36.51	-1	197655..197843	-	62	16752480	-	CP0191	-	hypothetical protein
190	 20.37	-2	198101..198208	+	35	16752481	-	CP0192	-	hypothetical protein
191	 41.39	0	198285..198557	+	90	16752482	omcA	CP0193	-	OmcA
192	 35.90	-1	198621..198737	-	38	16752483	-	CP0194	-	hypothetical protein
193	 42.61	0	198724..200394	+	556	16752484	omcB	CP0195	-	60 kDa outer membrane protein
194	 41.12	0	200673..201263	+	196	16752485	srp	CP0196	-	hypothetical protein
195	 40.68	0	201341..203287	-	648	16752486	-	CP0197	-	tail-specific protease precursor, putative
196	 40.89	0	203441..203731	-	96	16752487	-	CP0198	-	hypothetical protein
197	 40.36	0	203838..204776	+	312	16752488	-	CP0199	-	hypothetical protein
198	 44.35	+1	204998..205369	+	123	16752489	rpsL	CP0200	-	30S ribosomal protein S12
199	 42.19	0	205417..205890	+	157	16752490	-	CP0201	-	30S ribosomal protein S7
200	 41.73	0	205924..208008	+	694	16752491	-	CP0202	-	elongation factor G
201	 39.31	0	208016..208333	+	105	16752492	rpsJ	CP0203	-	30S ribosomal protein S10
202	 40.13	0	208354..209397	+	347	16752493	-	CP0204	-	oxidoreductase
203	 41.81	0	209394..209924	-	176	16752494	ispF	CP0205	-	2-C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
204	 40.50	0	210356..210676	+	106	16752495	rplU	CP0206	-	50S ribosomal protein L21
205	 45.10	+1	210701..210955	+	84	16752496	rpmA	CP0207	-	50S ribosomal protein L27
206	 45.34	+1	211056..212063	+	335	161353773	obgE	CP0208	-	GTPase ObgE
207	 41.84	0	211979..212860	-	293	16752498	-	CP0209	-	ABC transporter, permease protein
208	 41.33	0	212845..213582	-	245	16752499	-	CP0210	-	ABC transporter, ATP-binding protein
209	 39.55	0	213579..214415	-	278	16752500	-	CP0211	-	ABC transporter, periplasmic substrate-binding protein, putative
210	 43.05	0	214720..219918	-	1732	16752501	-	CP0212	-	polymorphic membrane protein B/C family protein
211	 42.41	0	220037..222880	-	947	16752502	-	CP0213	-	polymorphic membrane protein A family protein
212	 38.28	0	223071..223373	-	100	16752503	-	CP0214	-	hypothetical protein
213	 38.61	0	223393..223752	-	119	16752504	-	CP0215	-	hypothetical protein
214	 42.81	0	223891..225240	-	449	16752505	-	CP0216	-	sodium/alanine symporter family protein
215	 36.69	-1	225286..225792	-	168	16752506	lspA	CP0217	-	lipoprotein signal peptidase
216	 39.10	0	225798..226196	-	132	16752507	-	CP0218	-	hypothetical protein
217	 38.13	0	226197..226655	-	152	16752508	-	CP0219	-	transcriptional regulator NrdR
218	 38.31	0	226911..227513	+	200	16752509	-	CP0220	-	riboflavin synthase subunit alpha
219	 43.24	0	227516..228343	+	275	16752510	-	CP0221	-	hypothetical protein
220	 38.60	0	228331..229128	+	265	16752511	-	CP0222	-	spoU rRNA methylase family protein
221	 43.81	0	229326..230423	+	365	16752512	lpxK	CP0223	-	tetraacyldisaccharide 4'-kinase
222	 42.17	0	230423..231667	+	414	16752513	-	CP0224	-	sodium:dicarboxylate symporter family protein
223	 43.91	0	231681..232862	+	393	16752514	-	CP0225	-	branched-chain alpha-keto acid dehydrogenase subunit E2
224	 41.11	0	232889..233878	+	329	16752515	-	CP0226	-	carbohydrate isomerase KpsF/GutQ family protein
225	 40.95	0	234013..234117	+	34	16752516	-	CP0227	-	hypothetical protein
226	 37.91	0	234299..235063	-	254	16752517	-	CP0228	-	hypothetical protein
227	 41.76	0	235403..236482	-	359	16752518	-	CP0229	-	hypothetical protein
228	 45.65	+1	236530..236862	-	110	16752519	-	CP0230	-	hypothetical protein
229	 42.26	0	236927..237598	-	223	16752520	hemD	CP0231	-	uroporphyrinogen-III synthase
230	 42.17	0	237854..239347	+	497	16752521	glyA	CP0232	-	serine hydroxymethyltransferase
231	 40.45	0	239367..239942	+	191	16752522	-	CP0233	-	ATP-dependent Clp protease proteolytic subunit
232	 43.67	0	239911..240684	+	257	16752523	dapF	CP0234	-	diaminopimelate epimerase
233	 38.36	0	240782..241756	+	324	16752524	-	CP0235	-	hypothetical protein
234	 45.00	+1	241954..242793	+	279	16752525	-	CP0236	-	hypothetical protein
235	 45.11	+1	242771..244333	+	520	16752526	-	CP0237	-	hypothetical protein
236	 44.68	+1	244401..245114	-	237	16752527	ubiE	CP0238	-	ubiquinone/menaquinone biosynthesis methyltransferase
237	 45.53	+1	245062..245856	-	264	16752528	-	CP0239	-	hypothetical protein
238	 43.06	0	245829..246938	-	369	16752529	-	CP0240	-	hypothetical protein
239	 44.02	+1	246910..247143	-	77	16752530	-	CP0241	-	hypothetical protein
240	 44.71	+1	247170..249032	-	620	16752531	-	CP0242	-	hypothetical protein
241	 39.60	0	249094..249444	-	116	16752532	-	CP0243	-	anti-anti-sigma factor
242	 43.99	+1	249609..250772	-	387	16752533	-	CP0244	-	hemolysin, putative
243	 38.78	0	250774..251250	-	158	16752534	-	CP0245	-	hypothetical protein
244	 38.89	0	251282..251443	-	53	16752535	-	CP0246	-	hypothetical protein
245	 40.61	0	251742..252524	-	260	16752536	-	CP0247	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
