IslandPath Analysis: Chlamydophila pneumoniae AR39

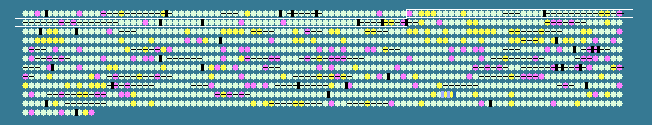

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
65	 36.89	-1	76655..77329	+	224	16752360	-	CP0066	-	hypothetical protein
66	 42.86	0	77336..78616	+	426	16752361	-	CP0067	-	phosphate permease family protein
67	 44.33	+1	78654..79862	+	402	16752362	pgk	CP0068	-	phosphoglycerate kinase
68	 52.65	+2	80264..80905	+	213	16752363	-	CP0069	-	hypothetical protein
69	 45.69	+1	81183..82331	+	382	16752364	-	CP0070	-	hypothetical protein
70	 43.25	0	82367..83536	+	389	16752365	-	CP0071	-	hypothetical protein
71	 40.87	0	83665..84819	+	384	16752366	-	CP0072	-	hypothetical protein
72	 41.10	0	84916..86010	+	364	16752367	-	CP0073	-	Nol1/Nop2/Sun family protein
73	 37.78	0	86118..86297	-	59	16752368	-	CP0074	-	hypothetical protein
74	 44.09	+1	86533..87843	-	436	16752369	-	CP0075	-	D-alanyl-D-alanine carboxypeptidase
75	 40.09	0	87954..88382	+	142	16752370	-	CP0076	-	hypothetical protein
76	 40.62	0	88385..88837	-	150	16752371	-	CP0077	-	rsbW protein, putative
77	 38.83	0	88806..89405	-	199	16752372	-	CP0078	-	hypothetical protein
78	 39.92	0	89419..90375	-	318	16753067	-	CP0079	-	hypothetical protein
79	 43.39	0	90527..91411	+	294	16752373	-	CP0080	-	hypothetical protein
80	 40.26	0	91475..95197	-	1240	16752374	dnaE	CP0081	-	DNA polymerase III subunit alpha
81	 42.18	0	95217..96584	-	455	16752375	-	CP0082	-	GlpT/PgpT/UhpT family protein
82	 39.22	0	96828..97031	+	67	16752376	-	CP0083	-	hypothetical protein
83	 41.14	0	97395..98687	+	430	16752377	hisS	CP0084	-	histidyl-tRNA synthetase
84	 40.85	0	98662..100416	+	584	16752378	aspS	CP0085	-	aspartyl-tRNA synthetase
85	 38.61	0	100485..101261	+	258	16752379	-	CP0086	-	peptidyl-prolyl cis-trans isomerase Mip
86	 40.13	0	101258..101728	+	156	16752380	-	CP0087	-	spoU rRNA methylase family protein
87	 41.42	0	101744..102052	-	102	16752381	-	CP0088	-	thioredoxin
88	 39.75	0	102417..103133	+	238	16752382	-	CP0089	-	hypothetical protein
89	 39.91	0	103112..103537	+	141	16752383	-	CP0090	-	hypothetical protein
90	 41.44	0	103534..103644	-	36	16752384	-	CP0091	-	hypothetical protein
91	 37.20	0	103738..104487	+	249	16752385	-	CP0092	-	DNA polymerase III subunit epsilon
92	 41.45	0	104618..105085	+	155	16752386	-	CP0093	-	cytosolic acyl-CoA thioester hydrolase family protein
93	 42.44	0	105095..106720	+	541	16752387	lnt	CP0094	-	apolipoprotein N-acyltransferase
94	 39.35	0	106735..107598	+	287	16752388	lpxC	CP0095	-	UDP-3-O-[3-hydroxymyristoyl] N-acetylglucosamine deacetylase
95	 40.26	0	107610..108071	+	153	16752389	fabZ	CP0096	-	(3R)-hydroxymyristoyl-ACP dehydratase
96	 42.14	0	108084..108923	+	279	16752390	-	CP0097	-	UDP-N-acetylglucosamine acyltransferase
97	 44.82	+1	108913..109878	+	321	16752391	fmt	CP0098	-	methionyl-tRNA formyltransferase
98	 44.31	+1	109982..110983	+	333	16752392	-	CP0099	-	hypothetical protein
99	 41.36	0	111272..111931	+	219	16752393	rplC	CP0100	-	50S ribosomal protein L3
100	 36.89	-1	111964..112638	+	224	16752394	rplD	CP0101	-	50S ribosomal protein L4
101	 38.39	0	112655..112990	+	111	16752395	rplW	CP0102	-	50S ribosomal protein L23
102	 42.22	0	113012..113866	+	284	16752396	rplB	CP0103	-	50S ribosomal protein L2
103	 38.20	0	113872..114138	+	88	16752397	rpsS	CP0104	-	30S ribosomal protein S19
104	 41.67	0	114157..114492	+	111	16752398	rplV	CP0105	-	50S ribosomal protein L22
105	 41.82	0	114508..115179	+	223	16752399	rpsC	CP0106	-	30S ribosomal protein S3
106	 41.49	0	115208..115624	+	138	16752400	rplP	CP0107	-	50S ribosomal protein L16
107	 35.62	-1	115627..115845	+	72	16752401	rpmC	CP0108	-	50S ribosomal protein L29
108	 37.16	0	115838..116098	+	86	16752402	rpsQ	CP0109	-	30S ribosomal protein S17
109	 36.86	-1	116121..116489	+	122	16752403	rplN	CP0110	-	50S ribosomal protein L14
110	 39.58	0	116503..116838	+	111	16752404	rplX	CP0111	-	50S ribosomal protein L24
111	 37.75	0	116840..117382	+	180	16752405	rplE	CP0112	-	50S ribosomal protein L5
112	 41.54	0	117400..117801	+	133	16752406	rpsH	CP0113	-	30S ribosomal protein S8
113	 39.67	0	117828..118379	+	183	16752407	rplF	CP0114	-	50S ribosomal protein L6
114	 37.10	-1	118390..118761	+	123	16752408	rplR	CP0115	-	50S ribosomal protein L18
115	 39.16	0	118779..119276	+	165	16752409	rpsE	CP0116	-	30S ribosomal protein S5
116	 39.08	0	119269..119703	+	144	16752410	rplO	CP0117	-	50S ribosomal protein L15
117	 39.74	0	119728..121101	+	457	161353774	secY	CP0118	-	preprotein translocase subunit SecY
118	 37.40	0	121157..121525	+	122	16752412	rpsM	CP0119	-	30S ribosomal protein S13
119	 41.54	0	121547..121948	+	133	16752413	-	CP0120	-	30S ribosomal protein S11
120	 37.16	0	121918..123093	+	391	16752414	-	CP0121	-	DNA-directed RNA polymerase subunit alpha
121	 35.90	-1	123100..123528	+	142	16752415	rplQ	CP0122	-	50S ribosomal protein L17
122	 38.69	0	123570..124577	+	335	16752416	-	CP0123	-	glyceraldehyde-3-phosphate dehydrogenase
123	 40.89	0	124592..125425	+	277	16752417	-	CP0124	-	hypothetical protein
124	 38.32	0	125833..126795	+	320	16752418	-	CP0125	-	hypothetical protein
125	 42.41	0	126938..127444	+	168	16752419	ruvC	CP0126	-	Holliday junction resolvase
126	 41.35	0	127446..128069	+	207	16752420	ruvA	CP0127	-	Holliday junction DNA helicase motor protein
127	 40.69	0	128141..128575	+	144	16752421	ndk	CP0128	-	nucleoside diphosphate kinase
128	 39.97	0	128572..129279	-	235	16752422	-	CP0129	-	lipoate-protein ligase-related protein
129	 42.86	0	129266..131101	-	611	16752423	-	CP0130	-	tRNA uridine 5-carboxymethylaminomethyl modification enzyme GidA
130	 39.94	0	131445..132851	-	468	16752424	-	CP0131	-	replicative DNA helicase
131	 40.63	0	133448..133954	+	168	16752425	-	CP0132	-	CDP-diacylglycerol--glycerol-3-phosphate 3-phosphatidyltransferase protein, putative
132	 42.45	0	134183..135805	+	540	16752426	-	CP0133	-	ADP, ATP carrier protein
133	 41.62	0	135929..136930	+	333	16752427	-	CP0134	-	protease IV, putative
134	 38.08	0	136954..139566	+	870	16752428	-	CP0135	-	DNA polymerase I
135	 37.77	0	139560..140168	+	202	16752429	coaE	CP0136	-	dephospho-CoA kinase
136	 42.15	0	140165..141559	+	464	16752430	rho	CP0137	-	transcription termination factor Rho
137	 36.49	-1	141596..141880	-	94	16752431	-	CP0138	-	hypothetical protein
138	 41.55	0	141940..142572	+	210	16752432	-	CP0139	-	phosphoribosyl transferase family protein
139	 38.01	0	142690..144015	+	441	16752433	-	CP0140	-	glucose-1-phosphate adenylyltransferase
140	 42.91	0	144141..144881	+	246	16752434	-	CP0141	-	hypothetical protein
141	 39.04	0	144878..145438	+	186	16752435	-	CP0142	-	hypothetical protein
142	 38.91	0	145640..146392	+	250	16752436	-	CP0143	-	amino acid ABC transporter, periplasmic amino acid-binding protein
143	 41.46	0	146397..147380	-	327	16752437	hemH	CP0144	-	ferrochelatase
144	 35.82	-1	147480..148484	+	334	16752438	-	CP0145	-	hypothetical protein
145	 38.94	0	148532..148852	+	106	16752439	-	CP0146	-	hypothetical protein
146	 41.41	0	149015..149212	+	65	16753079	-	CP0147	-	hypothetical protein
147	 37.65	0	149438..149761	+	107	16752440	-	CP0148	-	hypothetical protein
148	 41.67	0	149783..151906	+	707	16752441	-	CP0149	-	peptide ABC transporter, periplasmic peptide-binding protein, putative
149	 40.82	0	151888..153369	+	493	16752442	-	CP0150	-	peptide ABC transporter, permease protein, putative
150	 43.45	0	153370..155109	+	579	16752443	-	CP0151	-	peptide ABC transporter, permease protein, putative
151	 43.87	0	155125..155646	-	173	16752444	-	CP0152	-	DNA methyltransferase
152	 42.70	0	155656..156627	-	323	16752445	-	CP0153	-	hypothetical protein
153	 43.93	0	156624..159002	-	792	16752446	pheT	CP0154	-	phenylalanyl-tRNA synthetase subunit beta
154	 42.15	0	159109..160197	+	362	16753068	-	CP0155	-	hypothetical protein
155	 43.61	0	160121..160441	-	106	16752447	-	CP0156	-	hypothetical protein
156	 42.70	0	160562..161212	-	216	16753069	-	CP0157	-	hypothetical protein
157	 37.50	0	161473..162072	+	199	16752448	-	CP0158	-	hypothetical protein
158	 41.37	0	162187..162945	-	252	16752449	recO	CP0159	-	DNA repair protein RecO
159	 43.59	0	162956..163501	-	181	16752450	-	CP0160	-	hypothetical protein
160	 43.38	0	163458..164144	-	228	16752451	-	CP0161	-	hypothetical protein
161	 44.73	+1	164399..165583	-	394	16752452	-	CP0162	-	sigma-54 dependent response regulator
162	 44.27	+1	165768..167723	+	651	16752453	-	CP0163	-	hypothetical protein
163	 41.96	0	167784..168908	-	374	16752454	-	CP0164	-	sensor histidine kinase
164	 36.76	-1	168865..169185	-	106	16752455	-	CP0165	-	hypothetical protein
40.53	MEAN

3.43	STD DEV
