IslandPath Analysis: Chlamydophila pneumoniae AR39

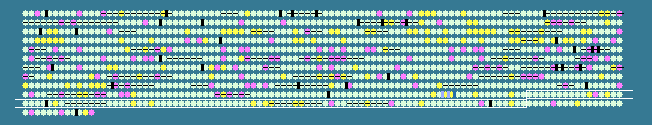

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 40.53 STD DEV: 3.43
Chlamydophila pneumoniae AR39, complete genome - 1..1229853
1112 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
985	 41.91	0	1084724..1086775	+	683	16752171	-	CP1001	-	cation transporter E1-E2 family ATPase
986	 42.37	0	1086772..1087911	-	379	16752172	-	CP1002	-	cell shape-determining protein MrdB
987	 41.62	0	1087951..1088529	+	192	16752173	-	CP1003	-	biotin--protein ligase
988	 42.42	0	1088497..1089024	-	175	16752174	-	CP1004	-	hypothetical protein
989	 42.66	0	1089065..1089772	-	235	16752175	-	CP1005	-	ribosomal large subunit pseudouridine synthase B
990	 39.45	0	1089928..1090614	+	228	16752176	-	CP1006	-	phosphoglyceromutase
991	 43.98	+1	1090569..1091723	+	384	16752177	-	CP1007	-	nifS protein, putative
992	 42.95	0	1091720..1092520	+	266	16752178	-	CP1008	-	nifU protein, putative
993	 38.79	0	1092812..1093837	+	341	16752179	-	CP1009	-	type III secretion system protein
994	 43.39	0	1093854..1094390	+	178	16752180	-	CP1010	-	hypothetical protein
995	 44.62	+1	1094387..1095688	+	433	16752181	-	CP1011	-	type III secretion system ATPase
996	 31.98	-2	1095685..1096053	+	122	16752182	-	CP1012	-	hypothetical protein
997	 42.06	0	1096065..1097450	+	461	16752183	-	CP1013	-	UDP-N-acetylglucosamine pyrophosphorylase, putative
998	 45.27	+1	1097447..1098451	+	334	16752184	gpsA	CP1014	-	NAD(P)H-dependent glycerol-3-phosphate dehydrogenase
999	 43.19	0	1098605..1099639	+	344	16752185	-	CP1015	-	major outer membrane protein, putative
1000	 40.77	0	1099636..1100805	-	389	16752186	-	CP1016	-	hypothetical protein
1001	 40.42	0	1100826..1103126	-	766	16752187	-	CP1017	-	hypothetical protein
1002	 43.76	0	1103244..1105046	-	600	16752188	-	CP1018	-	phosphoenolpyruvate carboxykinase
1003	 43.14	0	1105049..1106149	-	366	16752189	-	CP1019	-	cell shape-determining protein MreB
1004	 40.59	0	1106154..1109654	-	1166	16752190	-	CP1020	-	SNF2 family helicase
1005	 39.20	0	1109940..1111268	+	442	16752191	tig	CP1021	-	trigger factor
1006	 45.10	+1	1111447..1112058	+	203	16752192	clpP	CP1022	-	ATP-dependent Clp protease proteolytic subunit
1007	 40.28	0	1112068..1113333	+	421	16752193	clpX	CP1023	-	ATP-dependent protease ATP-binding subunit
1008	 42.01	0	1113363..1114595	+	410	16752194	-	CP1024	-	poly(A) polymerase family protein
1009	 39.07	0	1114712..1116175	+	487	16752195	engA	CP1025	-	GTP-binding protein EngA
1010	 38.31	0	1116251..1116451	+	66	16753064	-	CP1026	-	hypothetical protein
1011	 41.40	0	1116520..1116705	-	61	16752196	-	CP1027	-	hypothetical protein
1012	 41.78	0	1116799..1119711	-	970	16752197	secA	CP1028	-	preprotein translocase subunit SecA
1013	 42.76	0	1119895..1121220	-	441	16752198	-	CP1029	-	hypothetical protein
1014	 39.96	0	1121280..1122185	-	301	16752199	-	CP1030	-	phosphatidylserine decarboxylase
1015	 43.49	0	1122336..1123664	+	442	16752200	trmE	CP1031	-	tRNA modification GTPase TrmE
1016	 42.22	0	1123671..1124300	+	209	16752201	-	CP1032	-	endonuclease III
1017	 39.55	0	1124485..1125723	+	412	16752202	-	CP1033	-	branched-chain amino acid transport system carrier protein, putative
1018	 40.84	0	1125753..1129400	+	1215	16752203	-	CP1034	-	Snf2/Rad54 family helicase
1019	 45.16	+1	1129425..1129889	-	154	16752204	-	CP1035	-	hypothetical protein
1020	 37.40	0	1129945..1130067	+	40	16752205	-	CP1036	-	hypothetical protein
1021	 43.94	0	1130313..1131698	+	461	16752206	-	CP1037	-	dihydrolipoamide dehydrogenase
1022	 45.67	+1	1131695..1132618	+	307	16752207	-	CP1038	-	lipoyl synthase
1023	 40.35	0	1133005..1133175	-	56	16752208	-	CP1039	-	hypothetical protein
1024	 40.38	0	1133394..1133606	+	70	16752209	-	CP1040	-	hypothetical protein
1025	 37.50	0	1133480..1133791	-	103	16752210	-	CP1041	-	hypothetical protein
1026	 37.63	0	1134141..1134698	-	185	16752211	-	CP1042	-	hypothetical protein
1027	 43.06	0	1135171..1136178	+	335	16752212	-	CP1043	-	type III secretion protein SctJ
1028	 39.57	0	1136178..1137011	+	277	16752213	-	CP1044	-	hypothetical protein
1029	 38.89	0	1137132..1137833	+	233	16752214	-	CP1045	-	type III secretion system protein
1030	 42.02	0	1137848..1138768	+	306	16752215	-	CP1046	-	type III secretion system protein
1031	 38.54	0	1138780..1139067	+	95	16752216	-	CP1047	-	type III secretion inner membrane protein SctS
1032	 42.76	0	1139075..1139944	+	289	16752217	-	CP1048	-	type III secretion inner membrane protein SctT
1033	 40.04	0	1140210..1140686	-	158	16752218	-	CP1049	-	hypothetical protein
1034	 42.19	0	1140771..1141775	-	334	16752219	-	CP1050	-	hypothetical protein
1035	 39.81	0	1141780..1142304	-	174	16752220	-	CP1051	-	hypothetical protein
1036	 43.45	0	1142307..1142741	-	144	16752221	-	CP1052	-	hypothetical protein
1037	 39.25	0	1142757..1143128	-	123	16752222	-	CP1053	-	hypothetical protein
1038	 43.96	+1	1143152..1144327	-	391	16752223	-	CP1054	-	general secretion pathway protein F
1039	 45.34	+1	1144337..1145827	-	496	16752224	-	CP1055	-	general secretion pathway protein E
1040	 43.97	+1	1145817..1148081	-	754	16752225	-	CP1056	-	general secretion pathway protein D
1041	 46.65	+1	1148082..1149335	-	417	16752226	-	CP1057	-	hypothetical protein
1042	 44.19	+1	1149505..1150572	-	355	16752227	-	CP1058	-	proline dipeptidase
1043	 42.86	0	1150577..1152319	-	580	16752228	mutL	CP1059	-	DNA mismatch repair protein
1044	 40.80	0	1152542..1153237	+	231	16752229	-	CP1060	-	type III secretion chaperone SycD
1045	 40.22	0	1153258..1153620	+	120	16752230	-	CP1061	-	hypothetical protein
1046	 46.28	+1	1153657..1155123	+	488	16752231	-	CP1062	-	hypothetical protein
1047	 45.47	+1	1155156..1156490	+	444	16752232	-	CP1063	-	hypothetical protein
1048	 41.50	0	1156561..1157478	-	305	16752233	-	CP1064	-	hypothetical protein
1049	 42.09	0	1157672..1159579	+	635	16752234	thrS	CP1065	-	threonyl-tRNA synthetase
1050	 42.19	0	1159612..1160379	+	255	16752235	-	CP1066	-	ParA family protein
1051	 40.64	0	1160384..1161136	+	250	16752236	-	CP1067	-	virulence protein pGP6-D-related protein
1052	 35.86	-1	1161140..1161694	+	184	16752237	-	CP1068	-	hypothetical protein
1053	 42.90	0	1161703..1162737	+	344	16752238	-	CP1069	-	tryptophanyl-tRNA synthetase
1054	 43.82	0	1162746..1164719	+	657	16752239	-	CP1070	-	excinuclease ABC subunit B
1055	 42.89	0	1164911..1166197	+	428	16752240	eno	CP1071	-	phosphopyruvate hydratase
1056	 42.29	0	1166457..1167506	+	349	16752241	-	CP1072	-	hypothetical protein
1057	 42.50	0	1167584..1168597	-	337	16752242	-	CP1073	-	hypothetical protein
1058	 45.63	+1	1168746..1169843	-	365	16752243	-	CP1074	-	hypothetical protein
1059	 42.86	0	1170100..1172124	-	674	16752244	-	CP1075	-	hypothetical protein
1060	 42.48	0	1172245..1173315	-	356	16752245	-	CP1076	-	hypothetical protein
1061	 43.88	0	1173436..1174269	-	277	16752246	-	CP1077	-	hypothetical protein
1062	 28.79	-2	1174422..1174553	-	43	16752247	-	CP1078	-	hypothetical protein
1063	 40.67	0	1174620..1176527	+	635	16752248	-	CP1079	-	regulatory protein, putative
1064	 40.72	0	1176524..1178338	+	604	16752249	-	CP1080	-	hypothetical protein
1065	 42.24	0	1178393..1181335	+	980	16752250	-	CP1081	-	hypothetical protein
1066	 42.86	0	1181337..1182113	-	258	16752251	sdhB	CP1082	-	succinate dehydrogenase iron-sulfur subunit
1067	 44.23	+1	1182124..1184004	-	626	16752252	sdhA	CP1083	-	succinate dehydrogenase flavoprotein subunit
1068	 41.83	0	1184008..1184901	-	297	16752253	-	CP1084	-	succinate dehydrogenase, cytochrome b558 subunit, putative
1069	 43.89	0	1185039..1185824	-	261	16752254	-	CP1085	-	mttC protein, putative
1070	 43.68	0	1186147..1188291	-	714	16752255	-	CP1086	-	thiol:disulfide interchange protein DsbD
1071	 40.34	0	1188452..1189150	+	232	16752256	-	CP1087	-	MotA/TolQ/ExbB proton channel family protein
1072	 42.89	0	1189147..1189554	+	135	16752257	-	CP1088	-	ExbD/TolR family protein
1073	 41.44	0	1189558..1190346	+	262	16752258	-	CP1089	-	hypothetical protein
1074	 42.13	0	1190378..1191673	+	431	16752259	tolB	CP1090	-	translocation protein TolB
1075	 41.45	0	1191670..1192248	+	192	16752260	-	CP1091	-	peptidoglycan-associated lipoprotein
1076	 38.67	0	1192238..1192855	+	205	16752261	-	CP1092	-	putative endopeptidase lyte precursor
1077	 35.38	-1	1192962..1193351	+	129	16752262	-	CP1093	-	hypothetical protein
1078	 40.51	0	1193348..1193974	-	208	16752263	-	CP1094	-	anti-oxidant AhpCTSA family protein
1079	 43.07	0	1194262..1195842	-	526	16752264	groEL	CP1095	-	chaperonin GroEL
1080	 42.33	0	1195953..1197197	-	414	16752265	-	CP1096	-	hypothetical protein
1081	 41.38	0	1197412..1198032	+	206	16752266	-	CP1097	-	putative deoxyribonucleotide triphosphate pyrophosphatase
1082	 45.73	+1	1198015..1198248	-	77	16752267	-	CP1098	-	hypothetical protein
1083	 41.91	0	1198245..1198955	-	236	16752268	-	CP1099	-	uracil-DNA glycosylase
1084	 40.26	0	1199058..1200977	+	639	16752269	-	CP1100	-	ATP-dependent helicase PcrA
40.53	MEAN

3.43	STD DEV
