IslandPath Analysis: Chlorobium phaeobacteroides BS1

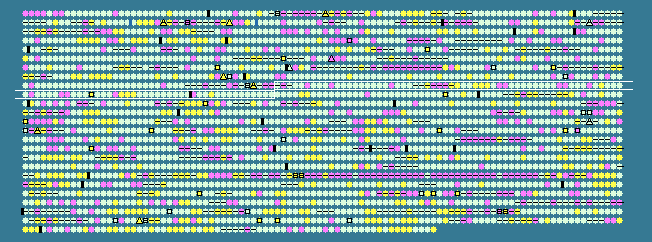

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
843	 50.56	0	950128..954000	-	1290	189499843	-	Cphamn1_0884	-	hypothetical protein
844	 40.62	-2	961144..961500	+	118	189499844	-	Cphamn1_0888	-	hypothetical protein
845	 47.64	0	961533..962105	+	190	189499845	-	Cphamn1_0889	-	transcriptional regulator, XRE family
846	 50.84	0	962239..963906	-	555	189499846	-	Cphamn1_0890	-	filamentation induced by cAMP protein Fic
847	 46.05	0	964757..965047	-	96	189499847	-	Cphamn1_0891	-	transcriptional regulator, AbrB family
848	 41.54	-1	965298..965492	+	64	189499848	-	Cphamn1_0892	-	hypothetical protein
849	 48.58	0	965604..967649	+	681	189499849	-	Cphamn1_0893	-	Radical SAM domain protein
850	 49.36	0	967723..968808	-	361	189499850	-	Cphamn1_0894	-	glutamate 5-kinase
851	 47.98	0	969051..970313	-	420	189499851	-	Cphamn1_0895	-	sodium/hydrogen exchanger
852	 42.91	-1	970408..970908	-	166	189499852	-	Cphamn1_0896	-	ferric uptake regulator, Fur family
853	 46.70	0	970970..972607	-	545	189499853	-	Cphamn1_0897	-	MscS Mechanosensitive ion channel
854	 48.21	0	973049..973606	+	185	189499854	-	Cphamn1_0898	-	peptide deformylase
855	 51.68	0	973622..974575	+	317	189499855	-	Cphamn1_0899	-	methionyl-tRNA formyltransferase
856	 49.12	0	974697..976514	+	605	189499856	-	Cphamn1_0900	-	GTP-binding protein LepA
857	 51.70	0	976517..976663	+	48	189499857	-	Cphamn1_0901	-	hypothetical protein
858	 47.71	0	976946..977773	+	275	189499858	-	Cphamn1_0902	-	signal peptidase I
859	 48.58	0	977767..978225	-	152	189499859	-	Cphamn1_0903	-	hypothetical protein
860	 49.40	0	978325..979818	+	497	189499860	-	Cphamn1_0904	-	anthranilate synthase component I
861	 50.63	0	979894..981402	+	502	189499861	-	Cphamn1_0905	-	protease Do
862	 45.34	0	981543..982025	+	160	189499862	-	Cphamn1_0906	-	transcription elongation factor GreA
863	 45.78	0	982049..982273	+	74	189499863	-	Cphamn1_0907	-	hypothetical protein
864	 51.39	0	982279..983031	+	250	189499864	-	Cphamn1_0908	-	Triose-phosphate isomerase
865	 50.53	0	983175..984866	-	563	189499865	-	Cphamn1_0909	-	thiamine biosynthesis protein ThiC
866	 49.79	0	985236..985478	+	80	189499866	-	Cphamn1_0910	-	Transglycosylase-associated protein
867	 48.37	0	985605..986954	+	449	189499867	-	Cphamn1_0911	-	PUCC protein
868	 54.07	+1	987256..988200	+	314	189499868	-	Cphamn1_0912	-	Radical SAM domain protein
869	 40.20	-2	988380..988481	-	33	189499869	-	Cphamn1_0913	-	hypothetical protein
870	 41.86	-1	988799..988927	+	42	189499870	-	Cphamn1_0914	-	hypothetical protein
871	 42.31	-1	989829..989984	+	51	189499871	-	Cphamn1_0915	-	hypothetical protein
872	 56.86	+1	990084..990338	+	84	189499872	-	Cphamn1_0916	-	hypothetical protein
873	 55.45	+1	990488..991744	+	418	189499873	-	Cphamn1_0917	-	DEAD/DEAH box helicase domain protein
874	 51.62	0	991788..992219	-	143	189499874	-	Cphamn1_0918	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
875	 48.57	0	992588..993040	+	150	189499875	-	Cphamn1_0919	-	peptidase S24 and S26 domain protein
876	 52.75	0	993055..994326	+	423	189499876	-	Cphamn1_0920	-	DNA-directed DNA polymerase
877	 53.71	+1	994547..995341	+	264	189499877	-	Cphamn1_0921	-	serine O-acetyltransferase
878	 53.77	+1	995348..996541	-	397	189499878	-	Cphamn1_0922	-	Chorismate synthase
879	 49.65	0	996612..997598	-	328	189499879	-	Cphamn1_0923	-	Porphobilinogen synthase
880	 44.35	-1	998040..1000145	+	701	189499880	-	Cphamn1_0924	-	integral membrane sensor hybrid histidine kinase
881	 43.61	-1	1000595..1001587	+	330	189499881	-	Cphamn1_0925	-	hypothetical protein
882	 46.56	0	1001584..1002891	+	435	189499882	-	Cphamn1_0926	-	amine oxidase
883	 45.72	0	1002888..1005002	+	704	189499883	-	Cphamn1_0927	-	integral membrane sensor hybrid histidine kinase
884	 48.44	0	1005070..1005261	+	63	189499884	-	Cphamn1_0928	-	hypothetical protein
885	 49.01	0	1005266..1006024	+	252	189499885	-	Cphamn1_0929	-	histidinol-phosphate phosphatase
886	 49.52	0	1006078..1007430	+	450	189499886	-	Cphamn1_0930	-	protein of unknown function DUF195
887	 45.96	0	1007455..1007652	+	65	189499887	-	Cphamn1_0931	-	hypothetical protein
888	 48.53	0	1007775..1008524	-	249	189499888	-	Cphamn1_0932	-	Uroporphyrinogen-III synthase
889	 48.83	0	1008524..1009465	-	313	189499889	-	Cphamn1_0933	-	porphobilinogen deaminase
890	 45.36	0	1009494..1010774	-	426	189499890	-	Cphamn1_0934	-	glutamyl-tRNA reductase
891	 43.93	-1	1010892..1011740	-	282	189499891	-	Cphamn1_0935	-	cytochrome c assembly protein
892	 49.04	0	1011899..1013725	+	608	189499892	-	Cphamn1_0936	-	GTP-binding protein TypA
893	 50.04	0	1014004..1015122	-	372	189499893	-	Cphamn1_0937	-	chlorophyllide reductase iron protein subunit X
894	 49.18	0	1015160..1016137	-	325	189499894	-	Cphamn1_0938	-	chlorophyll synthesis pathway, BchC
895	 44.65	-1	1016145..1016621	-	158	189499895	-	Cphamn1_0939	-	2-vinyl bacteriochlorophyllide hydratase
896	 48.87	0	1016722..1018401	-	559	189499896	-	Cphamn1_0940	-	extracellular solute-binding protein family 5
897	 53.50	+1	1018480..1019421	+	313	189499897	-	Cphamn1_0941	-	Thioredoxin-disulfide reductase
898	 49.57	0	1019415..1020227	-	270	189499898	-	Cphamn1_0942	-	LmbE family protein
899	 50.46	0	1020232..1020669	+	145	189499899	-	Cphamn1_0943	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
900	 45.46	0	1020737..1022179	-	480	189499900	-	Cphamn1_0944	-	two component, sigma54 specific, transcriptional regulator, Fis family
901	 47.39	0	1022281..1023084	-	267	189499901	-	Cphamn1_0945	-	hypothetical protein
902	 44.74	-1	1023223..1023336	-	37	189499902	-	Cphamn1_0946	-	hypothetical protein
903	 48.68	0	1023455..1024138	-	227	189499903	-	Cphamn1_0947	-	glycosyl transferase family 2
904	 51.83	0	1024135..1024734	-	199	189499904	-	Cphamn1_0948	-	hypothetical protein
905	 49.71	0	1024953..1026314	-	453	189499905	-	Cphamn1_0949	-	Carotene 7,8-desaturase
906	 46.77	0	1026418..1026618	-	66	189499906	-	Cphamn1_0950	-	hypothetical protein
907	 37.11	-2	1026732..1026890	+	52	189499907	-	Cphamn1_0951	-	hypothetical protein
908	 44.19	-1	1026916..1027440	+	174	189499908	-	Cphamn1_0952	-	transcriptional regulator, AsnC family
909	 48.60	0	1027496..1029637	+	713	189499909	-	Cphamn1_0953	-	glutamine synthetase catalytic region
910	 48.59	0	1029606..1029854	-	82	189499910	-	Cphamn1_0954	-	hypothetical protein
911	 50.48	0	1029865..1030284	-	139	189499911	-	Cphamn1_0955	-	protein of unknown function UPF0047
912	 56.08	+1	1030647..1032053	-	468	189499912	-	Cphamn1_0956	-	transposase IS4 family protein
913	 47.62	0	1032182..1032685	+	167	189499913	-	Cphamn1_0957	-	hypothetical protein
914	 50.19	0	1032712..1033494	+	260	189499914	-	Cphamn1_0958	-	putative transcriptional acitvator, Baf family
915	 50.00	0	1033634..1034713	-	359	189499915	-	Cphamn1_0959	-	3-dehydroquinate synthase
916	 45.33	0	1034710..1035309	-	199	189499916	-	Cphamn1_0960	-	Shikimate kinase
917	 54.96	+1	1035779..1037230	+	483	189499917	-	Cphamn1_0962	-	glycerol kinase
918	 56.06	+1	1037220..1038548	-	442	189499918	-	Cphamn1_0963	-	MiaB-like tRNA modifying enzyme YliG
919	 52.65	0	1038529..1039662	-	377	189499919	-	Cphamn1_0964	-	queuine tRNA-ribosyltransferase
920	 46.27	0	1039770..1040279	+	169	189499920	-	Cphamn1_0965	-	NusG antitermination factor
921	 51.71	0	1040307..1041329	+	340	189499921	-	Cphamn1_0966	-	NAD-dependent epimerase/dehydratase
922	 48.48	0	1041564..1042289	-	241	189499922	-	Cphamn1_0967	-	putative transcriptional regulator
923	 48.58	0	1042324..1043871	-	515	189499923	-	Cphamn1_0968	-	lysyl-tRNA synthetase
924	 46.90	0	1043932..1044867	-	311	189499924	-	Cphamn1_0969	-	Squalene/phytoene synthase
925	 47.39	0	1045072..1046373	+	433	189499925	-	Cphamn1_0970	-	GTP-binding proten HflX
926	 48.68	0	1046363..1046779	+	138	189499926	-	Cphamn1_0971	-	protein of unknown function UPF0054
927	 51.65	0	1047590..1048075	+	161	189499927	-	Cphamn1_0973	-	protein of unknown function DUF456
928	 46.10	0	1048605..1049411	-	268	189499928	-	Cphamn1_0974	-	protein of unknown function DUF164
929	 40.00	-2	1049717..1049896	-	59	189499929	-	Cphamn1_0975	-	ribosomal protein L33
930	 51.48	0	1050144..1051394	+	416	189499930	-	Cphamn1_0976	-	diaminopimelate decarboxylase
931	 48.30	0	1051483..1052364	-	293	189499931	-	Cphamn1_0977	-	5,10-methylenetetrahydrofolate reductase
932	 53.43	+1	1052450..1054618	+	722	189499932	-	Cphamn1_0978	-	ComEC/Rec2-related protein
933	 51.89	0	1054615..1054878	+	87	189499933	-	Cphamn1_0979	-	hypothetical protein
934	 51.82	0	1054875..1055204	+	109	189499934	-	Cphamn1_0980	-	Cupin 2 conserved barrel domain protein
935	 47.72	0	1055205..1055489	-	94	189499935	-	Cphamn1_0981	-	hypothetical protein
936	 51.31	0	1055508..1056041	-	177	189499936	-	Cphamn1_0982	-	NUDIX hydrolase
937	 48.66	0	1056044..1057531	-	495	189499937	-	Cphamn1_0983	-	binding-protein-dependent transport systems inner membrane component
938	 46.03	0	1057625..1058254	-	209	189499938	-	Cphamn1_0984	-	ribosomal 5S rRNA E-loop binding protein Ctc/L25/TL5
939	 47.79	0	1058256..1059251	-	331	189499939	-	Cphamn1_0985	-	ribose-phosphate pyrophosphokinase
940	 48.76	0	1059387..1060475	+	362	189499940	-	Cphamn1_0986	-	UDP-3-O-(3-hydroxymyristoyl) glucosamine N-acyltransferase
941	 49.91	0	1060730..1063390	-	886	189499941	-	Cphamn1_0987	-	glycoside hydrolase 15-related
942	 51.69	0	1063620..1063973	+	117	189499942	-	Cphamn1_0988	-	hypothetical protein
48.93	MEAN

4.12	STD DEV
