IslandPath Analysis: Chlorobium phaeobacteroides BS1

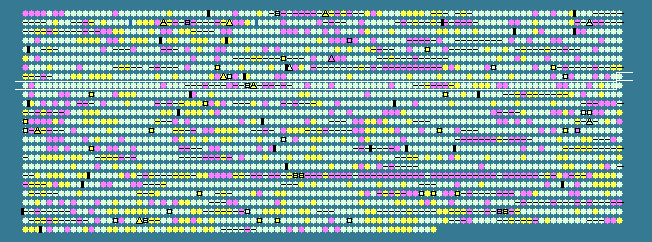

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
800	 51.02	0	900886..902304	+	472	189499800	-	Cphamn1_0838	-	Radical SAM domain protein
801	 46.19	0	902421..904178	-	585	189499801	-	Cphamn1_0839	-	ABC transporter-related protein
802	 43.78	-1	904316..904717	+	133	189499802	-	Cphamn1_0840	-	transcriptional regulator, MerR family
803	 49.64	0	904812..905915	-	367	189499803	-	Cphamn1_0841	-	bacteriochlorophyll A protein
804	 50.37	0	906211..907824	+	537	189499804	-	Cphamn1_0842	-	apolipoprotein N-acyltransferase
805	 47.95	0	907821..909017	-	398	189499805	-	Cphamn1_0843	-	sigma54 specific transcriptional regulator, Fis family
806	 49.20	0	909062..909622	-	186	189499806	-	Cphamn1_0844	-	Sporulation domain protein
807	 50.06	0	909724..910584	+	286	189499807	-	Cphamn1_0845	-	4-diphosphocytidyl-2C-methyl-D-erythritol kinase
808	 50.46	0	911210..912073	-	287	189499808	-	Cphamn1_0846	-	Nitrilase/cyanide hydratase and apolipoprotein N-acyltransferase
809	 49.85	0	912089..913390	-	433	189499809	-	Cphamn1_0847	-	Xanthine/uracil/vitamin C permease
810	 46.87	0	914179..914769	+	196	189499810	-	Cphamn1_0848	-	alkyl hydroperoxide reductase/ Thiol specific antioxidant/ Mal allergen
811	 51.11	0	914987..916432	-	481	189499811	-	Cphamn1_0849	-	prolyl-tRNA synthetase
812	 48.18	0	916486..917226	-	246	189499812	-	Cphamn1_0850	-	hypothetical protein
813	 51.12	0	917445..918338	+	297	189499813	-	Cphamn1_0851	-	protein-(glutamine-N5) methyltransferase, release factor-specific
814	 48.35	0	918511..919569	+	352	189499814	-	Cphamn1_0852	-	heat-inducible transcription repressor HrcA
815	 48.50	0	919623..920189	+	188	189499815	-	Cphamn1_0853	-	GrpE protein
816	 50.93	0	920237..921424	+	395	189499816	-	Cphamn1_0854	-	chaperone protein DnaJ
817	 45.89	0	921996..922616	-	206	189499817	-	Cphamn1_0855	-	Proto-chlorophyllide reductase 57 kD subunit
818	 48.37	0	922739..922891	-	50	189499818	-	Cphamn1_0856	-	hypothetical protein
819	 48.86	0	923073..924077	-	334	189499819	-	Cphamn1_0857	-	glyceraldehyde-3-phosphate dehydrogenase, type I
820	 49.69	0	924155..925585	-	476	189499820	-	Cphamn1_0858	-	Mur ligase middle domain protein
821	 51.78	0	925632..926948	-	438	189499821	-	Cphamn1_0859	-	major facilitator superfamily MFS_1
822	 50.80	0	927045..927731	-	228	189499822	-	Cphamn1_0860	-	ABC transporter-related protein
823	 51.04	0	927941..929194	-	417	189499823	-	Cphamn1_0861	-	gamma-glutamyl phosphate reductase
824	 43.48	-1	929222..929428	-	68	189499824	-	Cphamn1_0862	-	hypothetical protein
825	 46.25	0	929584..930915	+	443	189499825	-	Cphamn1_0863	-	outer membrane efflux protein
826	 50.19	0	930912..931949	+	345	189499826	-	Cphamn1_0864	-	efflux transporter, RND family, MFP subunit
827	 50.58	0	931961..935230	+	1089	189499827	-	Cphamn1_0865	-	heavy metal efflux pump, CzcA family
828	 48.59	0	935901..936149	+	82	189499828	-	Cphamn1_0866	-	hypothetical protein
829	 48.94	0	936192..936755	+	187	189499829	-	Cphamn1_0867	-	hypothetical protein
830	 51.28	0	936830..937258	+	142	189499830	-	Cphamn1_0868	-	Cupin 2 conserved barrel domain protein
831	 44.55	-1	937914..938234	+	106	189499831	-	Cphamn1_0869	-	protein of unknown function DUF891
832	 50.46	0	938234..938560	+	108	189499832	-	Cphamn1_0870	-	transcriptional regulator, XRE family
833	 49.00	0	939232..939531	+	99	189499833	-	Cphamn1_0871	-	DNA polymerase beta domain protein region
834	 48.12	0	939518..939862	+	114	189499834	-	Cphamn1_0872	-	protein of unknown function DUF86
835	 43.20	-1	940326..941207	+	293	189499835	-	Cphamn1_0873	-	hypothetical protein
836	 44.59	-1	941209..942150	+	313	189499836	-	Cphamn1_0874	-	D12 class N6 adenine-specific DNA methyltransferase
837	 51.88	0	942080..942559	-	159	189499837	-	Cphamn1_0875	-	hypothetical protein
838	 47.77	0	943215..943505	+	96	189499838	-	Cphamn1_0878	-	transposase IS3/IS911 family protein
839	 52.50	0	943529..944368	+	279	189499839	-	Cphamn1_0879	-	Integrase catalytic region
840	 50.00	0	944505..945272	+	255	189499840	-	Cphamn1_0880	-	hypothetical protein
841	 30.77	-2	946231..946932	+	233	189499841	-	Cphamn1_0881	-	hypothetical protein
842	 33.63	-2	946952..948304	+	450	189499842	-	Cphamn1_0882	-	hypothetical protein
843	 50.56	0	950128..954000	-	1290	189499843	-	Cphamn1_0884	-	hypothetical protein
844	 40.62	-2	961144..961500	+	118	189499844	-	Cphamn1_0888	-	hypothetical protein
845	 47.64	0	961533..962105	+	190	189499845	-	Cphamn1_0889	-	transcriptional regulator, XRE family
846	 50.84	0	962239..963906	-	555	189499846	-	Cphamn1_0890	-	filamentation induced by cAMP protein Fic
847	 46.05	0	964757..965047	-	96	189499847	-	Cphamn1_0891	-	transcriptional regulator, AbrB family
848	 41.54	-1	965298..965492	+	64	189499848	-	Cphamn1_0892	-	hypothetical protein
849	 48.58	0	965604..967649	+	681	189499849	-	Cphamn1_0893	-	Radical SAM domain protein
850	 49.36	0	967723..968808	-	361	189499850	-	Cphamn1_0894	-	glutamate 5-kinase
851	 47.98	0	969051..970313	-	420	189499851	-	Cphamn1_0895	-	sodium/hydrogen exchanger
852	 42.91	-1	970408..970908	-	166	189499852	-	Cphamn1_0896	-	ferric uptake regulator, Fur family
853	 46.70	0	970970..972607	-	545	189499853	-	Cphamn1_0897	-	MscS Mechanosensitive ion channel
854	 48.21	0	973049..973606	+	185	189499854	-	Cphamn1_0898	-	peptide deformylase
855	 51.68	0	973622..974575	+	317	189499855	-	Cphamn1_0899	-	methionyl-tRNA formyltransferase
856	 49.12	0	974697..976514	+	605	189499856	-	Cphamn1_0900	-	GTP-binding protein LepA
857	 51.70	0	976517..976663	+	48	189499857	-	Cphamn1_0901	-	hypothetical protein
858	 47.71	0	976946..977773	+	275	189499858	-	Cphamn1_0902	-	signal peptidase I
859	 48.58	0	977767..978225	-	152	189499859	-	Cphamn1_0903	-	hypothetical protein
860	 49.40	0	978325..979818	+	497	189499860	-	Cphamn1_0904	-	anthranilate synthase component I
861	 50.63	0	979894..981402	+	502	189499861	-	Cphamn1_0905	-	protease Do
862	 45.34	0	981543..982025	+	160	189499862	-	Cphamn1_0906	-	transcription elongation factor GreA
863	 45.78	0	982049..982273	+	74	189499863	-	Cphamn1_0907	-	hypothetical protein
864	 51.39	0	982279..983031	+	250	189499864	-	Cphamn1_0908	-	Triose-phosphate isomerase
865	 50.53	0	983175..984866	-	563	189499865	-	Cphamn1_0909	-	thiamine biosynthesis protein ThiC
866	 49.79	0	985236..985478	+	80	189499866	-	Cphamn1_0910	-	Transglycosylase-associated protein
867	 48.37	0	985605..986954	+	449	189499867	-	Cphamn1_0911	-	PUCC protein
868	 54.07	+1	987256..988200	+	314	189499868	-	Cphamn1_0912	-	Radical SAM domain protein
869	 40.20	-2	988380..988481	-	33	189499869	-	Cphamn1_0913	-	hypothetical protein
870	 41.86	-1	988799..988927	+	42	189499870	-	Cphamn1_0914	-	hypothetical protein
871	 42.31	-1	989829..989984	+	51	189499871	-	Cphamn1_0915	-	hypothetical protein
872	 56.86	+1	990084..990338	+	84	189499872	-	Cphamn1_0916	-	hypothetical protein
873	 55.45	+1	990488..991744	+	418	189499873	-	Cphamn1_0917	-	DEAD/DEAH box helicase domain protein
874	 51.62	0	991788..992219	-	143	189499874	-	Cphamn1_0918	-	6-pyruvoyl tetrahydropterin synthase and hypothetical protein
875	 48.57	0	992588..993040	+	150	189499875	-	Cphamn1_0919	-	peptidase S24 and S26 domain protein
876	 52.75	0	993055..994326	+	423	189499876	-	Cphamn1_0920	-	DNA-directed DNA polymerase
877	 53.71	+1	994547..995341	+	264	189499877	-	Cphamn1_0921	-	serine O-acetyltransferase
878	 53.77	+1	995348..996541	-	397	189499878	-	Cphamn1_0922	-	Chorismate synthase
879	 49.65	0	996612..997598	-	328	189499879	-	Cphamn1_0923	-	Porphobilinogen synthase
880	 44.35	-1	998040..1000145	+	701	189499880	-	Cphamn1_0924	-	integral membrane sensor hybrid histidine kinase
881	 43.61	-1	1000595..1001587	+	330	189499881	-	Cphamn1_0925	-	hypothetical protein
882	 46.56	0	1001584..1002891	+	435	189499882	-	Cphamn1_0926	-	amine oxidase
883	 45.72	0	1002888..1005002	+	704	189499883	-	Cphamn1_0927	-	integral membrane sensor hybrid histidine kinase
884	 48.44	0	1005070..1005261	+	63	189499884	-	Cphamn1_0928	-	hypothetical protein
885	 49.01	0	1005266..1006024	+	252	189499885	-	Cphamn1_0929	-	histidinol-phosphate phosphatase
886	 49.52	0	1006078..1007430	+	450	189499886	-	Cphamn1_0930	-	protein of unknown function DUF195
887	 45.96	0	1007455..1007652	+	65	189499887	-	Cphamn1_0931	-	hypothetical protein
888	 48.53	0	1007775..1008524	-	249	189499888	-	Cphamn1_0932	-	Uroporphyrinogen-III synthase
889	 48.83	0	1008524..1009465	-	313	189499889	-	Cphamn1_0933	-	porphobilinogen deaminase
890	 45.36	0	1009494..1010774	-	426	189499890	-	Cphamn1_0934	-	glutamyl-tRNA reductase
891	 43.93	-1	1010892..1011740	-	282	189499891	-	Cphamn1_0935	-	cytochrome c assembly protein
892	 49.04	0	1011899..1013725	+	608	189499892	-	Cphamn1_0936	-	GTP-binding protein TypA
893	 50.04	0	1014004..1015122	-	372	189499893	-	Cphamn1_0937	-	chlorophyllide reductase iron protein subunit X
894	 49.18	0	1015160..1016137	-	325	189499894	-	Cphamn1_0938	-	chlorophyll synthesis pathway, BchC
895	 44.65	-1	1016145..1016621	-	158	189499895	-	Cphamn1_0939	-	2-vinyl bacteriochlorophyllide hydratase
896	 48.87	0	1016722..1018401	-	559	189499896	-	Cphamn1_0940	-	extracellular solute-binding protein family 5
897	 53.50	+1	1018480..1019421	+	313	189499897	-	Cphamn1_0941	-	Thioredoxin-disulfide reductase
898	 49.57	0	1019415..1020227	-	270	189499898	-	Cphamn1_0942	-	LmbE family protein
899	 50.46	0	1020232..1020669	+	145	189499899	-	Cphamn1_0943	-	deoxyuridine 5'-triphosphate nucleotidohydrolase Dut
48.93	MEAN

4.12	STD DEV
