IslandPathversion 1.0

IslandPath Analysis: Chlorobium phaeobacteroides BS1

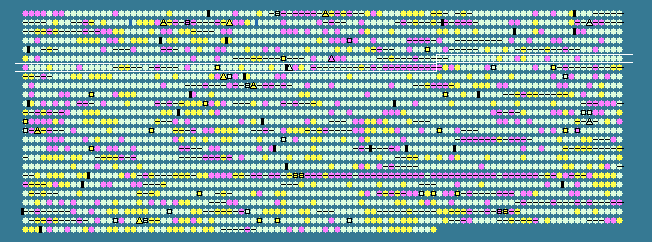

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
570	 47.85	0	633584..634024	-	146	189499570	-	Cphamn1_0600	-	Ribonuclease H
571	 46.12	0	634119..634337	-	72	189499571	-	Cphamn1_0601	-	ribosomal protein L28
572	 51.86	0	634425..635417	-	330	189499572	-	Cphamn1_0602	-	bacteriochlorophyll/chlorophyll synthetase
573	 52.22	0	635498..636535	-	345	189499573	-	Cphamn1_0603	-	anthranilate phosphoribosyltransferase
574	 50.52	0	636784..637848	+	354	189499574	-	Cphamn1_0604	-	peptidase M24
575	 47.49	0	637981..638319	+	112	189499575	-	Cphamn1_0605	-	CutA1 divalent ion tolerance protein
576	 49.10	0	638302..639474	-	390	189499576	-	Cphamn1_0606	-	DNA-directed DNA polymerase
577	 48.14	0	639580..640491	-	303	189499577	-	Cphamn1_0607	-	branched-chain amino acid aminotransferase
578	 49.17	0	640519..641724	-	401	189499578	-	Cphamn1_0608	-	phosphofructokinase
579	 50.04	0	642139..643407	+	422	189499579	-	Cphamn1_0609	-	protein of unknown function DUF214
580	 55.42	+1	643704..644183	-	159	189499580	-	Cphamn1_0610	-	2C-methyl-D-erythritol 2,4-cyclodiphosphate synthase
581	 52.30	0	644318..645445	+	375	189499581	-	Cphamn1_0611	-	hypothetical protein
582	 49.73	0	645737..646108	+	123	189499582	-	Cphamn1_0612	-	protein of unknown function DUF805
583	 43.39	-1	646226..646732	+	168	189499583	-	Cphamn1_0613	-	Protein of unknown function DUF1810
584	 57.25	+2	646659..647603	-	314	189499584	-	Cphamn1_0614	-	dihydroorotate dehydrogenase family protein
585	 49.48	0	647719..649830	-	703	189499585	-	Cphamn1_0615	-	alpha-glucan phosphorylase
586	 48.66	0	649983..650843	+	286	189499586	-	Cphamn1_0616	-	metallophosphoesterase
587	 49.60	0	650925..651422	-	165	189499587	-	Cphamn1_0617	-	Ferritin Dps family protein
588	 45.38	0	652069..652317	-	82	189499588	-	Cphamn1_0619	-	hypothetical protein
589	 52.31	0	652663..653637	+	324	189499589	-	Cphamn1_0620	-	hypothetical protein
590	 50.19	0	653661..653927	+	88	189499590	-	Cphamn1_0621	-	FeoA family protein
591	 50.44	0	653924..654151	+	75	189499591	-	Cphamn1_0622	-	FeoA family protein
592	 50.68	0	654151..656502	+	783	189499592	-	Cphamn1_0623	-	ferrous iron transport protein B
593	 45.18	0	656581..656808	+	75	189499593	-	Cphamn1_0624	-	hypothetical protein
594	 47.53	0	656974..657459	-	161	189499594	-	Cphamn1_0625	-	hypothetical protein
595	 49.16	0	657590..658006	+	138	189499595	-	Cphamn1_0626	-	Rieske (2Fe-2S) domain protein
596	 52.41	0	658016..658471	+	151	189499596	-	Cphamn1_0627	-	hypothetical protein
597	 49.06	0	658456..660312	-	618	189499597	-	Cphamn1_0628	-	Carbamoyl-phosphate synthetase large chain domain protein
598	 48.34	0	660405..661817	+	470	189499598	-	Cphamn1_0629	-	3,4-dihydroxy-2-butanone 4-phosphate synthase
599	 51.93	0	662118..663440	+	440	189499599	-	Cphamn1_0630	-	Glycine hydroxymethyltransferase
600	 47.75	0	663574..665466	-	630	189499600	-	Cphamn1_0631	-	DNA primase
601	 43.01	-1	665872..665964	+	30	189499601	-	Cphamn1_0632	-	hypothetical protein
602	 50.47	0	665977..666723	+	248	189499602	-	Cphamn1_0633	-	MotA/TolQ/ExbB proton channel
603	 50.94	0	666729..667262	+	177	189499603	-	Cphamn1_0634	-	hypothetical protein
604	 48.82	0	667264..667812	+	182	189499604	-	Cphamn1_0635	-	Biopolymer transport protein ExbD/TolR
605	 53.01	0	667846..668643	+	265	189499605	-	Cphamn1_0636	-	TonB family protein
606	 48.52	0	668710..668946	-	78	189499606	-	Cphamn1_0637	-	hypothetical protein
607	 51.68	0	668921..670114	-	397	189499607	-	Cphamn1_0638	-	acetylornithine and succinylornithine aminotransferase
608	 48.26	0	670217..670417	-	66	189499608	-	Cphamn1_0639	-	hypothetical protein
609	 51.05	0	670446..671732	-	428	189499609	-	Cphamn1_0640	-	FAD-dependent pyridine nucleotide-disulphide oxidoreductase
610	 44.77	-1	672072..672482	+	136	189499610	-	Cphamn1_0641	-	transcriptional regulator, BadM/Rrf2 family
611	 52.33	0	672502..673422	+	306	189499611	-	Cphamn1_0642	-	cysteine synthase
612	 47.30	0	673491..673712	+	73	189499612	-	Cphamn1_0643	-	thiamine biosynthesis protein ThiS
613	 50.12	0	673709..674941	+	410	189499613	-	Cphamn1_0644	-	O-acetylhomoserine aminocarboxypropyltransferase
614	 49.07	0	674938..675744	+	268	189499614	-	Cphamn1_0645	-	UBA/THIF-type NAD/FAD binding protein
615	 50.11	0	675766..676206	+	146	189499615	-	Cphamn1_0646	-	Mov34/MPN/PAD-1 family protein
616	 49.27	0	676196..676672	+	158	189499616	-	Cphamn1_0647	-	hypothetical protein
617	 53.01	0	676691..676939	+	82	189499617	-	Cphamn1_0648	-	SirA family protein
618	 53.29	+1	677707..679104	-	465	189499618	-	Cphamn1_0649	-	hypothetical protein
619	 47.36	0	679272..679877	+	201	189499619	-	Cphamn1_0650	-	hypothetical protein
620	 48.17	0	679882..680784	+	300	189499620	-	Cphamn1_0651	-	pentapeptide repeat protein
621	 49.76	0	681014..682249	+	411	189499621	-	Cphamn1_0652	-	hypothetical protein
622	 50.81	0	682246..683046	+	266	189499622	-	Cphamn1_0653	-	cytochrome c assembly protein
623	 44.83	0	683120..683380	-	86	189499623	-	Cphamn1_0654	-	hypothetical protein
624	 49.59	0	683562..685868	+	768	189499624	-	Cphamn1_0655	-	TonB-dependent receptor
625	 50.00	0	686052..686543	-	163	189499625	-	Cphamn1_0656	-	protein of unknown function DUF985
626	 51.81	0	686530..687054	-	174	189499626	-	Cphamn1_0657	-	phosphoribosylaminoimidazole carboxylase, catalytic subunit
627	 46.91	0	687175..688596	+	473	189499627	-	Cphamn1_0658	-	oxygen-independent coproporphyrinogen III oxidase
628	 45.10	0	688809..689522	+	237	189499628	-	Cphamn1_0659	-	phosphoribulokinase/uridine kinase
629	 50.00	0	689503..690072	+	189	189499629	-	Cphamn1_0660	-	nitroreductase
630	 49.31	0	690085..692037	-	650	189499630	-	Cphamn1_0661	-	ABC transporter-related protein
631	 47.31	0	692681..693517	+	278	189499631	-	Cphamn1_0662	-	hypothetical protein
632	 48.76	0	693528..694940	+	470	189499632	-	Cphamn1_0663	-	hypothetical protein
633	 56.51	+1	695049..696545	+	498	189499633	-	Cphamn1_0664	-	transposase, IS5 family, putative
634	 48.42	0	696520..697089	+	189	189499634	-	Cphamn1_0665	-	hypothetical protein
635	 47.56	0	697091..698137	+	348	189499635	-	Cphamn1_0666	-	Glutathione synthase
636	 51.79	0	698198..699373	-	391	189499636	-	Cphamn1_0667	-	succinyl-CoA synthetase, beta subunit
637	 54.35	+1	699637..700107	+	156	189499637	-	Cphamn1_0668	-	CMP/dCMP deaminase zinc-binding
638	 47.05	0	700572..701621	-	349	189499638	-	Cphamn1_0669	-	hypothetical protein
639	 49.53	0	702036..703301	-	421	189499639	-	Cphamn1_0670	-	2-nitropropane dioxygenase NPD
640	 48.79	0	703602..704345	+	247	189499640	-	Cphamn1_0671	-	phosphoglycerate mutase 1 family
641	 49.92	0	704467..709071	+	1534	189499641	-	Cphamn1_0672	-	Glutamate synthase (ferredoxin)
642	 52.64	0	709115..710590	+	491	189499642	-	Cphamn1_0673	-	glutamate synthase, NADH/NADPH, small subunit
643	 48.15	0	710678..710947	+	89	189499643	-	Cphamn1_0674	-	hypothetical protein
644	 51.90	0	710986..712299	+	437	189499644	-	Cphamn1_0675	-	ATP-dependent Clp protease, ATP-binding subunit ClpX
645	 47.57	0	712599..713771	+	390	189499645	-	Cphamn1_0676	-	integrase family protein
646	 45.20	0	713752..714720	+	322	189499646	-	Cphamn1_0677	-	hypothetical protein
647	 52.94	0	714877..715131	-	84	189499647	-	Cphamn1_0678	-	hypothetical protein
648	 49.53	0	715157..716545	-	462	189499648	-	Cphamn1_0679	-	Radical SAM domain protein
649	 44.44	-1	717054..717404	+	116	189499649	-	Cphamn1_0680	-	DNA binding domain protein, excisionase family
650	 48.77	0	717495..718142	+	215	189499650	-	Cphamn1_0681	-	Cobyrinic acid ac-diamide synthase
651	 45.56	0	718139..718408	+	89	189499651	-	Cphamn1_0682	-	hypothetical protein
652	 45.98	0	718412..718846	+	144	189499652	-	Cphamn1_0683	-	hypothetical protein
653	 46.74	0	718843..719424	+	193	189499653	-	Cphamn1_0684	-	conjugal transfer protein precursor
654	 50.75	0	719578..721506	+	642	189499654	-	Cphamn1_0685	-	hypothetical protein
655	 48.75	0	721511..723781	+	756	189499655	-	Cphamn1_0686	-	TRAG family protein
656	 48.95	0	723778..724206	+	142	189499656	-	Cphamn1_0687	-	hypothetical protein
657	 55.70	+1	724335..725264	+	309	189499657	-	Cphamn1_0688	-	P-type conjugative transfer ATPase TrbB
658	 49.14	0	725321..726073	-	250	189499658	-	Cphamn1_0689	-	hypothetical protein
659	 45.45	0	726045..726836	-	263	189499659	-	Cphamn1_0690	-	hypothetical protein
660	 46.26	0	726967..727314	-	115	189499660	-	Cphamn1_0691	-	mobilizable transposon, xis protein
661	 43.72	-1	727395..727808	+	137	189499661	-	Cphamn1_0692	-	hypothetical protein
662	 44.44	-1	727789..728004	-	71	189499662	-	Cphamn1_0693	-	hypothetical protein
663	 42.34	-1	728604..729347	+	247	189499663	-	Cphamn1_0694	-	Serine/threonine protein phosphatase-like protein
664	 42.77	-1	729493..730170	+	225	189499664	-	Cphamn1_0695	-	hypothetical protein
665	 44.31	-1	730260..731243	+	327	189499665	-	Cphamn1_0696	-	CheD
666	 45.08	0	731444..732337	+	297	189499666	-	Cphamn1_0697	-	inner-membrane translocator
667	 44.25	-1	732361..733203	+	280	189499667	-	Cphamn1_0698	-	inner-membrane translocator
668	 44.83	0	733207..734067	+	286	189499668	-	Cphamn1_0699	-	ABC transporter-related protein
669	 43.89	-1	734064..734783	+	239	189499669	-	Cphamn1_0700	-	ABC transporter-related protein
48.93	MEAN

4.12	STD DEV
