IslandPath Analysis: Chlorobium phaeobacteroides BS1

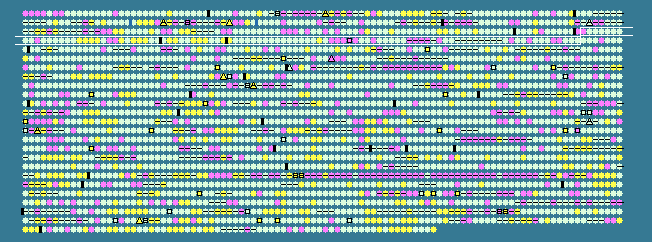

Each circle in the graphic corresponds to a predicted protein-coding ORF in the genome. Circle colours indicate if an ORF has a higher or lower %G+C than cutoffs you set below --(default is +/- 3.48 of the mean %G+C). Strike lines across the circles represent regions with dinucleotide bias above a pre-determined cutoff. Click on a circle to view a different portion of the table presented below the graph (default is the first 100 ORFs).
A yellow circle indicates its %G+C value is bigger than the high value. A green circle indicates its %G+C value is bigger than the low value and smaller than the high value. A pink circle indicates its %G+C value is smaller than the low value. A strike line across the circles indicates the region has dinucleotide bais above 1 STD DEV. A black verticle bar indicates a transfer RNA gene lies between the two ORFs. A purple verticle bar indicates a ribosomal RNA gene lies between the two ORFs. A deep blue verticle bar indicates both a tRNA and rRNA gene lie between the two ORFs. A black square indicates the dot is annotated as a transposase. A black triangle indicates the dot is annotated as an integrase. Low: High: Mean: 48.93 STD DEV: 4.12
Chlorobium phaeobacteroides BS1, complete genome - 1..2736403
2469 proteins
Pos	%G+C	SD	Location	Strand	Length	PID	Gene	Synonym	Code	Product
294	 45.36	0	312254..312835	+	193	189499294	-	Cphamn1_0314	-	NusG antitermination factor
295	 51.41	0	312878..313303	+	141	189499295	-	Cphamn1_0315	-	ribosomal protein L11
296	 49.57	0	313377..314066	+	229	189499296	-	Cphamn1_0316	-	ribosomal protein L1
297	 46.93	0	314084..314605	+	173	189499297	-	Cphamn1_0317	-	ribosomal protein L10
298	 47.77	0	314674..315054	+	126	189499298	-	Cphamn1_0318	-	ribosomal protein L7/L12
299	 48.84	0	315255..319163	+	1302	189499299	-	Cphamn1_0319	-	DNA-directed RNA polymerase, beta subunit
300	 49.59	0	319234..323730	+	1498	189499300	-	Cphamn1_0320	-	DNA-directed RNA polymerase, beta' subunit
301	 50.45	0	324080..325423	-	447	189499301	-	Cphamn1_0321	-	acetyl-CoA carboxylase, biotin carboxylase
302	 47.68	0	325442..325915	-	157	189499302	-	Cphamn1_0322	-	acetyl-CoA carboxylase, biotin carboxyl carrier protein
303	 44.87	0	325966..326667	-	233	189499303	-	Cphamn1_0323	-	translation elongation factor P
304	 49.08	0	326751..327023	+	90	189499304	-	Cphamn1_0324	-	histone family protein DNA-binding protein
305	 47.92	0	327119..328126	+	335	189499305	-	Cphamn1_0325	-	acetyl-CoA carboxylase, carboxyl transferase, alpha subunit
306	 51.99	0	328308..329336	-	342	189499306	-	Cphamn1_0326	-	thiamine pyrophosphate protein domain protein TPP-binding
307	 50.72	0	329340..331283	-	647	189499307	-	Cphamn1_0327	-	pyruvate flavodoxin/ferredoxin oxidoreductase domain protein
308	 46.67	0	331415..331684	-	89	189499308	-	Cphamn1_0328	-	hypothetical protein
309	 47.23	0	331897..332565	-	222	189499309	-	Cphamn1_0329	-	hypothetical protein
310	 54.00	+1	332767..335427	+	886	189499310	-	Cphamn1_0330	-	alanyl-tRNA synthetase
311	 54.95	+1	335440..335934	+	164	189499311	-	Cphamn1_0331	-	4Fe-4S ferredoxin iron-sulfur binding domain protein
312	 54.52	+1	336186..336992	-	268	189499312	-	Cphamn1_0332	-	short-chain dehydrogenase/reductase SDR
313	 55.29	+1	337284..338927	+	547	189499313	-	Cphamn1_0333	-	N-6 DNA methylase
314	 48.80	0	338924..340216	+	430	189499314	-	Cphamn1_0334	-	restriction modification system DNA specificity domain
315	 44.59	-1	340213..341988	+	591	189499315	-	Cphamn1_0335	-	hypothetical protein
316	 45.19	0	341981..343405	+	474	189499316	-	Cphamn1_0336	-	Piwi domain protein
317	 54.16	+1	343420..347457	+	1345	189499317	-	Cphamn1_0337	-	type I site-specific deoxyribonuclease, HsdR family
318	 51.78	0	347461..347769	+	102	189499318	-	Cphamn1_0338	-	protein of unknown function DUF45
319	 60.92	+2	348205..348552	+	115	189499319	-	Cphamn1_0339	-	transcriptional regulator, XRE family
320	 52.78	0	350412..351650	-	412	189499320	-	Cphamn1_0341	-	phosphoserine phosphatase SerB
321	 52.94	0	351647..353191	-	514	189499321	-	Cphamn1_0342	-	GMP synthase, large subunit
322	 50.24	0	353217..355541	-	774	189499322	-	Cphamn1_0343	-	penicillin-binding protein, 1A family
323	 48.22	0	355538..356464	-	308	189499323	-	Cphamn1_0344	-	alpha/beta hydrolase fold
324	 47.56	0	356872..357342	+	156	189499324	-	Cphamn1_0345	-	transcription activator effector binding
325	 54.34	+1	357617..359101	+	494	189499325	-	Cphamn1_0346	-	amine oxidase
326	 52.73	0	359303..360565	+	420	189499326	-	Cphamn1_0347	-	hypothetical protein
327	 52.19	0	361058..361789	+	243	189499327	-	Cphamn1_0349	-	hypothetical protein
328	 51.15	0	361810..362202	+	130	189499328	-	Cphamn1_0350	-	hypothetical protein
329	 53.86	+1	362207..363034	+	275	189499329	-	Cphamn1_0351	-	dTDP-4-dehydrorhamnose reductase
330	 56.22	+1	363131..363877	+	248	189499330	-	Cphamn1_0352	-	hypothetical protein
331	 55.65	+1	363884..365254	+	456	189499331	-	Cphamn1_0353	-	cobyrinic acid a,c-diamide synthase
332	 51.38	0	365322..365792	-	156	189499332	-	Cphamn1_0354	-	hypothetical protein
333	 48.75	0	366156..368717	+	853	189499333	-	Cphamn1_0355	-	ATPase AAA-2 domain protein
334	 53.74	+1	369040..370431	-	463	189499334	-	Cphamn1_0356	-	pyridoxal-phosphate dependent TrpB-like enzyme
335	 55.08	+1	370824..371798	+	324	189499335	-	Cphamn1_0357	-	lipopolysaccharide heptosyltransferase II
336	 51.40	0	371849..372916	-	355	189499336	-	Cphamn1_0358	-	thiamine-monophosphate kinase
337	 47.83	0	372994..373938	+	314	189499337	-	Cphamn1_0359	-	signal recognition particle-docking protein FtsY
338	 49.83	0	374291..374884	-	197	189499338	-	Cphamn1_0360	-	hypothetical protein
339	 51.43	0	374949..375611	+	220	189499339	-	Cphamn1_0361	-	protein-L-isoaspartate O-methyltransferase
340	 49.91	0	375704..377809	+	701	189499340	-	Cphamn1_0362	-	PpiC-type peptidyl-prolyl cis-trans isomerase
341	 48.09	0	377815..379590	-	591	189499341	-	Cphamn1_0363	-	phosphoenolpyruvate-protein phosphotransferase
342	 49.84	0	379663..381243	-	526	189499342	-	Cphamn1_0364	-	replicative DNA helicase
343	 48.01	0	381295..381921	-	208	189499343	-	Cphamn1_0365	-	phage SPO1 DNA polymerase-related protein
344	 48.29	0	382198..383427	-	409	189499344	-	Cphamn1_0366	-	phosphopantothenoylcysteine decarboxylase/phosphopantothenate/cysteine ligase
345	 48.25	0	383584..388068	-	1494	189499345	-	Cphamn1_0367	-	hypothetical protein
346	 49.90	0	388875..389363	-	162	189499346	-	Cphamn1_0368	-	rfaE bifunctional protein
347	 46.75	0	389634..390542	+	302	189499347	-	Cphamn1_0369	-	lipid A biosynthesis acyltransferase
348	 47.76	0	390748..391752	+	334	189499348	-	Cphamn1_0370	-	lipopolysaccharide biosynthesis protein
349	 48.93	0	391883..393697	+	604	189499349	-	Cphamn1_0371	-	polysaccharide biosynthesis protein CapD
350	 53.15	+1	393927..395324	-	465	189499350	-	Cphamn1_0372	-	hypothetical protein
351	 48.01	0	395590..397374	+	594	189499351	-	Cphamn1_0373	-	ABC transporter-related protein
352	 45.40	0	397408..398037	+	209	189499352	-	Cphamn1_0374	-	hypothetical protein
353	 41.84	-1	398088..399239	+	383	189499353	-	Cphamn1_0375	-	glycosyl transferase group 1
354	 36.94	-2	399302..399661	+	119	189499354	-	Cphamn1_0376	-	hypothetical protein
355	 45.15	0	399861..400850	-	329	189499355	-	Cphamn1_0377	-	transposase IS4 family protein
356	 42.41	-1	401520..402059	+	179	189499356	-	Cphamn1_0379	-	hypothetical protein
357	 46.15	0	402174..403070	+	298	189499357	-	Cphamn1_0380	-	glycosyl transferase family 2
358	 46.83	0	403122..404225	+	367	189499358	-	Cphamn1_0381	-	glycosyl transferase group 1
359	 44.49	-1	404393..405772	+	459	189499359	-	Cphamn1_0382	-	hypothetical protein
360	 49.73	0	405769..406890	+	373	189499360	-	Cphamn1_0383	-	glycosyl transferase group 1
361	 49.75	0	406890..407498	+	202	189499361	-	Cphamn1_0384	-	sugar transferase
362	 50.64	0	407505..409538	-	677	189499362	-	Cphamn1_0385	-	NAD-dependent epimerase/dehydratase
363	 50.43	0	409799..410962	+	387	189499363	-	Cphamn1_0386	-	Glutamine--scyllo-inositol transaminase
364	 46.09	0	411054..412958	+	634	189499364	-	Cphamn1_0387	-	ABC transporter-related protein
365	 44.90	0	413006..413818	-	270	189499365	-	Cphamn1_0388	-	glycosyl transferase family 2
366	 43.94	-1	415573..416298	-	241	189499366	-	Cphamn1_0390	-	glycosyl transferase family 2
367	 40.46	-2	416277..417356	-	359	189499367	-	Cphamn1_0391	-	glycosyl transferase family 9
368	 39.01	-2	417349..418545	-	398	189499368	-	Cphamn1_0392	-	O-antigen polymerase
369	 47.92	0	418891..419829	+	312	189499369	-	Cphamn1_0393	-	Abortive infection protein
370	 42.00	-1	420019..420168	-	49	189499370	-	Cphamn1_0394	-	hypothetical protein
371	 46.88	0	420215..421048	+	277	189499371	-	Cphamn1_0395	-	phosphatidate cytidylyltransferase
372	 46.92	0	421151..421621	+	156	189499372	-	Cphamn1_0396	-	putative PTS IIA-like nitrogen-regulatory protein PtsN
373	 49.73	0	421919..423223	+	434	189499373	-	Cphamn1_0397	-	histidyl-tRNA synthetase
374	 49.26	0	423292..423561	+	89	189499374	-	Cphamn1_0398	-	glutaredoxin 2
375	 45.54	0	423748..423960	+	70	189499375	-	Cphamn1_0399	-	hypothetical protein
376	 48.62	0	424099..424641	+	180	189499376	-	Cphamn1_0400	-	protein of unknown function DUF150
377	 45.98	0	424695..426260	+	521	189499377	-	Cphamn1_0401	-	NusA antitermination factor
378	 48.98	0	426304..429039	+	911	189499378	-	Cphamn1_0402	-	translation initiation factor IF-2
379	 47.01	0	429132..429482	+	116	189499379	-	Cphamn1_0403	-	ribosome-binding factor A
380	 46.75	0	429585..430307	+	240	189499380	-	Cphamn1_0404	-	tRNA pseudouridine synthase B
381	 48.55	0	430315..431280	+	321	189499381	-	Cphamn1_0405	-	riboflavin biosynthesis protein RibF
382	 42.22	-1	431327..431596	+	89	189499382	-	Cphamn1_0406	-	ribosomal protein S15
383	 47.18	0	431686..432573	+	295	189499383	-	Cphamn1_0407	-	domain of unknown function DUF1732
384	 45.49	0	432741..433316	+	191	189499384	-	Cphamn1_0408	-	Guanylate kinase
385	 44.92	0	433331..433684	+	117	189499385	-	Cphamn1_0409	-	hypothetical protein
386	 46.67	0	433665..434159	+	164	189499386	-	Cphamn1_0410	-	Glyoxalase/bleomycin resistance protein/dioxygenase
387	 46.88	0	434199..434951	-	250	189499387	-	Cphamn1_0411	-	Nucleotidyl transferase
388	 47.92	0	435106..435489	-	127	189499388	-	Cphamn1_0412	-	aspartate 1-decarboxylase
389	 44.68	-1	435587..436141	-	184	189499389	-	Cphamn1_0413	-	protein of unknown function DUF1239
390	 41.62	-1	436159..436749	-	196	189499390	-	Cphamn1_0414	-	outer membrane chaperone Skp (OmpH)
391	 50.22	0	436954..438102	-	382	189499391	-	Cphamn1_0415	-	DNA protecting protein DprA
392	 49.25	0	438092..439090	-	332	189499392	-	Cphamn1_0416	-	Polyprenyl synthetase
393	 48.32	0	439098..440171	-	357	189499393	-	Cphamn1_0417	-	isopentenyl-diphosphate delta-isomerase, type 2
48.93	MEAN

4.12	STD DEV
